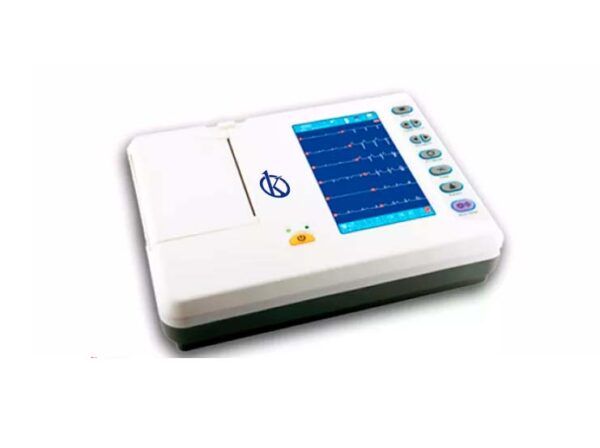

6 Channel Smart Hospital ECG Manufacturing Machine Monitoring Dynamic Holter ECG Systems YR05161

Manufacturer: Kalstein

Description

This new 6-channel YR ECG will bring you the power of advanced and easy-to-use technologies, multiple forms of data management, as well as accurate measurements and interpretations, which can improve the diagnostic confidence of cardiologists.

Technical description
Model YR05161
Guide 12 standard conductors
Input dynamic range ± 10Vpp
Patient current leak <10μA
Calibration Voltage 1mV ± 2%
Tension Tolerance : ≥ ± 500mV
Time constant ≥3.2s
Frequency response 0.05 ~ 160Hz (-3db)
Noise level <15μVp-p
Input circuit current 0.050.05 μA
Sensitivity 2.5, 5.10, 20mm / mV
Interchannel interference ≤0.5mm
Paper speed 6.25,12.5, 25.50mm / s (± 3%)
Patient current leak <10μA
AC filter 50Hz / 60Hz
EMG filters 25Hz / 45Hz
Anti-drift filter 0.15 Hz (adaptive)
CMMR ≥120dB (with AC filter)
Sensitivity Valve ≤20μV
Input impedance ≥50MΩ
Work Modes MAN, AUTO, ANALYSIS modes
Acquisition of Potential Customers 12 bits / 1000 Hz (synchronously 12 leads)
Input Circuit floating; protection circuit against defibrillator effect
Screen 7 inch LCD

Additional information

Weight 8 kg
Dimensions 21 × 40 × 34 cm
