Benchtop Top Press Lab Freeze Dryer YR05187

Manufacturer: Kalstein

Description

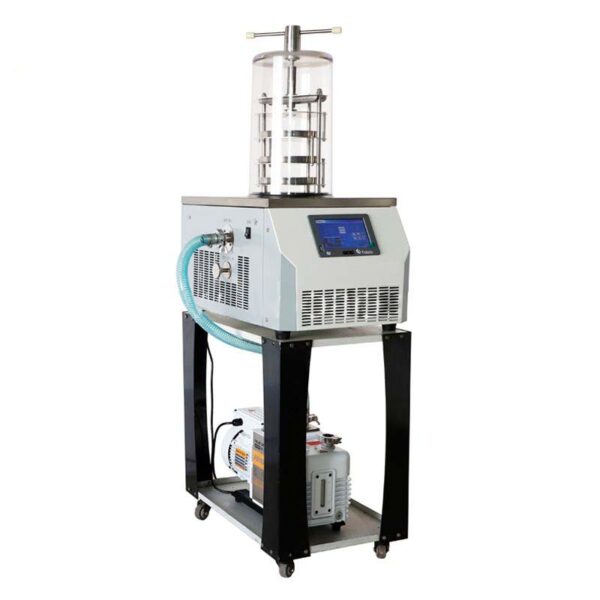

YR05187 Freeze Dryer is suitable for freeze-drying experiment in laboratory. It is bench top top-press equipment

Freeze dryer is widely used in medicine, pharmacy, biology research, chemical industry and food production ,etc. After the freeze drying process,a long term preservation for products is much easier. They can be restored to the original state and maintain their chemical and biological characteristics after being watered.

The vacuum freezing drying techinology, which is also called sublimation drying, is a technical method that freezes the samples in advance, and then sublimates its moisture in the vacuum state.

Features
  •  CFC Free refrigeration
  • LCD display drying curves, English interface
  • Big opening of condenser, condenser with pre-freezing function
  • low noise compressor, good efficiency,long service life
  • Condenser and operation panel are all stainless steel
  • Drying Chamber with organic glass is safe and visible
  • Shelf and tray are stainless steel, tray spacing can be customized
  • Small volume , easy and convenient operation
  • Nitrogen valve is optional
  • Eutectic point test device is optional
  • Communication interface is optional
  • Cascade refrigeration is optional , applied for -80℃ device
Technical Description
Model YR05187
Freeze drying area 0.08㎡
Condenser capacity 3-4 L /24h
Condenser temperature -55℃ (-80 ℃ optioanl)
Vacuum degree < 10 Pa
Material tray ¢180mm, 3 layers
Bulk capacity 0.8 L, 10mm thickness
Vial capacity Φ12mm 560 pcs
Vial capacity Φ16mm 285 pcs
Vial capacity Φ22mm 165 pcs
Style of press By hand
Cooling Air,draughty,ambient temperature ≤25℃
Voltage 220V ,50 Hz;   110V, 50Hz;  110V, 60Hz
Power 700W
Host dimension 460*625*(370+465) mm
Host weight 41 kg

Additional information

Weight 104 kg
Dimensions 76 × 54,5 × 66 cm
