Multi-parameter Veterinary Monitor YR06105

ManufacturerKalstein

Description

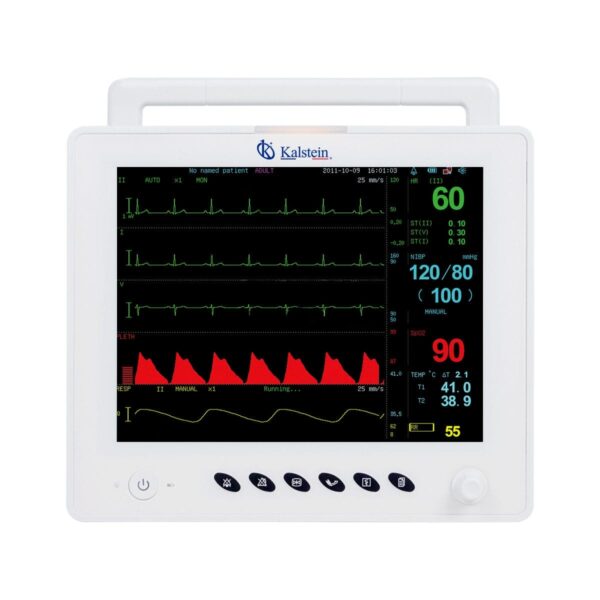

YR06105 is the latest portable multi-parameter veterinary monitor manufactured by Kalstein. With its large 12.1-inch flat screen display, YR06105 provides overall and accurate vital signs monitoring, including 3 or 5 lead ECG, pulse oximetry, non-invasive blood pressure, respiration, temperature, invasive blood pressure IBP, end-tidal CO2, anesthetic gas AG, cardiac output CO, etc., and it may also provide built-in thermal recorder and rechargeable Li-battery to support long-term emergency workings.

Features
  • Classic size: 12.1-inch flat screen viewing, high brightness and high resolution color LCD display.
  • Full parameter monitoring: YR06105 provides overall multi-parameter monitoring for animals, including ECG, pulse oximetry, blood pressure, respiration, temperature, invasive blood pressure IBP, end-tidal CO2, anesthetic gas AG, cardiac output CO, etc.
  • Multiple display modes: Large font mode, dynamic breathing oxygenation map, dynamic trend graph, eight-channel waveform display, built-in 9 display modes and customized 5 modes. You’ll have the best choice among them.
  • Large storage & playback: Up to 15 days (360 hours) large storage, uninterrupted recording of trend data, parameter waveforms reviewed and USB exported, so you may save patients’ case data properly.
  • Ergonomic design: Unique streamlined appearance, foldable handles for easy carrying, and flexible application solutions for desktop, wall mounting, mobile trolley or cage hooks.
  • Built-in rechargeable Li-battery: The low-power rechargeable Li-battery supports long-term mobile monitoring and emergency situations.
Technical Specifications
Model YR06105
ECG
Input 3-lead/5-lead ECG cable
Lead selection I, II, III, AVR, AVL, AVF, V
Gain selection x1/4, x1/2, x1, x2, x4 and automatic
Sweep speed 3.125, 6.25, 12.5, 25, 50mm/s
Measurement range 15bpm~380bpm
Calibration ±1 mv
Accuracy ±1%
NIBP
Philosophy Oscillometric method
Measurement parameter Systolic, Diastolic, Mean
Measurement method Manual, Automatic, Continuous measurement
Unit mmHg/kPa selection
Accuracy ±3mmHg or ±2%
SpO2
Display type Waveform, Data
Measurement range 0~100%
Accuracy 1%
Pulse rate range 30~250bpm
Accuracy ±1 bpm
Resolution 1 bpm
Temperature
Number of channels 2
Measurement range 0°C ~ 50°C
Resolution 0.1°C
Display T1, T2, ΔT
Unit °C/°F selection
Power
Working voltage 100~240VAC, 50/60Hz
Power rate 80 VA
Battery backup 3 hours as option

Additional information

Weight 8 kg
Dimensions 45 × 38 × 32 cm
