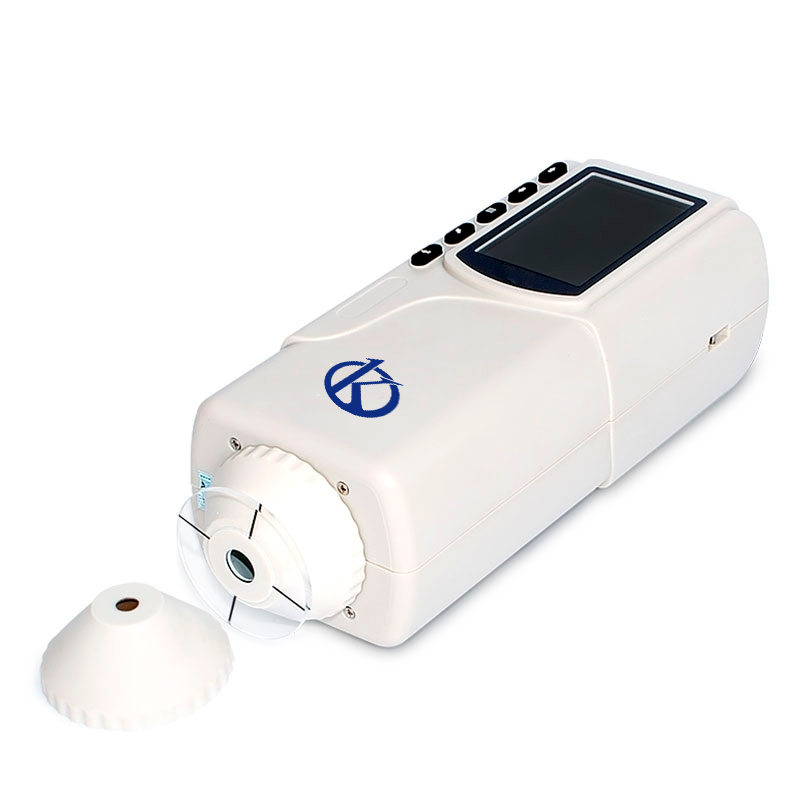

Precision Colorimeter YR05509

ManufacturerKalstein

Description

Kalstein team concentrates on customer needs and develops a new serie YR05509 // YR05513 with high precision & low cost & two apertures, and Φ4mm tip aperture, suitable for most samples use. With color space CIE LAB, R05509 // YR05513 is good to check color difference for delta E, and widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories.
Product Advantages
  • Built-in white plate parameters. No need to calibrate each time which realize rapid measurement.
  • Double Apertures: Φ8mm flat aperture and Φ4mm tip aperture for switch, easy to measure concave sample in large plane.
  • Equipped with rechargeable built-in high-capacity Li-ion battery. No need to purchase battery repeatedly.
  • Handheld design: small and convenient; make the measurement easier.
  • Exquisite appearance: adopts traditional and fashionable aesthetic designs.
  • High cost performance: large output, good quality, cheap products.
Technical Specifications
Model YR05509
Illuminating/Viewing Geometry: 8°/ d
Light Source: LED Light
Sensor:  silicon photodiode array
Measuring aperture: Φ8mmflat aperture; Φ4mmtip aperture
Color Space: CI E L AB,XYZ,LCh,CI E RGB,CI E LUV
Color Difference Formula: ΔE* ab, ΔE( h) , ΔE* uv,ΔE* 94, ΔE*cmc ( 2: 1) , ΔE*cmc ( 1: 1) , ΔE* 00
Other Chromaticity Data:  WI ( E313,CI E, AATCC,Hunt er ),YI ( D1925,313),Color Fastness,  Staining Fastness, J PC79,BFD( 1. 5: 1),FMCI I
Observer:  CI E 10°
Illuminant:  D65,A,C,D50,F2,F6,F7,F8,F10,F11,F12
Display Data: Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset,
Measuring Time: 0. 4s
Repeatability: ΔE* ab 0. 03 (Average of 30 measurements of standard white plate within 5s)
Errors between each instrument:  within Delta E*ab 0.2
Dimension:  205*67*80mm
Weight:  500g
Battery: rechargeable lithium-ion battery 3. 7V @ 3200mAh
Lamp Life: 5 years, more than 1.6 million measurements
Screen:  TFT 2.8 inch(16: 9)
Interface: USB/ RS- 232
Storage: 100 Standards, 20000 Samples
Operating Temperature: 0~40℃(32~104°F)
Storage temperature: -20~50℃(-4~122°F)
PC software: CQCS3 software
Optional accessory: miniature thermal printer, powder test box

Additional information

Weight 3 kg
Dimensions 34 × 13 × 29 cm
