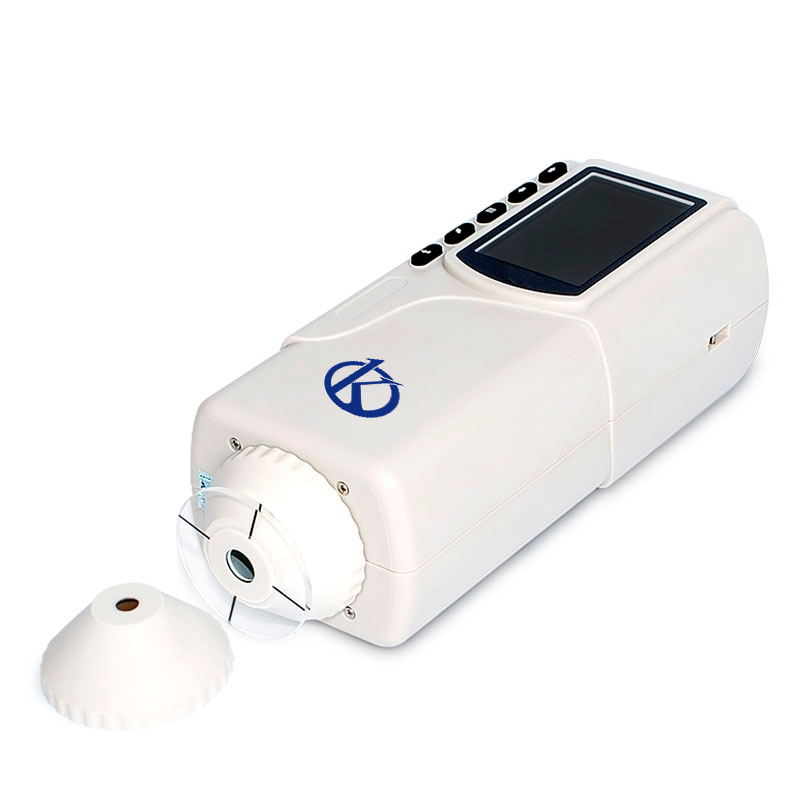

Precision Colorimeter YR05510

ManufacturerKalstein

Description

Kalstein team concentrates on customer needs and develops a new serie YR05509 // YR05513 with high precision & low cost & two apertures, and Φ4mm tip aperture, suitable for most samples use. With color space CIE LAB, YR05509 // YR05513 is good to check color difference for delta E, and widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories.
Product Advantages
  • Built-in white plate parameters. No need to calibrate each time which realize rapid measurement.
  • Double Apertures: Φ8mm flat aperture and Φ4mm tip aperture for switch, easy to measure concave sample in large plane.
  • Equipped with rechargeable built-in high-capacity Li-ion battery. No need to purchase battery repeatedly.
  • Handheld design: small and convenient; make the measurement easier.
  • Exquisite appearance: adopts traditional and fashionable aesthetic designs.
  • High cost performance: large output, good quality, cheap products.
Technical Specifications
Model YR05510
 Illuminating/Viewing Geometry 45°/0°
Measuring Aperture  Φ20mm
 Special Function Especially suitable for testing surface stripe and wet products
 Locating Illumination Locating/Cross Locating
 Detector Silicon photoelectric diode
 Locating Illuminating Locating/Cross Locating
 Color Space CIEL*a*b*C*h*; CIEL*a*b*; CIEXYZ
 Color Difference Formula △E*ab; △L*a*b*; △E*C*h*
Light Source   D65
Light Source Device  LED blue light excitation
 Errors Between Each ≤0.50ΔE*ab
Equipment
 Storage 100pcs standards 20000pcs samples
 Repeatability Standard deviation within ΔE*ab 0.08  Average of 30 measurements of standard white plate
 Weight  500g
 Dimension 205×67×80 mm
 Power source Rechargeable lithium-ion battery 3.7V@3200mAh
 Lamp Life 5 years, more than 1.6 million measurements
 Charging Time First charging time is 8 hours–100% electricity
 PC Software CQCS3 Software
 Printer (optional) Miniature thermal printer

Additional information

Weight 2 kg
Dimensions 28 × 15 × 35 cm
