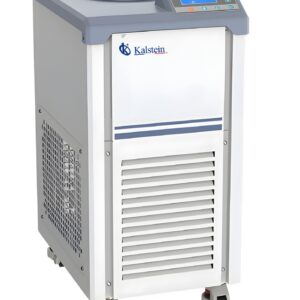

Recirculating Chiller YR02297 // YR02300

Manufacturer: Kalstein

Description

This series of chiller is usually used to provide constant low temperature condition for inspections, chemical, biological and physical experiments which need to be carried on under low temperature, mainly used for medicine and health care, food process, chemical industry and teaching in colleges and research institutes.

Advantages
  • Applications in Chemistry and Biology, like Atomic absorption, ICP-MS, Nuclear Magnetic Resonance, biological fermenter, chemical reaction vessel ( synthetic vessel) etc.
  • Material Area: Electron Microscopy, X-ray diffraction, X fluorescence, Magnetron sputtering, vacuum coating machine, Laser machine etc.
  • Equipped with world famous brand compressor, ensure low noise, high reliability, stable performance and long life span.
  • High performance circulating pump or imported high pressure vane pump with stable and reliable quality. Pump pressure is adjustable.
  • Completely closed circulation system prevents bath fluid from evaporation or contamination.
  • Built-in filters in circulation hose avoids possible blockage.
  • Environmental friendly CFC-free refrigerant meets international standards.
  • Compact design with good-looking appearance
  • Designed with liquid level monitor, which make it easier to check the bath fluid left in the tank.
  • Pressure of bath fluid can be measured by the pressure gauge which is fixed near the fluid outlet.
  • Variable models to meet customer’s different requirements.
  • Removable side panels for quick and easy cleaning and maintenance.}
Technical Description
Model YR02297 YR02298 YR02299 YR02300
Working Temperature Range -30 ~ 5’C
Temperature Stability ± 2°C ± 2’C
Power Supply 220-240V~, 50/60Hz 3~, 380V, 50Hz
Rated power 1070 1475 1275 1475
Cooling Capacity

(W)

0°C 1250 1750 2800 6000
-10°C 800 1100 1800 4000
-20°C 300 700 1000 2500
-25°C 150 300 500 7100
Refrigerant R410A R404A
Bath Fluid Filling Volume ( L) 10 17 30 40
Circulating Pump Flow Rate 20L/min 30L/min
Pressure (bar) 0.4 1
Hase Connection Size 1 / 2″ 3 / 4″
Dimensions ( mm ) 435Wx 6900 x 720H 465W x 6900 x 820H 495W x 760D x 860H 650W x 10550 x 1070H
Net Weight ( Kg) 70 80 100 195

Additional information

Weight N/A
Dimensions N/A
Model

YR02297, YR02298, YR02299, YR02300
