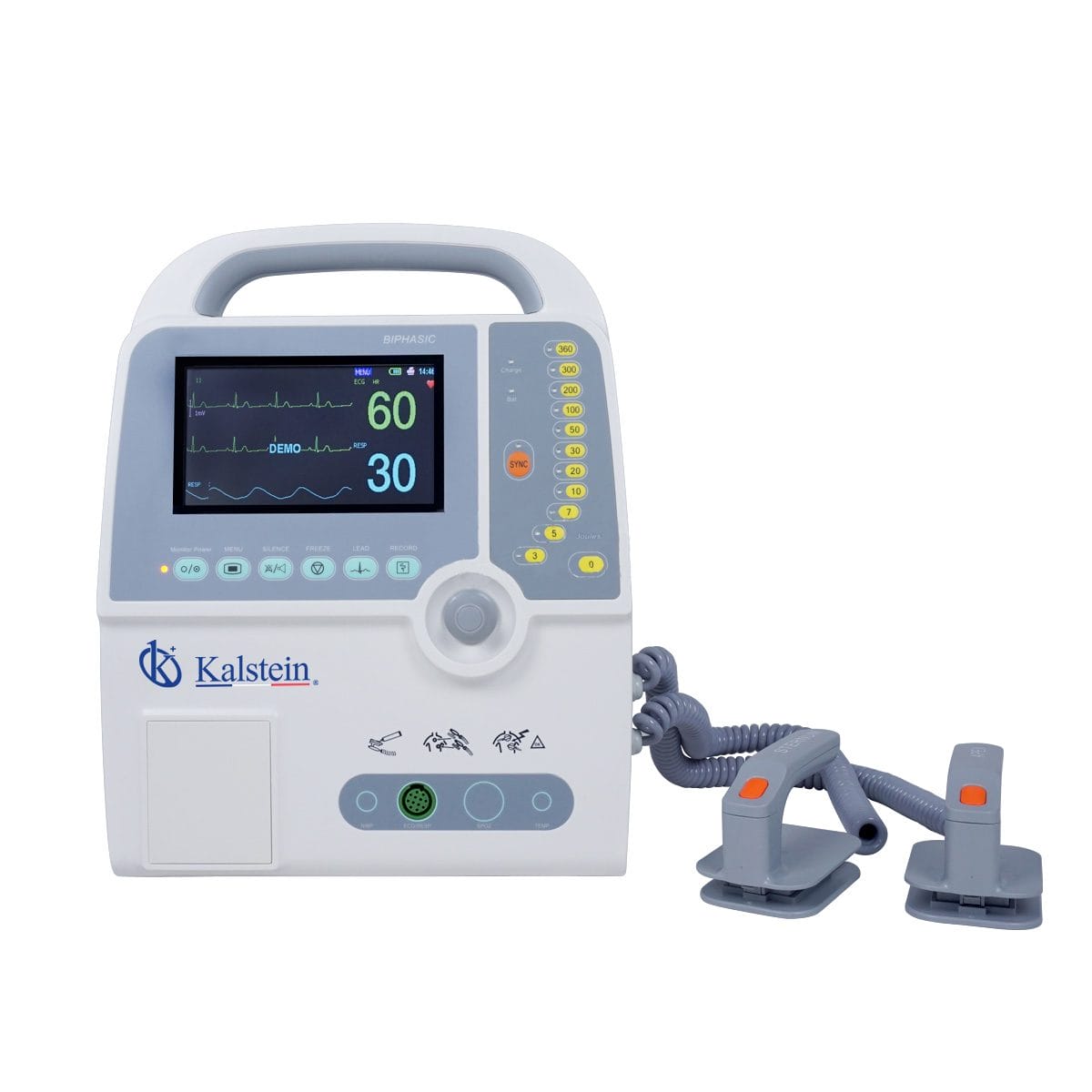

Veterinary Defibrillator Monitor (Biphasic) YR06111

ManufacturerKalstein

Description

Add built-in recorder as standard configuration. Defibrillation discharge trigger recording

Add Li-ion battery as standard configuration

Add SpO2 module as optional configuration

Voice prompt

ECG waveform via paddle electrode

Heart Rate, Lead, Alarm On/Off, Delivered Energy Displayed on a screen

Technical Specifications
Model YR06111
Display
Screen Type High-resolution display, TFT color display
Screen Size 7 inches (17.7cm) diagonally
Sweep Speed 12.5/25/50mm/sec
Information Heart Rate, Lead, Alarm On/Off, Delivered Energy
Resolution 800×480
ECG
Patient Connection 3-lead ECG cable, or 5-lead ECG cable, paddles
Lead Selection Displayed on monitor, paddles, I, II, III, AVR, AVL, AVF, V
ECG Size 2.5,5, 10, 20, 30 mm/mV display on monitor
Heart Rate 20-350BPM
Protection With stand 4000vAc/50Hz voltage in isolation and work against electrosurgical knife and defibrillation
Defibrillator
Waveform Biphasic
Defibrillator type Manual External Synchronous/Asynchronous Defibrillation
Charge Time Less than 10 seconds to 360 Joules
Energy Display Monitor display indicates both selected and delivered energy
Charge Prompt Type Voice and visual prompts
Energy Selection Selectable at 0, 3, 5, 7, 10, 20, 30, 50, 100, 200, 300, 360 joules
Standard Adult/Pediatric Paddles Reusable external adult paddles (pediatric paddles integrated)
Battery Description
Standard Type Li-ion battery Li1104c 11.1Vdc 4000mAh X2
Standard Capacity Up to 10 hours ECG monitoring or 60 full-energy discharges
Low Battery Indicator Flashing low battery icon on display and Bat Indicator on the panel of defi-monitor be on
Recharge Rate 80% in 3 hours. 100% in 5 hours
Built-in Recorder
Paper 50mm thermal
Printing Method
High-resolution, thermal print head
Record date, time, sweep speed, waveform gain, heart rate, energy (joule) and ECG waveform
Print mode
HR exceed limits alarm recording
Auto timed recording
Real-Time Recording
Defibrillation discharge trigger recording
Power
AC-DC dual-use Use the batteries, AC 100V~240V, 50/60Hz
Vehicle Voltage (Option) DC 12V

Additional information

Weight 14 kg
Dimensions 57 × 48 × 40 cm
