Anaesthetic Machine
Anesthesia Machines are medical equipment that guarantee the supply of an exact amount of anesthetic gas to a patient during a surgical process, with the aim that their health is not compromised. They provide safe, adequate, programmed and continuous or intermittent administration of oxygen, medical gases and anesthetic agents; allowing spontaneous or controlled ventilation of the patient.
Anesthesia Machine provides an affordable and flexible anesthesia solution for now and the future. Our customers can start with routine application. The anesthesia machine is upgradeable to better meet customers’ anesthetic requirements. Modern anesthetic workstation expansion is also feasible to greatly improve the workflow and cut down the operating cost. YR anesthesia machines can be used for inhalational anesthesia delivery and management for adult, pediatric and neonatal patients.
Types of Anaesthesia Machines for the Medical Sector

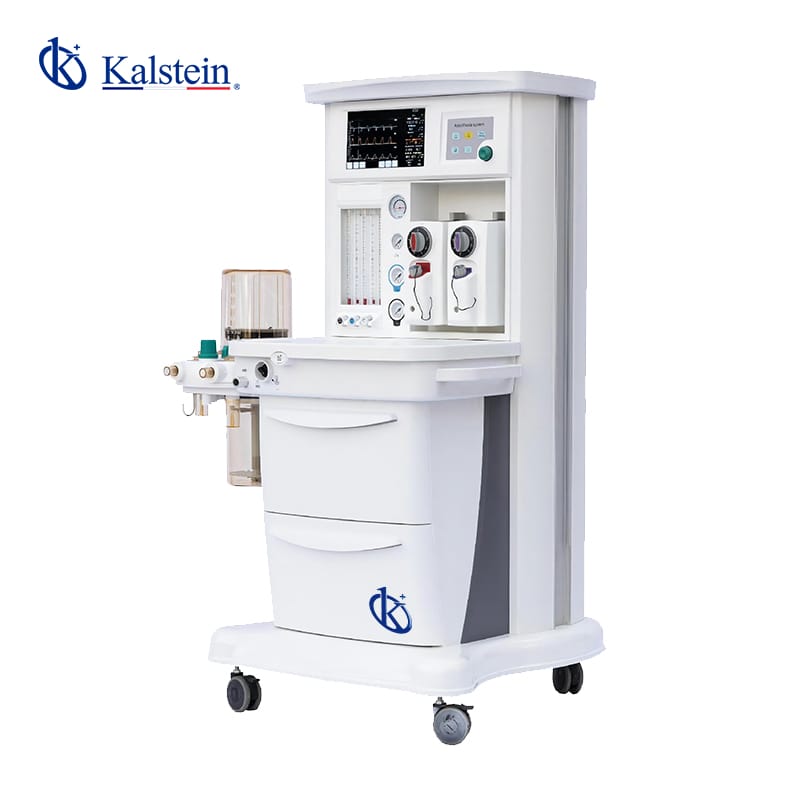

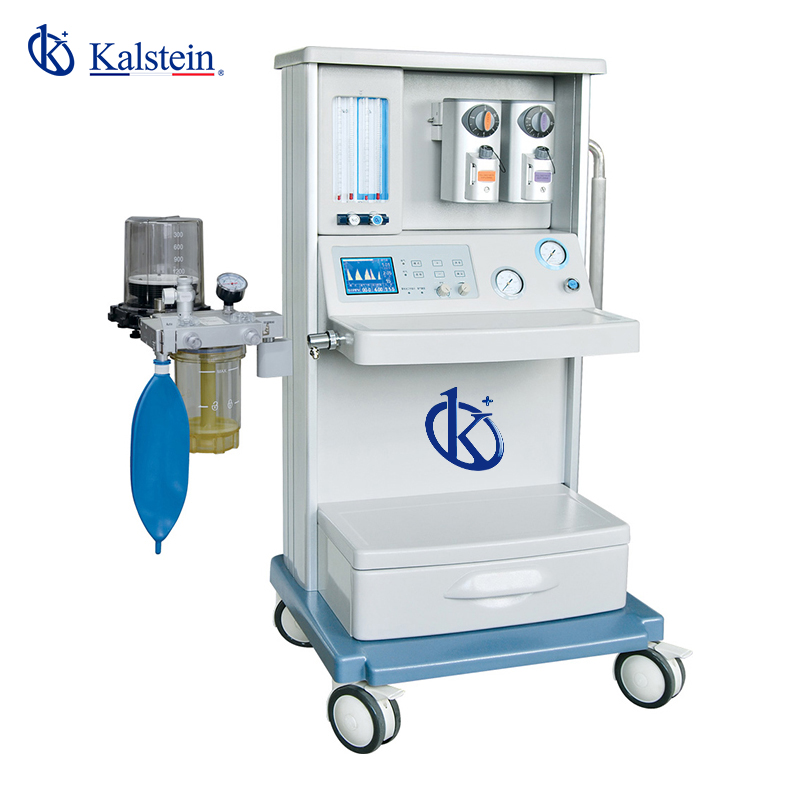

Anesthesia Machines YR02197 // YR02062 // YR02063
Anesthesia machine provides an affordable and flexible anesthesia solution for now and the future. Our customers can...
Anesthesia Machines YR02064-YR02069
Anesthesia machine has integrated all major ventilation modes such as assist, control and assist-control ventilation....

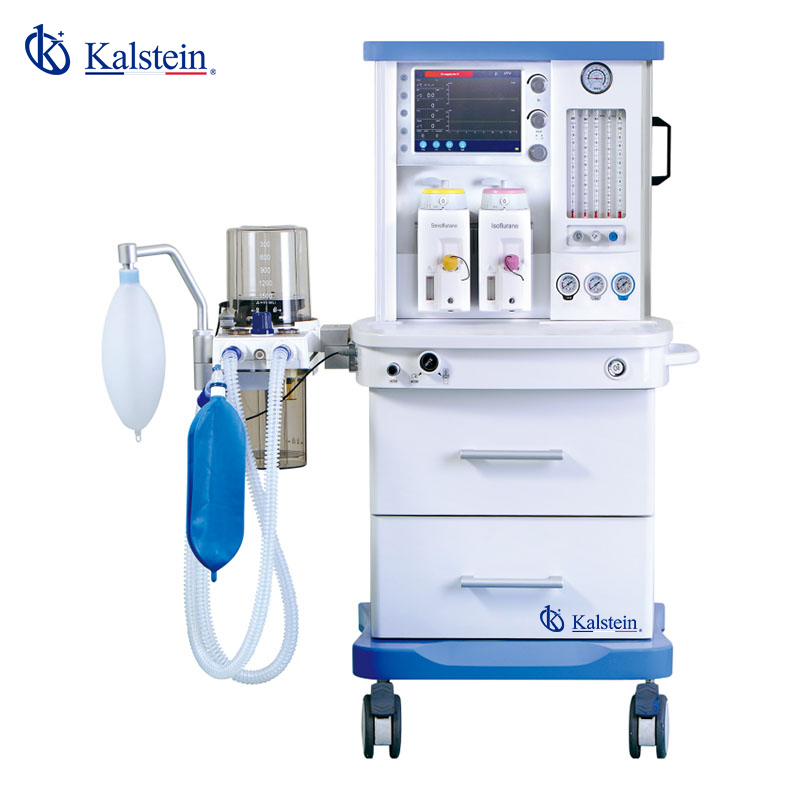

Our Top Selling Anesthesia Machine
Anesthesia machine has integrated all major ventilation modes such as assist, control and assist-control ventilation. It offers comprehensive monitoring and has a clear display interface, to help perform high quality anesthesia delivery and management. The anesthesia machine is suitable for inhalational anesthesia delivery for adult, pediatric and neonatal patients.
Technical Description
- Anesthesia machine offers a high-precision output as low as 20ml.
- It has automatic tidal volume and compliance compensation.
- The anesthesia machine offers spontaneous and manual respiratory MV monitoring function.
- It has electronic PEEP function.
- The anesthesia delivery workstation uses autoclavable and latex free components.
- Users can benefit from the tool-free maintenance and cleaning of this equipment.
- The anesthesia machine is CE compliant, so clients can feel secure in purchasing it.
Model | YR02064 | YR02065 | YR02066 | YR02067 | YR02068 | YR02069 |
Dimension | 810x860x1360 mm (WxDxH ) | |||||
Weight | 110 kg | |||||
Type of anesthetic | Halothane, enflurane, isoflurane, sevoflurane, desflurane | |||||
Gas supply | O2 + N2O or O2 + N2O + Air | |||||
Inlet pressure | 280 ~ 650kpa (350 ~ 400kpa recommended) | |||||
Standard ventilation. mode | VCV, PCV, PLV, PSV, SIMV + VCV + PS, SIMV + PCV + PS | |||||
Visual display | 12.1 in color | |||||
Value visualization (configured and measured) |
Tidal volume, minute volume, respiratory rate, I: E ratio, pressure limit | |||||
Graphic display | Airway pressure (Ppeak, Pmean, Pmax, Pplateau, PEEP), FiO2%, Compliance (ml / cmH2O), Pressure Support Level, Inspiratory, Window, P Trigger, Inspiratory End, EtCO2 and InCO2 (optional), CSI, BS%, SQI%, EMG% (optional) |
|||||
Optional expansion | Waveforms PT, FT, VT, PV, PF, FV loops (for compliance, resistance, leak analysis), EtCO2 waveforms (when optional, EtCO2 module is present), CSI, BS%, SQI, EMG waveforms (when optional CSM is present)) |
|||||
Additional functions | 12.1 “external color LCD, O2 * 2 / N2O * 2 / Air * 2, Manual / VCV / PCV / PSV / SIMV, 1x Ohmeda Tec-7 isoflurane | 12.1 “external color LCD, O2 * 2 / N2O * 2 / Air * 2, Manual / VCV / PCV / PSV / SIMV, 1x Ohmeda Tec-7 isoflurane, 1xCSM | 12.1 “external color LCD, O2 * 2 / N2O * 2 / Air * 2, Manual / VCV / PCV / PSV / SIMV, 1x Ohmeda Tec-7 isoflurane, 1xCSM, 1x mainstream Et CO2 (Respironics) | 12.1 “external color LCD, E flowmeter, O2 * 2 / N2O * 2 / Air * 2, Manual / VCV / PCV / PSV / SIMV, 1x AGCO, 1x Ohmeda Tec-7 isoflurane | External 12.1 ″ color LCD, E-flowmeter, O2 * 2 / N2O * 2 / Air * 2, Manual / VCV / PCV / PSV / SIMV, 1x Ohmeda Tec-7 isoflurane, 1xCSM, 1xAGCO) | 12.1 “external color LCD, E flowmeter, O2 * 2 / N2O * 2 / Air * 2, Manual / VCV / PCV / PSV / SIMV, 1x Ohmeda Tec-7 Isoflurane, 1xCSM, 1xAGCO, 1x Main Multigas Analyzer Phasein (CO2, N2O, 5 AA) |
Analysis of the best Anaesthesia Machines for the Medical Sector
How are Anesthesia Machines used?
The Anesthesia Machine is a Medical team composed of mechanical, pneumatic and electronic elements, whose main...
What is the Anesthesia Machine Alarm System Like?
An Anesthesia Machine alarm system is a device that warns anesthesiologists of sudden changes in the patient’s vital...
Anesthesia Machine used in combination with medications
Anesthesia Machine is a surgical technique used to induce a general, regional or local anesthetic state in patients...
SARS CoV-2 contamination in an Anesthetic Machine
Anesthetic Machines are Medical equipment used in Hospitals and Clinics to deliver Anesthetic gases to a...
Catalog of models of Anesthesia Machine on offer
Guides to becoming an expert in Anesthesia Machine
What is the function of an Anesthesia Machine?
The Anesthesia Machine is a device designed to supply a mixture of gases that allow the execution of a diagnostic...
What controls an Anesthetic Machine?
- Kalstein
The Anesthesia Machine is a team able to introduce in patients anesthetic drugs that cause sedation and allows control of their...
Care when using an Anesthetic Machine?
- Kalstein
The Anesthesia Machine is one of the most used medical devices in health centers, so its care and handling are...
More common problems when using an Anesthetic Machine?
The proper functioning of medical equipment in surgical procedures is of great interest for the medical personnel who operate it as for the patients who depend ...
Frequently Asked Questions about Anesthesia Machines from our customers
How do you know the prices of Anesthesia Machines?
To know the price of Anesthesia Machines we invite you to send us an email with your request through the contact form.
What are the delivery times of the Anesthesia Machine?
The delivery time of your Kalstein product it will depend on the following:
- If the equipment of your interest is in stock or if otherwise it must be manufactured.
- The type of freight you have chosen may be; air or sea.
- Equipment in stock:
- Delivery Time ( Aerial ): 15 -30 days .
- Delivery Time ( Maritime ): 45-60 days .
- Equipment not in stock:
- Delivery Time ( Aerial ): 30 -60 days .
- Delivery Time ( Maritime ): 60-90 days .
How to make a purchase of Anesthesia Machines ?
It may perform your purchase through :
- By email: s[email protected]
- By telephone: +33 (0) 1 78 95 87 02
- Trade electronic : Through from Kalstein's official website in your country .
How does the warranty work?
At Kalstein we make it easy for our customers to provide induction and technical support through new online methods. You can visit our induction, technical assistance and guidance videos provided by a Kalstein team through our induction channel Youtube (Kalstein English) HERE
Can I request an online quote?
Of course, you can request a quote for the Kalstein team of your interest, directly from our website official. U Once you've identified your preferred model, do click HERE
