ECG-Digital Electrocardiograph
The Electrocardiogram (ECG) is a recording that reflects the electrical activity of the heart, made with the help of a device known as an electrocardiograph. The electrocardiograph is a device designed to show the direction and magnitude of electrical currents produced by the heart. This electronic device that captures and amplifies the electrical activity of the heart through electrodes.
This test gives us a continuous record of electrical impulses from the heart. They are essential medical equipment in the development of the provision of health services and, therefore, an essential element in medical centers of different kinds. His work is essential in the diagnosis of heart diseases, arrhythmias and any type of abnormality in the heart or its chambers.
Types of ECG Electrocardiographs ideal for the Medical Sector

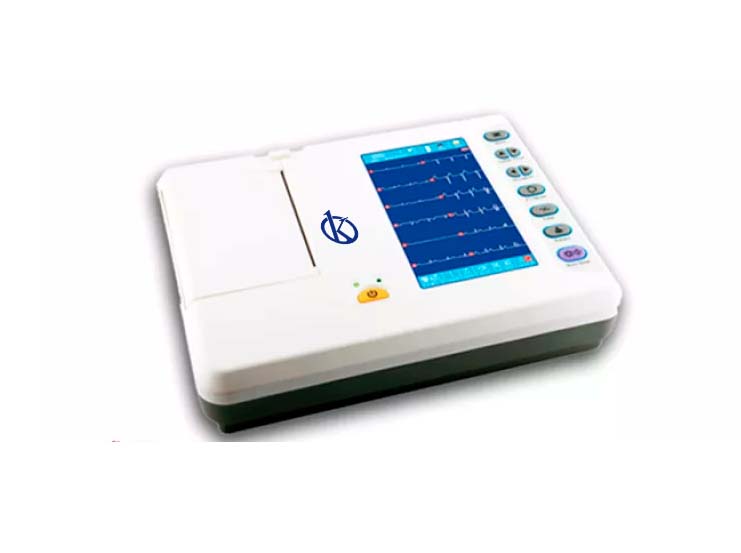

ECG Manufacturing Machine intelligent 6-channel
This new 6-channel YR ECG will bring you the power of advanced and easy-to-use technologies, multiple forms of ...

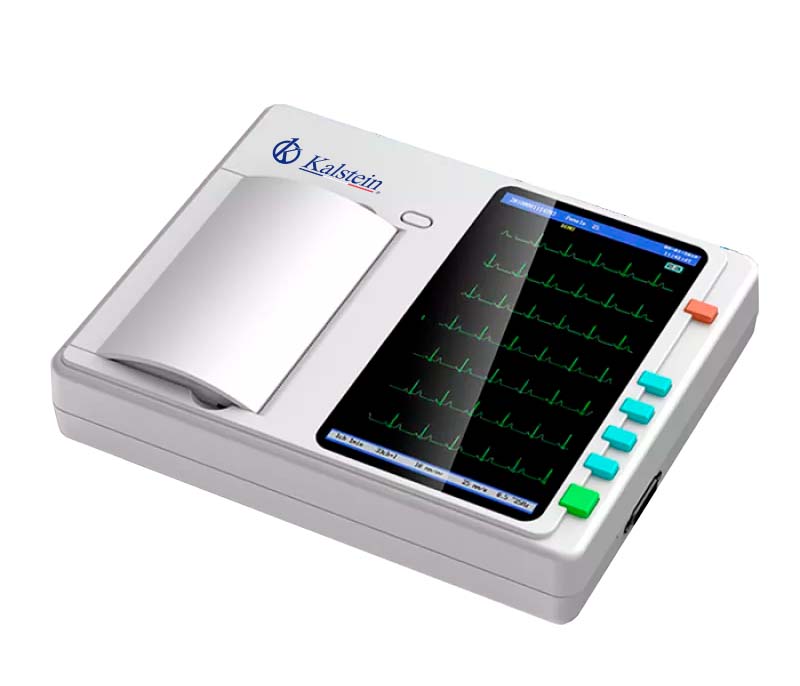

12-channel, 12-lead, 6-channel YR05159
The 12-channel ECG machine is an electrocardiograph that can collect 12-lead ECG signals simultaneously...

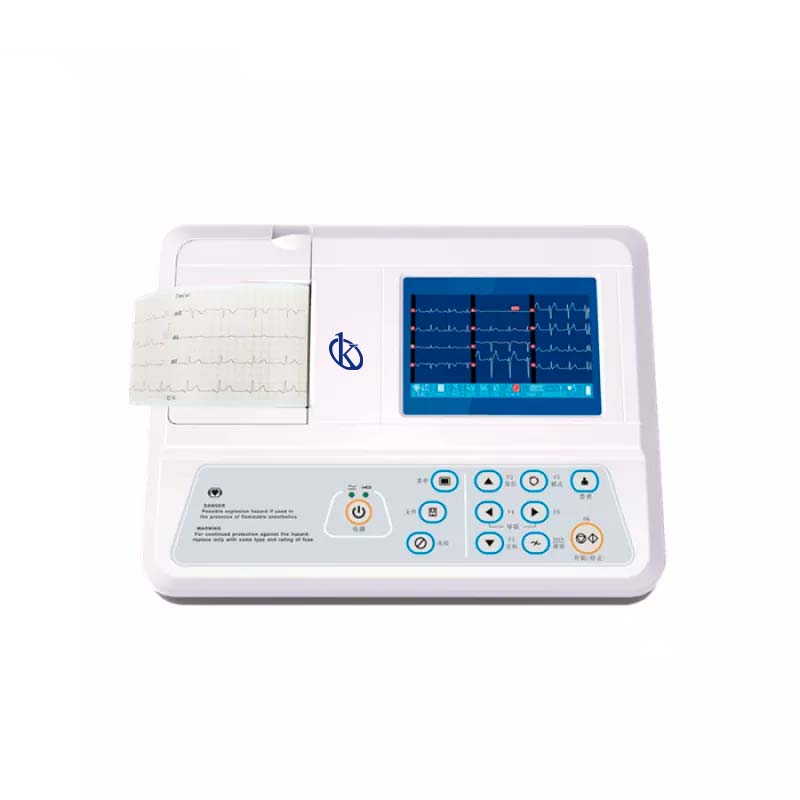

12-lead ECG monitor USB/RS232 interface YR05160
The 12-channel ECG machine is an electrocardiograph that can collect 12-lead ECG signals simultaneously ...

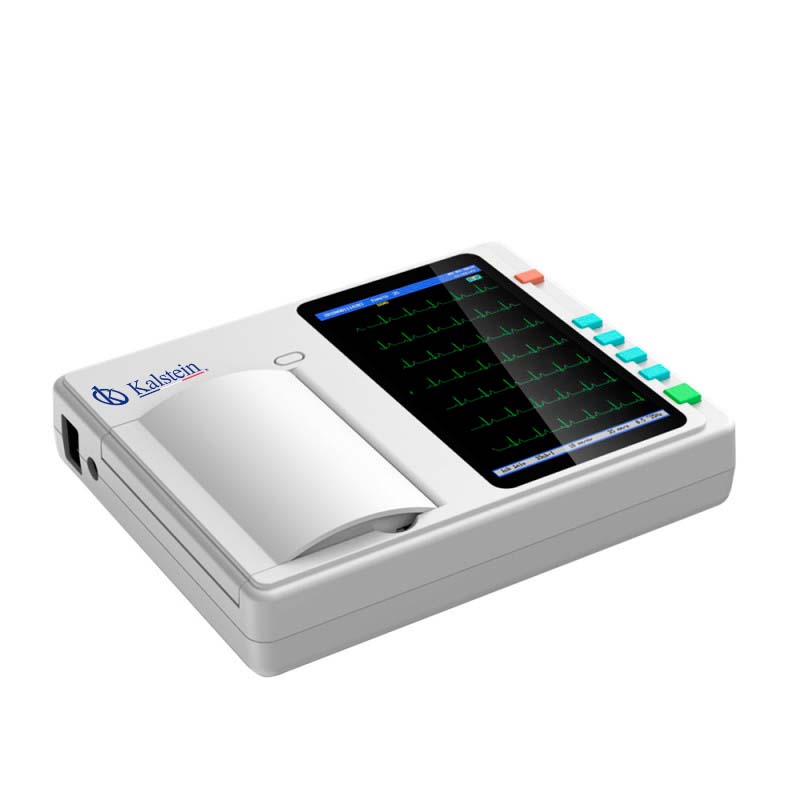

12 channel touch screen machine YR05158
As the name suggests, the 3-channel ECG machine prints 3 waveforms / channels at a time. On 3-channel...
Our Best Selling ECG-Digital Electrocardiograph
The 12-channel ECG machine is an electrocardiograph that can collect 12-lead ECG signals simultaneously and print ECG waveforms with thermal printing system. The EKG is commonly used to detect abnormal heart rhythms and to investigate the cause of chest pains. An EKG records the electrical activity of the heart. The heart produces small electrical impulses that travel through the heart muscle to cause the heart to contract. These impulses can be detected by the ECG machine.
| Model | YR05159 |
| Elements | specification |
| Characteristics | 7 ″ screen,
touch screen Supports Ecg analysis capabilities |
| Guide | 12 standard conductors |
| prospect acquisition | synchronously 12 leads |
| Input circuit | Floating; Defibrillator protection circuit |
| Input impedance | ≥50MΩ |
| Input circuit current | ≤0.0.05μA |
| Record mode | Automatic: 3CH × 4 + 1R, 3CH × 4,
3CHx2 + 2CHx3,3CHx2 + 2CHx3 + 1R, 6CHX2; Manual: 3CH, 2CH, 3CH + 1R, 2CH + 1R; Rhythm: any selectable lead. |
| Filter | EMG filter: 25Hz / 30Hz / 40Hz / 75Hz / 100Hz / 150Hz DFT filter: 0.05Hz / 0.15Hz AC filter: 50Hz / 60Hz |
| CMRR | > 100dB |
| Patient current leak | <10μA |
| Input circuit current | <0.05 µA |
| Frequent response | 0.05Hz ~ 150Hz (-3dB) |
| Sensitivity | 2.5mm / mV, 5mm / mV, 10mm / mV, 20mm / mV |
| Anti-baseline drift | Automatic |
| Constant time | ≥3.2s |
| Noise level | <15μVp-p |
| Paper speed | 12.5mm / s, 25mm / s, 50mm / s |
| Recording mode | Thermal printing system |
| Paper specification | Sun-7031: 80mm x 20m paper roll Sun-7062: 120mm x 20m paper roll |
| LCD screen | 7 ″ graphic LCD |
| Safety rating | IEC60601-1 class I, type CF |
| Power supply | AC: 100 ~ 240V, 50 / 60Hz, 30VA ~ 100VA |
| Fuse | AC220V ± 10% 2 * Φ5 × 20mm, T2A / 250V AC time delay |
Analysis of the best ECG Electrocardiographs for the Medical Sector
What is the role
of the ECG?__
The paper used in the Electrocardiogram has certain special characteristics, mainly a grid paper with large frames divided...

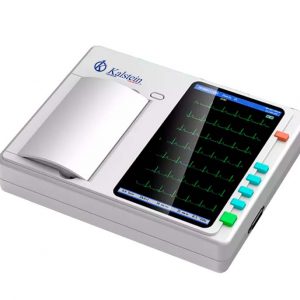

How is an
ECG interpreted?
It is called ECG as an Electrocardiogram, if it is an evaluation that is done to know the electrical activity of the hearT...
Using the Electrocardiogram to Predict Pericarditis
Pericarditis or inflammation of the pericardium may present as acute or chronic pericarditis. If inflammation also affects the...
What is an
Electrocardiogram?
The Electrocardiogram (ECG) is a recording that reflects the electrical activity of the heart, made with the help of a device known...
Catalogue of ECG Electrocardiographs models on offer
Guides to becoming an expert in Electrocardiograph ECG-Digital
Criteria for selecting your ideal Electrocardiograph?
Electrocardiographs are vital Medical equipment to provide good health services, so it is an indispensable element...
Differences between a mono channel and Electrocardiograph
The Electrocardiograph is a medical team in charge of performing tests called electrocardiogram (ECD), and detect the signals....
What is the function of an Electrocardiogram?
It is a cardiological test or evaluation where the electrical activity of the heart is examined, it records the rhythm of the heartbeat to detect...
Improved safety when using the Electromedical tool Electrocardiographs
In the current era, the use of electrocardiographs as an electromedical tool has increased significantly, due to the fact that it is a versatile and useful tool to detect and diagnose a variety of heart-related conditions. This is also due to the wide availability of electrocardiographs, which allow a greater number of health professionals to perform non-invasive tests with this important device.
Video of our Electrocardiograph ECG-Digital in operation
In this section you can find videos of our ECG-Digital Electrocardiograph in operation, packaged, receiving service, etc.
Electrocardiograph ECG-Digital
This device is designed to show the direction and magnitude of electrical currents produced by the heart. Because the current flows in multiple directions from the heart muscle, this apparatus obtains the resulting information from all vectors generated at any given time by using electrodes (electrical contacts) placed in different parts of the body on the skin. The electrode on the skin is connected to another electrode through the electrocardiograph, by means of a galvanometer the current that passes through the apparatus is measured and transmitted directly to the inscriber (style) to record the waves and complexes that receive together the name of Surface Electrocardiogram.
Frequently Asked Questions about ECG-Digital Electrocardiograph
How to know the prices of Electrocardiograph ECG-Digital?
To know the price of the Electrocardiograph ECG-Digital we invite you to send us an email with your request through the contact form.
What are the delivery times of the Electrocardiograph ECG-Digital?
The delivery time of your Kalstein product will depend on the following:
- If the equipment of your interest is in stock or if it must be manufactured.
- The type of freight you have chosen may be either air or sea.
- Equipment in stock:
– Delivery Time (Air): 15-30 days.
– Delivery Time (Maritime): 45-60 days.
- Equipment not in stock:
– Delivery Time (Air): 30-60 days.
– Delivery Time (Maritime): 60-90 days.
How to purchase the Electrocardiograph ECG-Digital?
You can purchase through:
- By email: [email protected]
- By telephone: +33 (0) 1 78 95 87 02
- commerce: Via Kalstein's official website in your country.
How does the warranty work?
At Kalstein, we provide our customers with induction and technical support through new online methods. You can visit our induction videos, technical assistance and guidance provided by a Kalstein team through our YouTube channel (Kalstein English). HERE
Can I request a quote online?
Of course, you can request a quote for the Kalstein team of your interest, directly from our official website. Once you have identified your preferred model, click HERE
