Electrosurgical Unit
The electrosurgical unit is a medical equipment that uses heat-generating electrical phenomena; to achieve effects such as clotting, flushing, drying or cutting tissues, depending on the action desired by the medical operator. This is achieved, thanks to heat production by the passage of an oscillatory electric current, concentrated in a small area.
The use of this medical equipment during electrosurgeries gives rise to precise incisions without the need to exert pressure on the tissues, as well as its use allows easy access to difficult or compromised areas, offer excellent comfort in lifting hypertrophic tissues, facilitate the containment of hemorrhages and the healing of gingival tissues, and also prevent the infiltration of microorganisms in the incision line caused in surgery.
Types of Electrosurgical Units for the Medical Sector
Electrosurgical Generators YR02144
It offers automatic current monitoring and program memory functions...
Electrosurgical Generators YR02145
YR is applicable in various surgeries such as general surgery, dermatology, plastic surgery, endoscopy, vascular...
Electrosurgical Generators YR02147
Optional surgical smoke evacuation system is available for smoke or unpleasant odor removal purposes...

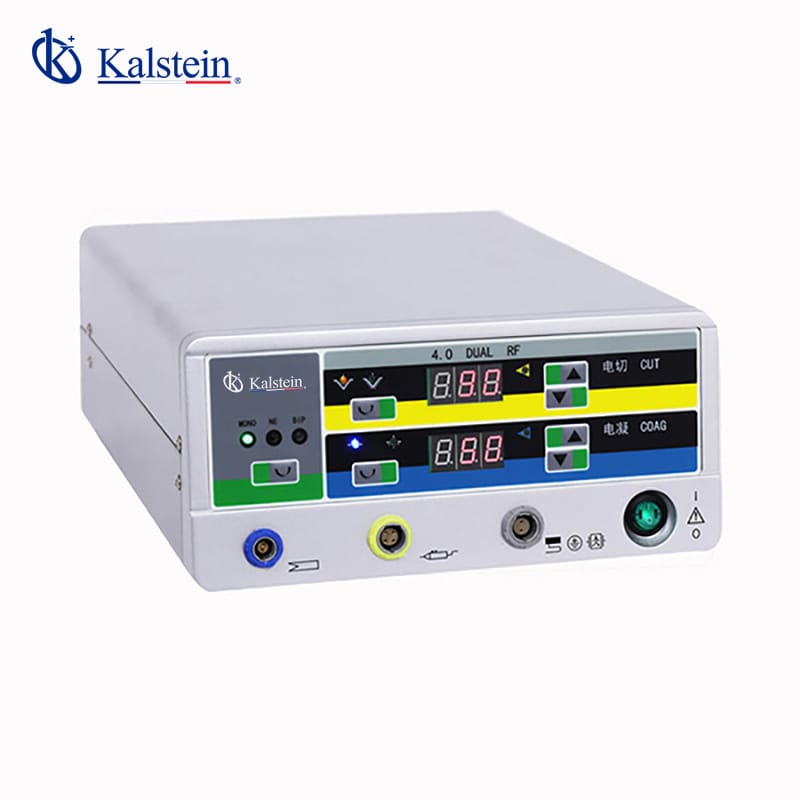

Our best-selling Electrosurgical Unit
- The electrosurgical generator has four cutting and two coagulation output.
- It provides automatic return electrode recognition function.
- The electrosurgical generator offers digital diagnostic error codes.
- It features isolated output, all floating.
- Optional surgical smoke evacuation system is available for smoke or unpleasant odor removal purposes.
| Model | YR02147 |
| Main unit | |
| Base output frequency | 512 KHz |
| Pure / mixed cutting power | 0 ~ 150W |
| Pure cute waveform | Continuous sine wave, max. Open voltage at 1700 V |
| Cut Waveform Mix 1 | Sine Waveform 68% Duty Cycle, Max. open voltage at 1700V |
| Cut Waveform Mix 2 | 56% duty cycle sine waveform, max open voltage at 1600V |
| Cut Waveform Mix 3 | 32% Duty Cycle Sine Waveform, Max. open voltage at 2000 V |
| Clotting power | 0 ~ 100W |
| Gentle clotting power | 16% duty cycle, max. open voltage at 3300V |
| Spot coagulation waveform | 16% duty cycle, maximum opening voltage at 4600V |
| Power supply | 220 V / 50 Hz, rated current at 3.15 A |
| Current leakage | <150 Ma |
| Safety standard | EN 60601-1 and 60601-2-2 |
| Smoke extractor | |
| Volume | 30 ~ 100L / min, 8 degrees adjustable |
| Internal filter efficiency | > 99.999% |
| External filter efficiency | > 99.97% with carbon filter for odor removal |
| Start mode | With optional pedal or control |
| Power supply | 220 V / 50 Hz, rated current at 3.15 A |
Guidelines for you to become an expert in Electrosurgical Unit
What are
the barriers
to the implementation
of Electroscalpel?
The electroscalpel is an essential medical tool for appropriate surgical surgeries, this tool allows clean incisions...
Performance of Electrosurgical generators in the fields of endoscopic surgery
Electrosurgical generators are medical devices that are used to provide high frequencies of electric current through a surgical...
Electroscalurs: operation, characteristics
and modes
of use
Electrobisturs are electronic equipment used in medicine, specifically in the field of electrosurgery, which have the ability
Fulguration with the use of the Electroscalpel
The use of electrosurgery is one of the tools that combines experience and craftsmanship with the art of medicine...
Frequently asked questions from our customers about Electrosurgical Units
How to know the prices of the Electrosurgical Units?
To know the price of the Electrosurgical Units we invite you to send us an e-mail with your request through the contact form.
What are the delivery times for Electrosurgical Units?
- If the equipment of your interest is in stock or if it must be manufactured.
- The type of freight you have chosen, this may be; air or sea.
How to purchase Electrosurgical Units?
- By email: [email protected]
- By telephone: +33 (0) 1 78 95 87 02
- E-commerce: Via Kalstein's official website in your country.
How does the warranty work?
Can I request a quote online?
Of course, you can request a quote for the Kalstein team of your interest, directly from our official website. Once you have identified your preferred model, click HERE
