Pathological Anatomy
A Pathology Laboratory is a medical service responsible for processing samples from biopsies and cytologies by professionals specialized in the field, for subsequent microscopic examination, interpretation and diagnosis by a pathologist.
In other words, this specialized laboratory is primarily responsible for studying small or large samples of tissues or isolated cells (biopsies and cytologies). Generating reports and records of great clinical importance, which help other medical professionals to prescribe treatments, either medical or surgical.
Anatomical Pathology Equipment ideal for your Laboratory

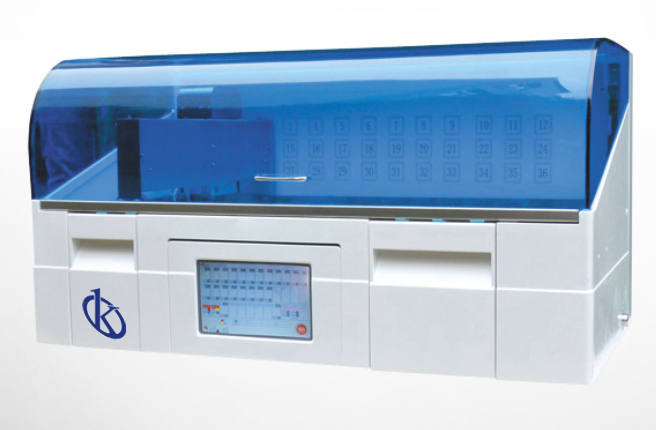

Automatic Slide Stainer
Pathological Anatomy is the science that is responsible for the study of pathophysiological and morphological alterations of the disease. Like all science, it has a series of specialized equipment to carry out the different studies on which it is based.

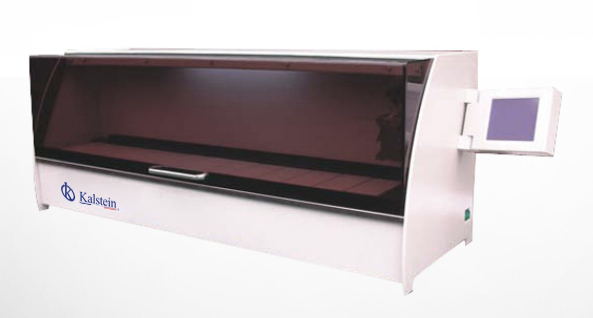

A Tissue Processor is a piece of equipment used in Pathological Anatomy Laboratories to analyze and Process Tissue samples by fixing, staining, dehydrating or decalcifying them. This equipment is designed to process tissues extracted from the body for the diagnosis of pathological processes and to produce samples that can be analyzed microscopically.

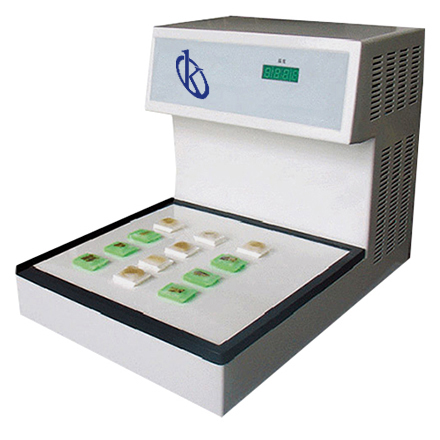

Cooling plate
The Cooling process is a fundamental step in any Histology Laboratory, as it is a fundamental procedure for making good quality paraffin block sections. It is almost impossible to make good cuts without doing the cooling process. Using the cooling plates to cool the paraffin blocks creates a drastic improvement and makes cutting much easier. These facts speed up the process and help save time for laboratory operators.
In Kalstein you can find the Equipment of Pathology Anatomy ideal for your Laboratory
Paraffin dispenser – YR459
Any histology laboratory should have paraffin wax to carry out the sectioning process so that the laboratory operator...
Automated microtome YR415-1
This machine uses a streamlined design, with advanced features, stable and reliable performance and ease of use...
Cryostat Microtome YR426-1
The YR426-1 Cryostat Microtome is belong to one class medical equipment. It is a device for rapid pathological section analysis...

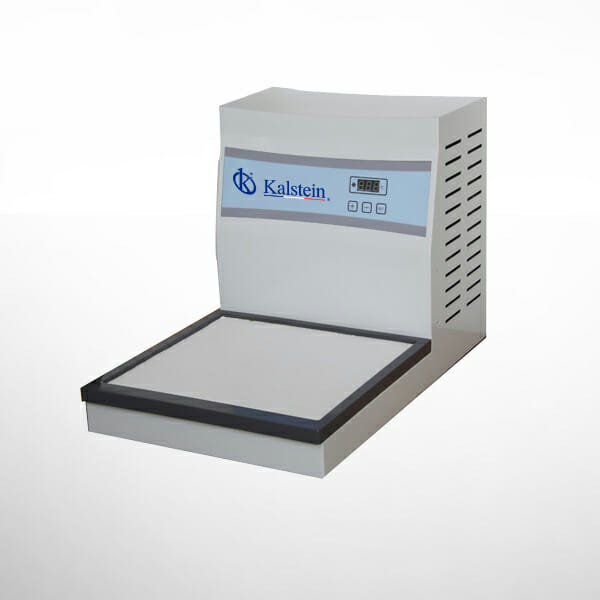

Cooling Plate YR440A
Fully programmable computer control allows automatic system start and stop anytime (weekly)...
Our best-selling Pathology Anatomy Equipement
The YR426-1 Cryostat Microtome is belong to one class medical equipment. It is a device for rapid pathological section analysis of human body, animal and plant tissues. It is widely used in hospitals, medical schools, forensics, animal and plant research units for pathological diagnosis, analysis, and research.
The machine is mainly composed of four parts
- The upper part of the machine is a microcomputer control part and panel operation, temperature display, and working status display part.
- The middle part is a low-temperature freezer, which is the part for quick freezing of biopsy tissue and sectioning operation.
- The lower part is the refrigeration part of the compressor unit.
- The middle and rear parts are mechanical transmission and motor drive parts.
Scope of application
Cell pathology section, biological fiber section, etc.
| Model | YR426-1 |
| Chamber Temperature | 10℃ ～ -50℃ |
| Freezing shelf temperature | 0℃ ～ -50℃ |
| Temperature control range of sample chuck | 10℃ ～ -50℃ |
| Additional semiconductor refrigeration in the freezer | -60℃ |
| Number of freezing station | 36 pcs |
| Pelletier number | 8 pcs |
| Semiconductor fast cooling working time | 15 minutes |
| Maximum specimen size | 55mm×80mm |
| Vertical stroke | 65mm |
| Horizontal stroke | 22mm |
| Electric feed speed | 0.9mm/s、0.45mm/s |
| Disinfection method | UV |
| Section thickness range | 0.5μm～100μm Adjustable
0.5μm～5μm Increment0.5μm 5μm～20μm Increment1μm 20μm～40μm Increment2μm |
| Trimming thickness range | 10μm～600μm Adjustable
10μm～50μm Increment5μm 50μm～100μm Increment10μm 100μm～600μm Increment50μm |
| Specimen retraction | 0～100μm Adjustable，Increment5μm |
| Extra Advantages | |
| The 10-inch color LCD touch screen can separately display the total number of slices and the
total slice thickness, slice thickness, specimen retraction value, temperature control, date, time, temperature, timing sleep switch, defrost and other functions. The operation display can be set to switch between Chinese and English operation interface, which is convenient for different users all over the world to operate. |
|
| Humanized hibernation function: After selecting the hibernation state, the temperature of the
freezer compartment can be automatically controlled between -1 and -9°C. After the hibernation is canceled, the sectioning temperature can be reached within 15 minutes. |
|
| Imported dual compressors refrigerate the freezing box, freezing table, knife holder, sample chuck, and tissue presser at five points respectively. | |
| Equipped with rubber instrument rack and waste box | |
| X-axis 360°, Y-axis 12°universal rotation, snap-on tissue chuck, easier and faster to install the organization | |
| The knife holder is equipped with a blade thruster and a knife guard to cover the full length of
the blade, which protects the user safely. |
|
| Anti-adhesive tissue flattening device, with specimen refrigeration, the temperature can reach -50°, which is convenient for freezing the tissue and saving operation time | |
| The temperature sensor self-checking function can automatically detect the working status of
the sensor |
|
| Hand wheel positioning 360° locking function at any point | |
| Single-layer heated glass door, effectively preventing water mist condensation | |
| The sample chuck travels to the limit position and automatically returns to the starting position function | |
| Dimension size(mm) | 700×760×1160mm |
| Weight | 135 KGS |
Analysis of the best Anatomical Pathology equipment for your Laboratory
What are the steps to cut a Microtome?
The Microtome is a Laboratory equipment of histology, used to cut the samples in thin caps, from a paraffin base...

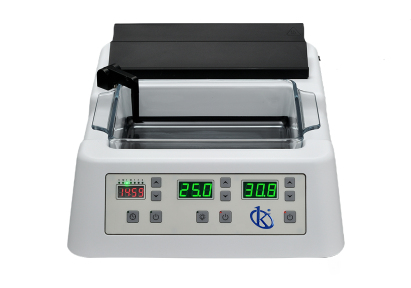

What is a Fabric Flotation Station?
In the Histology Laboratories, a series of important analyzes and diagnoses are made that depend on the studies of...
How are Biopsies taken and processed?
The study of Biopsies is performed by taking tissue samples to rule out the presence of malignant cells, through different...

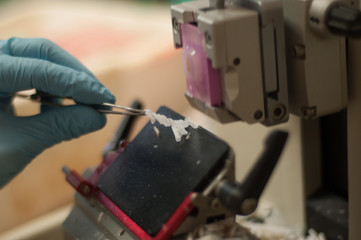

Pathological Anatomy: Microtomes and Cryostats
Pathological Anatomy is a science that studies the Pathophysiological and morphological alterations of a disease...
Catalog of Pathology Anatomy equipement models on offer
Guides to Becoming an Expert in Pathological Anatomy Equipement
Cytology: what is it and what is it done for?
Cytology is the practice of studying cells through a microscope, with this the appearance, form and function is determined...
How does a Pathology lab work?
- Kalstein
A Pathology Laboratory is a medical service responsible for processing samples from biopsies and cytologies by professionals...
Tests done in a Pathology or Histology Laboratory
The different tests that are carried out in popular Anatomy Laboratories are carried out to study the cause, evolution and...
Slide Dryer Benefits
The slide dryer is a useful tool for the study of pathology. It is a device used to fix the slides vertically so that they can be observed more easily. This is especially useful when studying tissue samples under a microscope.
Allows slides to be fixed on a stand so they can be placed anywhere and in any position. This is especially useful for studies that contain tissue samples with a high cell density.
Video of our Anatomical Pathology equipment in operation
Its basic function is to be able to meet the requirements of medical professionals in terms of histopathological analysis of the various tissues and the expression in them of the various diseases that affect humans. The procedures carried out within a pathology laboratory are grouped into two distinct phases: technical processing and diagnostic processing.
Pathology Anatomy equipement at work
Currently, pathology laboratories use instruments and equipment that are used to obtain help in the diagnosis of many diseases, including cancer. Among the most used equipment in this science, we have: microtomes, microscopes, tissue processor, tissue water baths, cryostats, cooling plates, paraffin cutter and dispenser, slide dryers, tissue inclusion systems, automatic staining systems for slides, among others.
Thus, the pathologist or pathologist identifies the causes and consequences of diseases that affect specific parts of the body, through microscopic analysis of samples of tissues or cells, previously prepared with special dyes that help identify structural alterations, in cells and tissues, as well as protein or genetic abnormalities.
