Patient and Fetal Monitor
Their value in collecting real-time data on a patient’s condition, patient monitors are also essential in providing clinicians with a more detailed view of a patient’s evolving health. In this way, these devices enable more predictive and proactive care, which can greatly improve the effectiveness and efficiency of patient care.
In addition, patient monitors facilitate early detection of potentially life-threatening conditions, which can give physicians an invaluable window of time to administer treatments that can prevent serious complications and ultimately save lives. When used correctly, patient monitors can help improve the quality of care, allowing physicians to spend more time on direct patient care, improving patient satisfaction and, at the same time, improving health outcomes.
Types of Patient and Fetal Monitor that may be needed by the Medical Sector

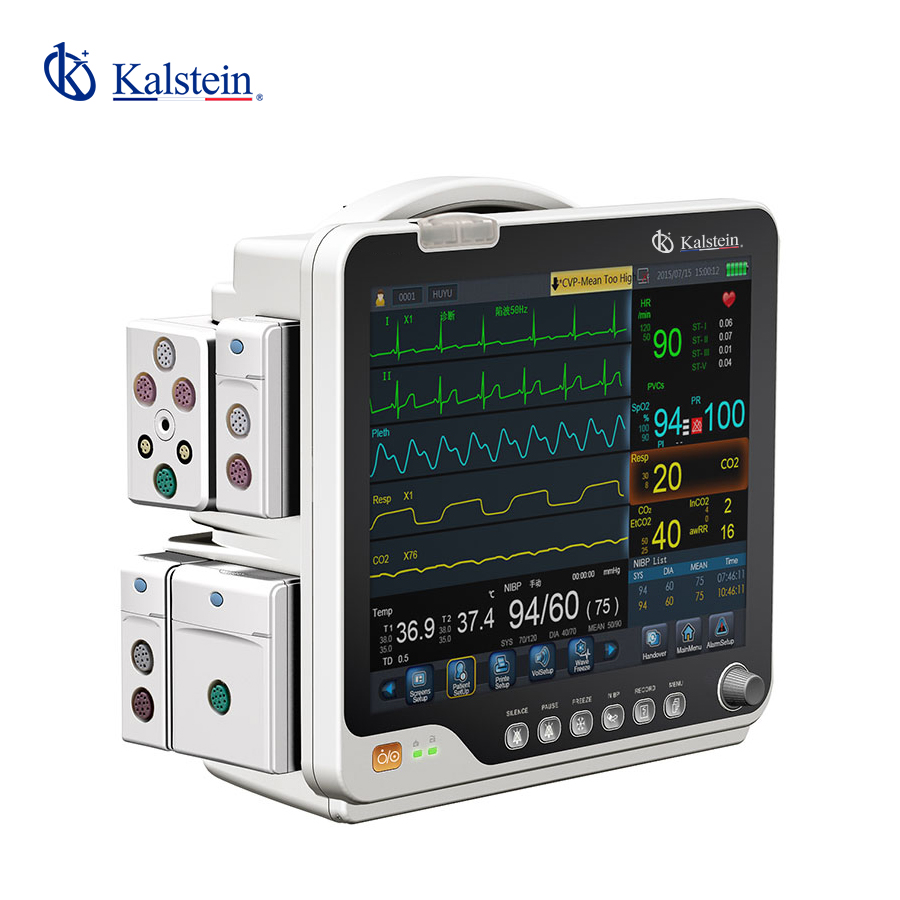

Patient Monitors YR02176
8.4 inch touchscreen; Embedded handle; Able to use module; 1.6kg of weight; 5 hours of battery life; No-fan design; Multiple interfaces...

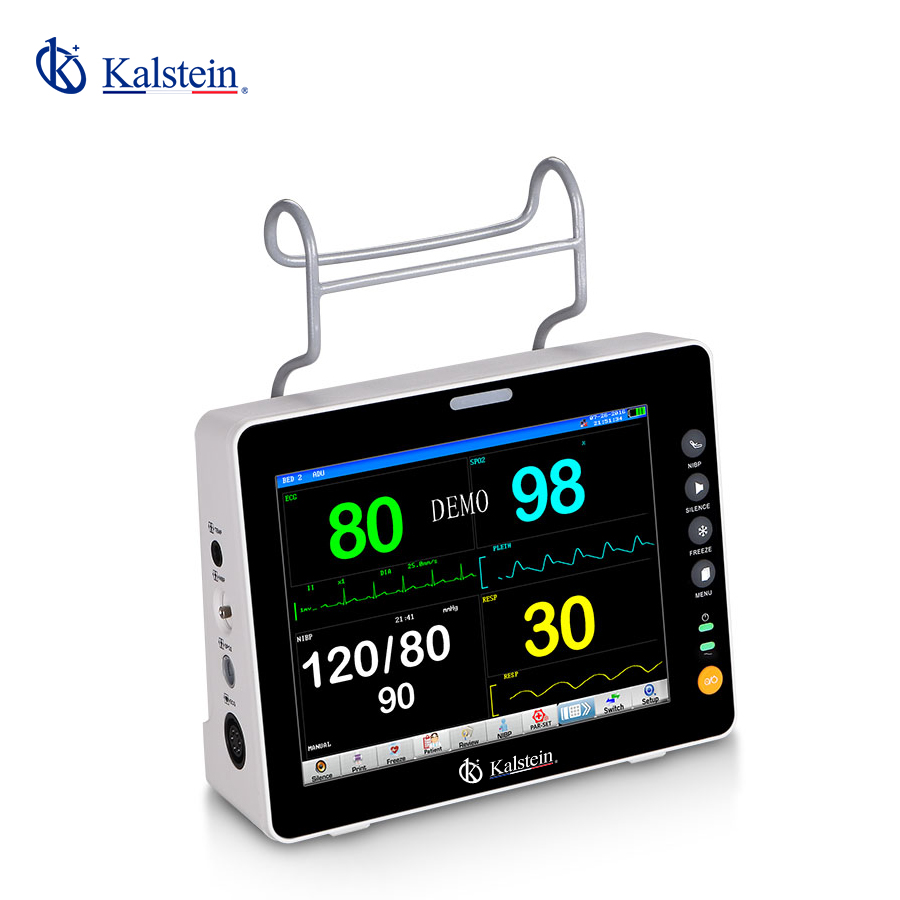

Patient Monitors YR02170
NICU Monitor. Devised specillay for neonatal. 8.4 inch touch screen,ECG (3 lead), Suntech NIBP, Masimo SpO2 , RESP, singal...

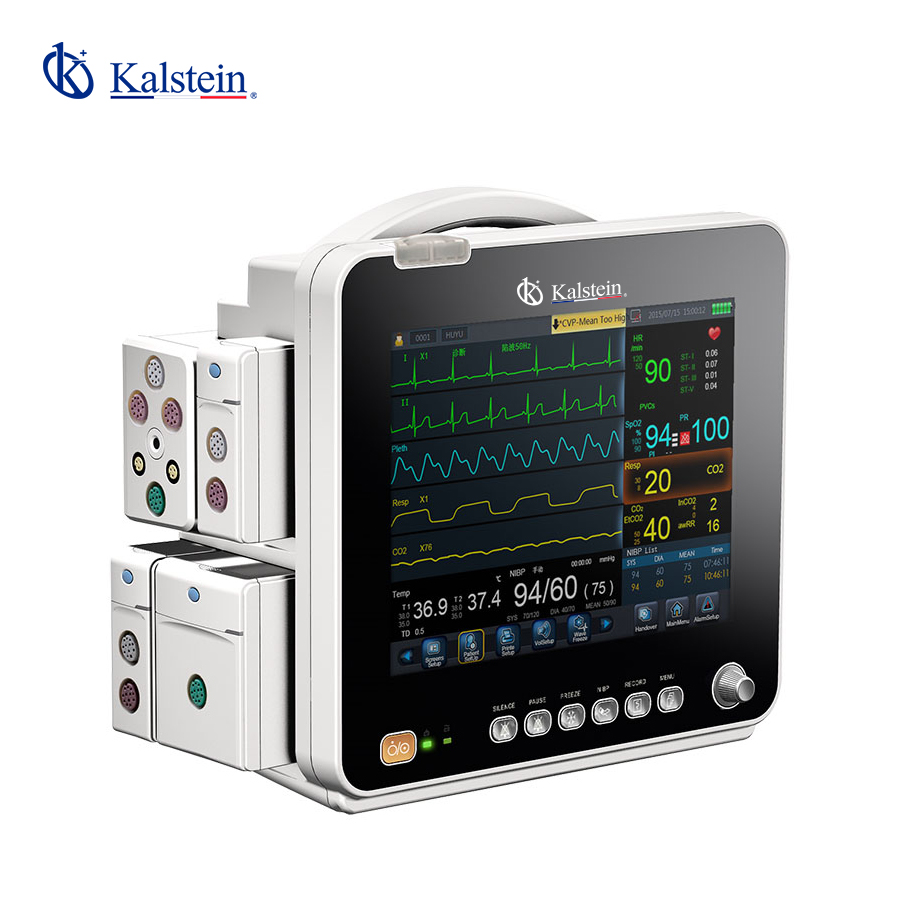

Patient Monitor YR02175
Basic parameters included: ECG, ST, Arrhythmia, Respiration, 2 Temperature, SpO2, Non-invasive Pressure, PPI. Additional parameters...

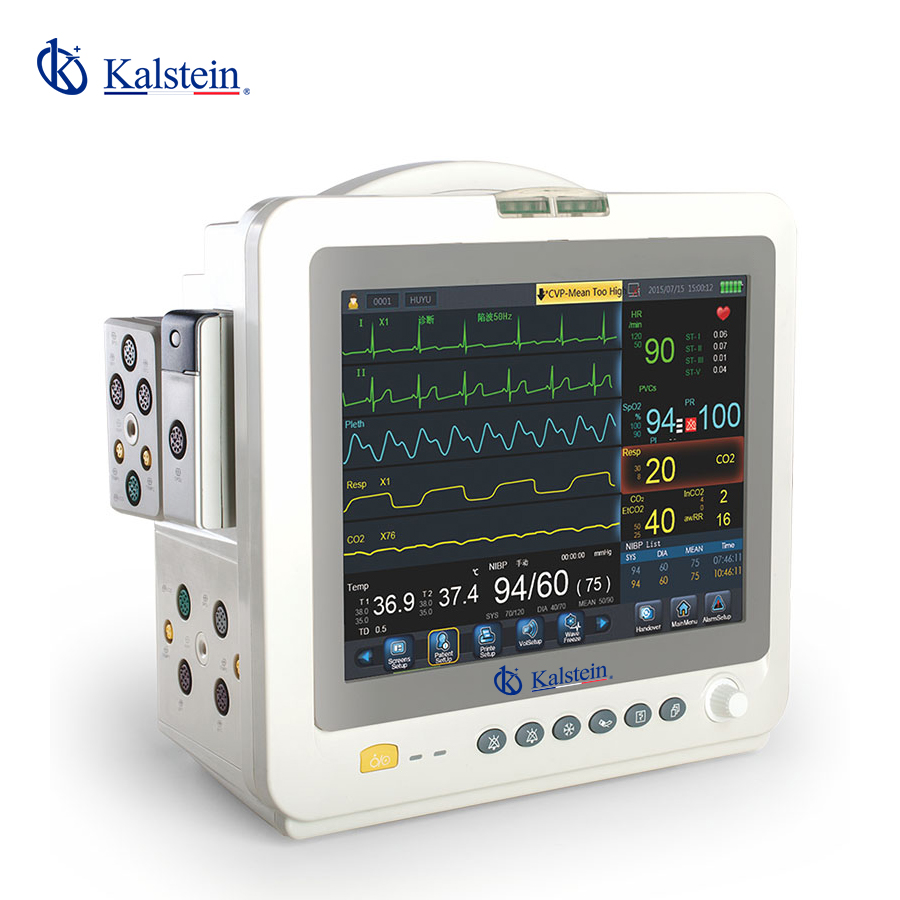

Multi-parameter YR02178
Visual and audible alarm with alarm light in three colors; Slim body with hidden handle, easy to move...
Our best-selling Patient and Fetal Monitor

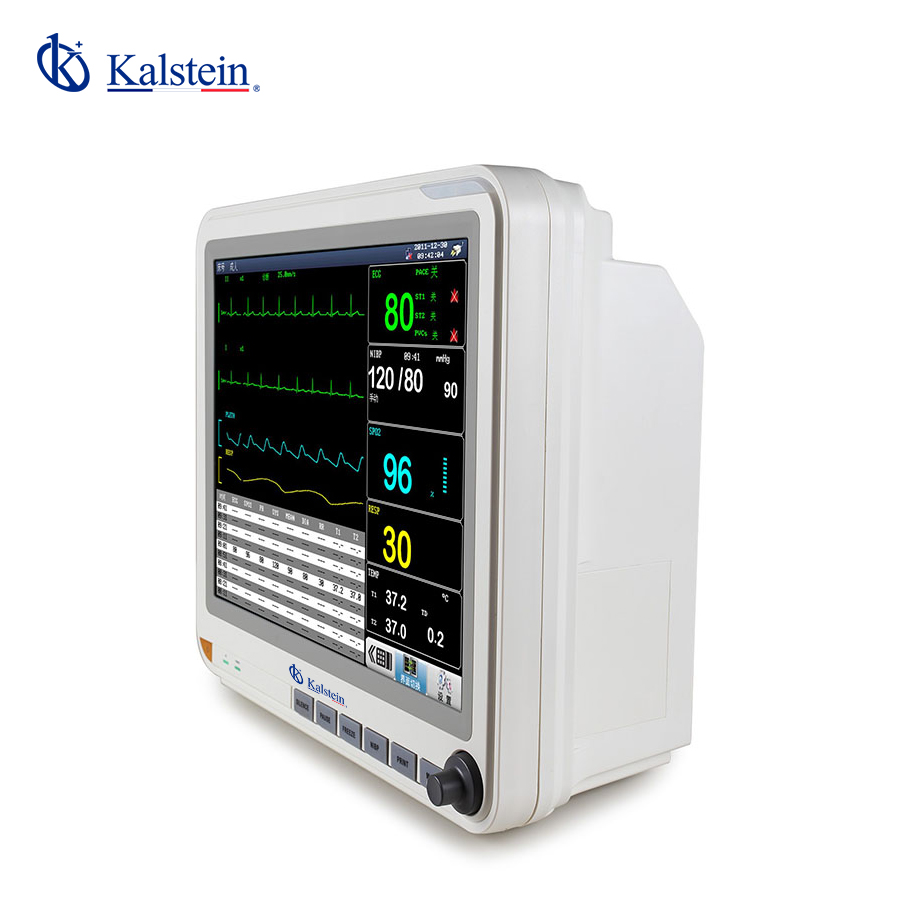

15 inch high-brightness touch screen; triple color eye-catching alarm light; concealed buttons; built-in lithium battery. With the rapid development of medical technology, monitors have been widely used in various clinical departments for patient vital signs monitoring in real time, especially in the ICU intensive care unit. which helps medical staff investigate the patient’s condition, and solve emergencies in time.
The intensive care unit is different from the general ward. The diversity of patient diseases and unpredictable changes in the condition put forward strict requirements on the monitoring system. The monitor in ICU must accurately capture the subtle changes in the patient’s vital signs and provide real-time feedback to the medical staff. At the same time, in a complex ward environment, it provides patients with long-term continuous monitoring and real-time attention to various physiological parameters.
| Model | YR02174 |
| ECG | |
|
Input
|
3 leads or 5 leads selectable |
| 3-conductor cable: RA; THE; LL or R; L; F | |
| 5-conductor cable: RA; THE; RL; LL; V or R; L; N; F; C | |
|
Selection of potential clients
|
3 leads: 1,11,111 |
| 5 leads: I, Il, Ill, AYR, AVL, AVF, V | |
| ECG waveform | 2 channels |
| Win selection | x 0.25, x0.5, x1, x2, x4 Automatic |
| Sweep speed | 12.5mm / s, 25mm / s, 50mm / s |
| Heart rate for newborns | 15-350 BPM |
| Adult / Pediatric Heart Rate | 15-300 BPM |
| Precision | 1 bpm or 1%, whichever is greater |
| Resolution | 1 bpm |
|
Filter
|
Diagnostic mode: 0.05-1 00Hz |
| Monitor mode: 0.5-40Hz | |
| Surgical mode: 1.0-25Hz | |
|
Protection
|
Supports voltage of 5000VAC / 50Hz in isolation |
| Against electrosurgical interference and defibrillation | |
|
Alarm range
|
Newborn: 15-350bpm |
| Adult / Pediatric: 15-300 BPM | |
| Measuring range | -2.0mv to 2.0mv |
| Alarm range | -2.0mv to 2.0mv |
| Arrhythmia analysis | YES |
| Alarm | YES, audible and visual alam ,, alam, recordable event |
| Rhythm detection | Yes |
| Calculation of drug dose | Yes |
| Standby mode | Yes |
| Breathing | |
| Method | Thoracic impedance or EtCO2 |
|
Measuring range
|
Newborn / Pediatric: 0 ~ 150 rpm |
| Adult: 0-120 rpm | |
| Apnea alarm | No alarm, 1 Os, 15 s, 20 s, 25 s, 30 s, 35 s, 40 s selectable |
| Alarm | Yes, audible and visual alarm, recoverable alarm events |
| NIBP | |
| Method | Oscillometric |
| Measurement modes | Manual / Automatic / Continuous |
| Displayed parameters | Systolic, diastolic and MAP (mean arterial pressure) |
| Automatic measuring lime | Adjustable |
| Unit of measurement | mmHg / k Pa selectable |
| Type of measure | Systolic, diastolic, medium |
|
Systolic pressure range
|
Adult: 40-270 mmHg |
| Pediatric: 40-200 mmHg | |
| Newborn: 40-135 mmHg | |
|
Diastolic pressure range
|
Adult: 10-21 0 mmHg |
| Pediatric: 10-150 mmHg | |
| Newborn: 10-100 mmHg | |
|
Medium pressure range
|
Adult: 20-230 mmHg |
| Pediatric: 20-110 mmHg | |
| Newborn: 20-110 mmHg | |
| Precision | ± 6 mmHg |
| Resolution | 1 mmHg |
| Alarm | Systolic, diastolic, medium |
| Overpressure protection | Double safety protection |
