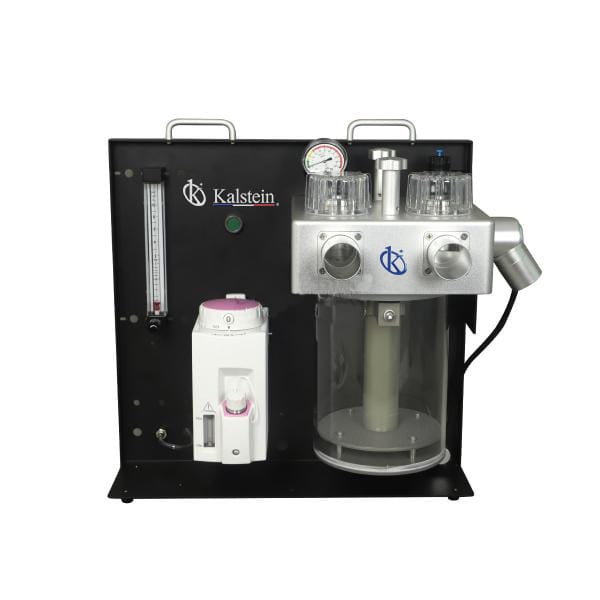

Large Animal Anesthesia Machine YR06098


Product Description

Large Animal Anesthesia Machine YR06098 is designed by Kalstein for use with Equine, Bovine, Zoology and other large animal anesthesia techniques. Applied to large animals such horse, cow, tiger, lion, etc., it is widely used in racecourse, farm, zoo, forest park, animal research center and so on.

  • Specilized anesthesia machine for large animals up to 1200kg
  • The powder-coated steel frame is balanced and topple-proof
  • High-precision O2 flowmeter
  • High-precision vaporizer with good performance of temperature and flow compensation
  • Vaporizer with selectatec compatiable mounting bar, cage mounting is compatiable
  • The inspiratory and expiratory valves are demo-type and visible
  • Open breathing circuit connector is available to connect with Jackson breathing circuit
  • 30L Air bag used for large animals
  • Two handles on the top, easy to carry
  • Trolley is easily to transport everywhere (optional)
Technical Specifications
Model YR06098
Ventilation mode Manual mode, spontaneous mode
O2 Gas source 0.3~0.4 MPa (3-4 bar or 43.5psi-58psi)
O2 Flow meter 0-10L/min
O2 Flush valve 25L/min~75L/min
Soda lime canister 8L, easy to change other size
Air bag 30L
APL(Pop-Off) valve 0~60cmH2O
Breathing pressure gauge -20cmH2O~100cmH2O (-1.96Kpa~9.6Kpa)
Vaporizer Isoflurane (Sevoflurane, Enflurane or Halothane is optional)
CO2 circle absorber Including soda lime canister, Pop-off valve, breathing pressure gauge, inspiratory valve and expiratory valve
Max. Animal weight 1200kg
Trolley 470mm*510mm*1400mm (L*D*H), optional

Additional Information

Weight 48 kg
Dimensions 67 × 67 × 70 cm
