Recirculating Chiller
Recirculation chillers are equipment responsible for air-conditioning spaces by liquid or water-glycol mixing to create comfort processes and cool a product or equipment. Transforms water into hot or cold air as appropriate. It’s a two-in-one computer that worked under a vapor compression system, using refrigerants as part of the work. There are many types of refrigerants and they are used for each application and according to the temperature needed.
The operation of these equipment begins with the cooling cycles from the compressor, where the refrigerant is compressed to transmit to the condenser and come out as liquid, then the pressure drops and the temperature reaches the evaporator where it cools the water and is converted into air that provides comfort in the desired area.
RECIRCULATING CHILLER KALSTEIN
At Kalstein you can find the ideal Recirculating Chiller for your Laboratory
Recirculating Chiller YR02302 // YR02305
This compact cooler is particularly designed for rotary evaporators at the laboratory scale. It is reasonably structured with a small footprint, which c...

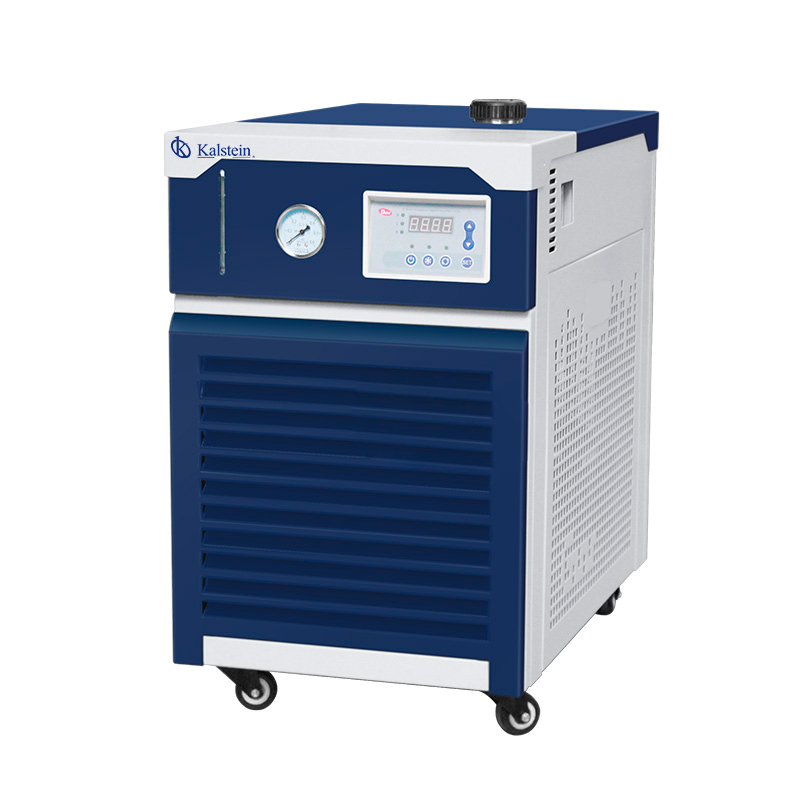

Recirculating Chiller YR02293 – YR02296
YR Recirculating Chiller is usually used to provide constant low temperature condition for inspections, chemical, biological and physical experiments whi...

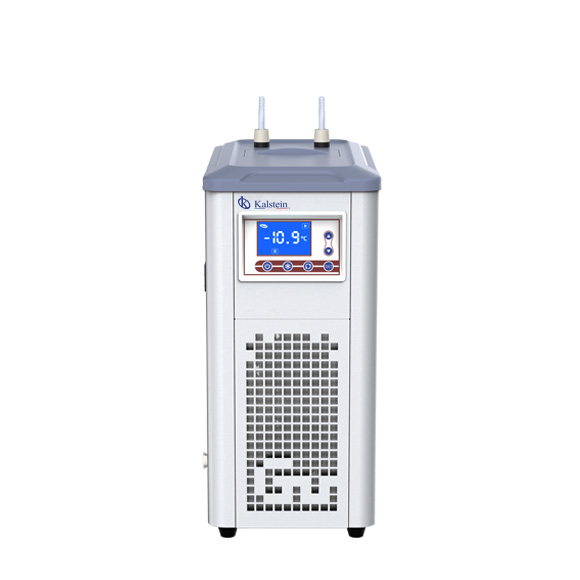

Recirculating Chiller YR02301
This compact chiller is particularly designed for lab scale rotary evaporator. It is reasonably structured with small foot-print, which can be placed on bench or on floor. Advantages Circulating joint...
Recirculating Chiller YR02297 // YR02300
This series of chiller is usually used to provide constant low temperature condition for inspections, chemical, biological and physical experiments which need to ...
Our Recirculating Chiller best seller
This series of chiller is usually used to provide constant low temperature condition for inspections, chemical, biological and physical experiments which need to be carried on under low temperature, mainly used for medicine and health care, food process, chemical industry and teaching in colleges and research institutes.
Advantages
Applications in Chemistry and Biology, like Atomic absorption, ICP-MS, Nuclear Magnetic Resonance, biological fermenter, chemical reaction vessel ( synthetic vessel) etc.
Material Area: Electron Microscopy, X-ray diffraction, X fluorescence, Magnetron sputtering, vacuum coating machine, Laser machine etc.
Equipped with world famous brand compressor, ensure low noise, high reliability, stable performance and long life span.
High performance circulating pump or imported high pressure vane pump with stable and reliable quality. Pump pressure is adjustable.
Model | YR02297 | YR02298 | YR02299 | YR02300 | |
Working Temperature Range | -30 ~ 5’C | ||||
Temperature Stability | ± 2°C | ± 2’C | |||
Power Supply | 220-240V~, 50/60Hz | 3~, 380V, 50Hz | |||
Rated power | 1070 | 1475 | 1275 | 1475 | |
Cooling Capacity
(W) |
0°C | 1250 | 1750 | 2800 | 6000 |
-10°C | 800 | 1100 | 1800 | 4000 | |
-20°C | 300 | 700 | 1000 | 2500 | |
-25°C | 150 | 300 | 500 | 7100 | |
Refrigerant | R410A | R404A | |||
Bath Fluid Filling Volume ( L) | 10 | 17 | 30 | 40 | |
Circulating Pump Flow Rate | 20L/min | 30L/min | |||
Pressure (bar) | 0.4 | 1 | |||
Hase Connection Size | 1 / 2″ | 3 / 4″ | |||
Dimensions ( mm ) | 435Wx 6900 x 720H | 465W x 6900 x 820H | 495W x 760D x 860H | 650W x 10550 x 1070H | |
Net Weight ( Kg) | 70 | 80 | 100 | 195 |
Analysis of the best Recirculating Chiller for your Laboratory
What is a recirculation chiller used for?
A recirculation chiller is laboratory equipment that is a high-efficiency closed cooling system used in various external cooling applications. These devices a...
Refrigeration Recirculation: What Technology Do You Use?
Within the laboratory field, recirculation chillers are high-efficiency cooling equipment, which is used in external cooling studies, to improve sample accuracy, and ...
How the Recirculation Cooler for Marine Species Cultivation Works
Recirculation chillers are equipment designed to transform and improve temperature and bring cold refrigerated water to remo...
How are Recirculating Chillers used for Drinks Factories?
Recirculating cooling units are the equipment responsible for supplying cycles of heat reduction and continuous heat within industrial processes. These methods have...
Catalog of models of Recirculating Chiller on offer
KALSTEIN UPDATED
Guidelines for you to become an expert in Recirculating Chiller
The Recirculating Chiller equipment are essential products in your Laboratory, we provide you with guidance and recommendations for a better use, so you can work like an expert.
How does the Recirculation Cooler work?

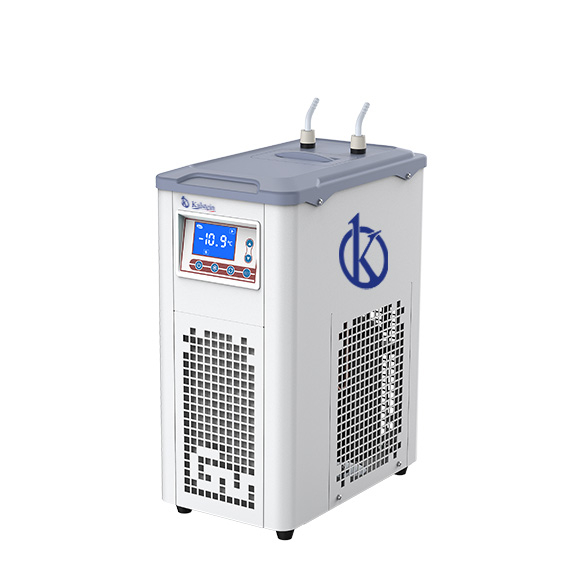

Use of Recirculation chillers to conserve chemicals
Recirculation Chillers for the Plastic Industry
Use of Recirculation Coolers for Hospital Machines
Frequently asked questions from our customers about Recirculating Chiller
The delivery time of your Kalstein product will depend on the following:
- Whether the equipment you are interested in is in stock or if it needs to be manufactured.
- The type of freight you have chosen, which can be either air or sea.
- Equipment in stock:
– Delivery Time (Air): 15-30 days.
– Delivery Time (Sea): 45-60 days.
- Equipment not in stock:
– Delivery Time (Air): 30-60 days.
– Delivery Time (Sea): 60-90 days.
You can make your purchase through:
- By email: [email protected]
- By phone: +33 (0) 1 70 39 26 50
- Online shopping: Through the official Kalstein website in your country.
At Kalstein, we provide our customers with inductions and technical support through new online methods. You can visit our induction videos, technical assistance, and guidance provided by a Kalstein team through our Youtube channel (Kalstein English). HERE
