Water Baths, Circulators & Chillers
The water baths consist of a tank made of stainless material, which has in its bottom a set of electrical resistors, by which heat is transferred to the water, which is maintained at a preselected temperature through a thermostat, thermostat, thermistor or similar control device, which allows selecting the temperature required to perform the various analyzes or laboratory tests.
All water baths currently have an analog or digital interface, which allows users to adjust the desired temperature. As for the resistances of water baths, these can be of two types:
- Immersion. These are usually installed inside a sealed tube and located at the bottom of the container and are in direct contact with the medium to be heated.
- External: This type of resistors transfers heat to the bottom of the tank by means of thermal conduction. They are located at the bottom, but are external to the tank; they are protected by an insulating material to prevent heat loss.
Types of Water Baths that a Laboratory may need
Heating Bath Circulator
The HC series heating circulating bath provides an ambient temperature of 100℃, 200℃, and can be customized to 300 degrees of liquid environment at constant temperature, used for electronic component testing, chemical synthesis temperature control, etc.
Characteristics
- PID temperature control
- Excessive temperature alarm
- low water level alarm
- optional internal and external circulation
- The tank is made of 304 stainless steel

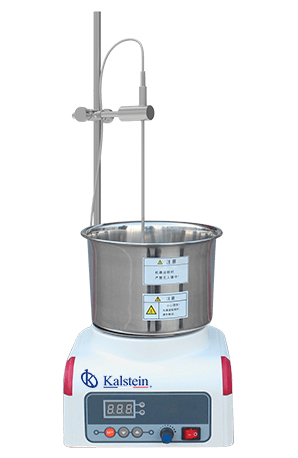

Thermostatic Magnetic Stirring Bath
Can be used as a water bath or oil bath. Strong magnetic stirrer built into the bath.
- 304 stainless steel heater.
- The magnetic stirring system makes the stirrer rotate synchronously, so that the solution in the bath can be heated and stirred evenly.
- The brushless DC motor ensures stable performance and continuous operation.
- The high temperature magnet can work continuously at 300 ℃ without losing magnetism.
In Kalstein you can find the ideal Water Baths for your Laboratory

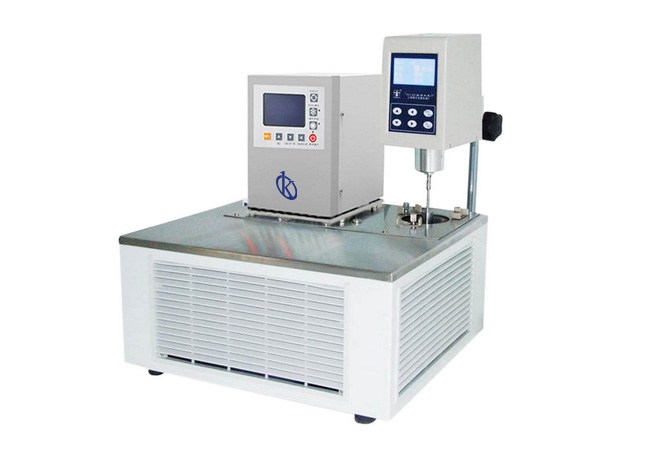

Viscometer circulating bath YR04985
YR circulation bath is specially used for viscometers, high temperature control accuracy, low fluctuation...
Transparent Water Bath YR05080 // YR05082
YR transparent water bath series is with transparent chamber design, with big improvement on temperature...
Cooling and heating circulating pump YR05001 // YR05004
YR series cooling and heating circulating pump is the most widely used circulationg pump for chemical reactors...

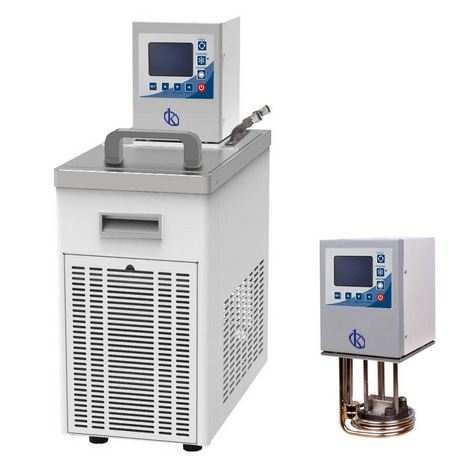

Cooling and heating circulating bath YR04986 // YR05000
YR heating and refrigerated circulators series, provides a constant temperature liquid environment of -40℃ to 100 ℃...
Our Best Selling Water Bath
Features
- It contains refrigerating system, heating system, pre-cooling system, three systems can be used continuously and also can be used separately
- Fast heating and cooling and temperature can be increased and lowered continuously
- Wide temperature control range, no need of changing heat-conducting medium in the whole course and little consumtion of heat-conducting medium
- Complete closed circulating system, the heat transfer fluid is not easy to volatilize and oxidize at high temperature, or not easy to absorb moisture under low temperature, which can prolong the service life of heat transfer fluid
- High temperature cooling and refrigeration function, can lower from high temperature level directly
- Refrigeration heat exchanger adopts complete brazing type, small space and high-efficiency heat exchanging
| Model | YR05001 | YR05002 | YR05003 | YR05004 |
| For Glass Reactor | 2 – 10L | 10 – 20L | 30L | 30 – 50L |
| Circulation Type | -35 – 200°C closed circulation | |||
| Temperature Resolution | 0.1°C | |||
| Cooling Power | 1900 – 1000W | 3720 – 980W | 47400-1140W | 10280-2560 |
| Heating Power | 3000W | 6000W | ||
| Flow Path | 18 l/min | 35 l/min | ||
| Control Method | Micromputer digital control | |||
| Safety Protection | Delay, leakage, over current, overheating protection | |||
| Circulating Pump | Closed leak-free special Pump | |||
| Total Power | 3300 | 3700 | 8400 | 9000 |
| Voltage | 380V / 50Hz | |||
| Dimensions | 630 x 550 x 1060 | |||
| Weight (Kg) | 62 | 120 | 165 | |
Analysis of the best Water Baths for your Laboratory
What is a Laboratory Water Bath?
A Water Bath is Laboratory equipment that is designed with a container filled with hot water. This equipment is used to incubate...
Laboratory Water Baths: Uses and types
A Water Bath is a Laboratory equipment consisting of a container filled with hot water, used to incubate samples...
What is a
Recirculation Bath?
A Recirculating Bath is ideal Laboratory equipment for any application that requires the placement of multiple samples in...
Chillers, a Water Bath and a Circulation Bath
At present there are numerous Laboratory equipment that facilitate the processes carried out in these places...
Catalog of models of Water Baths on offer
-
Shaking Water Bath YR030L
-
Cooling and heating circulating bath YR04986 // YR05000
Select options -
Thermostatic Magnetic Stirring Bath YR02311 // YR02312
Select options -
Cooling and heating circulating pump YR05001 // YR05004
Select options -
Transparent Water Bath YR05080 // YR05082
Select options -
Oil bath YR04973 // YR04976
Select options -
Water bath YR05066 // YR05074
Select options -
Heating circulating bath YR04977 // YR04984
Select options
Guides to becoming an expert in Water Baths
What type of water should be used for a Water Bath?
- Kalstein
Water Baths are equipment that allows maintaining a uniform temperature necessary for different tests and laboratory tests...
Tips for using Water Baths in a Laboratory
-Kalstein
- Equip
A Laboratory Water Bath is an instrument consisting of a container filled with hot water, used to incubate samples in water...
Laboratory Water Baths: preventive and corrective maintenance
Water baths are equipment that fulfill a function mainly in chemistry laboratories, where they are used to transfer heat...
Recirculation Baths and Mary’s Baths: What are their differences?
A Recirculation Bath is a Laboratory device, consisting of a Water Bath with a built-in water Recirculation Pump, an ideal equipment for any application where the placing of several samples in a water bath is required, these equipment provide a constant and reliable temperature...
Video of our Water Bath in operation
In this section you can find, our Water Bath in operation, packaged, receiving service, etc..
Water Baths in operation
Before starting to use the water bath, it should be checked that it is clean and that the accessories to be used are installed. And then, you usually proceed with the following steps:
- Fill the bath with the water to be used to keep the temperature uniform. Verify that, once the containers to be heated are placed, the level of the tank is between 4 and 5 cm from the top edge of the tank.
- Install control instruments, such as thermometers and shakers, when required. Check the position of the bulb of the thermometer or the heat probe, to ensure that the readings are correct.
- Check that the water being used is highly clean.
- Turn the ignition switch to ON.
Frequently Asked Questions about Water Baths
How do you know the prices of Water Baths?
To know the price of the Water Baths we invite you to send us an email with your request through the contact form.
What are the delivery times of the Water Baths?
- If the equipment of your interest is in stock or if it must be manufactured.
- The type of freight you have chosen, this may be; air or sea.
- Equipment in stock:
- Equipment not in stock:
– Tiempo de Entrega (Maritimo): 60-90 dias.
How to make a purchase of Water Baths?
You can make your purchase through:
- By email: [email protected]
- By telephone: +33 (0) 1 78 95 87 02
- E-commerce: Via Kalstein's official website in your country.
How does the warranty work?
At Kalstein, we provide our customers with induction and technical support through new online methods. You can visit our induction videos, technical assistance and guidance provided by a Kalstein team through our YouTube channel (Kalstein English). HERE
Can I request a quote online?
Of course, you can request a quote for the Kalstein team of your interest, directly from our official website. Once you have identified your preferred model, click HERE
