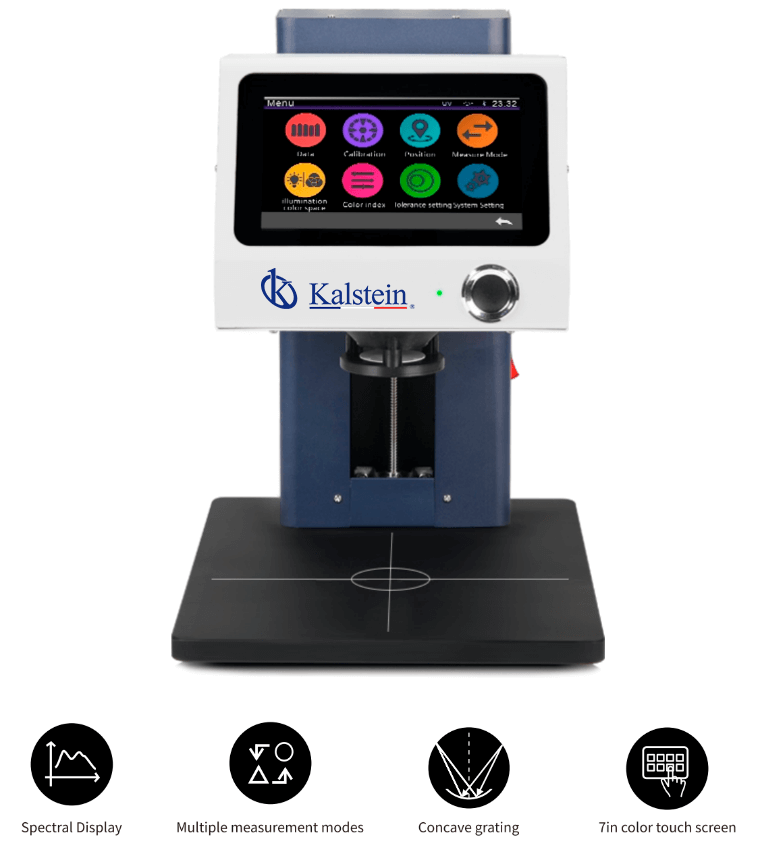

Spectrophotometer YR05481
The Contactless Desktop Spectrophotometer YR05481 combines technical features for laboratory routines, operational continuity and a coherent equipment selection process.
This page provides an overview of the Contactless Desktop Spectrophotometer YR05481, including selection criteria, investment factors, operational advantages and maintenance recommendations. The aim is to support an informed decision before requesting a quotation.
This Kalstein model is available for laboratories in United Kingdom, with selection criteria adapted to local purchasing, installation and support conditions.
Key factors to consider
Before selecting the Contactless Desktop Spectrophotometer YR05481, confirm workflow, available space, required accessories and installation conditions. This prevents oversizing the purchase and helps prepare a more accurate quotation.
Its use is oriented to laboratory routines that require observation, control and operational continuity.
For the market in United Kingdom, evaluation should consider local context such as NHS, university research, UKCA/CE marking and match the product to the real workload of the laboratory.
Market price range
The investment should be evaluated according to configuration, required accessories, installation conditions and available technical support.
The final price may vary according to configuration, accessories, logistics, warranty and territorial availability. Compare the technical sheet with the real laboratory workload before confirming the investment.
In United Kingdom, budget comparison should include CE references, 230V/50Hz power conditions, accessories, logistics and after-sales support.
Value for money
Equipment value depends on operational stability, required accuracy, ease of maintenance and accessory availability.
Value for money should be reviewed together with equipment stability, after-sales support, technical documentation and expected service life. A well-matched selection reduces downtime and improves return on investment.
Advantages and disadvantages
Its use is oriented to laboratory routines that require observation, control and operational continuity.
Main advantages include specialized application, integration with laboratory routines and accessory configuration. Limitations may include installation requirements, user training and preventive maintenance to preserve performance.
Expected lifespan based on use and maintenance
Model YR05481 Optical Geometry D/8 (diffuse illumination, reception at 8°, SCL includes specular reflection light); CIE No. 15, GB/T3978, GB 2893, GB/T 18833, 1907724-1, ASTME1164, DIN5033 Teil7 Light Source Full spectrum LED light source Spectrophotometric Mode Concave grating Sensor 256 pixel dual array CMOS image sensor Wavelength 400-700nm, 10nm output Measured Reflectance Range 0-200% Measurement Aperture 020 mm (010 mm customizable) Non-contact Distance 3.0mm(+0.
Service life depends on usage frequency, cleaning, storage, calibration when applicable and adherence to technical recommendations. A structured maintenance plan helps preserve accuracy, safety and operational continuity.
Support and spare-parts availability oriented to United Kingdom helps preserve service continuity and plan preventive maintenance without extended downtime.
Specifications table for the Spectrophotometer YR05481
Spectrophotometer YR05481
Precio del Mercado
En cuanto al precio, el espectrofotómetro sin contacto YR05481 se posiciona en el rango medio-alto de productos de su categoría, oscilando entre $9870 y $10000 USD, dependiendo de las configuraciones y accesorios personalizados que se incluyan. Este rango es competitivo, especialmente en comparación con marcas líderes, lo cual hace de este modelo una inversión sólida para industrias donde la exactitud y estabilidad en la medición son fundamentales. Solicita una cotización detallada a través de la plataforma Kalstein Plus y obtén una propuesta adaptada a tus necesidades.Preguntas Frecuentes
- ¿Este espectrofotómetro es adecuado para líneas de producción automatizadas? Sí, está diseñado para integrarse en líneas de producción gracias a su sistema sin contacto y su alta precisión.
- ¿Cuáles son las opciones de almacenamiento de datos? Puede almacenar hasta 48,000 mediciones, combinando modos de muestreo y estadísticas.
- ¿La altura de la medición es ajustable? Sí, el cabezal se puede ajustar hasta 160 mm para adaptarse a diferentes tipos de muestras.
- ¿Qué modos de medición ofrece? Incluye modos de muestreo, control de calidad y estadísticas continuas para diversas aplicaciones.
Ventajas y Desventajas
Este modelo presenta múltiples ventajas como la precisión en la medición sin contacto, el ajuste de altura para diversas muestras y la capacidad de almacenamiento amplia. Sin embargo, podría no ser ideal para entornos de alta humedad sin control, ya que su rango óptimo es de hasta el 85% sin condensación.Uso en el Campo
El YR05481 es perfecto para industrias como la cosmética, alimentación y cerámica, donde la medición del color de superficies irregulares y en movimiento es esencial. Gracias a su capacidad de medir de forma precisa y sin contacto, permite obtener datos estables y reproducibles, fundamentales para el control de calidad de productos que requieren estándares estrictos de color y apariencia visual.Recomendaciones
Para mantener su eficacia, se recomienda realizar calibraciones periódicas y asegurarse de que la altura de medición esté correctamente ajustada según el tamaño de las muestras. Además, es ideal utilizarlo en entornos controlados para garantizar una vida útil prolongada de la fuente de luz y componentes internos. Aprovecha la oportunidad de optimizar tus procesos de control de calidad solicitando una cotización personalizada a través de Kalstein Plus, y experimenta los beneficios de un espectrofotómetro de alta precisión en tus operaciones.| Model | YR05481 |
| Optical Geometry | D/8 (diffuse illumination, reception at 8°, SCL includes specular reflection light); CIE No. 15, GB/T3978, GB 2893, GB/T 18833, 1907724-1, ASTME1164, DIN5033 Teil7 |
| Light Source | Full spectrum LED light source |
| Spectrophotometric Mode | Concave grating |
| Sensor | 256 pixel dual array CMOS image sensor |
| Wavelength | 400-700nm, 10nm output |
| Measured Reflectance Range | 0-200% |
| Measurement Aperture | 020 mm (010 mm customizable) |
| Non-contact Distance | 3.0mm(+0.2mm) |
| Sample Height | 0-160mm (Using the original support base plate) |
| Distance Adjustment Method | Manual adjustment (storeable test height) |
| Measurement Mode | Sample mode, quality control mode, continuous statistics mode |
| Location of | Camera location |
| Color Space | CIE LAB, XYZ, Yxy, LCh, CIE LUV, Musell, s-RGB, HunterLab, Bxy, DIN Lab99 |
| Color Difference Formula | AE*ab, AE*94, AE*cmc(2:1), 4E*cmc(1:1), 4E*00, 4E (Hunter), DINAE99 |
| Other Colorimetric Indices | WI (ASTM E313, CIE/ISO, AATCC, Hunter), YI (ASTM D1925, ASTM 313), Metamerism Index MI, Stain Fastness, Color Fastness, Resistance, Opacity |
| Observer Angle | 2°/10° |
| Illuminant | D65, A, C, D50, D55, 075, F1, F2 (CWF), F3, F4, F5, F6, F7 (DLF), F8, F9, F10 (TPL5), F11 (TL84), F12 (TL83/U30) |
| Displayed Data | Spectrogram/Values, Sample Chromaticity Values, Color Difference Values/Graph, Color Simulation, pass/fail result, display tolerance can be configured |
| Time Measurement | Fast mode approx. 1.0s (0.2-1.5s adjustable) |
| Data Storage | Sample mode + quality control mode 18,000; Continuous statistical mode 30,000, total no more than 48,000 |
| Repeatability | In optimal measurement mode (when a single measurement time is 1.5 seconds): Spectral reflectance: within 0.1% of the standard deviation: Chromaticity value: AE*ab within 0.04 (After the instrument has warmed up and calibrated, measure the average value of the board 30 times with a 5s interval) |
| Instrument Error | Within AE*ab 0.25 (Average measured value of 12 tiles from BCRA series II) |
| Measurement Method | Single measurement, average measurement (2-99 times) |
| Dimension | 330*250*370mm |
| Weight | About 10Kg |
| Power | AC 24V, 3A Power supply from the adapter |
| Illuminant Lifespan | 5 years, over 3 million measurements |
| Display | 7-inch color capacitive LCD TFT touchscreen |
| Data Port | USB |
| Language | Simplified Chinese, Traditional Chinese, English |
| Operating Environment | 0~40°C, 0-85%RH (non-condensing), altitude: less than 2000m |
| Storage Environment | -20~50°C, 0-85%RH (non-condensing) |
| Standard Accessory | Power adapter, manual, data cable, standard calibration plate, black calibration box |
| Notes | This model is especially suitable for streamlined production lines, in-depth function customization will incur additional customization costs |
Frequently Asked Questions about the Spectrophotometer YR05481
How do I choose the right Spectrophotometer YR05481 for my laboratory?
Selection should start from workload, critical technical parameters, available space and frequency of use. Kalstein can support the comparison between operational needs, budget and maintenance requirements to avoid choosing equipment that is oversized or insufficient.
What should I review before requesting a quotation?
Review the model, technical specifications, required accessories, electrical conditions, consumables, delivery timing and installation needs. With this information, the quotation can be prepared more accurately and aligned with the laboratory workflow.
Does Kalstein provide guidance for this type of equipment?
Yes. The commercial and technical team can support product evaluation, explain differences between models, answer application questions and advise on preventive maintenance, spare parts and documentation required for a secure purchase.
What maintenance helps extend the equipment lifespan?
Follow the manufacturer manual, perform regular cleaning, verify calibrations or controls when applicable, avoid workload abuse and keep maintenance records. Stable use and preventive routines reduce failures and improve operational continuity.
