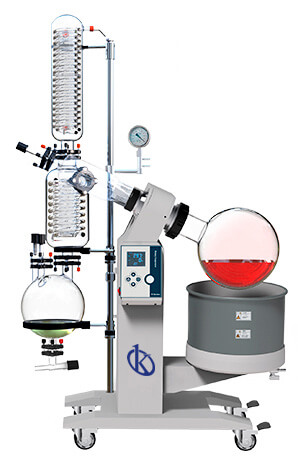

Environmental Conditions and Installation Requirements for the YR02308 Rotary Evaporator
The YR02308 Rotary Evaporator is a sophisticated laboratory device designed for efficient solvent evaporation in various industrial and research applications. To fully leverage its capabilities, understanding its environmental conditions and installation requirements is paramount. This guide delves deep into the necessary conditions for optimal performance and the essential installation steps.
Understanding the YR02308: A Brief Overview
The YR02308 rotary evaporator is engineered for high-capacity evaporation. Its significant evaporation flask surface area allows for efficient solvent evaporation under vacuum conditions while being heated continuously via a water bath. The device is commonly used in biological engineering, pharmaceuticals, chemical industries, and food processing.
Environmental Conditions for the YR02308
When operating the YR02308, certain environmental conditions must be maintained to ensure effective and safe operation:
- Temperature Range: The device operates effectively within a temperature range of ambient to 95°C. It is vital to ensure that the surrounding environment does not exceed these limits to prevent overheating and damage.
- Humidity: The operating humidity should typically be below 80% to prevent condensation within the apparatus, which could lead to inaccurate results or equipment damage.
- Voltage Requirements: The YR02308 requires a stable power supply of 220-240V, 50/60Hz. Operating outside these specifications may lead to electrical failures or malfunctions.
- Vibration and EMI: The installation site should be free from heavy vibrations and electromagnetic interference, as these can disturb the sensitive measurements and processes involved.
- Ventilation: Adequate ventilation is crucial, especially when volatile solvents are used. Ensure that proper exhaust systems are in place to remove potential fumes safely.
- Clearances: The installation area should allow for adequate clearance around the rotary evaporator to facilitate maintenance and ensure safety protocols are followed.
Installation Requirements for the YR02308
Proper installation of the YR02308 rotary evaporator is critical for achieving optimal performance. Here are the key steps and considerations:
- Unboxing and Inspection: Before installation, carefully unbox the equipment and inspect all components for any damage that may have occurred during shipping.
- Leveling the Equipment: The rotary evaporator must be placed on a stable, level surface to ensure accurate rotation and operation.
- Anchoring: Secure the evaporator to prevent movement during operation. This is especially important if the device will be operating at higher speeds.
- Connecting Power Supply: Ensure the power cable meets the specified voltage and frequency requirements. Connect to a grounded outlet to prevent electrical hazards.
- Water Bath Setup: Fill the water bath with the appropriate liquid to ensure optimal heating, maintaining a consistent temperature while the evaporation process occurs.
- Vacuum System Connection: Connect the rotary evaporator to the vacuum pump. It is important to check the seals and connections to prevent leaks, which can affect performance.
- Calibration: After installation, perform a calibration of the device by following the manufacturer’s instructions. This includes checking the temperature and ensuring that the rotation speed is within the specified ranges.
Technical Specifications of the YR02308
| Specification | Details |
|---|---|
| Model | YR02308 |
| Evaporating Flask Capacity | 10L, Ø125mm |
| Receiving Flask Capacity | 5L |
| Heating Power (kW) | 3.5 |
| Maximum Rotation Speed (rpm) | 130 |
| Temperature Range | RT – 95°C |
| Net Weight (kg) | 61 |
Common Installation Mistakes to Avoid
While installing the YR02308 rotary evaporator, several common mistakes can lead to suboptimal performance or damage. Avoid the following pitfalls:
- Improper Leveling: Not leveling the equipment can cause uneven distribution of heat and solvent, leading to inaccurate results.
- Insufficient Ventilation: Failing to provide adequate ventilation can lead to hazardous situations, especially when using volatile solvents.
- Neglecting Power Requirements: Connecting the device to an incorrect power supply can damage the internal components and void the warranty.
- Ignoring Maintenance Protocols: Skipping regular maintenance checks can lead to equipment failures and costly repairs.
Frequently Asked Questions
What are the ideal environmental conditions for operating the YR02308?
The ideal environmental conditions include a temperature range of ambient to 95°C, humidity below 80%, and a stable power supply of 220-240V at 50/60Hz.
How do I ensure proper installation of the YR02308 rotary evaporator?
To ensure proper installation, level the equipment on a stable surface, connect to the correct power supply, fill the water bath adequately, and secure all connections, particularly with the vacuum system.
What precautions should I take when using the YR02308 in a laboratory setting?
Always ensure proper ventilation, avoid using flammable solvents, maintain a clean work area, and regularly check for leaks in the vacuum system.
How often should I calibrate the YR02308 rotary evaporator?
Calibration should be performed during the initial setup and regularly during operation, especially after maintenance or if the device shows inconsistent results.
What maintenance is required for the YR02308 rotary evaporator?
Regular maintenance includes checking and replacing seals, inspecting the vacuum pump, and ensuring that all components are clean and functioning correctly to prevent contamination.
Can I use the YR02308 for food processing?
Yes, the YR02308 can be used for food processing applications, as long as appropriate food-grade solvents are used and safety protocols are followed.
What should I do if the YR02308 does not power on?
If the YR02308 does not power on, check the power supply connections, ensure the outlet is functioning, and verify that the power switch is in the ON position.
