Frequent Errors and Troubleshooting by Symptom for the YR02195 Phototherapy Unit
The YR02195 infant bilirubin phototherapy unit is an essential tool in neonatal care, designed to effectively treat jaundice in newborns through phototherapy. However, like any medical equipment, it may encounter issues that require troubleshooting. This guide will focus on frequent errors and provide detailed troubleshooting steps categorized by symptom, ensuring efficient resolution and optimal performance of the YR02195.
Understanding the YR02195 Phototherapy Unit

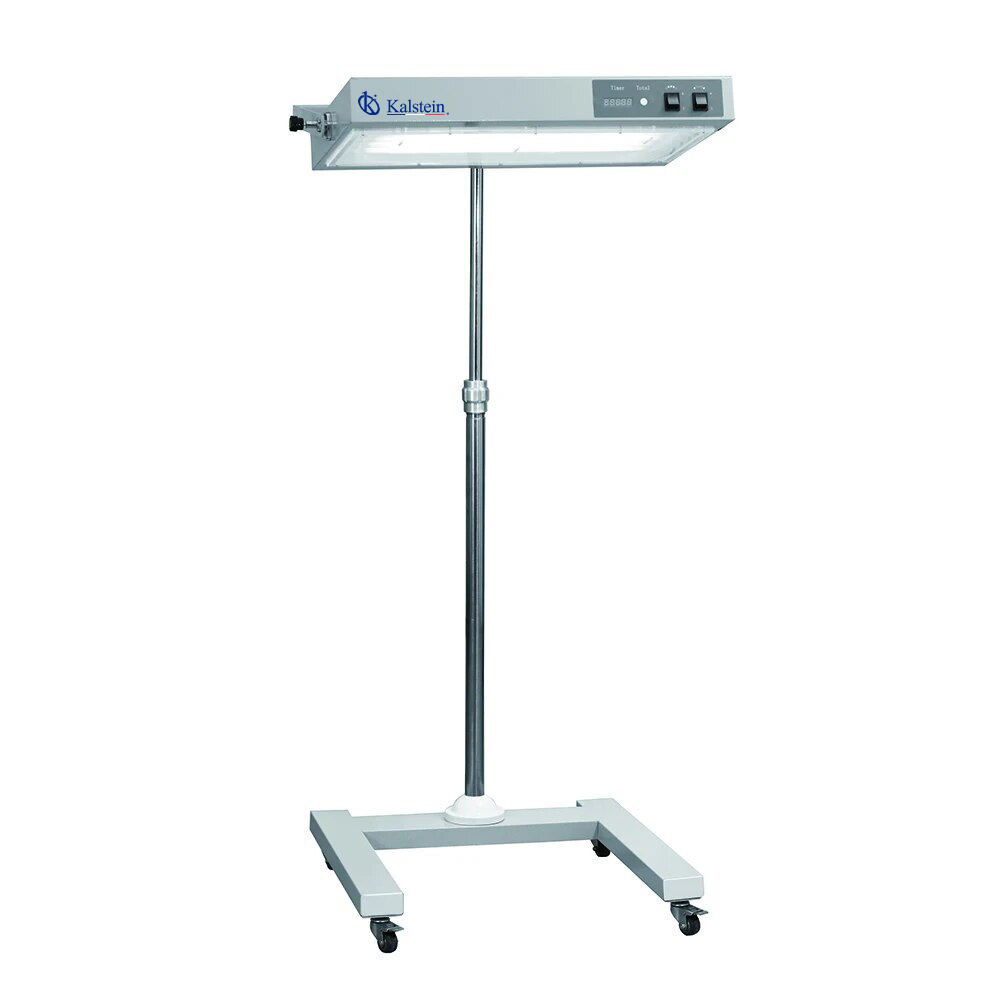

The YR02195 unit utilizes five blue fluorescent tubes as its light source to effectively lower bilirubin levels in infants. It is equipped with a digital LED timer that displays the therapy time and total treatment duration, allowing for accurate monitoring.
Technical Specifications of YR02195
| Specification | Details |
|---|---|
| Model | YR02195 |
| Input Power | <150VA |
| Light Source | Blue tube |
| Light Source Effective Life | 1000 hours |
| Wavelength | 400-550 nm |
| Irradiance Treatment Distance | 10~500px |
| Effective Area | 1125px×600px |
| Infrared Radiation in Effective Area | ≤10mW/cm² (760nm<λ≤1400nm) |
| Ultraviolet Radiation in Effective Area | ≤1.0×10-5mW/cm² (180nm<λ≤400nm) |
| Operate Noise | ≤55 dB(A) (ambient noise is below 40 dB(A)) |
| Basic Performance | ≥500μW/cm² |
| Adjust Angle | 30°, 60°, 90° |
| Adjust Height | 1100mm~1500mm |
Troubleshooting by Symptom
Equipment Does Not Power On
One of the most concerning issues is when the YR02195 does not power on. Here are potential causes and solutions:
- Cause: Power supply issue
Solution: Check the power cord and ensure it is plugged into a functioning outlet. Inspect for any visible damage. - Cause: Internal fuse blown
Solution: Replace the internal fuse according to the user manual. - Cause: Faulty power button
Solution: Test the power button functionality; if defective, seek professional repair.
Error Code E-03
Error codes provide quick diagnostics for specific faults. Error code E-03 often indicates a malfunctioning component.
- Cause: Light source failure
Solution: Verify that the blue tubes are securely fastened and replace any that are burnt out. - Cause: Overheating due to blocked vents
Solution: Ensure that the air vents are unobstructed and clean.
Inconsistent Readings
Inconsistent irradiance readings can affect treatment outcomes. Consider the following:
- Cause: Sensor malfunction
Solution: Calibrate or replace the sensor as indicated in the user manual. - Cause: Incorrect distance from the infant
Solution: Adjust the unit to the recommended treatment distance of 10~500px.
Symptom-Cause-Solution Table
| Symptom | Potential Cause | Suggested Solution |
|---|---|---|
| Equipment Does Not Power On | Power supply issue | Check power cord and outlet |
| Error Code E-03 | Light source failure | Check tubes and replace as needed |
| Inconsistent Readings | Sensor malfunction | Calibrate or replace the sensor |
Frequently Asked Questions
What maintenance does the YR02195 require?
Regular maintenance includes cleaning the light source components, checking the power cord for wear, and replacing the bulbs every 1000 hours of usage. It is also recommended to perform a thorough inspection before and after each use.
How can I extend the life of the blue tubes in the YR02195?
To extend the life of the blue tubes, ensure the unit is turned off when not in use, avoid exposing the tubes to excessive heat, and follow the manufacturer’s guidelines for usage duration.
What is the recommended treatment distance for the YR02195?
The recommended irradiance treatment distance is between 10 and 500px to achieve optimal therapeutic results without harming the infant.
How do I interpret the treatment timer on the YR02195?
The treatment timer displays both the elapsed therapy time and the total treatment time. It is essential to monitor this to ensure infants receive the required duration of treatment without exceeding safe limits.
What are the consequences of using the YR02195 incorrectly?
Incorrect use can lead to inadequate treatment of jaundice, potential harm to the infant, and equipment malfunction. Always adhere to the user manual and guidelines for operation.
Can I use third-party bulbs with the YR02195?
It is recommended to use only manufacturer-approved bulbs to ensure effective treatment and maintain warranty validity. Third-party bulbs may not provide the necessary wavelengths or intensity.
How do I troubleshoot if the unit is not providing adequate light?
First, check if the blue tubes are functioning correctly and replace them if necessary. Also, verify that there are no obstructions in the light path and that the unit is at the correct angle and height.
