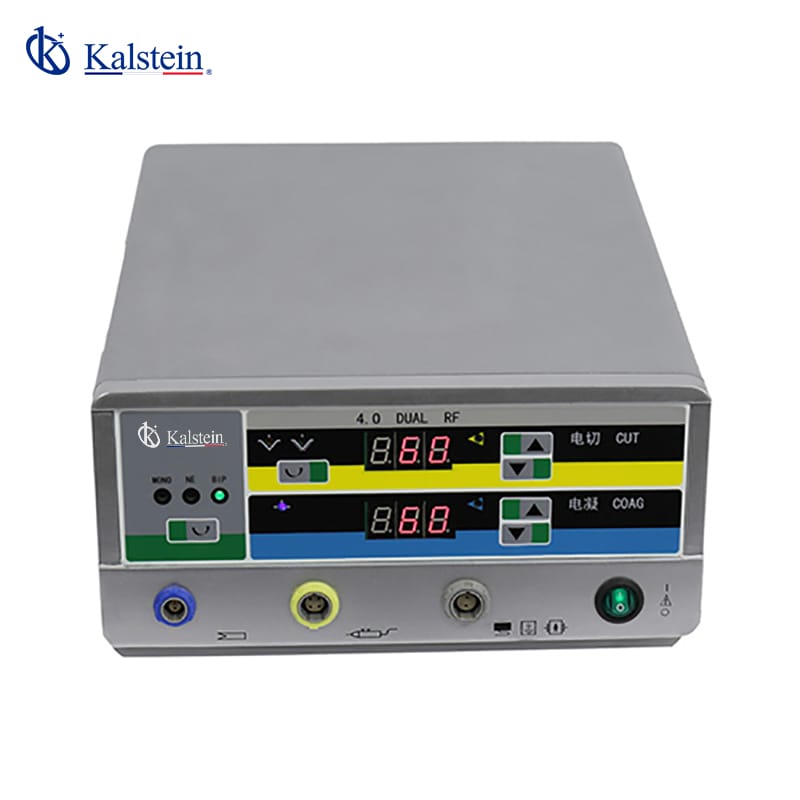

Installation and Commissioning Guide for the YR02147 Electrosurgical Generator
The YR02147 Electrosurgical Generator is a reliable unit designed specifically for electro-surgical procedures, particularly Loop Electrosurgical Excision Procedure (LEEP) in gynecology. This guide aims to provide a thorough understanding of the installation and commissioning processes necessary to ensure optimal functionality and safety during operation.
Understanding the YR02147 Electrosurgical Generator
The YR02147 is equipped with advanced features, including an isolated output of up to 150 watts, automatic current control, and compensation functions that allow for high-precision cutting and coagulation with minimized thermal damage risks. Understanding these features is crucial for effective installation and commissioning.
Technical Specifications of YR02147
| Model | YR02147 |
|---|---|
| Main Unit | |
| Output Frequency | 512 KHz |
| Pure/Mixed Cut Power | 0 ~ 150 W |
| Pure Waveform Type | Continuous sine wave, max open voltage at 1700 V |
| Cut Waveform Mix 1 | 68% duty cycle, max open voltage at 1700V |
| Cut Waveform Mix 2 | 56% duty cycle, max open voltage at 1600 V |
| Cut Waveform Mix 3 | 32% duty cycle, max open voltage at 2000 V |
| Coagulation Power | 0 ~ 100 W |
| Soft Coagulation Power | 16% duty cycle, max open voltage at 3300V |
| Spot Coagulation Waveform Type | 16% duty cycle, max open voltage at 4600 V |
| Power Supply | 220 V / 50 Hz, rated current at 3.15 A |
| Leakage Current | <150 Ma |
| Safety Standard | EN 60601-1 and 60601-2-2 |
| Smoke Evacuator | |
| Volume | 30 ~ 100L / min, 8 adjustable grades |
| Internal Filter Efficiency | > 99.999% |
| External Filter Efficiency | > 99.97% with charcoal filter for odor removal |
| Start Mode | With control or optional pedal |
Unboxing and Initial Setup
Upon receiving the YR02147, unboxing should be done carefully to avoid damaging any components. Follow this checklist:
- Inspect the package for any visible damages.
- Remove the generator and all included accessories from the box.
- Check for all components including the main unit, user manual, and any optional accessories.
- Ensure no packing materials are left in or around the unit.
Once unboxed, place the generator on a sturdy, stable surface ensuring it is level to facilitate proper operation. Make sure to allow adequate space around the unit for cooling and access.
Power-up Sequence and Calibration
Before powering up the YR02147 for the first time, ensure that the power supply meets the specified requirements (220 V / 50 Hz). Follow these steps for power-up:
- Connect the power cord securely to the rear output socket.
- Switch on the main power button located at the back of the unit.
- Check for power indications on the display panel.
- After powering up, begin calibration by following the instructions in the user manual.
Calibration ensures the machine operates within specified parameters. Common initial setup mistakes include failing to calibrate or improper connection of accessories.
Common Installation Mistakes and How to Avoid Them
During installation, operators should be aware of common mistakes that can affect the performance of the YR02147:
- Improper grounding: Ensure the generator is properly grounded to avoid electrical issues.
- Inadequate ventilation: Check that there is ample space for airflow to prevent overheating.
- Incorrect accessory connections: Verify that all accessories are connected according to the instructions.
Proper training and adherence to the user manual can mitigate these risks significantly.
Frequently Asked Questions
What are the key features of the YR02147 Electrosurgical Generator?
The YR02147 features include an isolated output of up to 150 watts, automatic electrode recognition, and digital diagnostic error codes, providing a robust solution for electro-surgical procedures.
How should I maintain the YR02147 after installation?
Regular maintenance involves cleaning the unit, checking connections, and ensuring that the smoke evacuator is functioning correctly. Follow the maintenance schedule outlined in the user manual.
What safety standards does the YR02147 comply with?
The YR02147 complies with safety standards EN 60601-1 and 60601-2-2, ensuring it meets essential safety requirements for medical equipment.
Can I use the YR02147 for different types of surgeries?
Yes, the YR02147 is versatile and can be used in gynecological surgery, plastic surgery, and ENT procedures, accommodating various surgical needs.
What should I do if the YR02147 displays an error code?
Refer to the user manual for error code diagnostics. Common steps include checking connections and performing a power cycle. If the problem persists, contact technical support.
Is there an optional smoke evacuator available with the YR02147?
Yes, an optional smoke evacuator is available, designed to remove smoke and unpleasant odors generated during surgical procedures, contributing to a cleaner working environment.
