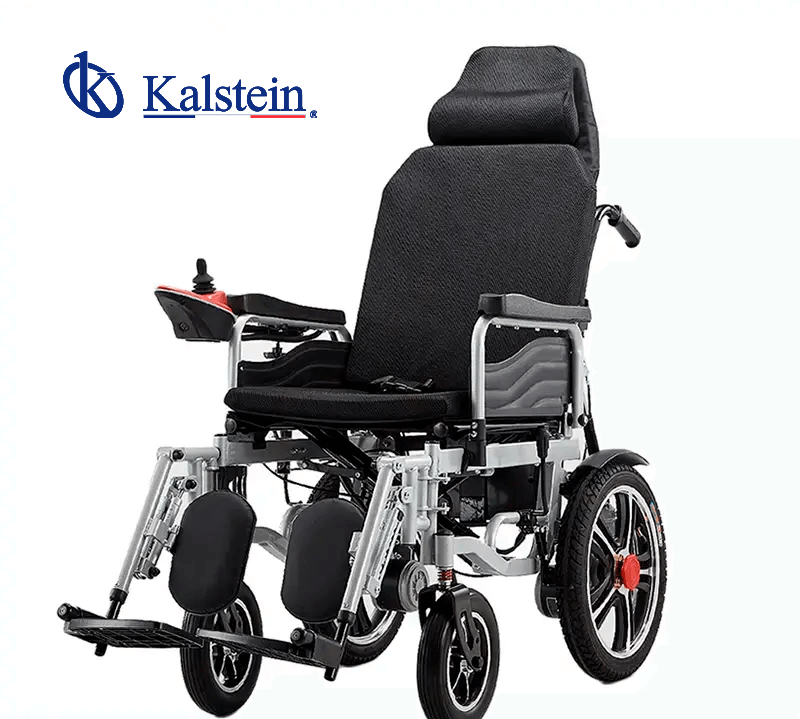

Installation and Commissioning Guide for the YR05441 Electric Wheelchair
The YR05441 electric wheelchair is designed for ease of use and adaptability. This guide provides detailed steps for the installation and commissioning process, ensuring that users maximize their experience with the device.
Unboxing Checklist
When you receive your YR05441 electric wheelchair, it is crucial to perform a thorough unboxing to ensure that all components are present and undamaged. The unboxing checklist includes:
- YR05441 Electric Wheelchair
- Battery pack
- Charger
- User manual
- Tool kit (if applicable)
- Warranty card
Assembly Instructions
Once unboxed, follow these steps to assemble your YR05441 electric wheelchair:
- Attach the rear wheels securely, ensuring they are locked in place.
- Install the front wheels by aligning them with the designated slots and securing them.
- Connect the battery pack to the wheelchair, ensuring polarity is correct.
- Fold the armrests down into place, making sure they click securely.
- Adjust the footrests to the preferred height and position.
- Check all connections for security before proceeding to the next steps.
Power-Up Sequence
To power up the YR05441 electric wheelchair, follow these steps:
- Ensure the wheelchair is assembled correctly and all parts are secure.
- Connect the charger to the battery pack and plug it into a power outlet.
- Press the power button located on the joystick control; a beep should indicate powering on.
- Check the battery indicator on the control panel to ensure it is charged.
First-Run Calibration
For optimal performance, first-run calibration is essential. Here's how to calibrate your YR05441:
- Set the wheelchair on a flat, level surface.
- Using the joystick, navigate through the settings menu to find the calibration option.
- Follow the on-screen prompts to complete the calibration.
- Test the wheelchair by moving forward, backward, and turning to confirm responsiveness.
Common Setup Mistakes
Here are some common mistakes to avoid during the installation and commissioning of the YR05441:
- Neglecting to check wheel assembly for security.
- Incorrectly connecting the battery, leading to power issues.
- Skipping calibration, resulting in misalignment and poor handling.
- Overlooking the user manual for specific operational guidelines.
Technical Specifications of the YR05441
| Specification | Details |
|---|---|
| Model | YR05441 |
| Seat Width | 46 cm |
| Seat Depth | 45 cm |
| Seat Height | 54 cm |
| Back Height | 75 cm |
| Total Length | 118 cm |
| Average Width | 64 cm |
| Total Height | 122 cm |
| Rear Wheel Size | 16 inches |
| Front Wheel Size | 10 inches |
| Folding Height | 79 cm |
| Folding Length | 39 cm |
| Folding Width | 74 cm |
| Net Weight | 47 kg / 55.5 kg |
| Frame Material | Steel |
| Package Size | 84 cm x 44 cm x 79 cm |
| Weight Capacity | 130 kg |
| Operating Range | 15 km |
| Maximum Speed | 6 km/h |
| Motor | 250 W x 2 units |
| Battery | Lead-acid 24V 12Ah |
| Brakes | Manual and electromagnetic brakes |
| Cushion Color | Black/Red/Blue |
Frequently Asked Questions
What should I do if the YR05441 electric wheelchair does not power on?
If the YR05441 electric wheelchair does not power on, first check the battery connections. Ensure the battery is fully charged and properly connected. If the issue persists, consult the user manual for troubleshooting tips.
How can I adjust the footrests on the YR05441?
The footrests on the YR05441 can be adjusted by loosening the adjustment knobs located on each side. Once adjusted to the desired height, tighten the knobs to secure them in place.
What maintenance is required for the YR05441 electric wheelchair?
Regular maintenance for the YR05441 includes checking tire pressure, inspecting battery health, and ensuring all screws and connections are tight. Additionally, clean the wheelchair regularly to prevent dirt buildup.
How do I fold the YR05441 electric wheelchair for storage?
To fold the YR05441, first ensure the armrests are in the down position. Pull the folding lever located on the frame and gently push down until the wheelchair is fully folded. Store it in a dry, cool place.
Can the YR05441 be used on uneven terrain?
The YR05441 is designed for flat surfaces. While it may handle slight inclines, it is not recommended for rough or uneven terrain. Always consider the weight capacity and terrain type before use.
What is the weight capacity of the YR05441 electric wheelchair?
The YR05441 electric wheelchair has a weight capacity of 130 kg. Exceeding this limit can compromise safety and performance.
Where can I request a quote for the YR05441 electric wheelchair?
You can easily request a quote for the YR05441 electric wheelchair by visiting our dedicated page for product inquiries.
