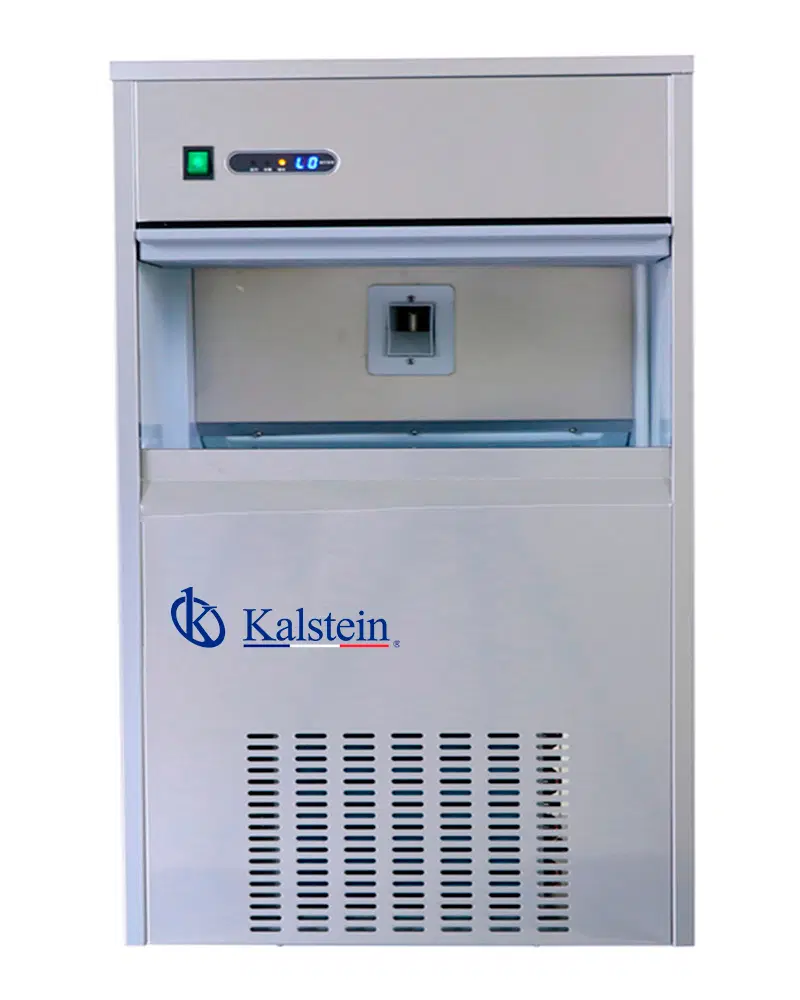

Installation and Commissioning Guide for the YR05137 Shaved Ice Machine
The YR05137 Shaved Ice Machine is a high-quality device designed for efficiency and durability, making it an essential piece of equipment for various applications. This guide aims to provide a detailed overview of the installation and initial setup of the YR05137, ensuring smooth operation and enhancing performance.
Unboxing and Initial Setup
Upon receiving the YR05137, it is crucial to conduct a thorough inspection to ensure completeness and functionality. The unboxing process should follow these steps:
- Remove all packaging materials and examine the machine for any visible damages.
- Check the included components: the machine, user manual, warranty card, and any accessories.
- Ensure that all parts are accounted for based on the included checklist in the user manual.
After confirming the condition and completeness, proceed to the installation site.
Site Requirements and Preparation
Before installation, it is essential to assess the site conditions to ensure optimal performance:
| Requirement | Specification |
|---|---|
| Temperature Range | 10°C to 35°C |
| Humidity | Below 85% |
| Voltage | 220V/50Hz or 110V/60Hz |
| Ventilation | Ensure adequate airflow around the machine. |
| Clearances | Maintain a minimum of 30 cm from all sides for ventilation. |
| Water Supply | Connection to a clean water source is required. |
Ensure that the installation area is level and stable to prevent any operational issues.
Anchoring and Leveling the YR05137
Position the YR05137 on a flat surface, ensuring it is level to avoid any operational inconsistencies. Here are the steps for anchoring and leveling:
- Use a level to check that the machine sits evenly.
- If necessary, adjust the feet of the machine to achieve a level position.
- Once level, consider securing the machine with appropriate anchors to prevent movement during operation.
Electrical Connections and Power-Up Sequence
Connecting the YR05137 to a power source requires attention to safety protocols:
- Ensure that the power supply matches the machine's voltage and frequency specifications.
- Connect the machine to a dedicated circuit to avoid overload.
- Once connected, power on the machine using the main switch and observe any initial diagnostic indicators on the display.
During the power-up sequence, monitor the machine for any error codes or malfunctions.
First-Run Calibration and Testing
Once powered up, the YR05137 requires calibration to ensure accurate operation:
- Follow the instructions in the user manual for the initial calibration process.
- Run a test cycle to assess functionality and make adjustments as needed.
- Check the ice production to validate the setup and ensure optimal performance.
Common Setup Mistakes and How to Avoid Them
Many users may encounter common mistakes during the installation and commissioning process. Here are some to watch out for:
- Neglecting to ensure proper ventilation can cause overheating.
- Incorrect voltage supply can damage the machine; always verify before connecting.
- Failing to maintain proper clearances can lead to operational issues.
By adhering to the guidelines outlined in this section, users can avoid pitfalls that may affect machine performance.
Technical Specifications of the YR05137
| Specification | Value |
|---|---|
| Model | YR05137 |
| Ice Production Capacity | 100 Kg / 24 h |
| Ice Storage Capacity | 40 Kg |
| Power Supply | 220V / 50Hz or 110V / 60Hz |
| Power Consumption | 520 W |
| Cooling Type | Air-conditioned |
| Refrigerant | R134a |
| Net Weight | 58 kg |
| Dimensions | 500 x 611 x 940 mm |
Frequently Asked Questions
What should I do if the YR05137 does not power on?
If the YR05137 does not power on, check the power supply connection and ensure it is receiving the correct voltage. Inspect the machine for any blown fuses or tripped circuit breakers. If issues persist, consult the user manual for troubleshooting steps.
How can I troubleshoot error codes on the YR05137?
Error codes can indicate various issues, such as low water supply or mechanical malfunctions. Refer to the user manual for a detailed list of error codes and their meanings. Follow the suggested corrective actions for each error code.
What maintenance is required for the YR05137?
Regular maintenance includes cleaning the machine's exterior, checking for ice buildup, and ensuring proper water supply. Periodically inspect the internal components for any signs of wear or damage. Refer to the maintenance schedule in the user manual for detailed guidance.
What is the expected lifespan of the YR05137?
With proper maintenance and care, the YR05137 can last several years. The specific lifespan will depend on usage frequency and adherence to maintenance practices.
Can the YR05137 be used in commercial settings?
Yes, the YR05137 is designed for both commercial and residential use, making it a versatile option for various applications, including restaurants, bars, and food production facilities.
What are the advantages of using the YR05137?
The YR05137 offers high efficiency in ice production, energy savings, and user-friendly operation. Its durable design and advanced technology ensure reliable performance over time.
How can I request a quote for the YR05137?
To request a quote for the YR05137, please contact your local sales representative or visit our online platform for more information.
