Installation Requirements and Environmental Conditions for the YR05022 Heating Mantle
The YR05022 heating mantle is a vital piece of laboratory equipment used for heating samples in various settings, from clinical labs to industrial applications. Understanding the installation requirements and environmental conditions is crucial for optimizing its performance and ensuring safety. This article delves into the specific conditions and requirements needed for the YR05022, providing a comprehensive guide for operators and technicians.

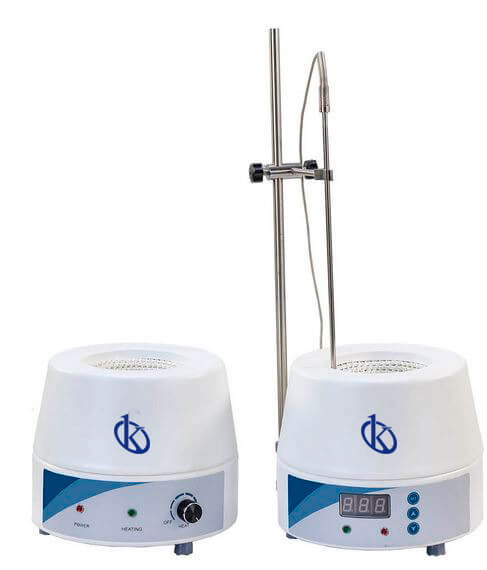

Understanding the YR05022 Heating Mantle
The YR05022 heating mantle is renowned for its efficient heating capabilities, designed with a durable construction that includes a cold-rolled steel shell and a nicrom heating wire that ensures longevity and quick heating. It achieves precise temperature control thanks to its PID temperature control system, making it suitable for high-precision experiments.
Technical Specifications of the YR05022
| Specification | Details |
|---|---|
| Model | YR05022 |
| Type | Analog |
| Capacity (ml) | 250 |
| Voltage (V) | 200 – 240V / 50 – 60Hz or 100 – 120V / 50 – 60Hz |
| Maximum Operating Temperature (°C) | 380 |
| Power (W) | 150 |
| Net Weight (kg) | 4 |
| Gross Weight (kg) | 6 |
| External Size (mm) | Ø260 x 200 |
| Packaging Size (mm) | 290 x 290 x 220 |
Installation Requirements for the YR05022
Proper installation of the YR05022 heating mantle is essential for its efficient operation. Here is a checklist of the installation requirements:
- Power Supply: Ensure that the power supply matches the voltage specifications (200-240V or 100-120V). Use a dedicated circuit to avoid overload.
- Stable Surface: Place the heating mantle on a stable, level surface to prevent any accidents during operation.
- Clearance: Provide sufficient clearance around the mantle to allow for proper airflow and ventilation. A minimum of 15 cm on all sides is recommended.
- Temperature Control: Connect the mantle to an external temperature sensor for accurate control, particularly in high-precision applications.
- Emergency Access: Ensure that emergency shut-off switches are accessible in case of malfunction.
Environmental Conditions for Optimal Performance
The environmental conditions in which the YR05022 operates can significantly affect its performance and longevity. Operators should ensure the following conditions:
- Temperature Range: The ambient temperature should be maintained between 15°C to 30°C to avoid overheating and ensure reliable performance.
- Humidity: Keep humidity levels below 80% to prevent condensation and potential electrical issues.
- Vibration: Install the heating mantle in an area free from excessive vibration, which can affect the stability of measurements and the integrity of the equipment.
- EMI Considerations: The area should be free from strong electromagnetic interference to avoid disruptions in performance.
- Ventilation: Ensure proper ventilation to dissipate heat generated during operation and maintain a safe working environment.
Common Installation Mistakes to Avoid
Even experienced technicians can overlook certain aspects during installation. Here are some common mistakes to avoid:
- Ignoring Voltage Specifications: Always verify that the power source matches the heating mantle's voltage requirements.
- Insufficient Clearance: Failing to provide adequate space around the mantle can lead to overheating and system failure.
- Improper Leveling: Placing the mantle on an uneven surface can affect heating efficiency and safety.
- Neglecting Calibration: Always calibrate the temperature control system before first use to ensure accuracy.
Site Preparation Checklist for the YR05022
| Item | Requirement |
|---|---|
| Power Supply | Match voltage requirements (200-240V or 100-120V) |
| Surface | Stable, level surface with minimum 15 cm clearance |
| Temperature | Maintain ambient temperature 15°C to 30°C |
| Humidity | Keep below 80% |
| Vibration | Avoid areas with excessive vibration |
| Ventilation | Ensure proper airflow around the unit |
Frequently Asked Questions
What is the maximum temperature the YR05022 can reach?
The YR05022 heating mantle can reach a maximum operating temperature of 380°C, making it suitable for a wide range of heating applications in laboratories.
How should I maintain the YR05022 heating mantle for optimal performance?
Regularly check the wiring, clean the outer casing, and ensure that the temperature control system is calibrated accurately to maintain optimal performance.
Can the YR05022 be used in high humidity environments?
It is not recommended to use the YR05022 in high humidity environments as this can lead to condensation and electrical issues that may compromise the equipment's performance.
What are the common installation errors for the YR05022?
Common installation errors include ignoring voltage specifications, not providing sufficient clearance, placing the mantle on an uneven surface, and neglecting calibration before first use.
Is the YR05022 suitable for industrial applications?
Yes, the YR05022 is suitable for both clinical and industrial applications due to its robust construction and precise temperature control.
What safety features does the YR05022 include?
The YR05022 is equipped with temperature control features and can be connected to external sensors to enhance safety during operation, along with accessible emergency shut-off switches.
Where can I request a quote for the YR05022 heating mantle?
You can request a quote for the YR05022 heating mantle through our user-friendly online platform, which provides competitive pricing and various purchasing options.
