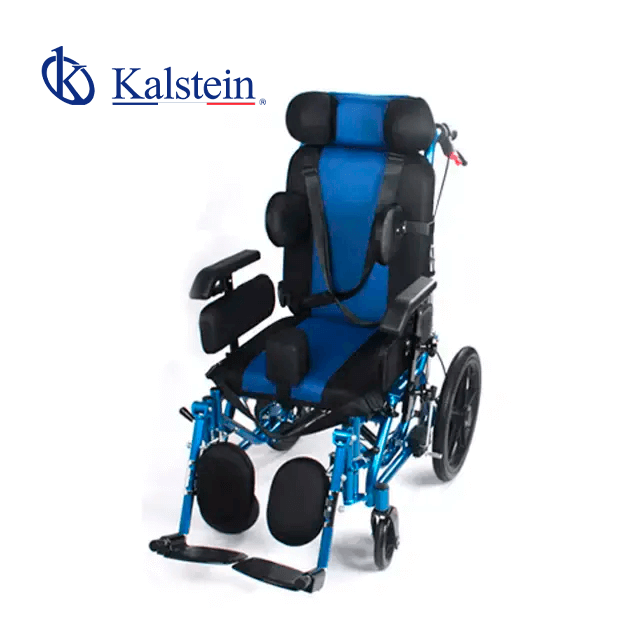

Installation and Setup Guide for the YR05457 Wheelchair for Children
The YR05457 Wheelchair for Children is designed with safety and comfort in mind. This guide will provide you with a detailed approach to its installation and initial setup, ensuring that the wheelchair is ready for optimal use.
Unboxing the YR05457 Wheelchair
Upon receiving the YR05457 wheelchair, it is essential to conduct an unboxing procedure to ensure all components are present and free of damage. Below is an unboxing checklist:
- YR05457 Wheelchair Frame
- Backrest Cushion
- Footrests
- Instruction Manual
- Safety Belt
- Assembly Tools
Carefully remove the wheelchair from the packaging, inspecting each item against the list above. If any part is missing or damaged, contact your supplier for resolution.
Assembly Steps for the YR05457 Wheelchair
Assembly of the YR05457 wheelchair involves several straightforward steps. Follow the instructions to ensure correct assembly:
- Attach the Footrests: Align the footrests with the designated slots on the wheelchair frame and secure them tightly.
- Install the Backrest Cushion: Position the backrest cushion using the provided clips and secure the safety belt around it.
- Secure the Safety Belt: Ensure that the safety belt is correctly fastened to avoid any movement during use.
- Check Adjustability: Adjust the seat angle and height according to the user’s needs by following the adjustment guidelines in the manual.
Make sure all components are firmly secured before proceeding to the next step.
Initial Setup of the YR05457 Wheelchair
Once the YR05457 wheelchair is assembled, it is time to perform the initial setup. The following steps will guide you through this process:
- Positioning the Wheelchair: Choose a flat, stable surface for the wheelchair’s initial positioning. This ensures safety and operational effectiveness.
- Testing the Brakes: Engage the brakes to ensure they are functioning correctly. The wheelchair should not move when the brakes are applied.
- Adjusting the Wheelchair Height: Use the adjustment levers to set the seat height to a comfortable level for the child.
With the initial setup complete, the YR05457 wheelchair should be ready for use.
Understanding the Features of the YR05457 Wheelchair
The YR05457 wheelchair comes equipped with various features that enhance its usability. Below is a breakdown of its key specifications:
| Model | YR05457 |
|---|---|
| Seat Width | 38 cm |
| Seat Depth | 39 cm |
| Seat Height | 46 cm |
| Backrest Height | 55-70 cm (with headrest) |
| Total Length | 112 cm |
| Average Width | 46 cm |
| Total Height | 100 cm |
| Rear Wheel Size | 16 inches |
| Front Wheel Size | 6 inches |
| Folding Height | 90 cm |
| Folding Length | 80 cm |
| Folding Width | 25 cm |
| Net Weight | 21.5/23.75 KG |
| Frame Material | Steel |
| Load Capacity | 100 KG |
| Package Size | 83*30*94 cm (25 kg) |
Common Setup Mistakes to Avoid
During the assembly and initial setup of the YR05457 wheelchair, it is crucial to avoid common mistakes that can impact functionality:
- Failing to secure the footrests properly can lead to instability.
- Improper adjustment of the safety belt may pose safety hazards.
- Neglecting to test the brakes before use can compromise safety.
By being aware of these common pitfalls, you can ensure a safer and more effective setup process.
Frequently Asked Questions
What is the weight capacity of the YR05457 wheelchair?
The YR05457 wheelchair has a load capacity of 100 KG, making it suitable for most children.
How do I adjust the backrest angle on the YR05457?
The backrest of the YR05457 wheelchair can be adjusted by using the designated levers found at the back of the seat. Ensure it is locked into place after adjustment.
What materials are used in the YR05457 wheelchair?
The YR05457 wheelchair features a sturdy steel frame, ensuring durability and stability. The backrest cushion is made from Oxford fabric for comfort.
How do I maintain the YR05457 wheelchair?
Regular maintenance includes checking for loose components, cleaning the frame and wheels, and inspecting the brakes to ensure safe operation.
Can the YR05457 wheelchair be transported easily?
Yes, the YR05457 wheelchair is designed for easy transportation. It can be folded for convenient storage and transport.
What should I do if the wheelchair does not function properly?
If you encounter issues with the wheelchair, refer to the troubleshooting section in the manual or contact customer support for assistance.
Is there a warranty for the YR05457 wheelchair?
Yes, the YR05457 wheelchair typically comes with a warranty. Ensure to check the warranty details provided at the time of purchase.
