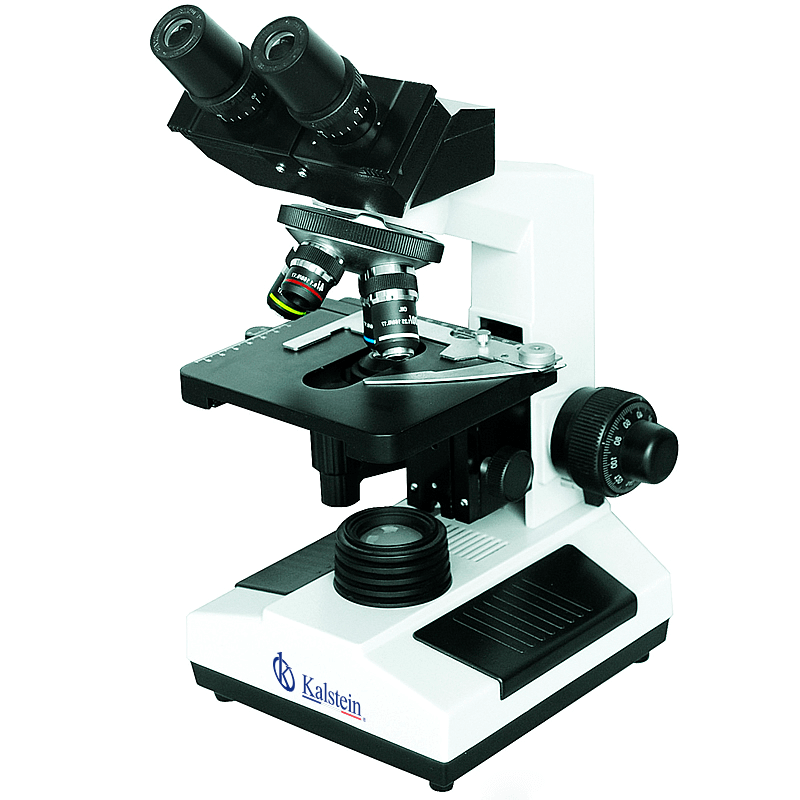

Installation and Startup Guide for the YR0242-1 Binocular Student Biological Microscope
The YR0242-1 Binocular Student Biological Microscope is a premier educational tool designed for students and professionals alike. In this guide, we will provide a comprehensive overview of the installation and startup process for this model, ensuring optimal performance and longevity.
Understanding the Components of the YR0242-1
Before proceeding with the installation, it is vital to familiarize yourself with the various components of the YR0242-1 microscope:
- Head Type: Binocular head with optional trinocular configuration.
- Eyepieces: Wide field eyepieces of WF10x/18 mm and WF16x/11 mm.
- Objectives: Achromatic objectives of varying magnifications including 4x, 10x, 40x, and an oil immersion 100x.
- Stage: Double-layer mechanical stage for smooth specimen manipulation.
- Focus Mechanism: Coaxial coarse and fine focusing mechanism for precise adjustments.
- Illumination: Built-in 6V20W halogen lamp with a concave mirror for optimal lighting.
Unboxing Checklist
Upon receiving your YR0242-1 microscope, ensure the following items are included in the package:
- YR0242-1 Microscope body
- Eyepieces (WF10x and/or WF16x)
- Objective lenses (4x, 10x, 40x, and 100x)
- Mechanical stage
- Power cord
- User manual
- Cleaning cloth
Setting Up the YR0242-1 Microscope
Follow these steps to set up your microscope effectively:
1. Positioning the Microscope
Place the microscope on a stable, flat surface away from direct sunlight and environmental disturbances. Ensure the area is well-ventilated and free from vibrations.
2. Attaching the Eyepieces and Objectives
Insert the desired eyepieces into the eyepiece tube. Next, carefully rotate the revolver to select and insert the appropriate objective lens securely into position.
3. Adjusting the Mechanical Stage
Install the mechanical stage, ensuring it is tightly secured. Adjust the stage for optimal movement and positioning of the slides.
4. Connecting Power
Connect the power cord to a suitable outlet. Verify that the voltage matches the specifications of the YR0242-1 microscope (100~240V).
5. First Power-Up Sequence
Turn on the microscope using the power switch. Verify that the illumination lamp is functioning properly. Allow the microscope to warm up for a few minutes before use.
Calibration and Initial Setup
Initial calibration of the YR0242-1 ensures accuracy in observations:
1. Focusing the Microscope
Start with the lowest power objective (4x) to locate the specimen. Use the coarse focus knob to bring the stage upward until the specimen is in view. Once visible, switch to the higher magnification objectives and use the fine focus for clarity.
2. Adjusting the Light Intensity
Adjust the diaphragm and light intensity to achieve optimal illumination based on the specimen type. Use a low light setting for transparent specimens and a higher setting for thicker samples.
Technical Specifications of the YR0242-1
| Model | YR0242-1 (current) |
|---|---|
| Magnification | 40x~1000x |
| Head Type | Binocular sliding head, inclined at 45° |
| Eyepiece | Wide field WF10x/18mm |
| Objectives | Achromatic 4x/0.10, 10x/0.25, 40xs/0.65, 100xs/1.25 (oil) |
| Stage | Double-layer mechanical stage, 140*140 mm |
| Focus | Coaxial coarse and fine focusing |
| Condenser | NA1.25 Abbe condenser with iris diaphragm |
| Light Source | Built-in halogen lamp 6V20W |
Troubleshooting Common Issues
Encountering issues with your YR0242-1? Below are common symptoms, potential causes, and solutions:
| Symptom | Possible Cause | Solution |
|---|---|---|
| Microscope does not power on | Power connection issue | Check the power cord and outlet connection. |
| Image is blurry | Incorrect focus or objective | Re-adjust focus and ensure the correct objective is in place. |
| Insufficient light | Lamp malfunction | Replace the halogen lamp if necessary. |
| Stage movement is restricted | Mechanical stage is misaligned | Realign the stage and ensure all screws are tightened. |
Frequently Asked Questions
What is the maximum magnification of the YR0242-1 microscope?
The YR0242-1 microscope offers a maximum magnification of 1000x, allowing for detailed observations of specimens.
How do I properly clean the lenses of my YR0242-1?
Use a microfiber cloth and lens cleaning solution specifically designed for optical equipment. Avoid using abrasive materials.
Can I use oil immersion with the YR0242-1 microscope?
Yes, the YR0242-1 is equipped with a 100x oil immersion objective, allowing for enhanced viewing of thin specimens.
What are the recommended maintenance practices for the YR0242-1?
Regularly clean the lenses, check the alignment of the optical components, and replace the halogen lamp as needed to maintain performance.
Is it possible to replace the eyepieces of the YR0242-1?
Yes, the eyepieces can be replaced or upgraded depending on your observation needs, with compatible sizes available for purchase.
Can the YR0242-1 be used for professional applications?
While primarily designed for educational purposes, the YR0242-1 is capable of handling basic professional applications in clinical and research settings.
