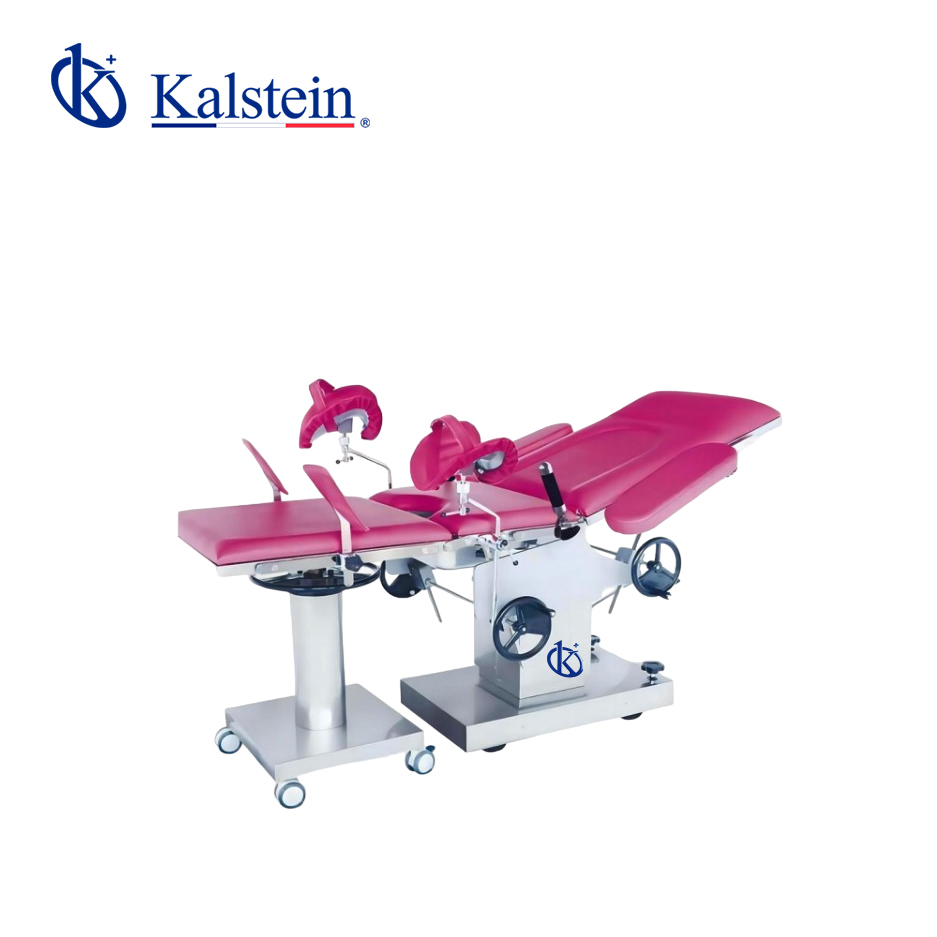

Installation and Startup Guide for the YR06240 Hydraulic Mechanical Table for Gynecology and Obstetrics
The YR06240 hydraulic mechanical table is designed specifically for gynecological and obstetric procedures, offering versatility and reliability. This guide focuses on the installation and startup processes, ensuring that operators can properly configure and utilize this critical piece of medical equipment.
Understanding the YR06240 Table
The YR06240 table features high-quality stainless steel construction, with a hydraulic lifting mechanism and a memory foam mattress for patient comfort. The table provides essential functionalities in clinical settings, making it vital for medical professionals to understand its operation and installation.
Specifications and Technical Data of the YR06240
| Model | YR06240 |
|---|---|
| Length | 1950±50mm |
| Width | 600±10mm |
| Height Adjustment | (750~950)±50mm |
| Dimension of Auxiliary Platform | 650×600mm |
| Backboard Upwards | ≥50° |
| Backboard Downwards | ≥10° |
| Seat Board Upwards | ≥30° |
| Seat Board Downwards | ≥10° |
Unboxing and Initial Setup
Upon receiving the YR06240 table, follow these unboxing steps to ensure all components are accounted for and in good condition:
- Inspect the external packaging for any signs of damage.
- Unpack the table and check for included components such as hydraulic pumps, wheels, and manuals.
- Ensure that all parts as listed in the manual are present.
Anchoring and Leveling the Table
Proper anchoring and leveling are crucial for the stability of the YR06240 table during operations:
- Select a suitable location that can accommodate the table's dimensions and weight.
- Use the adjustable feet at the base of the table to ensure it is level on uneven surfaces.
- Secure the table using the provided anchors to prevent movement during use.
Power-Up Sequence and Calibration
Before using the YR06240 table, follow these steps for power-up and initial calibration:
- Connect the table to a power source as indicated in the manual.
- Activate the hydraulic system by using the control panel.
- Perform a calibration check by adjusting the height and ensuring the hydraulic system functions smoothly.
Common Setup Mistakes and Troubleshooting
Awareness of common mistakes can greatly enhance the startup experience:
- Ensure all safety locks are disengaged before operating the hydraulic system.
- Double-check connections to avoid power supply issues.
Frequently Asked Questions
What are the primary features of the YR06240 hydraulic table?
The YR06240 features a high-quality stainless steel frame, hydraulic lifting system, and a memory foam mattress. The design allows for significant adjustments in height and angle, providing flexibility for various procedures.
How do I troubleshoot if the YR06240 table does not power on?
If the table does not power on, check the power supply connections, ensure that safety locks are disengaged, and verify that the circuit breaker has not tripped. If the issue persists, consult the user manual for further diagnostic steps.
What maintenance is required for the YR06240 table?
Regular maintenance includes checking hydraulic fluid levels, inspecting the integrity of the frame and joints, and cleaning surfaces with appropriate disinfectants to maintain hygiene standards.
Can the YR06240 table be adjusted for different patient sizes?
Yes, the YR06240 can be adjusted to accommodate different patient sizes through its hydraulic lifting mechanism and adjustable backrest and seat angles.
What should I do if I encounter an error code?
Refer to the user manual to identify the specific error code. Common errors may relate to hydraulic pressure or electrical issues, and the manual will provide troubleshooting steps to resolve them.
Is there a warranty for the YR06240 table?
Yes, the YR06240 typically comes with a warranty covering parts and labor. Check the warranty section in the user manual for specific terms and conditions.
How can I request a quote for the YR06240 table?
You can request a quote by contacting the sales department directly through the provided contact methods in the product catalog or on the website.
