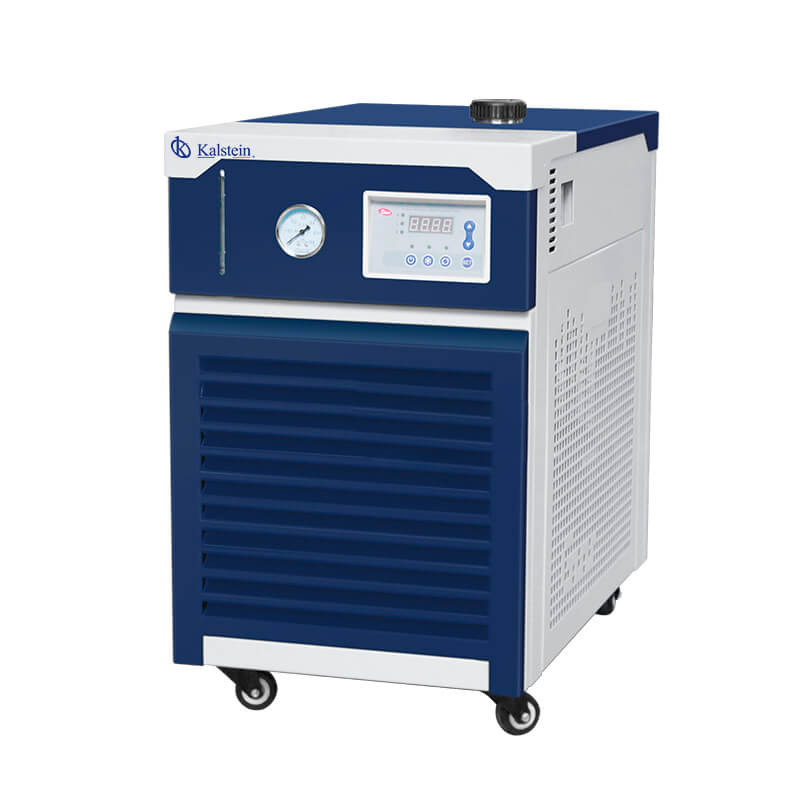

Interpreting Results and Measurement Reading with the YR02300 Recirculation Chiller
The YR02300 Recirculation Chiller is engineered to provide consistent low-temperature conditions necessary for a wide range of applications including chemical inspections, biological experiments, and physical tests. Understanding how to interpret results and read measurements accurately is crucial for optimizing performance in various industries, such as medical, food processing, and chemical manufacturing. This article delves into the technical aspects and practical applications of the YR02300, guiding you through the essential considerations for effective usage.
Understanding Temperature Control with the YR02300
The YR02300 operates over a working temperature range from -30°C to 5°C, providing stability within ±2°C. This temperature control is critical for precise measurements in experiments. The device employs a closed circulation system that prevents evaporation and contamination of the bath fluid, ensuring that temperature readings remain accurate and consistent throughout the operation.
To interpret the temperature readings effectively, it’s essential to understand the calibration and operating principles behind the YR02300. The temperature is maintained through a compressor mechanism that adjusts the refrigerant flow based on the programmed settings. Familiarity with these elements allows users to recognize potential discrepancies in readings and take corrective action when necessary.
Technical Data of the YR02300
| Specification | Value |
|---|---|
| Model | YR02300 |
| Working Temperature Range | -30 ~ 5°C |
| Temperature Stability | ± 2°C |
| Power Supply | 220-240V~, 50/60Hz |
| Cooling Capacity (0°C) | 6000W |
| Pump Flow Rate | 30L/min |
| Pressure | 1 bar |
| Dimensions (mm) | 650W x 1055D x 1070H |
| Net Weight | 195 kg |
Common Measurement Misinterpretations
In laboratory settings, misinterpretation of the temperature readings from the YR02300 can lead to significant errors. One common issue arises from fluctuations in ambient temperature, which can affect sensor performance. To avoid these pitfalls, always ensure that the chiller is placed in a stable environment, free from drafts and direct sunlight.
Another frequent source of confusion is the reading of the liquid level monitor. Users should be aware that the level indicator may not account for fluctuations due to pump activity. Continuous monitoring of the fluid level and checking against the gauge before, during, and after experiments will provide more accurate data.
Reading the Display and Error Codes
The YR02300 is equipped with a digital display that shows critical operational parameters, including temperature, fluid pressure, and error codes. Understanding how to read these displays is vital for diagnosing issues quickly.
For instance, an error code E-03 might indicate a problem with the pump's operation. Users should refer to the technical manual for specific error descriptions and steps to rectify the issue. Regularly checking the display during operation ensures that any anomalies can be addressed promptly, maintaining the integrity of experimental results.
Case Studies: YR02300 in Different Applications
Each field of application presents unique challenges when interpreting results and reading measurements with the YR02300. In the medical field, for example, maintaining strict temperature control is crucial for the viability of biological samples. Failure to achieve the required conditions can lead to erroneous results that affect patient care.
In the food processing industry, the YR02300 is utilized to ensure that products remain within safe temperature ranges during testing. The accuracy of temperature readings directly impacts food safety protocols and compliance with health regulations.
Best Practices for Accurate Measurement Interpretation
- Regularly calibrate the YR02300 to ensure precise temperature outputs.
- Utilize insulated materials to minimize external temperature influences.
- Document and review temperature readings comprehensively to identify patterns over time.
- Engage in preventative maintenance to keep the unit operating at optimal levels.
- Train staff on the correct usage and interpretation of measurements to reduce human error.
Frequently asked questions
How do I calibrate the YR02300 for accurate temperature readings?
Calibration of the YR02300 involves adjusting the chiller settings to align with a known temperature standard. Users should follow the manufacturer’s guidelines which typically include using a calibrated thermometer and following a specific sequence to ensure accuracy.
What are the common troubleshooting steps for interpreting error codes?
Common troubleshooting steps include checking the user manual for error code definitions, ensuring the unit is properly connected to power, and examining fluid levels and pump operation to identify any obvious mechanical failures.
Can I use the YR02300 in a high-humidity environment?
While the YR02300 is designed for various conditions, extreme humidity can affect its performance. It’s advisable to operate the unit in a controlled environment where humidity levels are managed to prevent moisture damage.
What should I do if the readings on the YR02300 fluctuate?
Fluctuating readings can indicate environmental instability or issues with the chiller itself. Check for external factors such as ventilation and thermal drafts and ensure that the unit is leveled and stable.
How does the closed circulation system impact measurement accuracy?
The closed circulation system of the YR02300 reduces the chance of contamination and fluid evaporation, which in turn stabilizes temperature readings. This design is critical for ensuring consistent and reliable results during experiments.
What maintenance is required to ensure accurate measurements with the YR02300?
Regular maintenance includes checking the fluid levels, cleaning the filtration system, and calibrating the temperature settings periodically. This upkeep helps maintain measurement accuracy and prolongs the lifespan of the unit.
