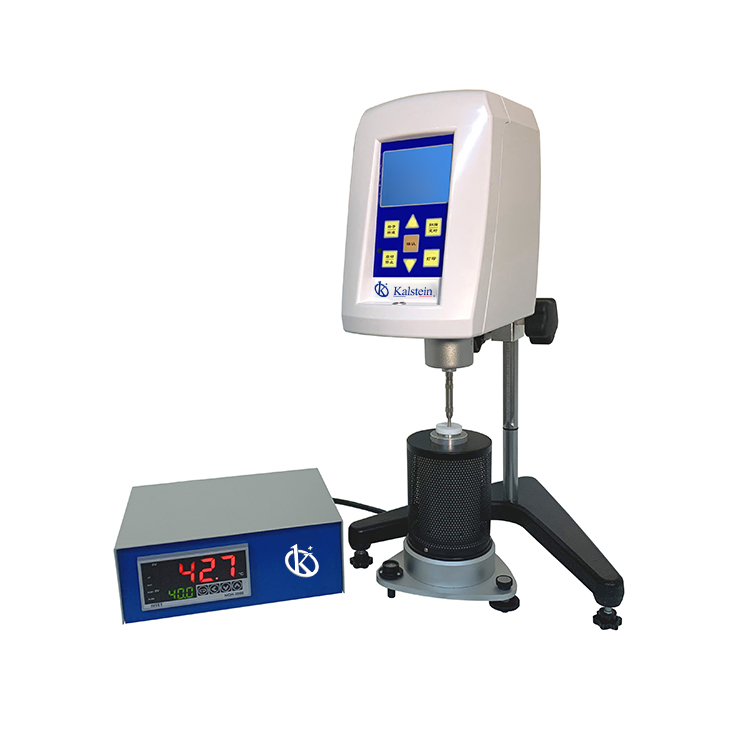

Interpreting Results and Reading Measurements with the YR05846 High Temperature Viscometer
The YR05846 High Temperature Viscometer is an essential instrument for accurately measuring the viscosity of various materials at elevated temperatures. Understanding the results generated by this viscometer is crucial for laboratory professionals in order to ensure compliance with industry standards and enhance experimental reliability.
Understanding the Viscosity Measurement Principle
Viscosity refers to a material's resistance to deformation or flow, and it is a critical parameter in many chemical and physical processes. The YR05846 operates on the principle of coaxial cylinder viscometry, where the sample is placed in a small volume adapter, and the rotational movement is applied to generate a shear force.
The viscosity measurement is calculated based on the torque required to rotate the spindle at a known speed, with readings displayed directly on the LCD screen. This method provides quick and precise results, enabling users to interpret data without secondary calculations.
Technical Specifications of the YR05846
| Model | YR05846 |
|---|---|
| Display | Liquid crystal display |
| Speed (r/min) | 0.5/1/2/2.5/4/5/10/15/20/25/30/40/50/60/70/80/90/100 - a total of 18 speeds |
| Measuring Range (mPa.s) | 3 - 1.6M (18 rotor), 50 - 2M (21 rotor), 100 - 4M (27 rotor), 400 - 16M (29 rotor) |
| Temperature Control Range | Room temperature +10℃ to 250℃ (300℃ optional) |
| Test Error | ±3% (Newtonian liquid) |
Common Units and Ranges for Viscosity Measurements
When using the YR05846, viscosity is measured in millipascal seconds (mPa.s). Typical ranges of viscosity vary depending on the fluids tested:
- Water at room temperature: 0.89 mPa.s
- Vegetable oils: 50-100 mPa.s
- Honey: 2000-3000 mPa.s
Understanding these values helps users to gauge the expected measurements based on the material being tested.
Interpreting the Display and Data Outputs
The YR05846 features an intuitive LCD that provides real-time data during viscosity measurements. Users can view the following data:
- Current viscosity reading
- Speed of rotation
- Measurement duration
Measurements are recorded up to two decimal points, which enhances the accuracy of the readings. It is vital to ensure that the measurement conditions remain consistent for accurate comparisons.
Common Misinterpretations and Solutions
While interpreting results, misunderstandings may arise. Here are a few common misinterpretations:
- Variation in readings: Fluctuations may occur due to changes in temperature or sample viscosity. Ensure consistent conditions.
- Display errors: If the display shows unusual values, check for spindle alignment and ensure the correct rotor is used.
- Time of measurement: The measurement duration affects viscosity readings. Use consistent timing to ensure comparability.
Frequently Asked Questions
How can I ensure accurate measurements with the YR05846?
To ensure accurate measurements, maintain consistent temperature and sample conditions, use the correct rotor for your material, and follow the manufacturer's guidelines for measurement duration.
What types of samples can be measured using the YR05846?
The YR05846 is suitable for a wide range of materials, including Newtonian and non-Newtonian fluids. It is particularly effective for liquids with varying viscosity at different shear rates.
What should I do if the YR05846 displays an error code?
Consult the troubleshooting section of the YR05846 manual. Common issues may include spindle misalignment or incompatible rotor settings. Address these issues according to the manufacturer's instructions.
How often should the YR05846 be calibrated?
Calibration frequency depends on usage and environmental factors; however, it is advisable to calibrate the YR05846 at least once a year or after significant usage to ensure data accuracy.
Can the YR05846 connect to external devices?
Yes, the YR05846 features an RS232 interface that allows connections to microprinters and computers for data logging and additional analysis.
What maintenance is required for the YR05846?
Routine maintenance includes cleaning the spindle and sample chamber after use, checking for wear on the rotors, and ensuring that the device remains calibrated.
How do I interpret viscosity measurements from the YR05846?
Viscosity measurements are presented in mPa.s. Interpret the results by comparing them against known standard values for the material being tested, considering the effects of temperature.
