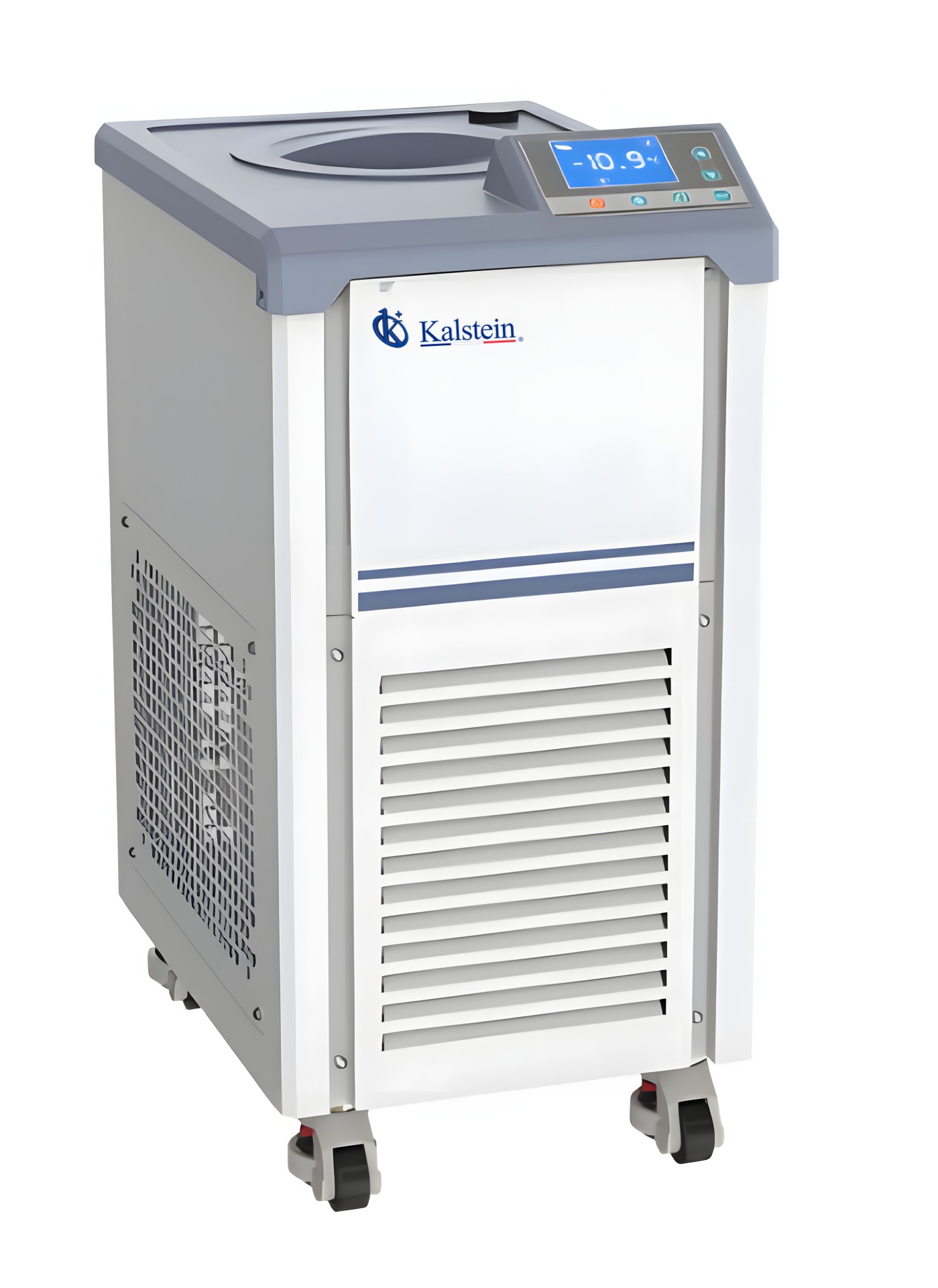

Interpreting Results and Reading Measurements with the YR06617 Recirculating Chiller
The YR06617 Recirculating Chiller is an essential tool for laboratories and industrial processes requiring precise temperature control. Understanding how to interpret the results and measurements from this equipment is crucial for ensuring optimal performance and reliability in various applications. This article will delve into key aspects of the YR06617, providing valuable insights to help users get the most out of their chiller.
Technical Specifications of the YR06617
| Model | YR06617 |
| Temperature Range | -30~5℃ |
| Thermal Stability | ±2℃ |
| Pump Flow Rate | 20 l/min |
| Pumping Pressure | 0.4 bar |
| Power Supply | 220-240V～ 50Hz |
| Bath Liquid Filling Volume | 5L |
| Overall Dimensions (mm) | 335W*473D*684H mm |
| Net Weight | 42 kg |
Understanding the Operating Principles of the YR06617
The YR06617 employs a recirculation mechanism based on the principles of thermodynamics. By utilizing a refrigeration cycle, it maintains a low and stable temperature critical for laboratory applications. The chiller's compressor, evaporator, condenser, and expansion valve work together to achieve efficient heat exchange, ensuring that the desired temperature range is maintained even under varying thermal loads.
When interpreting temperature readings, it is essential to recognize that the YR06617 is designed to provide thermal stability of ±2°C. This means that the actual temperature can fluctuate within this range but should remain consistent enough for sensitive processes. Understanding how these fluctuations affect your samples is key to achieving reliable results.
Installation and Initial Setup of the YR06617
Proper installation of the YR06617 is vital for accurate readings. Users should follow an unboxing checklist to ensure all components are included and undamaged. Placement in a well-ventilated area will enhance cooling efficiency, while leveling the unit will prevent operational issues.
After power-up, it is crucial to perform a first-run calibration. This includes validating the temperature settings and ensuring that the display reads accurately. Users should familiarize themselves with common setup mistakes, such as inadequate power supply or improper fluid levels, which can significantly impact performance.
Interpreting Measurement Results
When using the YR06617, interpreting measurement results involves understanding various parameters such as temperature, flow rate, and pressure. The unit's display provides real-time data that must be accurately interpreted to ensure the equipment's efficacy. For instance, a stable temperature reading indicates that the chiller is functioning properly, while significant deviations might suggest a need for maintenance or recalibration.
Common misinterpretations include overlooking the thermal stability range or failing to account for external environmental factors. Users should consider error bars in their measurements, particularly when working with sensitive materials. Examples of good practices include regularly checking fluid levels and maintaining filters to prevent contamination.
Common Troubleshooting Scenarios
Understanding potential issues that may arise during the operation of YR06617 will aid users in troubleshooting effectively. Some common symptoms include:
- Equipment does not power on
- Error code E-03
- Inconsistent temperature readings
For each issue, there are probable causes and diagnostic steps that should be taken. For instance, if the equipment does not power on, check the power source and connections. An error code may indicate a specific malfunction, while inconsistent readings might suggest a calibration error or contamination of the coolant.
Symptom-Cause-Solution Table
| Symptom | Possible Cause | Solution |
|---|---|---|
| Equipment does not power on | Power source issue | Check power connections and outlet |
| Error code E-03 | Overheating | Check for blockages and clean filters |
| Inconsistent readings | Calibration error | Recalibrate the unit |
Maintenance and Best Practices for the YR06617
Regular maintenance is essential to ensure the longevity and efficiency of the YR06617. Users should follow a maintenance schedule that includes periodic checks of the fluid level, cleaning filters, and inspecting the pump. Using compatible bath fluids and adhering to operating ranges are also crucial for optimal performance.
It is advisable to keep the chiller in a clean, dust-free environment to prevent performance degradation. Additionally, users should document maintenance activities to track the unit's performance over time.
Frequently Asked Questions
What types of applications can the YR06617 support?
The YR06617 is suitable for chemical, pharmaceutical, biotechnology, and industrial applications that require stable cooling.
What maintenance does the YR06617 require?
Regular checks on the bath fluid, cleaning of filters, and verification of the pumping system are necessary for optimal performance.
Can the YR06617 operate continuously?
Yes, it is designed for prolonged operation while maintaining specified thermal stability.
How can I ensure accurate temperature readings from the YR06617?
Check and calibrate the equipment regularly to ensure that readings are consistent and reliable, and consider environmental factors that may affect measurements.
What should I do if I encounter an error code on the YR06617?
Refer to the user manual for specific error code definitions and troubleshooting steps, and ensure that routine maintenance is performed to minimize errors.
How do I interpret the flow rate measurements of the YR06617?
The flow rate should be monitored to ensure optimal heat exchange; a consistent flow rate of 20 l/min indicates efficient operation, while drops may signal blockages or mechanical issues.
Where can I request a quote for the YR06617?
You can request a quote on Kalstein Plus for the YR06617 by reaching out through our customer service channels.
