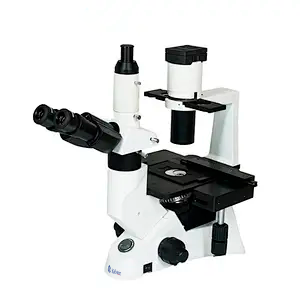

Inverted Microscope YR0230: Precision and Traceability
The inverted microscope YR0230 is an advanced biological instrument designed for observing transparent and unfinished live samples. With its unique optical configuration, it is particularly effective for liquid deposit research and the study of living sample structures, making it an essential tool in laboratories.
Product Description
| Feature | Details |
|---|---|
| Model | YR0230 |
| Optical System | Infinity Optical System |
| Head | Trinocular Seidentopf Head, 30° inclined |
| Interpupillary Distance | 48~75mm, adjustable diopter |
| Eyepiece | Wide field eyepiece EW10x/22 mm, high eyepoint |
| Objective | 5-position revolving nosepiece |
| Focusing Mechanism | Coaxial coarse and fine adjustment |
| Illumination | Kohler external illumination, 6V30W halogen lamp, adjustable brightness |
Market Price
The current market price for the YR0230 inverted microscope is approximately $1416.00. This price point reflects the quality and advanced features of the product, which are aimed at providing unmatched precision and traceability in research applications.
Technical Comparison
| Feature | YR0230 | Competitor Model |
|---|---|---|
| Optical System | Infinity | Standard |
| Head Type | Trinocular | Monocular |
| Eyepiece | EW10x/22 mm | Standard 10x |
| Nosepiece | 5-position revolving | 3-position fixed |
| Focusing Mechanism | Coaxial coarse and fine | Single knob |
Frequently Asked Questions
What are the main applications of the YR0230 inverted microscope?
The YR0230 is primarily used for observing live transparent samples, making it ideal for biological research, liquid deposit studies, and cellular observations.
How does the optical system of the YR0230 enhance performance?
The Infinity Optical System minimizes optical aberrations and provides a clearer and more accurate view of samples, which is essential for research requiring high precision.
What kind of illumination does the YR0230 use?
The microscope utilizes Kohler external illumination with a 6V30W halogen lamp, allowing for adjustable brightness levels suited to various types of samples.
Is the eyepiece adjustable for different users?
Yes, the YR0230 features an adjustable interpupillary distance of 48~75mm, accommodating users with varying eye distances.
What is the focusing mechanism of the YR0230?
The focusing mechanism is a coaxial design that allows for precise coarse and fine adjustments, ensuring clear imaging of samples at varying depths.
Are there any optional accessories for the YR0230?
Yes, there are several optional accessories available, including additional objectives and a mechanical stage for enhanced functionality.
Pros and Cons
Pros
- High-quality optical performance with an infinity optical system.
- Versatile and adjustable eyepiece for user comfort.
- Robust construction ideal for laboratory environments.
- Coaxial focusing mechanism for precise adjustments.
Cons
- Higher price point compared to basic models.
- May require additional training for optimal use.
Field Usage
The YR0230 inverted microscope is widely used in biological and medical laboratories. Its ability to observe live cells in various mediums makes it essential for researchers studying cellular behavior, pharmacology, and microbiology. The precision and clarity of the microscope support detailed analysis, enhancing the efficiency of research projects.
Recommendations
For researchers and laboratories looking to enhance their observational capabilities, the YR0230 is a recommended investment. Its advanced features cater to both novice and experienced users, providing a reliable solution for high-precision applications. Additionally, requesting a quote on Kalstein Plus can help you access the best pricing and options available for your laboratory needs.
