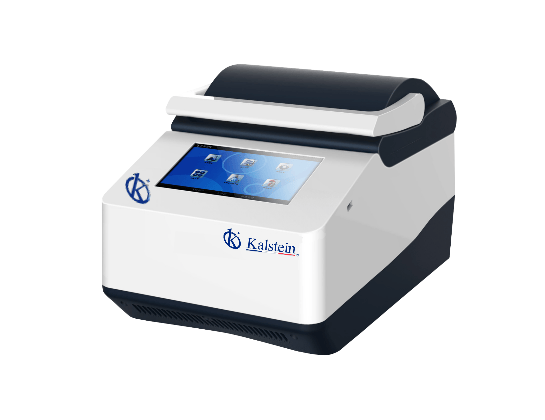

PCR Thermal Cycler YR06070: Preventive Maintenance Guide
The PCR Thermal Cycler YR06070 is a state-of-the-art solution designed to meet the rigorous demands of modern laboratories. Known for its rapid, precise, and reproducible results, this thermal cycler is essential for any laboratory aiming to enhance its research capabilities. Below, we delve into the details of the YR06070, discussing its specifications, market price, and essential maintenance strategies to ensure optimal performance.
Product Description
| Model | YR06070 |
|---|---|
| Reaction Volume | 0-100μL |
| Heat Block Material | Aluminum |
| Compatible Consumables | 0.2 ml individual tubes, 0.2 ml 8-strip tubes, 96-well plates (with or without skirt) |
| Temperature Control Range | 4℃-99℃ |
| Temperature Control Mode | Tube Mode & Block Mode |
| Heating Technology | Peltier |
| Gradient Block | 12 row |
| Temperature Gradient | 1℃-40℃ |
| Gradient Temperature Range | 30℃-99.9℃ |
| Lid Temperature Range | 40-110℃ |
| Temperature Uniformity | ±0.2℃ |
| Block Temperature Accuracy | ±0.1℃ |
| Heating Rate | ≥ 3.5℃/s |
| Cooling Rate | ≥2.5℃/s |
| Interfaces | USB, Ethernet |
| Dimensions (L*W*H) | 260mm*400mm*260mm |
| Weight | 11Kg |
| Power Supply | AC 100-240 V, 50-60 Hz |
| Max Power Consumption | 600VA |
| Operating Noise | 55 dB |
The YR06070 is equipped with a 7-inch color touchscreen that enhances user experience, allowing for easy programming and operation even for novice users. The aluminum heat block ensures uniform and accurate temperatures, while rapid and controlled ramp rates enable shorter cycles without compromising the quality of results. Its compact and quiet design makes it an excellent fit for any laboratory environment.
Market Price
The PCR Thermal Cycler YR06070 is competitively priced in the market, typically ranging between $3390 and $3395 USD, depending on the supplier and any additional features included, such as technical support and specialized consumable options. For a precise and personalized quote for this equipment, it is recommended to request a quote through Kalstein Plus, where you can also access exclusive discounts tailored to meet your laboratory's specific needs.
Frequently Asked Questions
Is the YR06070 easy to use?
Yes, its intuitive interface and 7-inch touchscreen make it extremely easy to program and operate, even for users without prior experience.
What consumables are compatible with this model?
It is compatible with 0.2 ml individual tubes, 0.2 ml 8-strip tubes, and 96-well plates (with or without skirts).
What happens if there is a power failure during an experiment?
The YR06070 is designed with power failure protection, allowing it to save the settings and continue the experiment once power is restored.
What is the temperature uniformity of the YR06070?
The temperature uniformity of the YR06070 is ±0.2℃, ensuring reliable and consistent results in experiments.
Can multiple protocols be stored in the YR06070?
Yes, the YR06070 has the capacity to store and share protocols, saving time on repetitive setups.
What are the dimensions of the YR06070?
The dimensions of the YR06070 are 260mm in width, 400mm in depth, and 260mm in height.
What is the weight of the YR06070?
The weight of the YR06070 is approximately 11Kg, making it manageable for laboratory settings.
Pros and Cons
Pros:- High temperature accuracy (±0.1°C) and uniformity (±0.2°C).
- Fast heating and cooling rates for more efficient cycles.
- Ability to store and share protocols, saving time on repetitive setups.
- Power failure protection, ideal for environments with unstable electricity supply.
- Its price may be high for laboratories with limited budgets.
- Although maintenance is basic, it requires trained personnel to ensure optimal use and prolong its lifespan.
Field Usage
The PCR Thermal Cycler YR06070 is indispensable in genetic research laboratories, molecular diagnostics, and biotechnology. It is widely used for DNA/RNA amplification, genotyping tests, and gene expression studies. Its compact design facilitates integration into laboratories with limited space, while its capability to handle various types of consumables allows for a wide range of experimental applications. The ability to share protocols via USB makes it an excellent choice for collaborative work environments.
Recommendations
To maximize the performance of the PCR Thermal Cycler YR06070, be sure to follow the manufacturer's recommendations for maintenance. This includes regular cleaning of the heat block and periodic calibration to ensure temperature accuracy. Utilize recommended consumables to avoid compatibility issues and optimize equipment performance. Furthermore, take advantage of its protocol storage feature to standardize processes and save time on future setups.
