Description

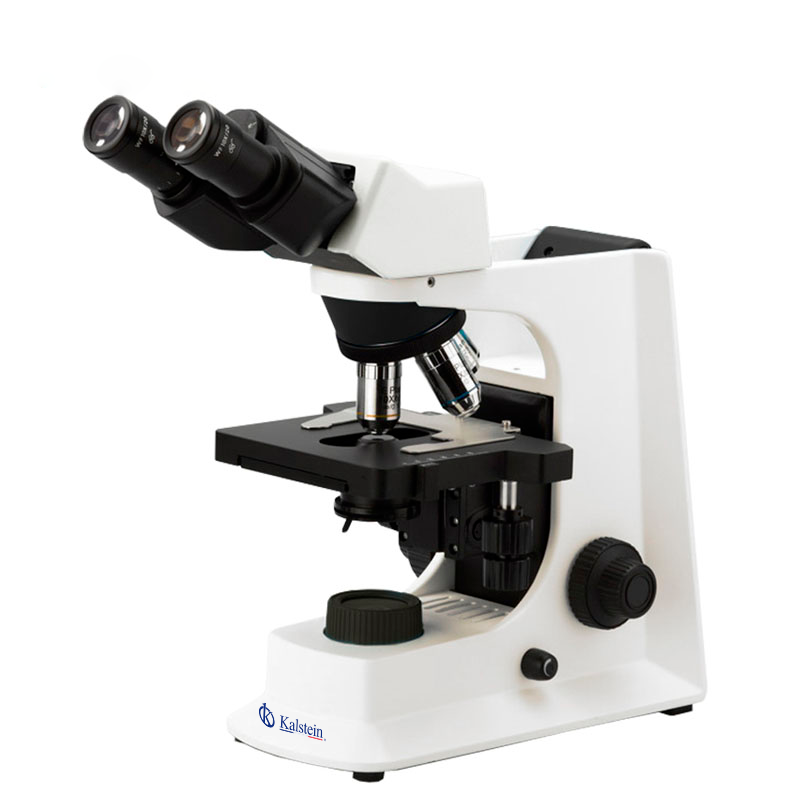

The Binocular Infinity Plan Laboratory Biological Microscope YR05787 – YR05788 is a state-of-the-art instrument designed to cater to the diverse needs of biological research and laboratory applications. With a 30° inclined, rotatable 360° Seidentopf binocular head, it offers flexible viewing angles, ensuring user comfort for individuals of varying sitting heights. The high eyepoint eyepiece, along with the integrated eyepiece lens barrel design, prevents contamination and enhances the microscope’s performance. Featuring four sets of available objectives, including Achromatic, Plan, Infinity E-Plan, and Infinity Plan, this microscope stands out for its precision and versatility. The durable mechanical stage and advanced 3W-LED illumination system further bolster its functionality, making it an indispensable tool for any laboratory setting.
Market Price
Microscopes of this caliber typically range from $900 to $1,700 in the market, depending on the specific configurations and additional accessories. This price range reflects the quality and comprehensive features of the microscope, underscoring its value in advanced laboratory applications.
Frequently Asked Questions
- What is the interpupillary distance range of this microscope? The interpupillary distance of this microscope ranges from 48mm to 75mm.
- What type of illumination does it use? It uses a 3W-LED illumination system for enhanced clarity and energy efficiency.
- Can this microscope be used for outdoor work? Yes, it supports power bank supply for outdoor use, thanks to its wide input voltage range of 100V-240V.
Advantages and Disadvantages
The Binocular Infinity Plan Microscope’s main advantages include its versatile and high-performance optical system, robust construction, and user-friendly design. Additionally, the availability of various objectives and the ability to use it outdoors adds to its versatility. However, its advanced features might be an overkill for beginners or those with basic laboratory needs, and its higher price point compared to entry-level models can be a consideration for budget-conscious buyers.
Field Use
This microscope is ideal for use in educational institutions, research laboratories, and clinical environments. It allows users to observe minute biological samples with clarity and precision, which is crucial for detailed analysis and research outcomes. Its sturdy build ensures stability during detailed examinations, while its comprehensive set of features supports a wide range of biological investigations.
Recommendations
For optimal performance, regular calibration and cleaning of the microscope are recommended. Keeping the lenses clear from dust and fingerprints will help maintain its optical precision. It’s also advisable to familiarize oneself with the adjustable features to fully leverage the microscope’s capabilities for various research applications.
Features

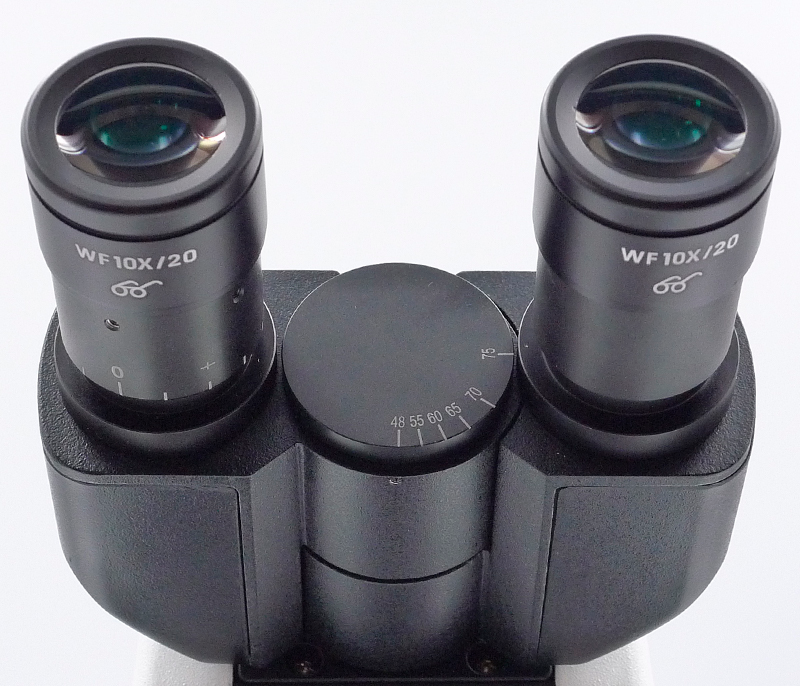

- 360° rotatable Seidentopf binocular head
- Interpupillary distance adjustable between 48-75mm
- High eyepoint eyepiece design to prevent contamination

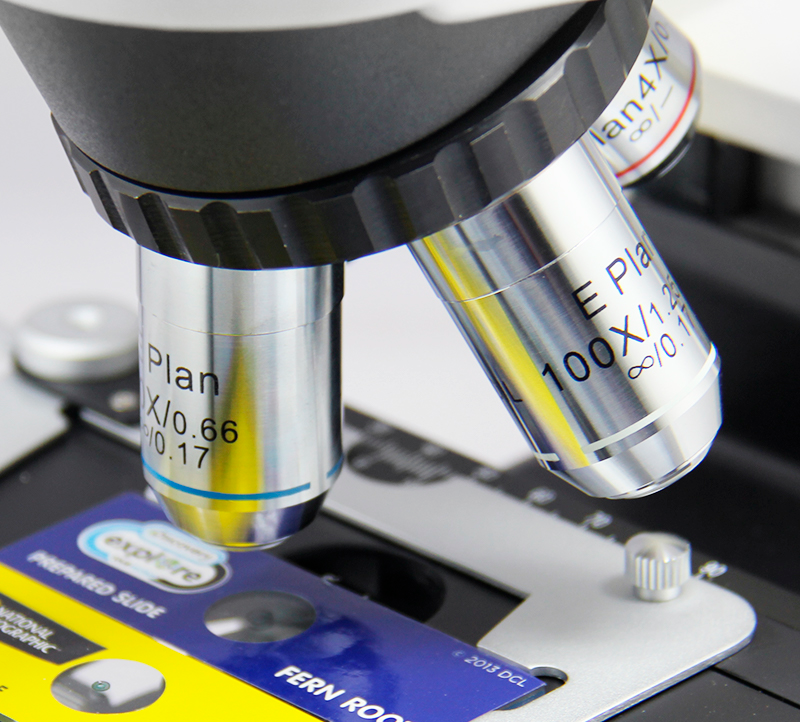

- Four sets of objectives: Achromatic, Plan, Infinity E-Plan, Infinity Plan

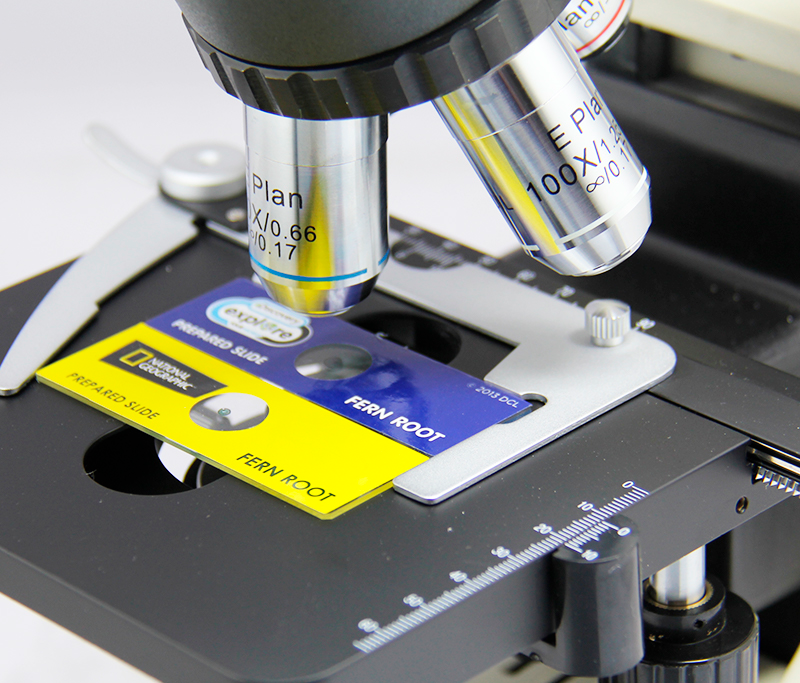

- 145 mm×140mm mechanical stage with 76mmX52mm travel range

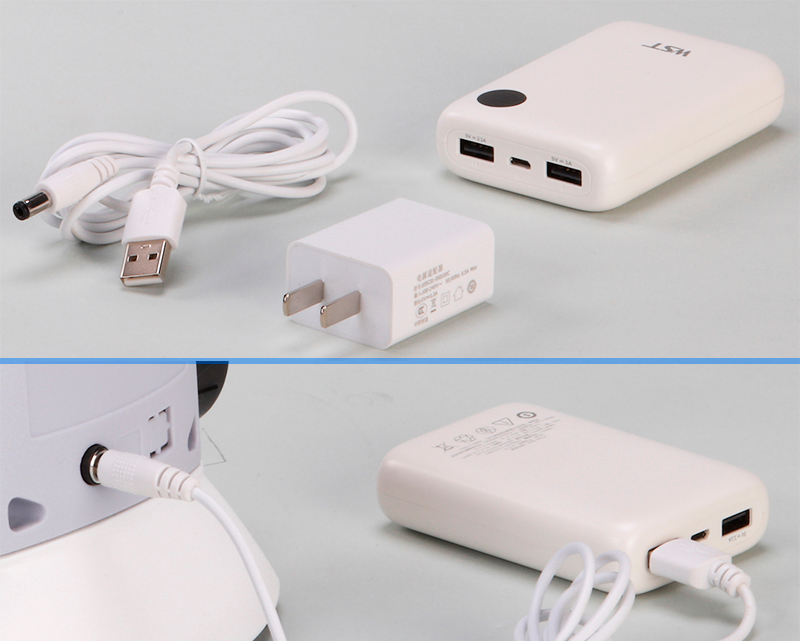

- 3W-LED illumination system, compatible with power bank for outdoor use
- Abbe condenser with iris diaphragm
Technical Specifications
| Model | Cata. No. | YR05787 | YR05788 | |
| Head | Seidentopf Binocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm | YR05788-op1 | ● | ○ |
| Seidentopf Trinocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm, Light Split Fixed P20:E80 | YR05788-op2 | ○ | ● | |
| WF10X/20mm (High Eyepoint) | YR05788-op3 | ●● | ●● | |
| Nosepiece | Quadruple, Backward | YR05788-op4 | ● | ● |
| Quintuple, Backward | YR05788-op5 | ○ | ○ | |
| Infinity Plan Objectives | PLAN 2.5x/0.07,W.D.=8.47mm | YR05788-op6 | ○ | ○ |
| PLAN 4X/0.10.W.D.=12.1mm | YR05788-op7 | ● | ● | |
| PLAN 10X/0.25.W.D.=4.64mm | YR05788-op8 | ● | ● | |
| PLAN 20X/0.40(S).W.D.=2.41mm | YR05788-op9 | ○ | ○ | |
| PLAN 40X/0.66(S).W.D.=0.65mm | YR05788-op10 | ● | ● | |
| PLAN 60X/0.80(S).W.D.=0.33mm | YR05788-op11 | ○ | ○ | |
| PLAN 100X/1.25(S,Oil).W.D.=0.12mm | YR05788-op12 | ● | ● | |
| PLAN 100X/1.15(S,Water).W.D.=0.19mm | YR05788-op13 | ○ | ○ | |
| Working Stage | Mechanical Stage Size: 145 mm×140mm, Travel: 76mmX52mm, Scale: 0.1mm, Double Slide Holder | YR05788-op14 | ● | ● |
| Rackless (Integrated) Stage, Size 140×135mm, | YR05788-op15 | ○ | ○ | |
| Travel Range 75×35mm, Double Slide Holder | – | |||

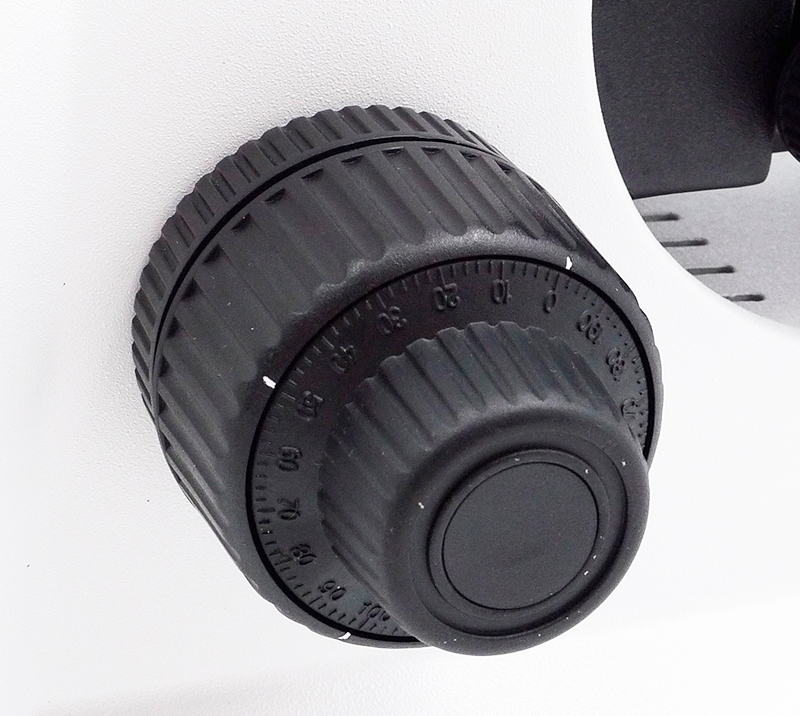

| Focusing | Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 26mm, Fine Focusing Travel Range: 2µm/Division | YR05788-op16 | ● | ● |

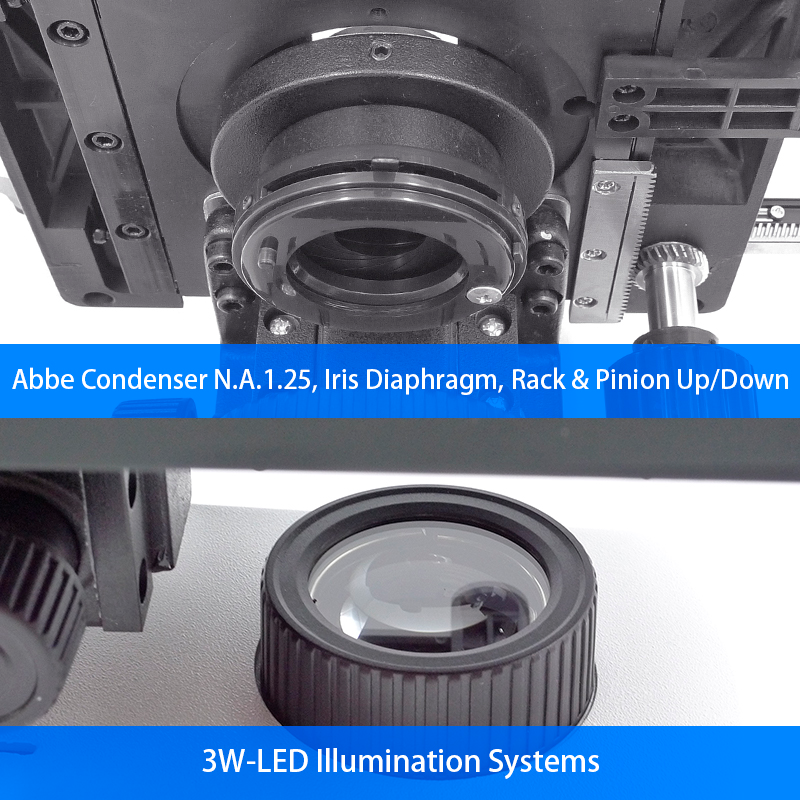

| Condenser | Abbe Condenser N.A.1.25, Iris Diaphragm, Rack & Pinion Up/Down, With Filter Holder | YR05788-op17 | ● | ● |
| Illumination | 3W-LED Illumination Systems | YR05788-op18 | ● | ● |
| Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use | – | |||
| 12V/20W Halogen Lamp, Power Supply Wide Voltage 100V~240V | YR05788-op20 | ○ | ○ | |
| 6V/30W Halogen Lamp, Power Supply Wide Voltage 100V~240V | YR05788-op21 | ○ | ○ | |
| Field Diaphragm | Upgrade To Kohler Illumnation | YR05788-op22 | ○ | ○ |
| Filter | Dia.45mm, Blue | YR05788-op23 | ○ | ○ |
| Dia.45mm, Green | YR05788-op24 | ○ | ○ | |
| Dia.45mm, Yellow | YR05788-op25 | ○ | ○ | |
| Dark Field | Dark Field Condenser, Dry, N.A.0.83-0.91, For 4x10x40x Objective | YR05788-op26 | ○ | ○ |
| Polarizing | Analyzer + Polarizer Set | YR05788-op27 | ○ | ○ |
| Phase Contrast | Infinity Plan Phase Contrast Objective 10x + Phase Contrast Slide 10x + Phase Contrast Condenser + Telescope 11x + Green Filter | YR05788-op28 | ○ | ○ |
| Infinity Plan Phase Contrast Objective 20x + Phase Contrast Slide 20x + Phase Contrast Condenser + Telescope 11x + Green Filter | YR05788-op29 | ○ | ○ | |
| Infinity Plan Phase Contrast Objective 40x + Phase Contrast Slide 40x + Phase Contrast Condenser + Telescope 11x + Green Filter | YR05788-op30 | ○ | ○ | |
| Infinity Plan Phase Contrast Objective 100x + Phase Contrast Slide 100x + Phase Contrast Condenser + Telescope 11x + Green Filter | YR05788-op31 | ○ | ○ | |
| Turret Phase Contrast Attachment | YR05788-op32 | ○ | ○ | |
| Infinity Plan Phase Contrast Objective 10x20x40x100x, Turret Phase Contrast Condenser 5-Holes, Telescope 11x, Green Filter | – | |||
| Adapter | C-Mount 0.5x, Focus Adjustable | YR05788-op33 | ○ | ○ |
| C-Mount 0.75x, Focus Adjustable | YR05788-op34 | ○ | ○ | |
| Mirror | Reflecting Mirror & Holder | YR05788-op35 | ○ | ○ |
| Attachment | Wire Winding Device | YR05788-op36 | ○ | ○ |
| Package | Carton Size 390×280×450mm, 1 Unit/Ctn | |||
| Weight | Gross Weight: 7.5 kgs, Net Weight: 6.5 kgs | |||
| Note:”●”In Table Is Standard outfits,”○”Is Optional Accessories | ||||
