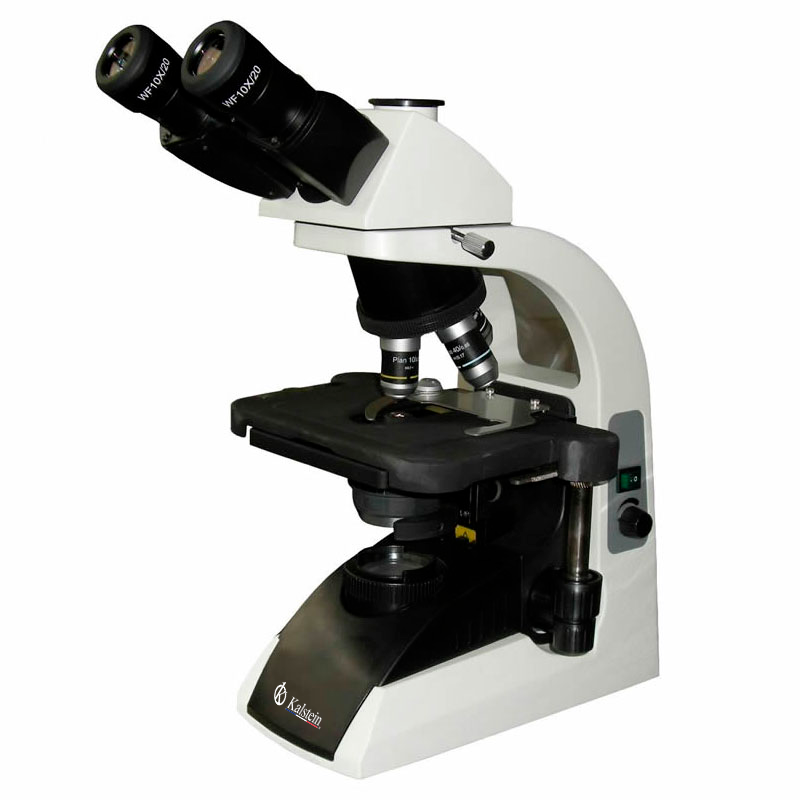

Binocular Laboratory Microscope YR0243 // YR0244

ManufacturerKalstein

Description

The Binocular Laboratory Microscope YR0243 // YR0244 is designed for precision and versatility in laboratory settings. It features an infinity achromatic objective with magnifications of 4x, 10x, 40x, and 100x, ensuring clear and accurate observations. Equipped with a Seidentopf binocular (or trinocular) head, it provides a comfortable 30° incline with full 360° rotation, making it adaptable to various working conditions. The microscope’s optical system is enhanced by an Abbe condenser with an adjustable center and an adjustable halogen lamp for optimal brightness. Its mechanical double-layer stage with a travel guide prevents scratch damage, crucial for delicate samples.

Market Price

The price for advanced laboratory microscopes like the YR0243 // YR0244 typically ranges between $1100 to $1900. This range reflects the high-quality construction and advanced features that these devices offer, providing excellent value for professionals seeking precision and reliability in their work.

Frequently Asked Questions

  • What is the difference between the binocular and trinocular models? The binocular model is ideal for direct observation, while the trinocular model allows for photo or video documentation, adding versatility.
  • Is the brightness of the halogen lamp adjustable? Yes, it features a 12V20W halogen lamp with adjustable brightness for optimal viewing.
  • What types of eyepieces are included? Both models come with wide-field eyepieces WF10x/20mm, with additional options available for customization.

Advantages and Disadvantages

The key advantages of the YR0243 // YR0244 include its high magnification range (40x-1000x), robust build, and adjustable components that provide flexibility for various laboratory tasks. A potential downside is its reliance on halogen lighting, which while effective, is less energy-efficient compared to LED illumination.

Product Use in the Field

In practical scenarios, this microscope is instrumental for detailed examination of biological samples, tissues, and other similar applications. Its precise focusing and robust stage make it an essential tool for research institutions, medical laboratories, and educational settings, enabling users to conduct complex analyses with ease.

Recommendations

For optimal use, it is recommended to operate the microscope in a controlled environment to maintain calibration and ensure consistent results. Regular maintenance of optical components, such as cleaning the lenses and adjusting the stage mechanics, will prolong the device’s longevity. Users interested in enhancing their capabilities should consider upgrading to the trinocular model for documentation purposes. Additionally, explore the Kalstein Plus platform to generate a quote and learn more about availability and pricing.

Features

  • Infinity achromatic objectives: 4x, 10x, 40x, 100x
  • Seidentopf binocular/trinocular head: 30° inclined, 360° rotatable
  • Wide field eyepieces: WF10x/20mm
  • Bright halogen lamp: 12V20W
  • Adjustable Abbe condenser: N.A.1.25

Technical Specifications

Model YR0243 YR0244
Head Seidentopf Binocular Head, 30° Inclined, 360°Rotatable,Interpulillary Distance 48-75mm

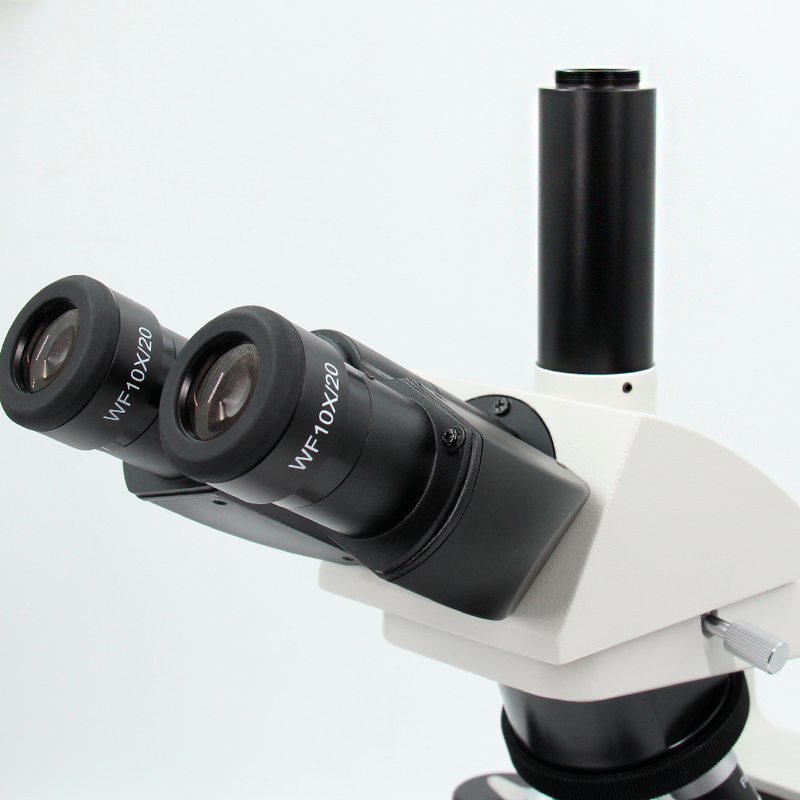

Seidentopf Trinocular Head, 30° Inclined, 360°Rotatable,Interpulillary Distance 48-75mm
Eyepiece Wide Field WF10x/20mm, Eyepiece Tube Dia.30mm, 2 pcs
Nosepiece Backward Quadruple Nosepiece
Optical System Infinity Optical System

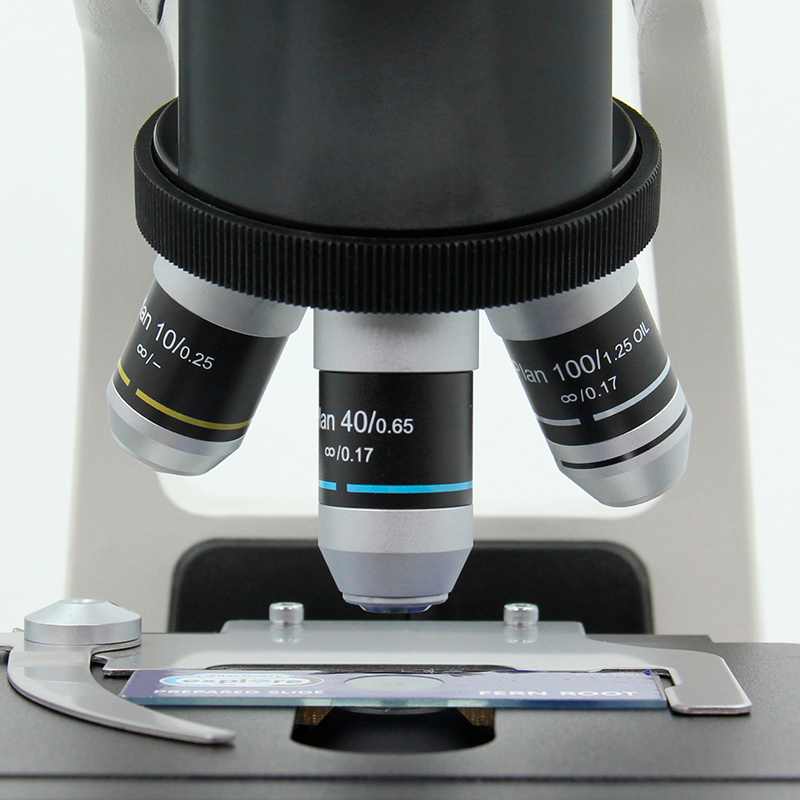

Objective Infinity Plan Achromatic 4x/0.10, 10x/0.25, 40x/0.65(S),100x/1.25(S,Oil)
Magification 40x-1000x

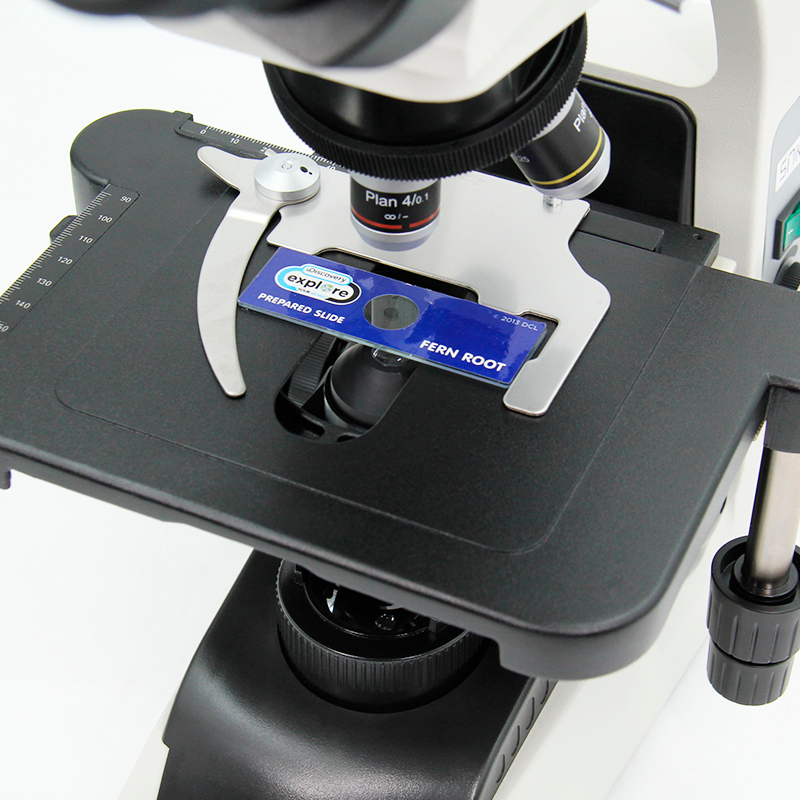

Stage Double Layer Mechnical Stage, 230x150mm, Moving range 54x78mm, Double Slide Holder, Low PositionX/Y Coaxial Control Knob, With Travel Guide To Aviod Scratch
Focusing Low Position Coaxial Coarse & Fine Focusing.
Fine Focusing Scale 0.002mm, Moving Range 25mm, With Safety Stop

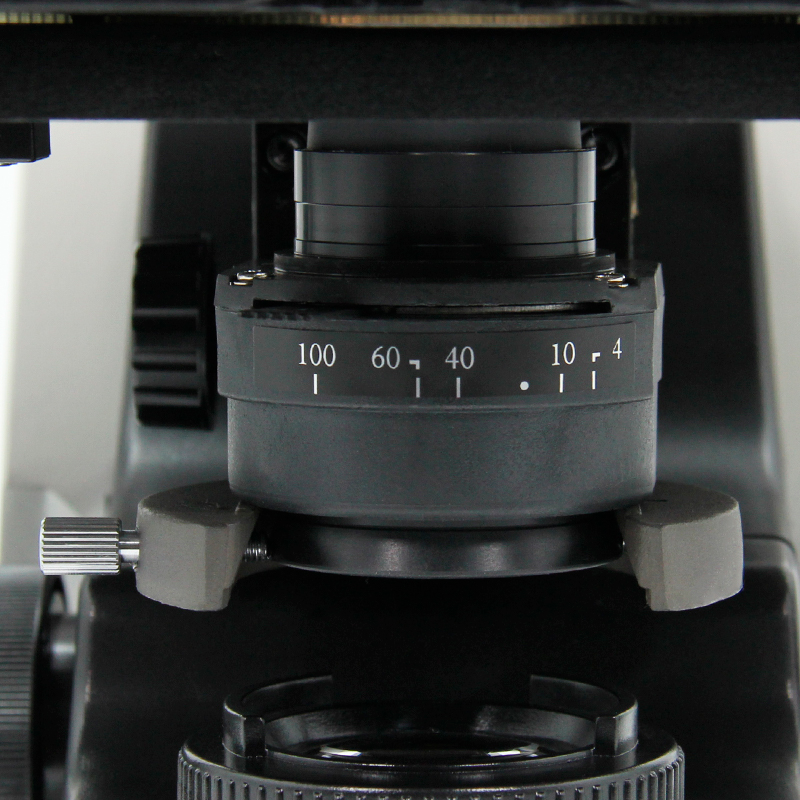

Condenser  N.A.1.25 Abbe Condense, Iris Diaphargm,With Filter Holder,Up/Down Range 25mm, Center Adjustable,With Filter Holder
Filter Green

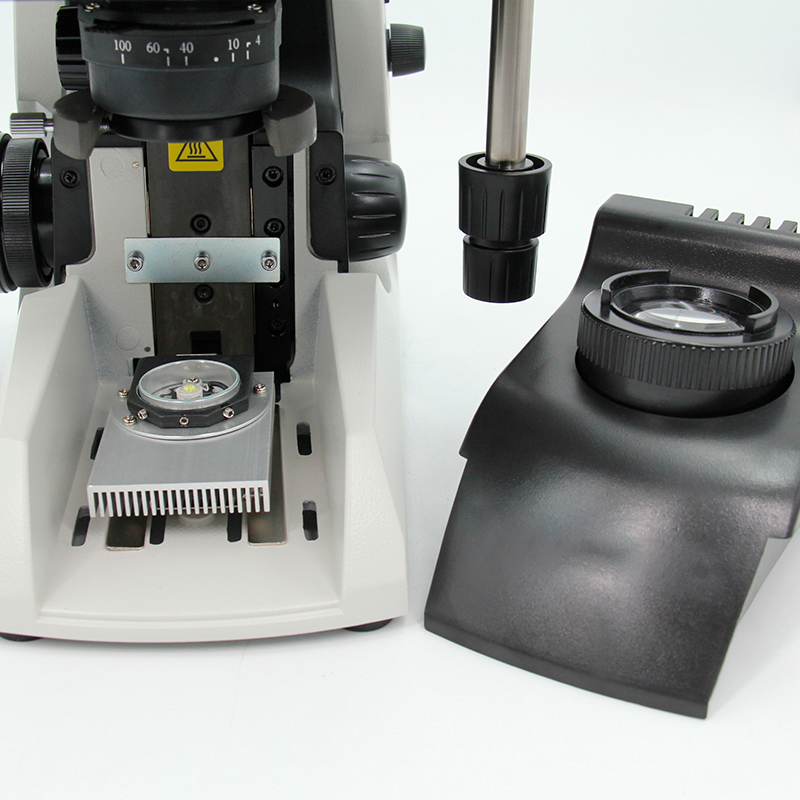

Light Source Halogen Lamp 12V/20W, Brightness Adjustable
Note:”●”In Table Is Standard Outfits
Items A12.1010 Laboratory Biological Microscope Optional Accessories
Eyepiece Wide Field WF15x/16mm, Eyepiece Tube Dia.30mm YR0244-op1
Wide Field WF20x/12mm, Eyepiece Tube Dia.30mm YR0244-op2
Objective Infinity Plan Achromatic 20x YR0244-op3
Infinity Plan Achromatic 60x YR0244-op4
Nosepiece Backward Quintuple Nosepiece YR0244-op5
Illumination Kohler Illmination YR0244-op6
Adapter Photo Adapter YR0244-op7
C-Mount 0.4x YR0244-op8
C-Mount 0.5x YR0244-op9
Dark Field Dark Field Condense, Dry YR0244-op10
Dark Field Condense, Immersion YR0244-op11
Polarizing Simple Polarizing Kit YR0244-op12
Phase Contrast Phase Contrast Set YR0244-op13
Fluorescent EPI-Fluorescent Kit YR0244-op14

Additional information

Weight N/A
Dimensions N/A
Model

YR0243, YR0244
