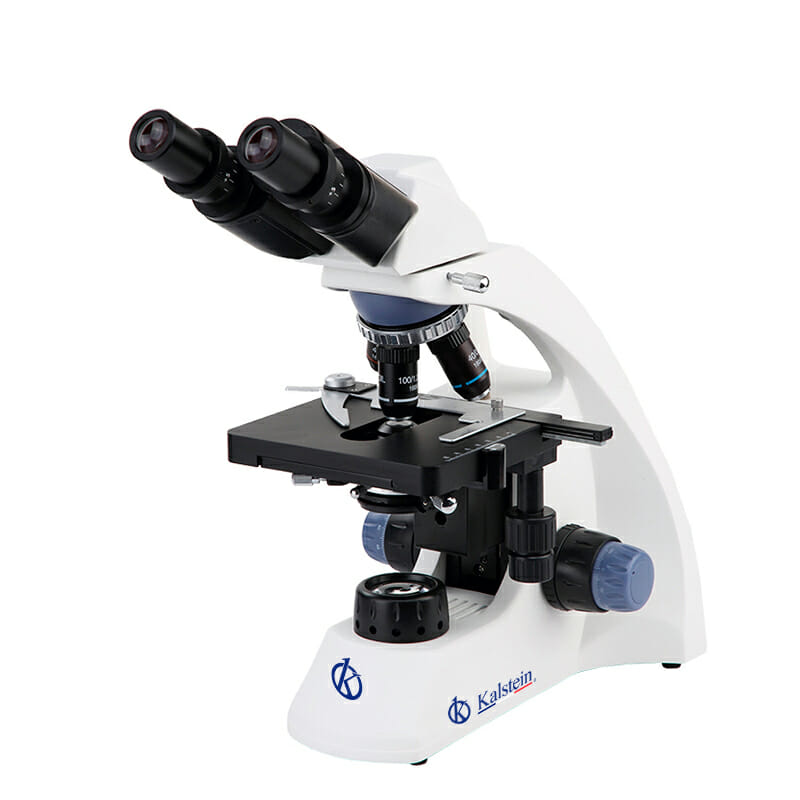

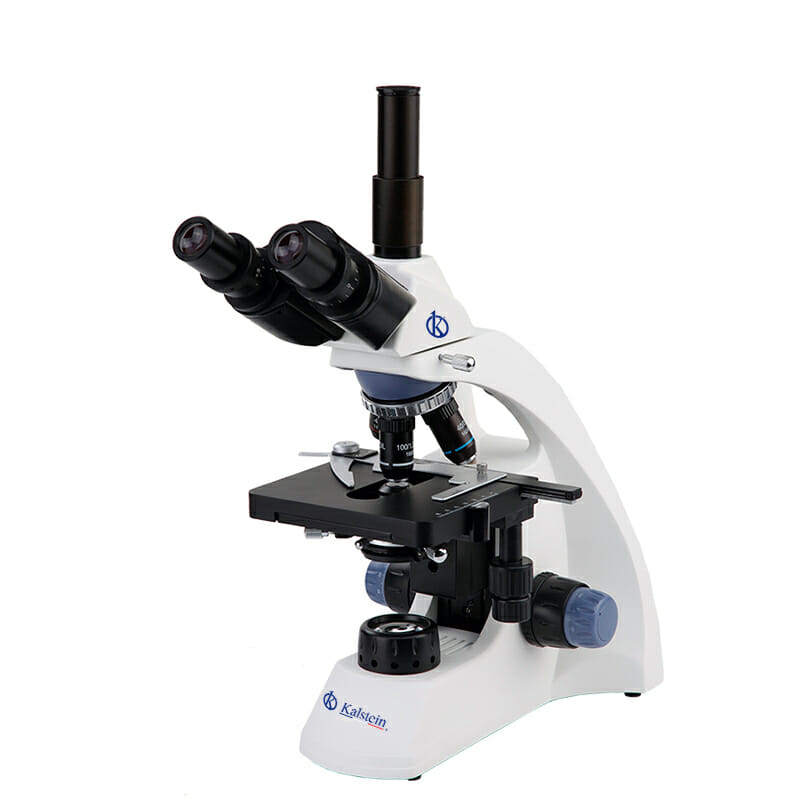

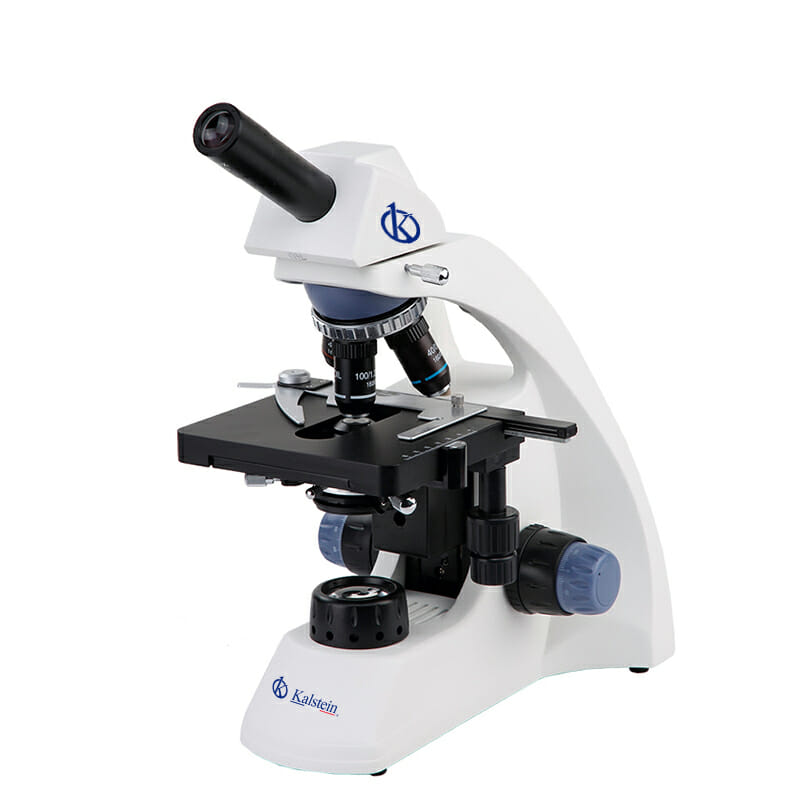

Biological Microscope YR0242-M // YR0242-T

ManufacturerKalstein

Description

  • Monocular, binocular, trinocular and teaching head available for choose.
  • Quadruple nosepiece with precise click stop.
  • Intergrated double layer mechanical stage, size 142x132mm, moving range 75x50mm.
  • Abbe condenser N.A.1.25, high brightness 3w led, brightness adjustable
  • Infinity plan and achromatic optical system available
Seidentopf Head

Monocular, binocular, trinocular and teaching head available for choose. All heads inclined al 30°, rotatable 360°. For binocular and trinocular, both eyepiece tube diopter adjustable +/-5°.

Quadruple, Backward

Quadruple nosepiece with precise click stop. Equipped with 35mm achromatic CF objective 4X, 10X, 40Xs, 100Xs (oil).

Double Slide Holder Working Stage

Integrated double layer mechanical stage, size 142×132 mm, moving range 75×50 mm.

Condenser & Light Source

Abbe condenser N.A.1.25 high brightness 3W LED, brightness adjustable.

Technical Specification:
Model No. YR0242-M YR0242-B YR0242-T
Video Adapter —— C-Mount 0.3x ——
Power Supply Type AC 110V-240V ——
Transmit Light Halogen 6V20W or LED Optional
Light Source Type Halogen
Condenser N.A. 1.25
Condenser Type Abbe
Condenser Features Rack & Pinionↆ↑, Filter Holder, Center Adjustable
Focusing Scale 0.002mm
Focusing Range 36mm
Focusing Type Coaxial Coarse & Fine ——
Focusing Features Safety Stop Screw Tension Adjustable
Working Stage Moving 75*50mm
Working Stage Size 132*142mm
Working Stage Type 2 Layers Mechanical
Objective Achromatic 4x, 10x, 40x(S), 100x(O,S)
Objective Type Achromatic
Nosepiece Holes 4 Holes
Nosepiece Features Inward
Eyepiece WF10x/18mm
Eyepiece Diameter 23.2mm
Head Interpupillary 54~75mm
Head Rotation Head Rotate 360° ——
Head Inclination 30° ——
Head Type Monocular Binocular Seidentopf Trinocular
Standard Magnification 40x-1000x ——
Optical System Achromatic
Standard Function BF ——

Additional information

Weight 6 kg
Dimensions 34 × 25,5 × 49 cm
Model

YR0242-B, YR0242-M, YR0242-T
