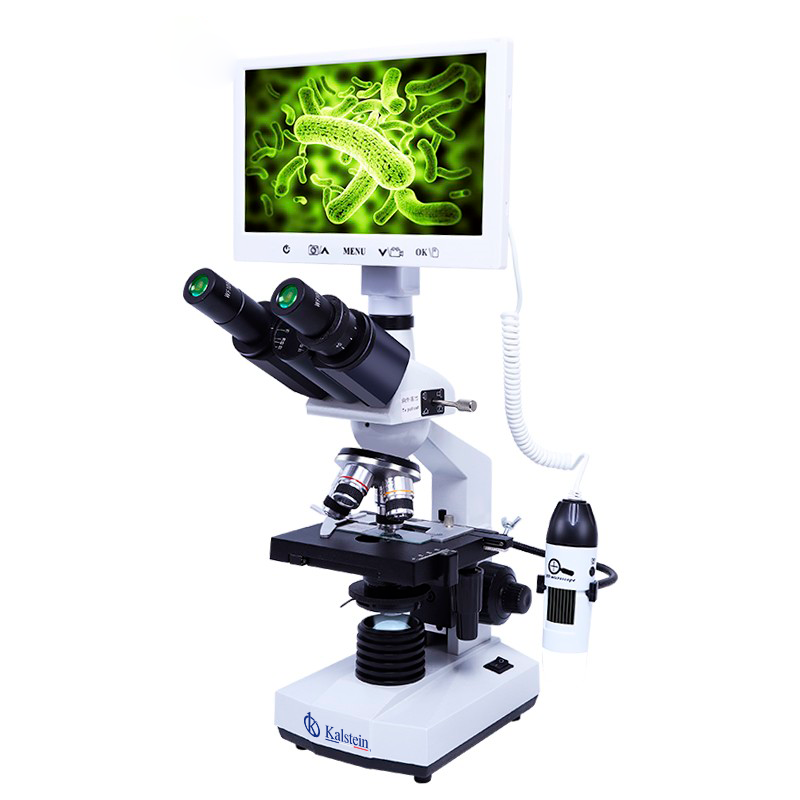

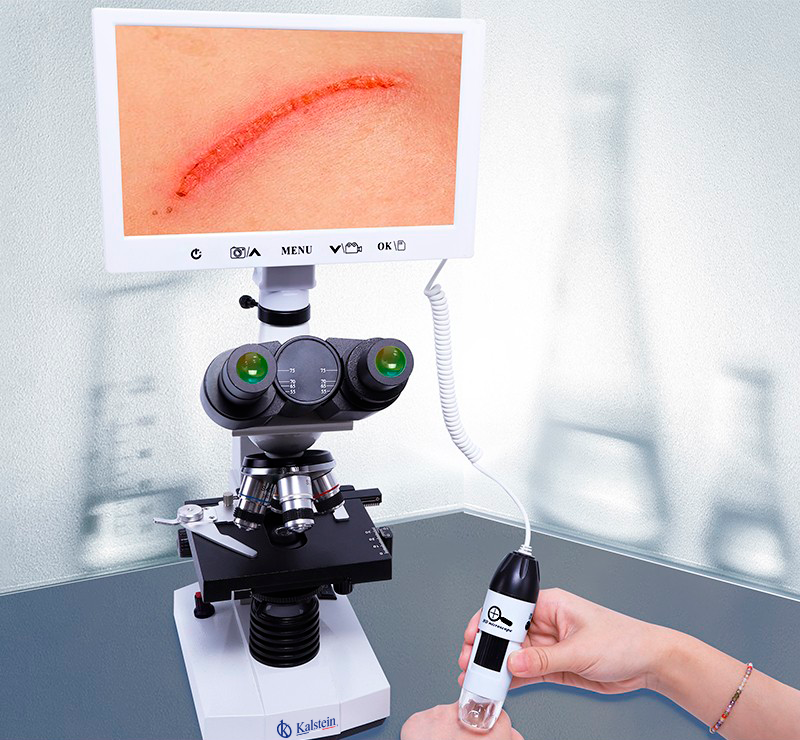

Biological + USB Portable Dual Lens Digital Microscope YR05783 // YR05786
Biological + USB Portable Dual Lens Digital Microscope YR05783 // YR05786 — Kalstein laboratory equipment with technical specifications, advanced features, and certified professional solutions for scientific use.
Biological + USB Portable Dual Lens Digital Microscope YR05783 // YR05786 is an advanced optical instrument designed for both professional and educational purposes. With features like a 7" LCD screen, USB output, and dual lens capability, this microscope offers incredible versatility. The teaching and trinocular heads allow for various viewing angles and the LED lighting ensures clear illumination of specimens. With its comprehensive experiment kit and prepared slides, users can start exploring right out of the box. This portable microscope is perfect for field researchers, educators, and hobbyists, offering high-quality imaging and extensive functionality stored within a handy carry case.
Market Price
The Biological + USB Portable Dual Lens Digital Microscope YR05783 // YR05786 stands competitively within the market, with prices generally ranging from $800 to $1200. This reflects the advanced capabilities and portable nature of the microscope, making it an attractive option for professionals and enthusiasts alike.
Frequently Asked Questions
What resolutions does the camera support? The camera supports a maximum resolution of 1920x1080p.
What is the range of magnification offered by the microscope? The microscope provides a magnification range using achromatic objectives of 4x, 10x, 40x, and 100x.
Can the microscope be connected to a PC or a mobile device? Yes, it features USB 2.0 for output compatibility with PCs and mobile devices.
Advantages and Disadvantages
Advantages:
- High-quality imaging with 2.0M resolution.
- Portable and easy to transport with a carry case.
- Supports multispectral imaging with LED illumination.
Disadvantages:
- Limited to a maximum storage capacity of 32GB with TF card.
- Higher price point may be daunting for some users.
Usage in the Field
The Biological + USB Portable Dual Lens Digital Microscope YR05783 // YR05786 is well-suited for fieldwork due to its portability and robust design. Researchers can make quick analyses of samples directly on-site using the prepared slides and record observations thanks to the device's USB output and recording capabilities. The inclusion of an experimental kit further enhances its applicability in field settings.
Recommendations
To maximize the lifespan and utility of your microscope, ensure it is stored in its provided carry case when not in use. Regularly clean the lenses and stage to maintain optimal image clarity. Consider investing in additional SD cards to extend storage capacity beyond the initial 32GB.
Features

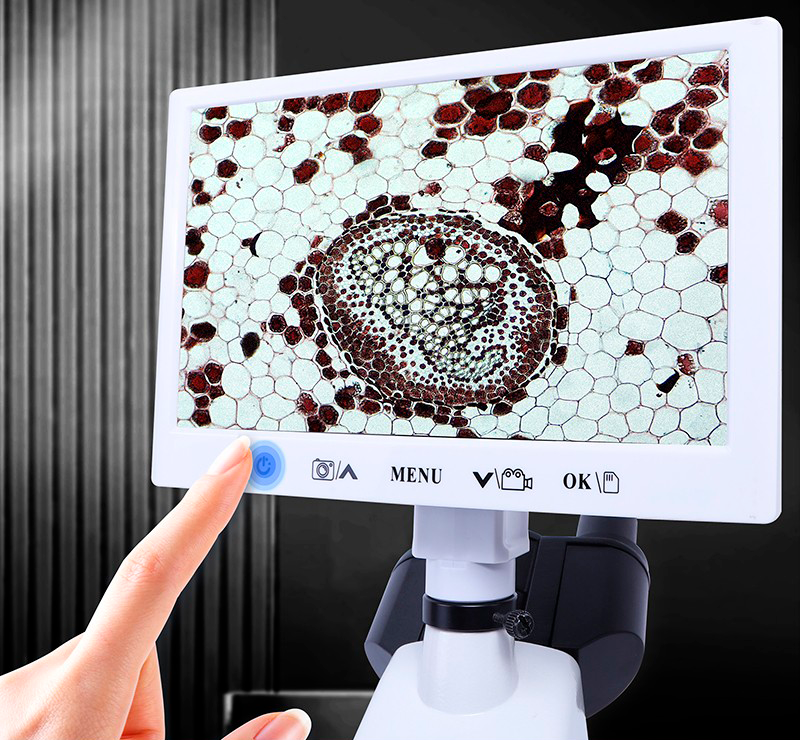

- 7" IPS LCD Screen with 800x480 resolution.
- Dual camera system supporting USB output.
- High-performance 2.0M CMOS sensor.
- LED illumination with adjustable brightness.
- Includes 10 prepared slides and a comprehensive experiment kit.
- Mechanical stage with coaxial focusing.
- Supports nine language options for enhanced usability.
Technical Specifications
| Model | YR05784 | YR05785 | YR05786 | YR05783 | |
| Head | Teaching Head, 45°+90° Inclined, 360° Rotatable | o | o | ||
| Binocular Head, 30° Inclined, 360° Rotatable | |||||
| Trinocular Head, 30° Inclined, 360° Rotatable | o | o | |||
| LCD Camera | 7"IPS LCD Screen Resolution 800x480 | ||||
| Sensor | 1/2.75"CMOS | ||||
| Resolution | 2.0M 1920x1080p, With 0.3x C-Mount | ||||
| Pixel Size | 2.8x2.8um | ||||
| Frame Rate | 30 fps | ||||

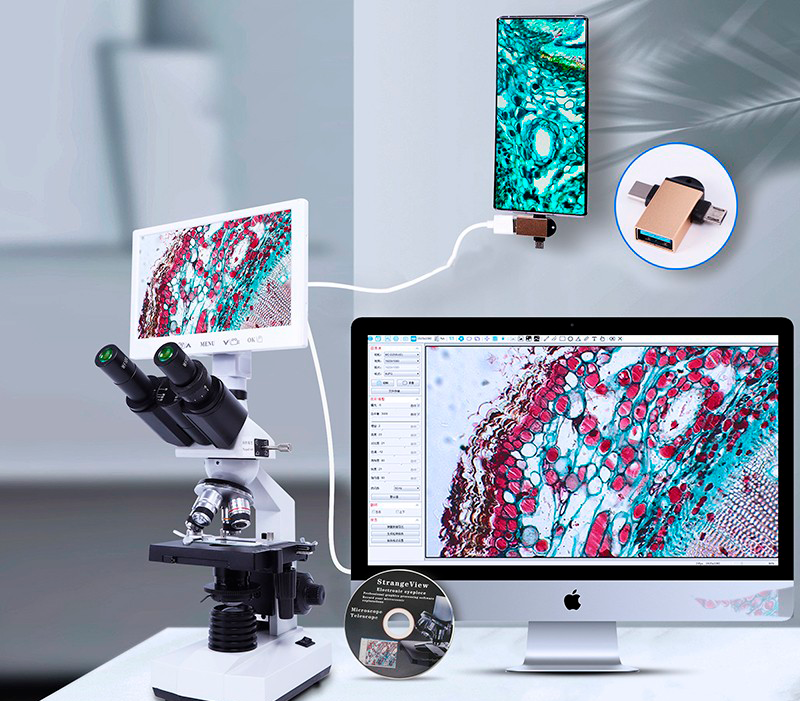

| Output | USB 2.0, Output to LCD, PC or Mobile Phone | ||||
| Power | DC5V/2A, Power Port 3.5/1.35 DC | ||||
| Storage | Micro SD Card Slot, Support Class 10 Max 32G | ||||
| LCD Menu | One Key Switch Image From Main Camera & Hand-held Camera | ||||
| One Key Take Photo, Video, Record, Save to SD Card | |||||
| Set Color, Contrast, White Balance Auto/Manual Adjust | |||||
| Set Photo/ Video Resolution Adjust, Mic On/Off to Record Voice With Video | |||||
| Set Date, Time | |||||
| Choose Language: Chinese, Tranditional Chinese, English, Japanese, France, Germany, Korea, Russia, Italy, Portuguese, Spanish, Arabic | |||||
| Playback Photo, Video | |||||
| PC Software | CD With Measuring Software Strange View, Support Win/iMac Computer, Support Language Chinese, English, Russia, Ukrian | ||||
| Hand-held | USB Portable Digital Microscope 1.3M, 1.5x-25x | - | o | - | o |
| Eyepiece | WF10x, WF16x | ||||
| Nosepiece | Quadruple Nosepiece, Ball Bearing Inner Locating | ||||
| Objective | Achromatic 4x,10x,40x(s), 100x(s, oil) | ||||
| Working Stage | Double Layer Mechanical Stage 115*125mm | ||||
| Focusing | Coaxial Coarse & Fine Focus Knob, Coarse Focusing Range 20mm | ||||
| Condenser | Abbe Condenser N.A.1.25, With Iris Diaphragm Filter | ||||
| Light Source | LED, Brightness Adjustable | ||||
| Accessory | Prepared Slide 10pcs in Box, | ||||
| Experiment Kit, | |||||
| Mobile Phone Connector | |||||
| Power Adapter | |||||
| Power Cord | |||||
| USB Cable | |||||
| Software CD | |||||
| Packing | Hand Carry Box + Master Carton | ||||
Technical specifications
| Dimensions | L 30 × W 20 × H 40 cm |
|---|---|
| Weight | 5 kg |
| Manufacturer | Kalstein |
Available models
- Biological + USB Portable Dual Lens Digital Microscope YR05783 // YR05786 - YR05783 (SKU: YR05783)
- Biological + USB Portable Dual Lens Digital Microscope YR05783 // YR05786 - YR05784 (SKU: YR05783)
- Biological + USB Portable Dual Lens Digital Microscope YR05783 // YR05786 - YR05785 (SKU: YR05783)
- Biological + USB Portable Dual Lens Digital Microscope YR05783 // YR05786 - YR05786 (SKU: YR05783)
