Description

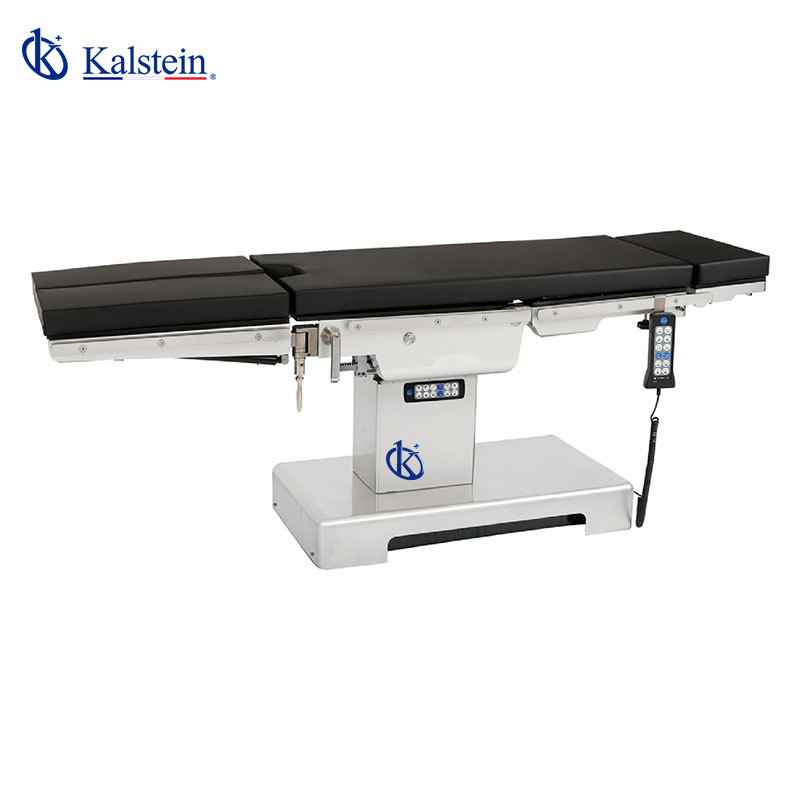

- YR06235 electro-hydraulic operating table is made specially to meet demand of general surgical operations.
- It adopts full 304 stainless steel; Tabletop is X-ray available.
- Auto-lock on remote control, electric base lock and release.
- Sliding can be 300-330mm.
- Kidney bridge elevation.
- Standard override panel control makes the control safer.
- Zero rest function.
- Backup battery.
Technical Specifications
| Model | YR06235 |
| Length/width | 2000mm/500mm |
| Elevation (up/down) | 700mm/1150mm |
| Trendelenburg | 25° |
| Reverse Trendelenburg | 35° |
| Lateral Tilt (left/right) | 18°/18° |
| Head Rest (up/down) | 60°/90° |
| Footplate (up/down&horizontal positioning) | 10°/90°/90° |
| Back plate (up/down) | 70°/30° |
| Longitudinal Sliding | 300-330mm |
| Kidney bridge elevation | 110mm |
| Power | 220v, 50Hz, 1.0kW |
