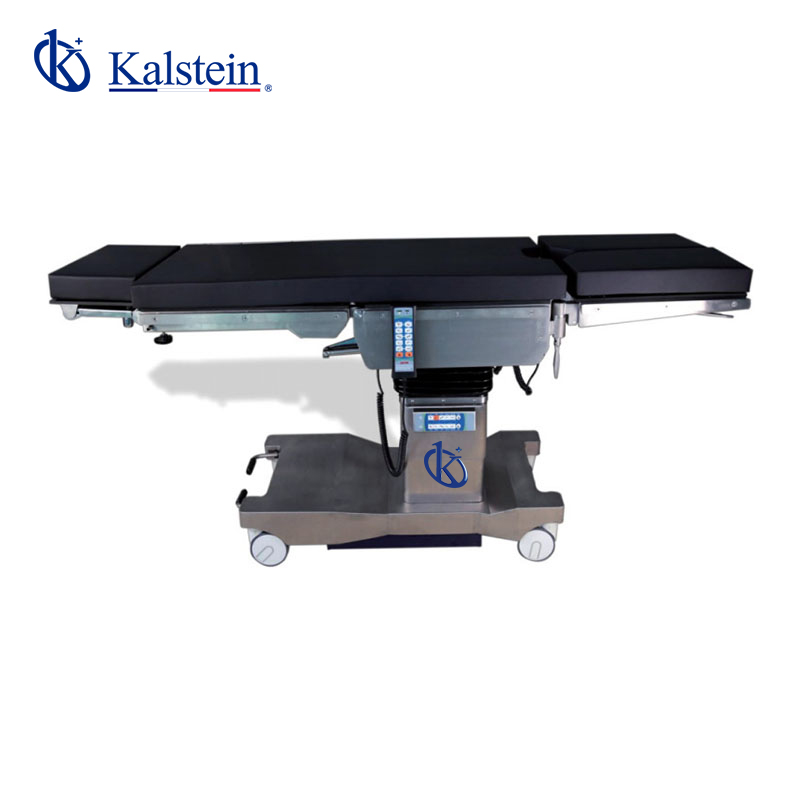

Electro-Motor Operation Table YR06230

ManufacturerKalstein

Description

  • Engineered for increasingly complex surgical scenes, YR06230 comes with intelligent automatic control system satisfying various demands of general surgeries.
  • Longitudinal slide up to 350mm for free access to C-arm.
  • Extreme weight load capacity of 250kg with highest safety and stability.
  • Memory pad with antistatic, waterproof design.
  • Standard override panel control makes the control safer.
  • Back up battery.
Technical Specifications
Model YR06230
Length/Width 2100mm/550mm
Elevation(up/down) 700mm/1000mm
Trendelenburg ≥25°
Reverse Trendelenburg ≥25°
Lateral Tilt(left/right) 15°/15°
Head Rest(up/down) 45°/90°
Footplate(up/down&horizontal positioning) 90°/90°/15°
Back plate(up/down) 85°/20°
Kidney bridge 110mm
Sliding 350mm
Power 220v, 50Hz, 1.0kW

Additional information

Weight 300 kg
Dimensions 136 × 86 × 88 cm
