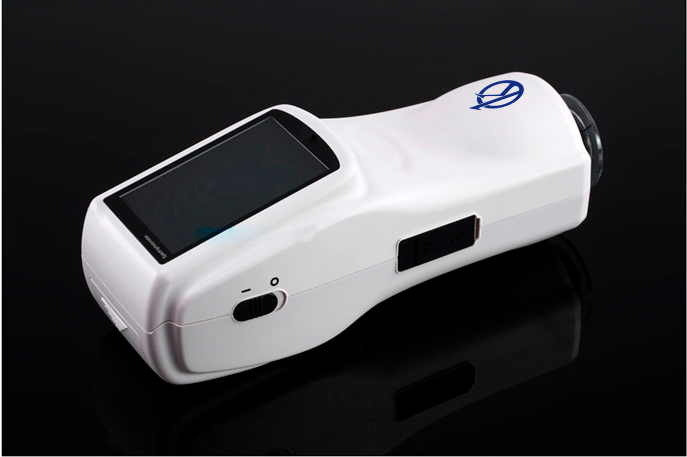

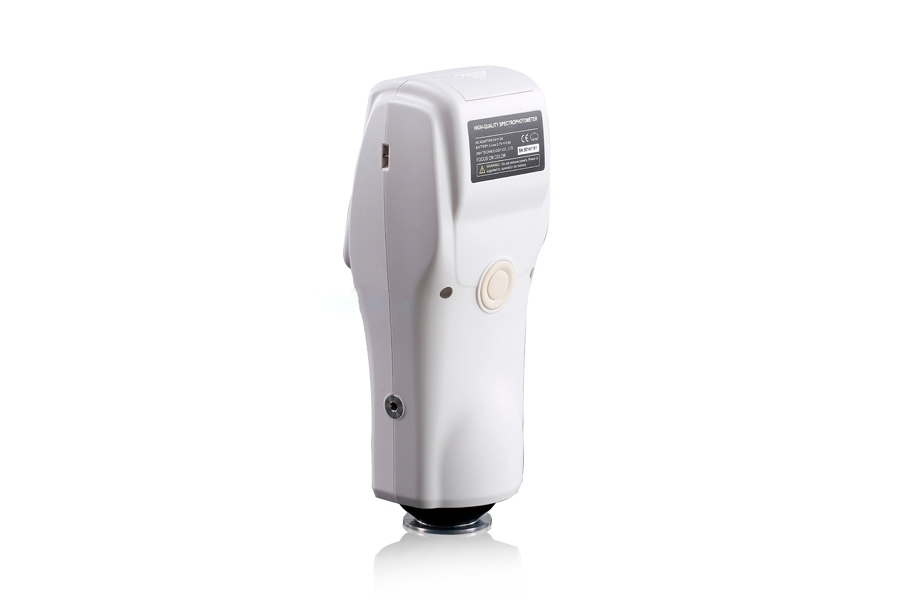

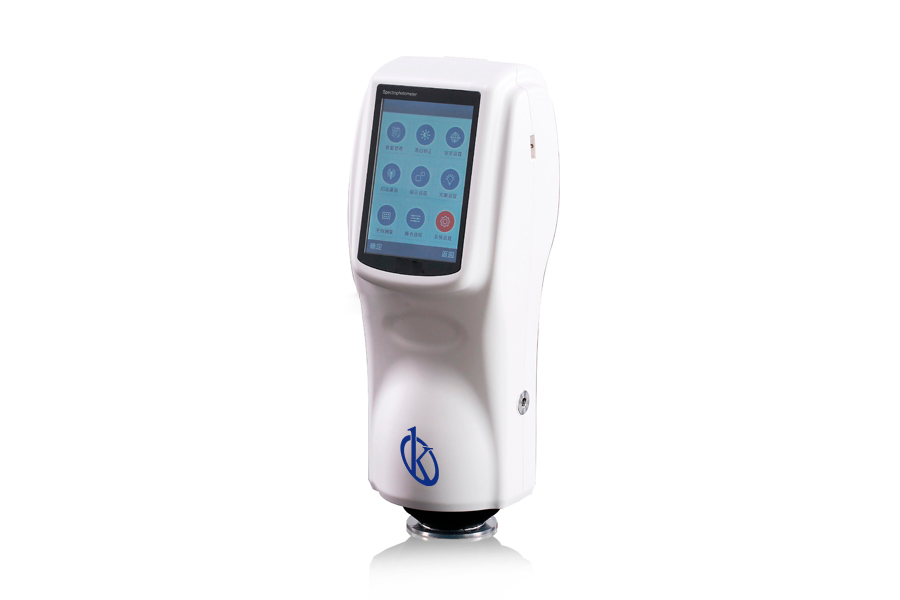

Handheld Color Spectrophotometer YR05496

ManufacturerKalstein

Description

The Handheld Color Spectrophotometer YR05496 from Kalstein is an advanced tool engineered for unparalleled precision in color management and matching across multiple industries. Weighing only 600g, this portable model employs a 45/0 geometric optical structure that adheres to international standards like CIE No.15 and GB/T 3978. The YR05496 features a 400 to 700 nm wavelength range and an 8 mm aperture, delivering precise color measurements with a DeltaE*ab accuracy index of 0.04. Its ergonomic design and intuitive 3.5-inch touchscreen ensure user-friendliness in sectors such as plastics, paints, textiles, food, and cosmetics. Furthermore, its SQC8 color management software allows comprehensive functionality when connected to a PC, rendering it indispensable for efficient and complete quality control.

Market Price

The YR05496 spectrophotometer is a valuable investment for companies aiming to refine their color control processes with remarkable precision and reliability. Typically, this tool is available in the market within a price range of $3,300 to $4,100 USD. This cost is justified by its ability to store up to 10,000 samples, making it ideal for a variety of industrial and laboratory applications. For a personalized quote tailored to your specific needs, you are encouraged to request one or generate it automatically using Kalstein Plus, ensuring a smooth and secure purchasing process.

Frequently Asked Questions

  • What industries benefit the most from the YR05496?
    This spectrophotometer excels in industries like plastics, paints, textiles, and is also ideal for analyzing fluorescent samples and food products.
  • Is the device PC-compatible?
    Yes, the YR05496 comes with color management software that facilitates a direct connection to PCs, enabling more efficient and detailed data management.
  • What is the storage capacity of this model?
    It can store a substantial amount of data, accommodating up to 1,000 standards and 10,000 samples, perfect for organized and detailed record-keeping.

Advantages and Disadvantages

The YR05496 offers significant advantages, such as its high accuracy (ΔE*ab of 0.04), user-friendly portable design, and compatibility with international colorimetric standards. Its USB and RS232 connectivity simplifies data transfer. However, its limitation to the visible wavelength range (400-700 nm) may not suit applications that require a broader spectrum of analysis.

Field Applications

This spectrophotometer is widely applied in quality control for the production of plastics, paints, and textiles, where color consistency is crucial. Its portable and precise nature makes it optimal for use on production lines or in lab settings, providing reliable results in seconds. The device’s capability to simulate colors and manage data through advanced software enables real-time evaluation to ensure superior product quality.

Recommendations

To maintain the optimal performance of the YR05496, regular calibrations and storage in a clean, dust-free environment are essential. Powered by a lithium-ion battery, it supports up to 5,000 measurements over 8 hours, so frequent recharging is advisable to ensure availability. You are invited to request a personalized quote or quickly generate your own on Kalstein Plus to see how the Portable Color Spectrophotometer YR05496 can enhance precision and efficiency in your industry.

Features

  • Portable and lightweight design
  • High accuracy ΔE*ab of 0.04
  • Compatibility with international colorimetric standards
  • Up to 10,000 sample storage capacity
  • USB/RS232 connectivity
  • Intuitive 3.5-inch touchscreen
  • SQC8 color management software for extended functionality

Technical Specifications

Model

YR05496

Illumination/observation system

45/0 method (45 ring-shaped illumination, vertical viewing)

Comply with CIE No.15, GB/T 3978.

Integrating sphere Size

Φ58mm

Light Source

combined LED sources

Sensor

Silicon photodiode array

Wavelength range

400~700nm

Wavelength pitch

10nm

Reflectance range

0~100%

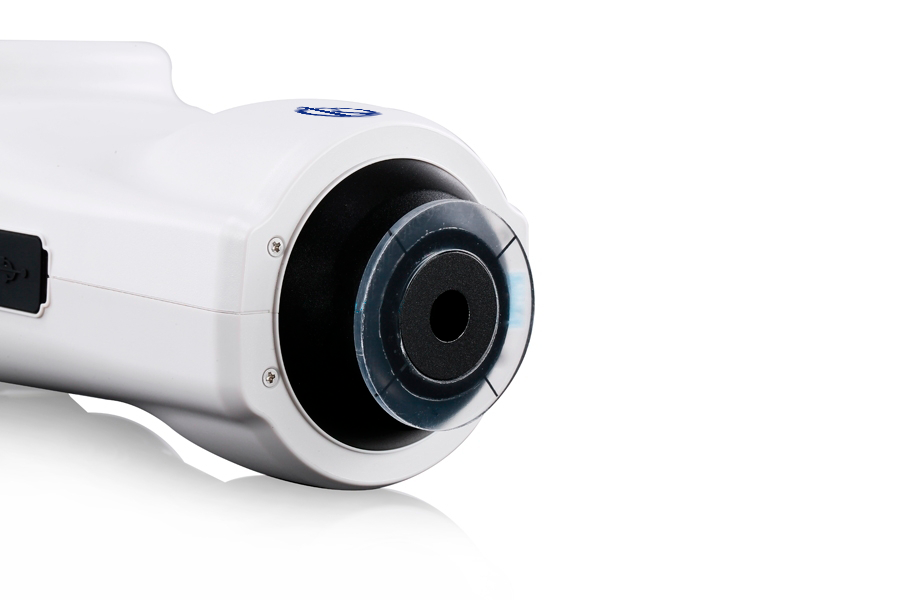

Measuring Aperture

Φ8mm

Color Space

CIE LAB, XYZ, Yxy, LCh, CIE LUV

Color difference Formula

ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00

Other Chromaticity Data

Whiteness – WI(ASTM E313, CIE/ISO, AATCC, Hunter),

Yellowness-YI(ASTM D1925, ASTM 313),

TI(ASTM E313, CIE/ISO),

Metamerism Index (Mt)

Colour Stain, Color Fastness, Color Strength, Opacity

Observer

2°/10°

Illuminant

D65, A, C, D50, D55, D75, F2, F6, F7, F8, F10, F11, F12

Display Data

Spectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation

Measurement Time

1.5s

Repeatability

Spectral Reflectance: standard deviation within 0.1%(400~700nm: within 0.2%)

Colorimetric Value: Standard deviation within DeltaE*ab 0.04 (Measurement conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.)

Inter Instrument Agreement

Within DeltaE*ab 0.2 (Average for 12 BCRA Series II color tiles)

Dimension

L*W*H=90*77*230mm

Weight

600g

Battery

Li-ion battery. 5000 times within 8 hours.

Lamp Life

5 years, more than 1.6 million measurements

Display Screen

TFT 3.5inch, Capacitive Touch Screen

Interface

USB/RS-232

Data Memory

1000 Standards, 10000 Samples

Operating Temperature

0~40℃(32~104°F)

Storage temperature

-20~50℃(-4~122°F)

Standard Accessory

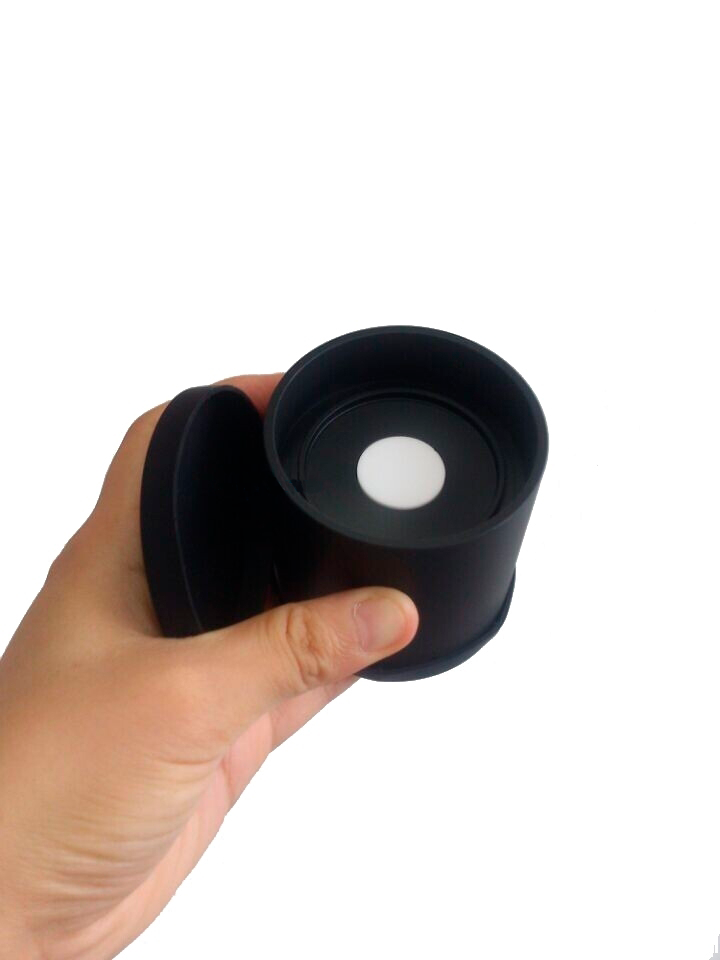

Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM (containing management software), Data Line, White and Black Calibration Cavity, Protective Cover and Wrist Strap

Optional Accessory

Micro Printer, Powder Test Box

Notes

The specifications are subject to change without notice.

Additional information

Weight 3 kg
Dimensions 34 × 13 × 29 cm
