High cost-effective Portable Colorimeter YR05515
High cost-effective Portable Colorimeter YR05515 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.
The High cost-effective Portable Colorimeter YR05515 by Kalstein is an expertly engineered device designed to meet the diverse needs of professionals across various industries. With its high precision, low-cost design, and dual apertures, including a Φ4mm tip aperture, this colorimeter is suitable for a wide range of samples. It excels in measuring color differences utilizing the CIE LAB color space, making it an essential tool for sectors such as plastics, electronics, paint, ink, textiles, garments, printing and dyeing, food, medical, cosmetics, research institutions, schools, and laboratories.
Price Range in the Market
The High cost-effective Portable Colorimeter YR05515 offers remarkable value, often priced between $300 and $800 in the market for similar products. This competitive pricing ensures that you receive top-quality performance without breaking the bank. Customers looking for precision and cost-efficiency will find this colorimeter to be an excellent investment.
Frequently Asked Questions
Q: Does the colorimeter require frequent calibration?
A: No, the device comes with built-in white plate parameters, eliminating the need for constant calibration and allowing for rapid measurements.
Q: What kind of battery does it use?
A: It is equipped with a rechargeable high-capacity lithium-ion battery, providing long-lasting use without the need for frequent replacements.
Advantages and Disadvantages
One of the significant advantages of the YR05515 colorimeter is its portability and handheld design, making it convenient to use in various settings. It boasts a long battery life and a user-friendly interface. However, its advanced capabilities might have a learning curve for those unfamiliar with colorimetry, which is a minor drawback considering its advanced features.
Use of the Product in the Field

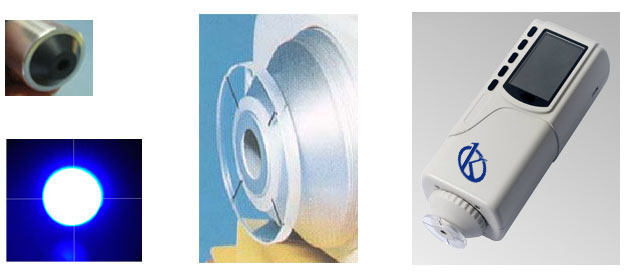

In practical scenarios, the YR05515 colorimeter is used to measure color accuracy and differences in production lines, quality control processes, and research environments. Its dual aperture capabilities allow it to precisely measure both concave and flat surfaces, making it versatile for different materials and settings.
Recommendations
For optimal use, it is recommended to store the device in moderate temperatures and keep it clean to maintain accuracy. Familiarizing yourself with the user manual will also ensure you maximize the features it offers. For more information or to get a quote, consider using the Kalstein Plus platform.
Key Features
- Built-in white plate parameters for rapid measurements

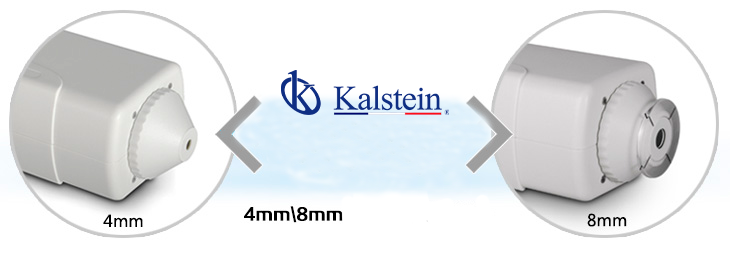

- Dual apertures for flexibility in measuring different samples
- Rechargeable lithium-ion battery for extended use
- Portable and ergonomic design
- High-performance at a cost-effective price
Technical Specifications
| Model | YR05515 |
| Illuminating / Viewing Geometry | D/8° |
| Standard | CIE No.15, GB/T 3978 |
| Sensor | silicon photodiode |
| Measuring Aperture | 4mm |
| Color Space | CIE LAB, Lch |
| Observer | CIE 10° |
| Illuminant | D65 |
| Display Data | Colorimetric Value, Color Difference Value Storage |
| Temperature | /Graph, PASS/FAIL Result, Color Offset |
| Measuring Time | 1.5 s |
| Repeatability | ΔE*ab ≤ 0.03 (Average of 30 measurements of standard white plate) |
| Dimension | 205*67*80mm |
| Errors between each instrument | ΔE*ab 0.4 |
| Weight | 400g |
| Battery | rechargeable lithium-ion battery 3.7V@ 3200mAh |
| Lamp Life | 5 years, more than 1.6 million measurements |
| Screen | TFT 2.8 inch(16:9) |

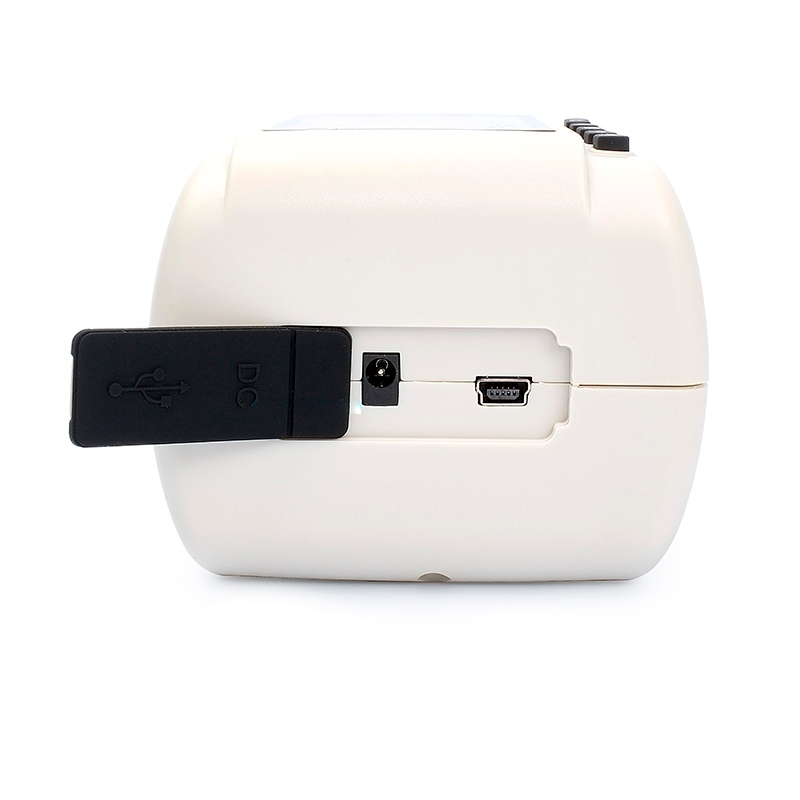

| Interface | USB |
| Storage | 100 Standards, 10000 Samples |
| Operating Temperature | 0-40°C(32-104°F) |
| Storage Temperature | -20-50°C(-4-122°F) |
| Optional Accessory | miniature thermal printer, powder test box |
Technical specifications
| Dimensions | L 33 × W 12 × H 15 cm |
|---|---|
| Weight | 1 kg |
| Manufacturer | Kalstein |
