Description

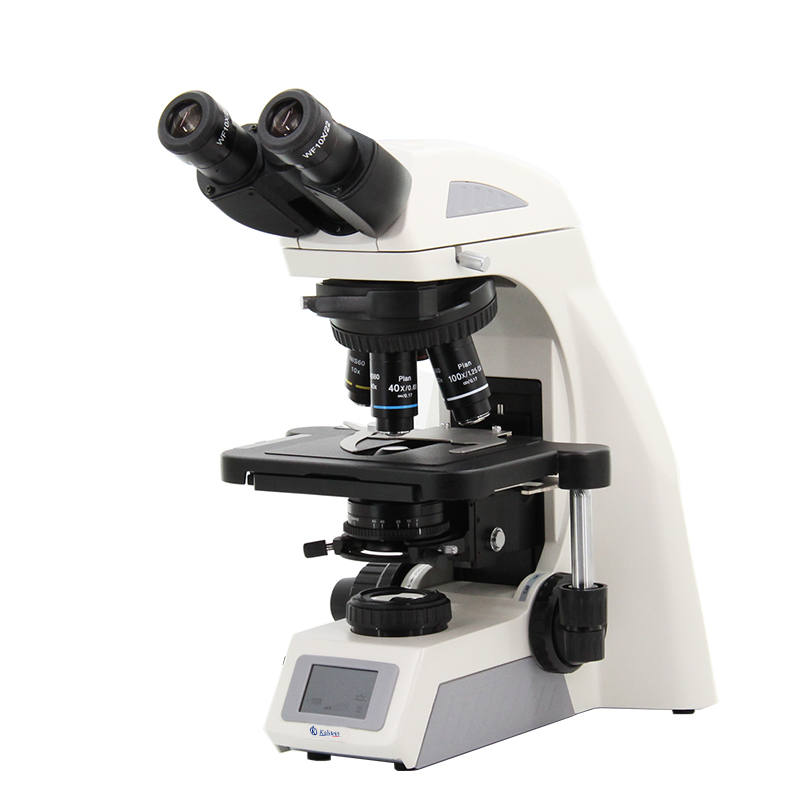

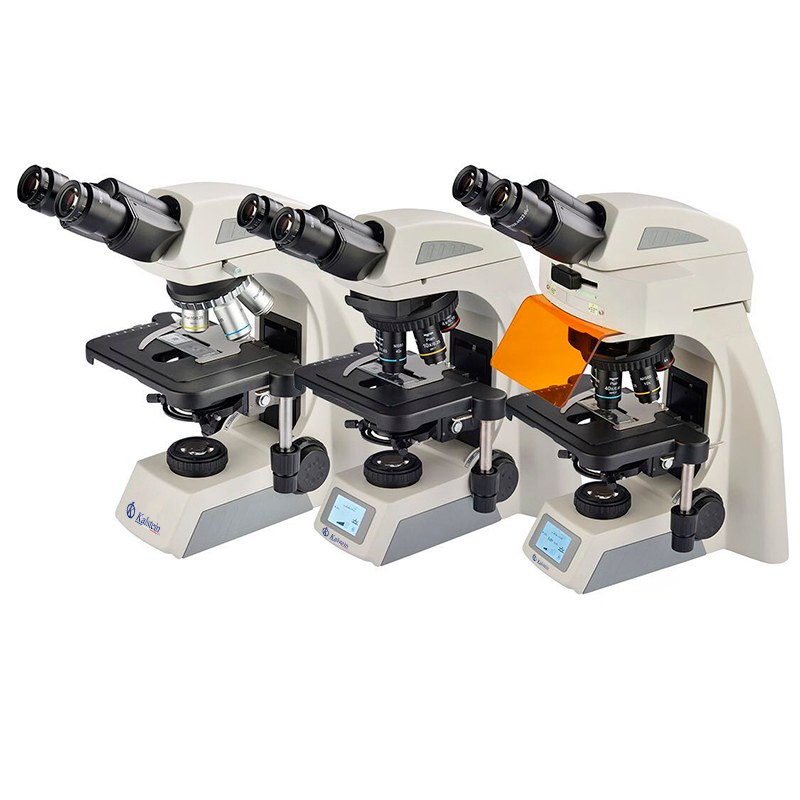

Laboratory Biological Microscope YR0267A – YR0267B stands out with its advanced NIS Infinity Optical System, creating high-resolution, sharp images with excellent contrast. Its unique features include coded nosepieces that remember light settings for each objective, ensuring optimal illumination and reducing visual fatigue. Designed for precision, this microscope is equipped with a Seidentopf head, high-quality infinity plan objectives, and a range of practical observation methods, making it ideal for any laboratory setting looking to enhance efficiency and performance.
Market Pricing
The Laboratory Biological Microscope YR0267A – YR0267B is priced competitively within the market, generally ranging from $2150 to $2950. This price reflects the advanced features and capabilities of the microscope, offering an excellent investment for laboratories seeking robust performance and superior imaging quality.
Frequently Asked Questions
What types of observations can this microscope perform? The microscope supports Bright Field, Dark Field, Polarizing, Phase Contrast, and Epi-Fluorescence methods.
Does it have digital capabilities? Yes, the model YR0267B offers options for digital integration, including a built-in digital camera for real-time imaging on devices.
Advantages and Disadvantages
Advantages: High contrast and resolution, automated light adjustments, versatile observation techniques.
Disadvantages: Higher price range, complex settings may require training.
Product Usage in Field
This microscope is widely used in biological and clinical laboratories for its exceptional imaging capabilities. Its robust design and coded nosepiece feature allow researchers to swiftly switch objectives without manual light adjustments, facilitating more efficient workflows and accurate results in demanding research environments.
Recommendations
For optimal performance, regularly clean the microscope lenses and use only compatible accessories. Ensure all parts are properly calibrated, and consider additional training for complex observation techniques to maximize the microscope’s potential.
Features
- NIS Infinity Optical System for sharp imaging
- Coded nosepiece for automated light adjustment
- Digital capabilities with wireless integration options
- Multiple observation methods supported
- Ergonomic design reducing visual fatigue
Technical Specifications
| Model | Cata. No. | YR0267A | YR0267B | |
| Optical System | NIS Infinite Optical System | ● | ● | |
| Observation Method | Bright Field | ● | ● | |
| Dark Field | ○ | ○ | ||
| Polarizing | ○ | ○ | ||
| Phase Contrast | ○ | ○ | ||
| Epi-Fluorscence | ○ | ○ | ||
| Head | Seidentopf Binocular Head, Inclined At 30° , Interpupillary Distance 47-78mm, Eyepiece Tube Dia.30mm | YR0267B-op1 | ● | |
| Seidentopf Trinocular Head, Inclined At 30° , Interpupillary Distance 47-78mm, Eyepiece Tube Dia.30mm, Light Path Fixed 50:50 | YR0267B-op2 | ● | ||
| Seidentopf Trinocular Head, Inclined At 30° , Interpupillary Distance 47-78mm, Eyepiece Tube Dia.30mm, Light Path Switchable 0:100/100:0 | YR0267B-op3 | ○ | ○ | |
| Tilting Binocular Head, Inclined 5°~35° , Interpupillary Distance 47-78mm, Eyepiece Tube Dia.30mm | YR0267B-op4 | ○ | ○ | |
| Digital Head, Built-in Digital Camera 5.0M, Support Android, IOS, Windows, Output Image By WIFI In Real Time | YR0267B-op5 | ○ | ○ | |
| Upgrade to A31.1062-5.0M | ||||
| Digital Head, Built-in Wireless Digital Camera 5.0M, Support Android, IOS, Windows, Output Image By WIFI In Real Time, App Software, By Scanning QR Code On Microscope, Installing App & Identifying Microscope, You Can View Micro Image On Mobile Phone & Tablet. | YR0267B-op6 | ○ | ○ | |
| Upgrade to A31.1062-5.0W | ||||
| Eyepiece | EW10x/22mm, Diopter Adjustable, Dia.30mm | YR0267B-op7 | ● | ● |
| EW15x/16mm, Diopter Adjustable, Dia.30mm | YR0267B-op8 | ○ | ○ | |
| EW20x/12mm, Diopter Adjustable, Dia.30mm | YR0267B-op9 | ○ | ○ | |
| Nosepiece | Quintuple Nosepiece, Dovetail Interface | YR0267B-op10 | – | – |
| Coded Quintuple Nosepiece, Dovetail Interface | YR0267B-op11 | ● | ● | |
| NIS45 | 4x/0.10, W.D.20.6mm | YR0267B-op12 | – | – |
| Infinity Plan | 10x/0.25, W.D.17.9mm | YR0267B-op13 | – | – |
| Objective | 20x/0.40, W.D.6.40mm | YR0267B-op14 | – | – |
| 40x/0.60, W.D.1.50mm | YR0267B-op15 | – | – | |
| 60x/0.80, W.D.0.30mm | YR0267B-op16 | – | – | |
| 100x/1.25(Oil), W.D.0.16mm | YR0267B-op17 | – | – | |
| 100x/1.10(Water), W.D.0.16mm | YR0267B-op18 | – | – | |
| NIS60 | 4x/0.10, W.D.30.0mm | YR0267B-op19 | ● | ● |
| Infinity Plan | 10x/0.25, W.D.10.2mm | YR0267B-op20 | ● | ● |
| Objective | 20x/0.40, W.D.4.8mm | YR0267B-op21 | ○ | ○ |
| 40x/0.65, W.D.1.5mm | YR0267B-op22 | ● | ● | |
| 60x/0.80, W.D.0.30mm | YR0267B-op23 | ○ | ○ | |
| 100x/1.25(Oil), W.D.0.3mm | YR0267B-op24 | ● | ● | |
| 100x/1.10(Water), W.D.0.2mm | YR0267B-op25 | ○ | ○ | |
| NIS60 | 10x/0.25, W.D.10.2mm | YR0267B-op26 | ○ | ○ |
| Infinity Plan | 20x/0.40, W.D.12.0mm | YR0267B-op27 | ○ | ○ |
| Phase Contrast | 40x/0.65, W.D.0.7mm | YR0267B-op28 | ○ | ○ |
| Objective | 100x/1.25(Oil), W.D.0.2mm | YR0267B-op29 | ○ | ○ |
| Focusing | Coaxial Coarse & Fine Adjustment, Tension Adjustable, Fine Division 0.002mm, Coarse Focusing Range 28mm | ● | ● | |
| Working Stage | Double Layer Mechanical Rackless Stage, Size 230x150mm, Moving Range 78x54mm | – | – | |
| Double Layer Mechanical Rackless Stage, Size 230x150mm, Moving Range 78x54mm, Anti-Scratch Hard Coating Dural Platform | ● | ● | ||
| Condenser | Inserted Abbe Condenser N.A. 1.25, With Slot For Phase Contrast Slide And Dark Field Slide. | ● | ● | |
| Illumination | 1W S-LED Critical Illumination | – | – | |
| 3W S-LED Kohler Illumination | ● | ● | ||
| Green Filter | ● | ● | ||
| Dark Field | Dark Field Slide | YR0267B-op29 | ○ | ○ |
| Polarizing | Simple Polarizing Set | YR0267B-op30 | ○ | ○ |
| Phase Contrast | Phase Slider For 10x-40x | YR0267B-op31 | ○ | ○ |
| Phase Slider For 100x | YR0267B-op32 | ○ | ○ | |
| Epi-Fluorescence Attachment | 3W LED Epi-Fluorescence Attachment, Fly-Eye Lens Illumination, With 2 Filter Position + Bright Field Position, Switch Quickly, With Attachable UV Shield, | YR0267B-op33 | ○ | ○ |
| B, G Filters | ||||
| Filter U | YR0267B-op34 | ○ | ○ | |
| Filter V | YR0267B-op35 | ○ | ○ | |
| Photo Adapter | 1.0x C-Mount | YR0267B-op36 | ○ | ○ |
| 0.5x C-Mount | YR0267B-op37 | ○ | ○ | |
| Power Supply | AC 100-240V,50/60Hz | ● | ● | |
| USB Charging Port, Support To Use Exeternal Rechargeable Battery Power Bank Like Mobile Phone Out Door Freely | ● | ● | ||
| LCD Screen | LCD Screen On Front Of Body, Display Using State Of Microscope, Including Magnification, Light Intensity, Standby Status, Set Power Off Timer 5 Mins to 8 Hours, And So On. | ● | ● | |
| Dimensions | 220(W)x290(D)x472(H) mm | ● | ● | |
| Note:”●”In Table Is Standard Outfits,”○”Is Optional Accessories”-“Is Unavailable | ||||
