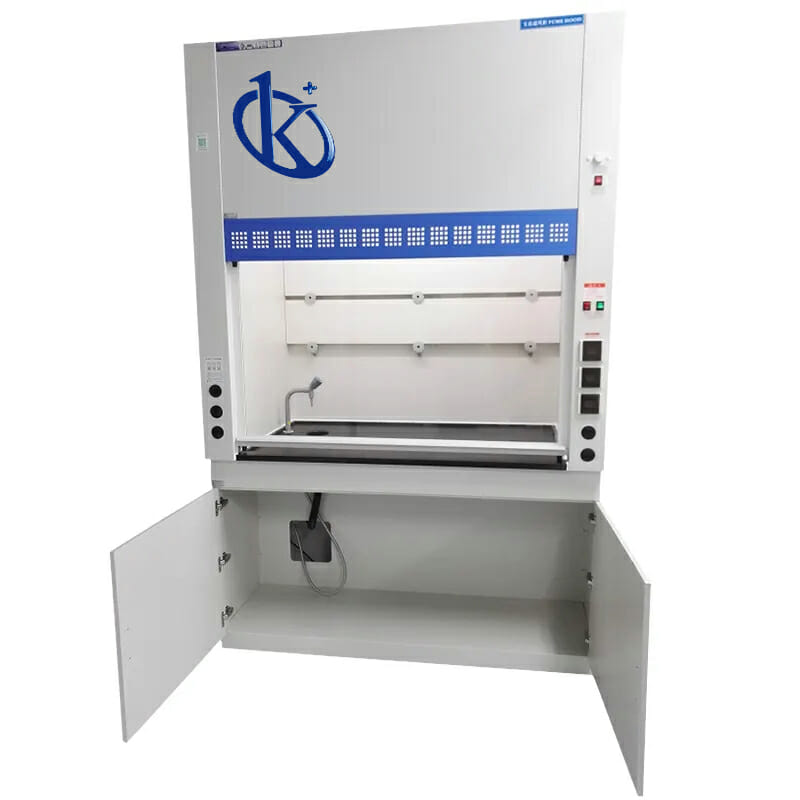

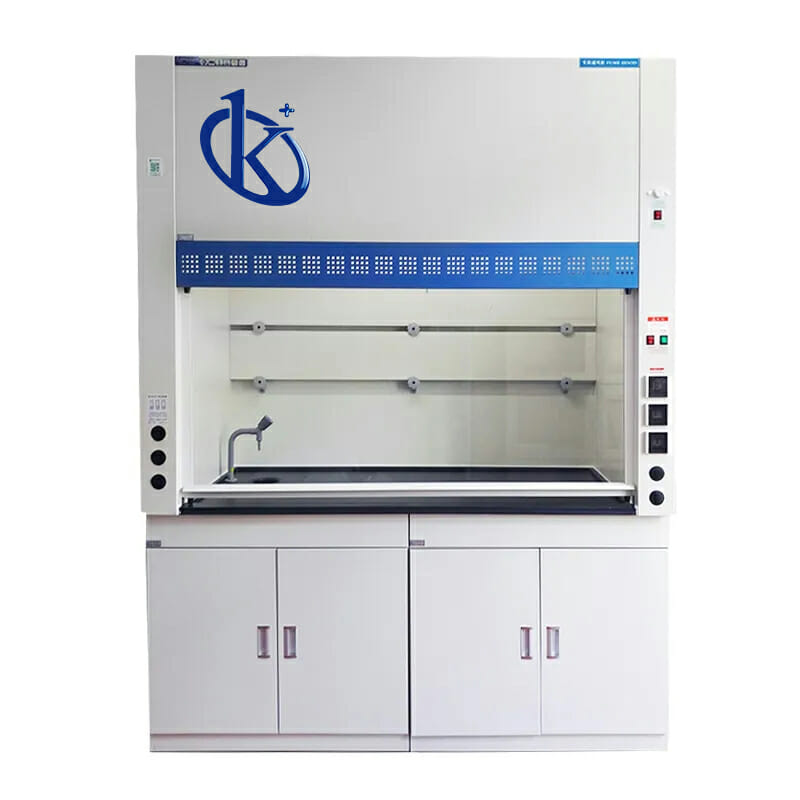

Laboratory Fume Hood,acid and alkali resistance Fume Cupboard Hospital Laboratory equipment YR05817 // YR05819

ManufacturerKalstein

Description

Introducing the YR05817 // YR05819 Laboratory Fume Hood, a state-of-the-art solution for ensuring safety while working with aggressive chemicals in hospital and laboratory settings. Constructed with a robust 1.2 mm cold-rolled steel body and coated with epoxy resin powder, this fume hood is designed to resist acids and alkalis effectively. Its 12.7 mm thick phenolic resin work surface offers superior chemical resistance, ensuring durability in corrosive environments. Equipped with a 5 mm tempered glass window and an adjustable axial flow blower, this fume hood efficiently extracts toxic gases, maintaining noise levels below 60 dB to provide a serene working environment.

Market Price

On the market, the YR05817 // YR05819 fume hood is priced between $1450 and $2250, reflecting its exceptional quality and superior construction materials. This price range ensures that you receive outstanding safety technology and durable materials that promise longevity and reliability. Investing in this fume hood equips your laboratory with a dependable safety solution that aligns with strict industry standards.

Frequently Asked Questions

  • Is the YR05817 // YR05819 fume hood user-friendly?
    Absolutely, the fume hood features an intuitive control panel that allows easy adjustments of blower speed and window height, providing a seamless operation.
  • What protective measures does it offer?
    The fume hood safeguards operators from hazardous fumes and gases thanks to its advanced ventilation system and corrosion-resistant structure.
  • How quiet is it during operation?
    It functions quietly, maintaining noise levels below 60 dB, fostering a calm and focused work setting.

Advantages and Disadvantages

The YR05817 // YR05819 fume hood stands out with its robust build, chemically resistant work surfaces, and adjustable airflow, ensuring operator safety. Its reduced noise level is ideal for bustling labs. However, the price might be a consideration for laboratories with limited budgets, although it’s a worthwhile investment given its quality and durability.

Field Use

This fume hood is indispensable in laboratory and hospital environments dealing with hazardous chemicals. Its strong resistance to acids and alkalis guarantees long-lasting use under challenging conditions. The ventilation system minimizes fume exposure, safeguarding users and maintaining a safe workplace.

Recommendations

To extend the lifespan and efficiency of your YR05817 // YR05819 fume hood, regularly clean the ventilation ducts and inspect the blower and window controls. Adhering to the recommended airflow speed promotes its longevity and performance. Request a quote today from Kalstein Plus. Discover how the YR05817 // YR05819 fume hood can enhance the safety and efficiency of your laboratory environment.

Key Features

  • Constructed from 1.2 mm cold-rolled steel with epoxy resin powder coating for enhanced chemical resistance.
  • Integrated 5 mm tempered glass window provides clarity and durability.
  • Adjustable axial flow blower allows for optimal ventilation adjustments.
  • Low noise emission, operating below 60 dB to ensure a quiet work environment.
  • 12.7 mm phenolic resin work surface, offering superior chemical resistance.

Technical Specifications

Model YR05817 YR05818 YR05819
External Size (W*D*H) (mm) 1200*800*2350 1500*800*2350 1800*800*2350
Internal Size (W*D*H) (mm) 950*700*1150 1250*700*1150 1550*700*1150
Work Surface Height 800mm
Max Opening of Window 750mm
Air Velocity/Exhaust Air Volume 0.4-0.6m/s, 800-1000m³/h
Noise ≤60dB
LED Lamp 10W*1
Blower Built-in axial flow blower; Speed adjustable.
Front Window Manual, 5mm toughened glass, height adjustable.
Power Supply AC220V±10%, 50/60Hz;
Consumption 100W
Material Main Body 1.2mm thickness cold-rolled steel with epoxy resin powder coating.
Inner Side 5mm thickness compact, resistant to strong acid and alkali.
Work Table Chemical resistant phenolic resin, thickness 12.7mm.
Standard Accessory LED lamp, Built-in axial flow blower with speed adjustable.
Waterproof socket*3
3 meter PP duct, Diameter: 250mm
Optional Accessory Epoxy resin board or ceramic board, Water tap, Gas tap, Water Sink
Outer centrifugal blower (300W), resistant to strong acid, alkali.
Gross Weight 235 265 300

Additional information

Weight N/A
Model

YR05817, YR05818, YR05819
