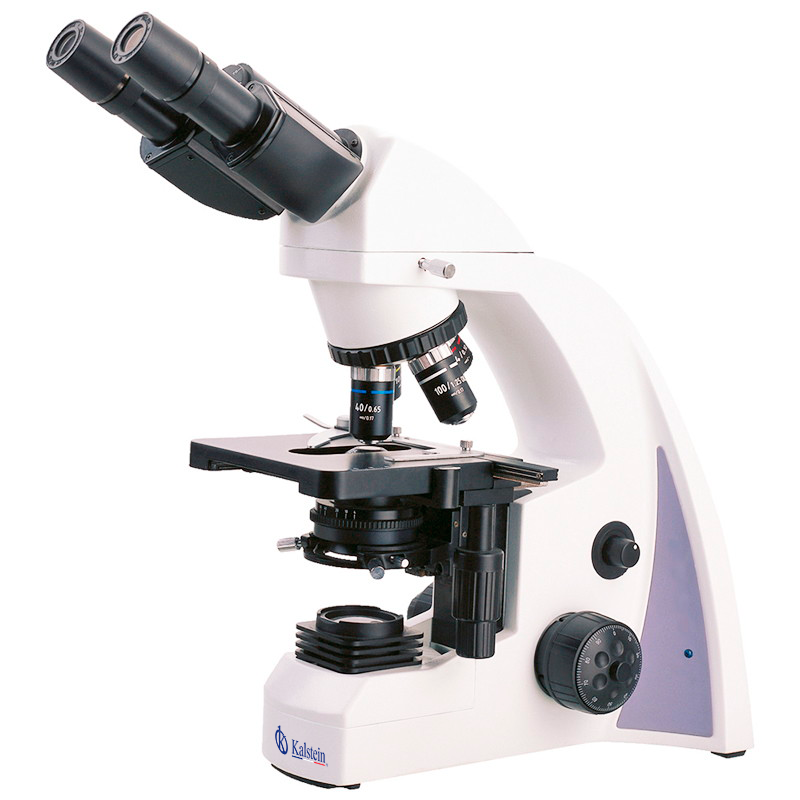

Laboratory Microscope YR0237//YR0237-1
Laboratory Microscope YR0237//YR0237-1 — Kalstein laboratory equipment with technical specifications, advanced features, and certified professional solutions for scientific use.
The Laboratory Microscope YR0237//YR0237-1 is a sophisticated piece of equipment designed to meet the rigorous demands of modern laboratories. Featuring a binocular head with WF 10x/18mm eyepieces, and infinity semi-plan achromatic objectives, this microscope delivers precise and clear imagery. Its adjustable condenser and S-LED illumination ensure optimal lighting, while the comfortable coarse and fine focusing knobs provide ease of use. This microscope is a versatile tool suitable for various research and diagnostic purposes, available for customization with optional accessories to enhance functionality.
Market Price
The price of the Laboratory Microscope YR0237//YR0237-1 varies depending on the configuration and additional accessories chosen. Generally, microscopes in this category are priced between $1,000 and $3,000 USD. For an exact quote that matches your specific needs, we invite you to request a customized quotation or use our Kalstein Plus platform to generate one instantly.
Frequently Asked Questions
What is the difference between model YR0237 and YR0237-1?
Model YR0237 features a Seidentopf binocular head, while YR0237-1 is equipped with a trinocular head, offering more versatility for advanced imaging applications.
Can I upgrade the microscope with additional accessories?
Yes, the microscope is designed to accommodate a variety of optional accessories including phase contrast kits and different objective lenses.
Advantages and Disadvantages
The Laboratory Microscope YR0237//YR0237-1 offers outstanding optical performance with its infinity semi-plan achromatic objectives. The customizable lighting system and ergonomic design make it user-friendly for prolonged sessions. However, the advanced features might require a learning curve for users new to high-end microscopes.
Product Use in Field
This microscope is ideal for use in biological, medical, and research laboratories. It facilitates high-resolution imaging necessary for examining specimens in detail, making it indispensable for professionals in diagnostics and research fields.
Recommendations
To maximize the lifespan and functionality of your microscope, ensure regular maintenance and cleaning, especially of optical components. Utilizing compatible accessories and proper storage will further enhance performance and accuracy.
Features

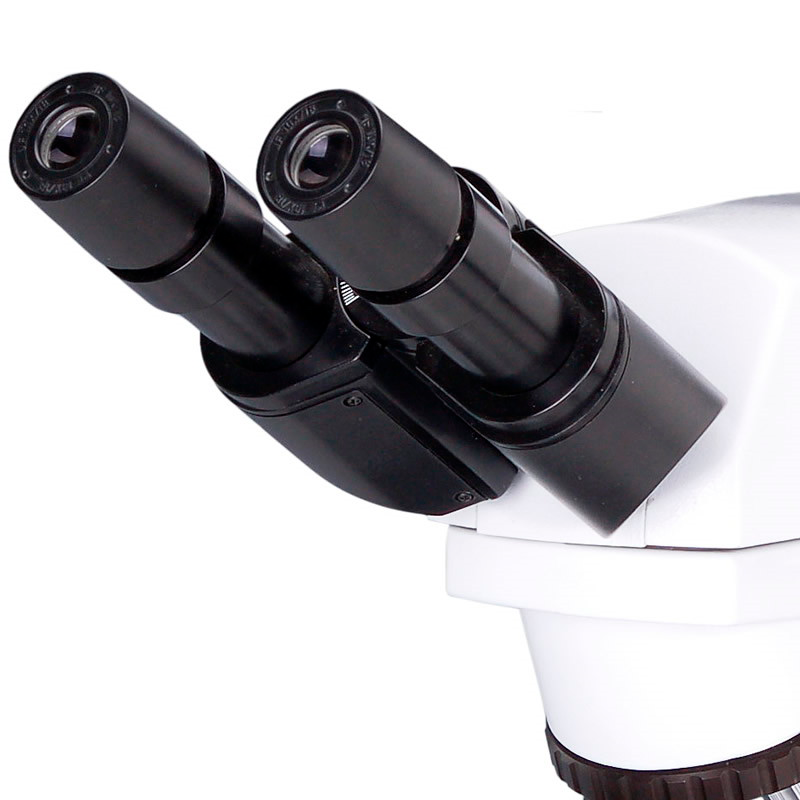

- Binocular Head, WF 10x/18mm Eyepieces
- Infinity Semi-Plan Achromatic Objectives
- Sliding-in Center Adjustable Condenser N.A1.25

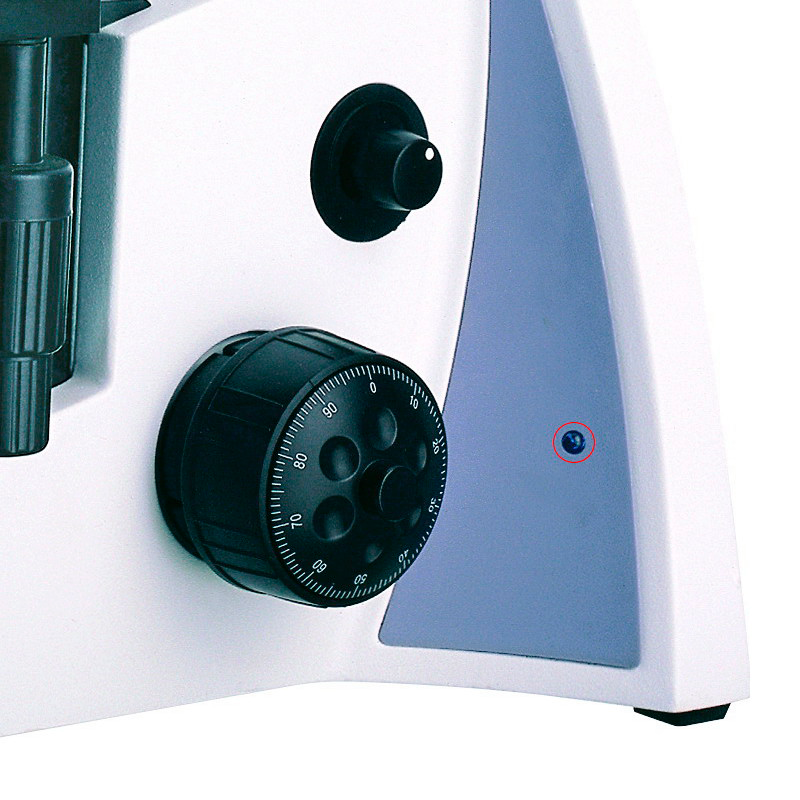

- Comfortable coarse & fine focusing Knob
- Brightness control Knob
- Power Indicator Light
Technical Specifications
| Model | YR0237 | YR0237-1 | |
| Head | Seidentopf Binocular Head, Inclined at 30°, Interpupillary Distance 52-75mm,Eyepiece Tubes Rotated 180° Up & Down | o | |
| Seidentopf Trinocular Head, Inclined at 30°, Interpupillary Distance 52-75mm,Eyepiece Tubes Rotated 180° Up & Down | o | ||
| Eyepiece | Wide Field Eyepiece WF10x/18mm | ||
| Objective | Infinite Semi-Plan Achromatic Objective 4x,10x,40x,100x | ||
| Nosepiece | Backward Quadruple Nosepiece | ||

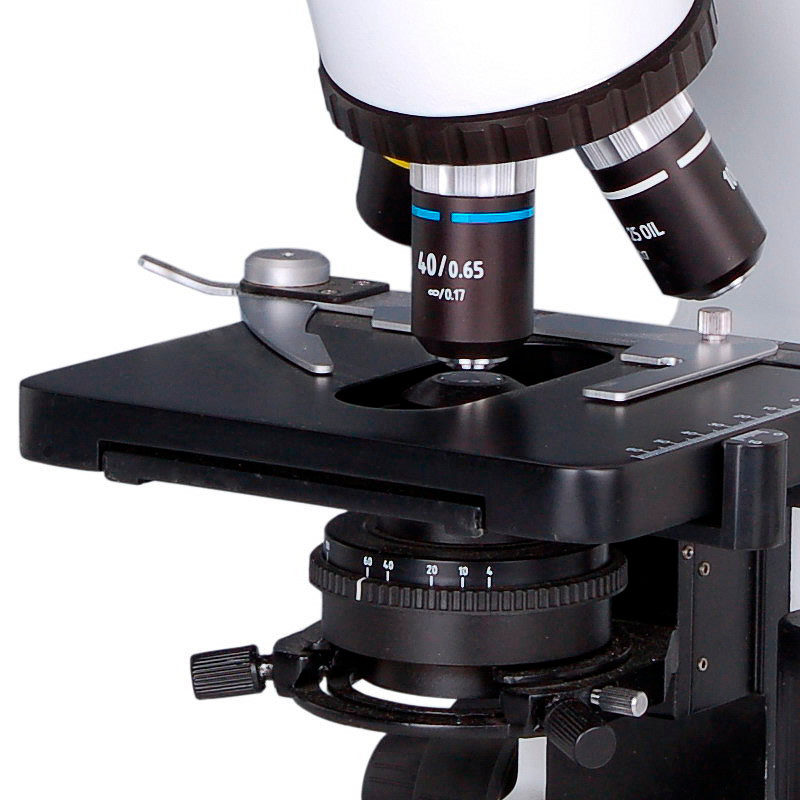

| Stage | Double Layer Mechanical Stage, Size 140×140mm, Moving Range 75×50mm | ||
| Condenser | Sliding-in Center Adjustable Condenser N.A.1.25 | ||
| Focusing | Coaxial Coarse & Fine Adjustment, Moving Range 20mm | ||
| Illumination | S-LED Illumination, Adjustable Brightness | ||
| Laboratory Biological Microscope Optional Accessories | |||
| Eyepiece | WF10x/20mm, Diopter Adjustable | YR0237-1-op1 | |
| Objective | Infinity Plan Achromatic Objective 4x | YR0237-1-op2 | |
| Infinity Plan Achromatic Objective 10x | YR0237-1-op3 | ||
| Infinity Plan Achromatic Objective 40x | YR0237-1-op4 | ||
| Infinity Plan Achromatic Objective 100x | YR0237-1-op5 | ||
| Illumination | 6V20W Halogen Lamp, Brightness Adjustable | YR0237-1-op6 | |
| Dark Field | Dark Field Condenser, Dry, N.A.0.7~0.9 | YR0237-1-op7 | |
| Dark Field Condenser,Immersion, N.A.1.25~1.36 | YR0237-1-op8 | ||
| Dark Field Objective, Infinity Plan 100X, | YR0237-1-op9 | ||
| ForImmersion Dark Field Observation | |||
| Dark Field Objective, Infinity Plan 100X, With Iris Diaphragm | YR0237-1-op10 | ||
| ForImmersion Dark Field Observation | |||
| Phase Contrast | Infinity Plan Turret Phase Contrast Set | YR0237-1-op11 | |
| --Infinity Plan Turret Phase Contrast Condenser | |||
| --Ininity Plan Phase Contrast Objective 4x,10x,40x,100x | |||
| --Centering Telescope 10x | |||
| Infinity Achromatic Turret Phase Contrast Set | YR0237-1-op12 | ||
| --Infinity Achromatic Turret Phase Contrast Condenser | |||
| --IninityAchromatic Phase Contrast Objective 4x,10x,40x,100x | |||
| --Centering Telescope 10x | |||
| LED EPI-Fluorescent Kit | EPI Light 3W LED 465~475nm, B Excite Filter BP460~490 | YR0237-1-op13 | |
| EPI Light 3W LED 525~530nm, G Excite Filter BP510~550 | YR0237-1-op14 | ||
