Laboratory Ventilation Cleaning Fume Extraction System Hood Equipment Fume Hood YR05826 // YR05828

ManufacturerKalstein

Description

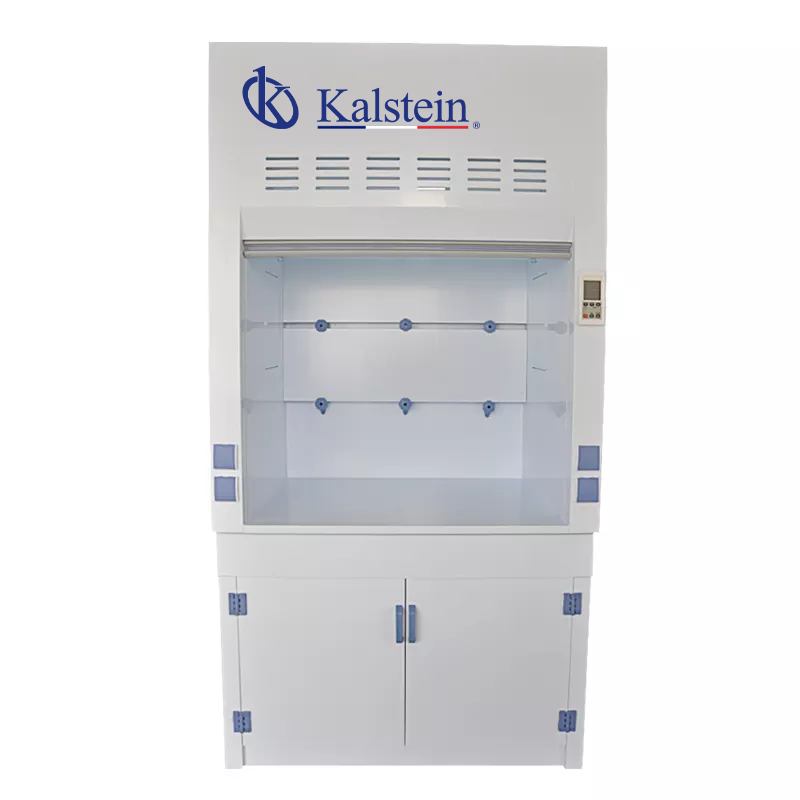

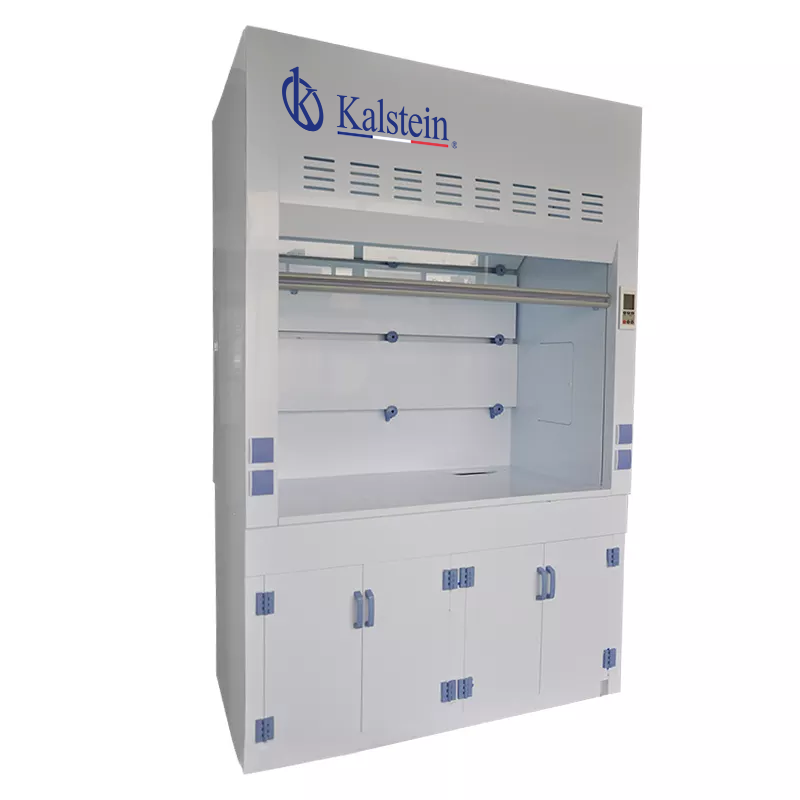

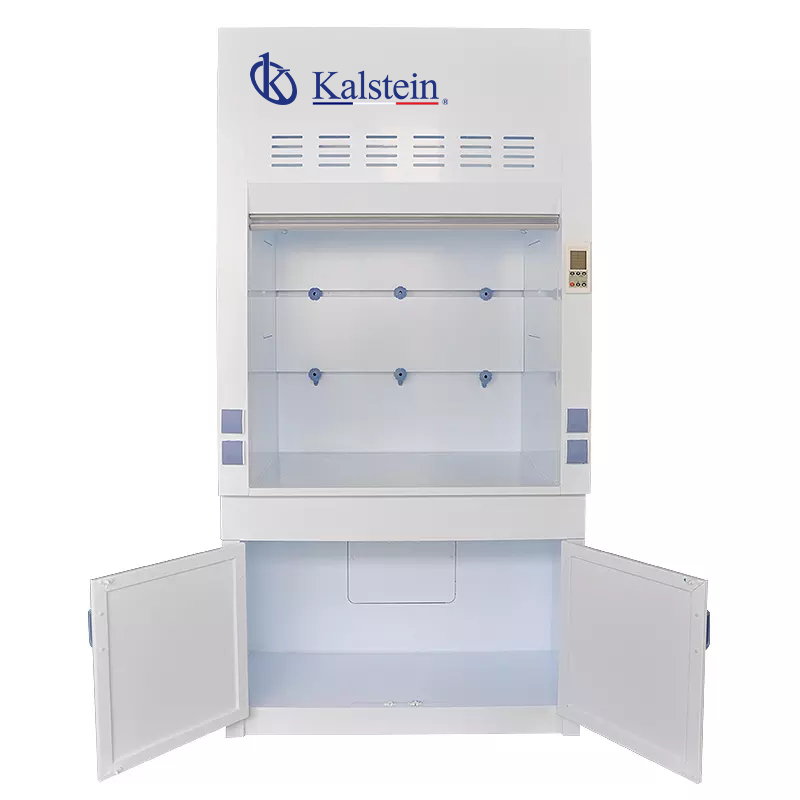

The YR05826 // YR05828 Fume Hood is an advanced solution for ventilation and cleaning in laboratories, designed to efficiently extract fumes and harmful particles. Equipped with an integrated axial flow fan and a ⊄250 mm exhaust duct, this unit ensures optimal airflow to maintain a safe environment. The hood’s construction is made with an 8.0 mm polypropylene (PP) plate, providing excellent resistance to acidic and alkaline corrosion. Additionally, it features an interior cover and an operational countertop, also made of PP, which makes cleaning easy and ensures durability. The sliding tempered glass window (5 mm thick), combined with an LCD control panel, allows for easy and safe operation, protecting the operator from exposure to hazardous substances.

Market Price

The price of the YR05826 // YR05828 Fume Hood varies depending on the model and specifications, generally ranging between $2500 and $2800, depending on the dimensions and additional features required by the customer. This cost reflects the high quality of the materials used, as well as the advanced technology incorporated. Investing in this fume hood is a strategic decision for any laboratory that needs to meet strict safety and operational efficiency standards.

Frequently Asked Questions

  • Is the YR05826 // YR05828 Fume Hood easy to operate? Yes, the hood is designed for ease of use, with an intuitive LCD control panel that facilitates airflow regulation and operation control.
  • What type of protection does this fume hood provide? It offers complete protection against toxic fumes and vapors, ensuring a safe working environment thanks to its exhaust system and corrosion-resistant materials.
  • What are the key technical specifications of this product? The hood features a face velocity of 0.4—0.6m/s, a noise level below 60dB, and a 5 mm thick tempered glass window, ensuring safety and efficiency during use.

Advantages and Disadvantages

Among the main advantages of the YR05826 // YR05828 Fume Hood are its solid and durable construction, its low noise level, and the ability to adjust to different chemical substances thanks to its adaptable extraction speed. Its tempered glass window also provides additional protection for the operator. However, a potential downside is its relatively high price compared to other fume hoods, which may be a concern for laboratories with tighter budgets.

Field Use

This equipment is ideal for research laboratories, chemical and pharmaceutical industries, as well as educational institutions. It is primarily used to maintain a safe working environment by effectively extracting toxic fumes and hazardous gases. Its compact and ergonomic design makes it suitable for use in confined workspaces, and its easy maintenance ensures that the equipment operates reliably over long periods of use.

Recommendations

To ensure maximum performance of the YR05826 // YR05828 Fume Hood, regular maintenance is recommended. This includes cleaning the exhaust system, checking the fan, and verifying the window controls. Additionally, it is important to use the fume hood within the established parameters, such as airflow speed, to ensure optimal functioning and prolong its lifespan.

Don’t wait any longer to improve the safety and efficiency of your laboratory. Request a quote today through Kalstein Plus and discover how the YR05826 // YR05828 Fume Hood can be the perfect solution for your needs, providing a safe and controlled working environment at all times.

Technical Specifications

Model YR05826 YR05827 YR05828
Notes

Above size is our standard item.

Dimension can be customized upon customer’s request.

Built-in axial flow blower and⊄250mm exhaust duct included.

Housing Using 8.0mm PP polypropylene plate welding production, after carving, bending the entire cabinet at one time, featured with strong anti-acid and alkali, corrosion resistance.
Inner shell Using a new 8.0mm PP polypropylene plate welding production, with strong anti-acid and alkali, corrosion resistance characteristic, the inner side board can be fixed with water cock, gas cock. The back plate can be fixed with baffle, roof lighting and gas hood device.
Operational worktop 8.0mm PP polypropylene worktop,  includes water fender, spray-proof, the table has a good performance of waterproof, anti-acid and alkali.
 Baffle 8.0mm PP polypropylene board, resistant to strong acid and alkali. Installed in the back of the work space and above, including at least three pieces plates, so that the work space and the connection between the exhaust pipe to form a gas chamber, the polluted gas are exhausted completely,  the baffle plate is attached to the cabinet with the clips, detachable.
Gas hood PP material, with a strong corrosion resistance, rectangular opening at the bottom of the entrance,  circular opening at the top
Fluorescent lamp 1 piece 30W light (waterproof, anti-corrosion, anti-oxidation)
Window sliding door Movable vertical pull-up door, placed between the work space and the operator to protect the operator’s safety, combined with the balance position, sliding doors can be stopped at any point of activity. a piece of tempered glass window on the adjustable door, the field of view can be completely clear.
Window Using 5mm thick tempered glass
Window frame Aluminum alloy door frame, ensure the safety and durability of the window
Windows Suspension Cable Plastic suspension cable, low noise, fast pulling speed, strong balance characteristic
Control switch LCD control panel, set with the power, switches, lighting, fan and running lights and other buttons, the LCD screen can clearly show the operation of the fume hood.
Socket Equipped with four 220V universal socket. (Other type of socket can be optional, according to customers need)
Base cabinet 8.0mm PP polypropylene board, the door is firm solid, not easy to deformation, elegant appearance
Door handle Laboratory PP handle, strong corrosion resistance.
Hinge Laboratory PP hinge, strong corrosion resistance.
Water sink PP cup , made of high-density PP ,strong corrosion resistance, with filtering and anti-odor function, water trap with high-density PP production( This is extra option)
Water cock wall-mount remote control water valve, faucet, the main body is made of the thick copper, the surface with high brightness epoxy resin coating, corrosion resistance, heat resistance; Ceramic valve core, 90 ° rotation, life span 500,000 times, static maximum resistance Pressure 20 bar; switch knob for high-density PP production, ergonomic design, feel comfortable. (This is extra option)
Gas cock Wall-mount remote control gas valve, the main body is made of the thick copper, the surface with high brightness epoxy resin coating, corrosion resistance, heat resistance; ergonomic design, feel comfortable. (This is extra option)
Optional Accessories
 Air Velocity /Exhaust air volume  requiremen 0.4m/sec~0.6 m/sec.
   Noise ≤60dB
  Blower PP centrifugal energy-saving fan, fan motor 380V three-phase motor, fan material PP polypropylene, with high strength, light weight, not easy to aging, low noise, excellent corrosion resistance and so on. (According to the actual need, equip with the fan, duct, etc., the fume hood price does not include the fan ,duct and related accessories prices.
Dimension

(L x W x H)

(mm)

1200 x 850 x 2350 1500 x 850 x 2350 1800 x 850 x 2350
Weight (Kg) 220 280 350



Additional information

Weight N/A
Dimensions N/A
Model

YR05826, YR05827, YR05828
