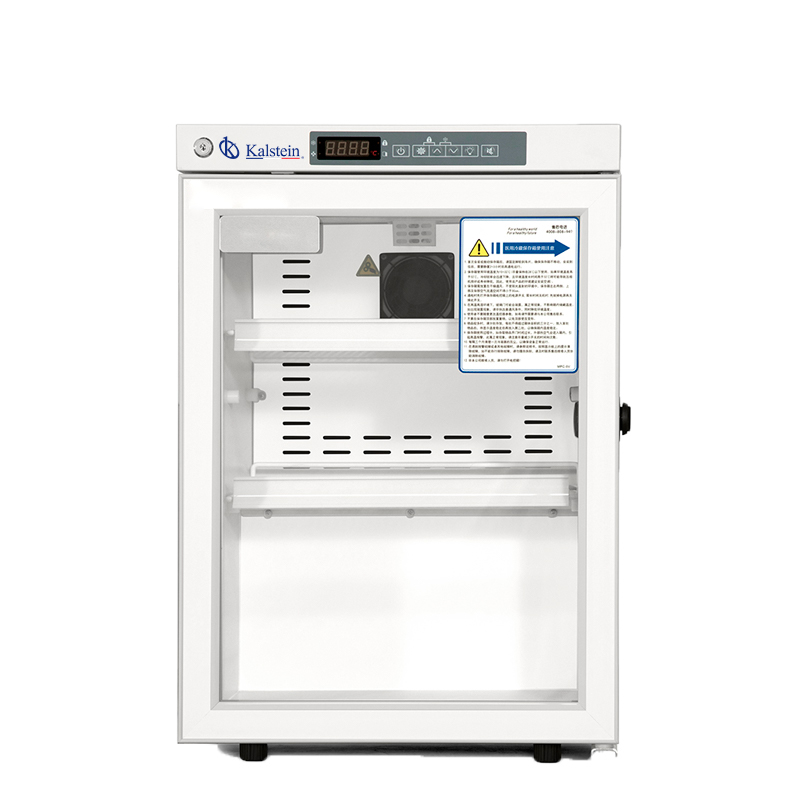

Medical Refrigerator YR05083

Manufacturer: Kalstein

Description

The pharmacy refrigerators are suitable for installation in drug and vaccine stores, pharmaceutical companies, hospitals, epidemic prevention centers and clinics.

Hot tips
  • Reliable control system
  • Inside temperature 2~8°C
  • Forced-air cooling system, Frost-free
  • Service-free drainage system
  • Wide voltage range, 187V~242V available
Features
  • Adjustable temperature range 2-8ºC
  • Microprocessor control, adjustable temperature
  • LED digital display and increment at 0.1 °C.
  • Temperature variation within ±3ºC
  • Permanently lubricated cooling fan for safety and longevity
  • High efficiency specialty compressor with known field reliability
  • Forced- air cooling with optimized air distribution system designed
  • To achieve maximum temperature uniformity and stability
  • Optimized refrigeration system design for more effective cooling and speedy recovery
Safety Guarantee
  • Build-in back-up battery to display temperature and to operate audible and visual alarm system for up to 8 hours without AC power
  • Visual and audible alarm system:High/low temperature, thermostat failure alarm,power failure alarm, door ajar.
  • Power failure protection: turn on delay of the cooling system when power failure,restart delay protection.
  • Keyboard lock, password protection to avoid set parameter randomly.
  • Wide available voltage range: 187V~242V.
Humanized design
  • Optimized space utilization design with multi – level and adjustable shelf height to accommodate storage requirement of pharmaceutical products of various kinds
  • Standard with LED Interior light
  • Safety lock to prevent unauthorized access requirement of pharmaceutical products of various kinds
Regrigeration System
  • Imported brand compressor work with CFC-Free environmental refrigerant.
  • High density insulation foam layer with better heat preservation effect.
Model YR05083
Specificaitons
Shelf/drawer Shelves/2
Cooling method Forced Air Cooling System
Defrost Auto
Refrigerant R600a
Power consumption(kWh/24h) 0.84
Noise(db) 50
Ambient temperature(ºC) 10~32ºC
Temperature range(ºC) 2~8ºC
Cooling system
Compressor brand/QTY China Brand/1
Sensor Type NTC
Temperature controller Microprocessor
Display Digital display
Power
Voltage/frequency(V/Hz) 220/50Hz
Power(W) 72W
Current(A) 0.59A
Material
Inside material Color sprayed steel
Outside material Color sprayed steel
Insulation PURF
Size
Capacity(L/cu.ft) 60/2.11
NT./GT.(kg) 33/37
Exterior size(W*D*H)(mm) 495*450*710
Interior size(W*D*H)(mm) 410*315*560
Package size(W*D*H)(mm) 558*510*760
CBM 0.22
20GP/40GP/40HQ 132/276/276
Alarm
High/low temperature Y
Power failure Y
Thermostat failure Y
Backup battery failure alarm /
Condenser fault alarm /
Ambient Temperatures /
Voltage abnormality alarm /
Door ajar Y
System abnormal alarm /
Power failure backup system(alarm) 8h
Accessories
Foot Y
Castor /
Outer door/Type 1/Glass/Low-E
Door Lock 1
Test hole QTY/diameter 1/25mm
Lamp LED
USB port /
Temperature recorder Optional
Remote alarm port Y
RS232/485 port /
Other Certification ISO9001/13485/14
001;CE

Additional information

Weight 45 kg
Dimensions 54,5 × 49,5 × 86,5 cm
