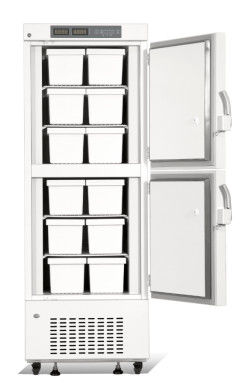

Medical Supplies Vertical Deep Freezer 358L -40 Degree Cold Storage YR05309

The YR05309 Vertical Freezer is the ideal option for storing sensitive biological products that require ultra-low temperatures. With a capacity of 358L, this model is designed to provide precise temperature control within an adjustable range of -10°C to -40°C. It is perfect for laboratories, blood banks, and hospitals, with its advanced direct cooling technology and microprocessor system ensuring exceptional performance. Additionally, this freezer includes 12 drawers for organized and flexible storage, allowing different types of samples to be kept under optimal conditions.

Market Price

The YR05309 Vertical Freezer is available on the market at a competitive price, generally ranging from $3,430 to $3,435 USD, depending on customized configurations, such as the remote alarm port or optional temperature recorder. This price is justified by its high-quality features, such as its robust construction, advanced temperature control systems, and security alarms, making it an excellent investment for institutions that require reliable and high-capacity storage.

Frequently Asked Questions

• Does this freezer maintain the temperature during a power outage? Yes, the YR05309 is equipped with a backup battery system that ensures the alarms and temperature display continue functioning for up to 12 hours without external power, guaranteeing the safety of stored samples.
• Is the temperature control system easy to use? Yes, the freezer has a high-brightness digital display and an easy-to-use control panel for convenient access, allowing precise temperature adjustment and monitoring between -10°C and -40°C.
• Is this freezer suitable for transporting biological products? While primarily designed for fixed storage, the YR05309 can be used for transporting biological products, as long as it is connected to a reliable power source, such as an AC/DC port.

Advantages and Disadvantages

Advantages

• Precise adjustable temperature: With a range of -10°C to -40°C and a precision of 0.1°C, it ensures optimal sample preservation.
• 12 drawers for organized storage: Facilitates easy access and organization of different types of samples.
• Advanced alarms: Audible and visual alarms for high/low temperatures, system failures, and open doors.
• Energy efficiency: Uses eco-friendly refrigerant and an optimized system to minimize energy consumption.
• Robust design: Constructed with corrosion-resistant, easy-to-clean sprayed steel.

Disadvantages

• High price: Although competitive, its price may be high for some institutions with limited budgets.
• Preventive maintenance required: Regular maintenance is needed to ensure the cooling system and alarms function properly and extend the equipment's lifespan.

Product Use in the Field

The YR05309 is ideal for storing biological samples, such as vaccines, blood plasma, and stem cells, which need to be kept at ultra-low temperatures. It is primarily used in research laboratories, blood banks, and hospitals, where the proper preservation of samples is crucial to ensuring their efficacy in treatments and clinical studies. Thanks to its two independent chambers and optimized cooling system, it is perfect for safely and efficiently storing large volumes of samples.

Recommendations

To maximize the performance and lifespan of the YR05309 Vertical Freezer, it is recommended to conduct regular preventive maintenance. Frequently check the internal temperature, and ensure that the cooling system and alarms are functioning properly. Also, keep the doors closed to avoid unnecessary thermal fluctuations. If you plan to use it for transporting biological products, make sure the equipment is connected to a reliable power source and properly secured during transport.

Technical Specifications

Model		YR05309
Details	Shelf/drawer	Shelves/12 drawers
	Cooling method	Direct cooling
	Defrost	Manual
	Refrigerant	R290
	Energy consumption(kWh/24h)	5.5
	Noise(db)	49
	Ambient temperature(℃)	10~32℃
	Temperature range(℃)	-20~-40℃
Cooling system	Compressor brand/QTY	CUBIGEL/2
	Condenser	Wire tube
	Sensor	NTC
	Temperature controller	Microprocessor
	Display	Digital display
Power Systerm	Voltage/frequency(V/Hz)	220/50Hz
	Power(W)	310W
	Current(A)	3
Material	Inside material	Color sprayed steel
	Outside material	Color sprayed steel
	Insulation	PURF
Dimension	Capacity(L/cu.ft)	358/12.6
	NT./GT.(kg)	138/178
	Exterior size(W*D*H)(mm)	720×830×1870
	Interior size(W*D*H)(mm)	466×636×625
	Package size(W*D*H)(mm)	780×920×1990
	CBM	1.43
	20GP/40GP/40HQ	18/39/39
Alarm Systerm	High/low temperature	Y
	Powerfailure	Y
	Sensor error	Y
	Filter check	/
	Temperature controller failure	Y
	Low battery	/
	Condenser clean	/
	High ambient temperature	Y
	Door ajar	Y
	Power failure backup system(alarm)	8H
Accessories	Foot	Y
	Castor	Y
	Inside door	12DRAWERS
	Test hole QTY/diameter	Y
	USB port	Y
	Remote alarm port	Optional
