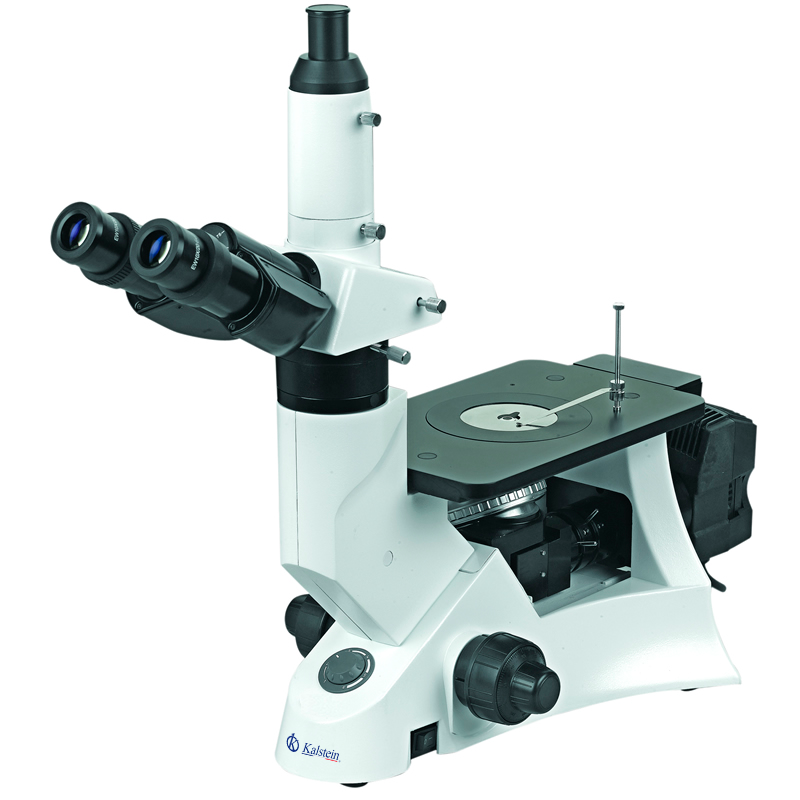

Inverted Metallurgical Microscope YR0258
Inverted Metallurgical Microscope YR0258 — Kalstein laboratory equipment with technical specifications, advanced features, and certified professional solutions for scientific use.
The Inverted Metallurgical Microscope YR0258 is a cutting-edge tool designed for precise metallurgical analysis. With a stable support structure and advanced stage design, this microscope is ideal for laboratory and institutional use, allowing users to examine the microstructure of various metals and materials effectively. Featuring an infinite optical system, it delivers exceptional image quality, making it an essential component in any scientific setting.
Market Price
The market price for inverted metallurgical microscopes varies, typically ranging from $2,500 to $3,300 USD. This makes the YR0258 a competitively priced option that offers outstanding value in terms of its features and capabilities.
Frequently Asked Questions
What is the YR0258 used for? The YR0258 is primarily used to study the microstructure of metals and other materials, making it ideal for research and quality control in industrial and academic environments.
Does it come with built-in lighting? Yes, the YR0258 features a Kohler 6V30W external halogen lamp, providing adjustable brightness for optimal illumination during analysis.
Advantages and Disadvantages
The YR0258 microscope offers several advantages, such as its infinite optical system, which ensures high-quality optical imaging. The unit is robust, with a highly stable support structure. However, one possible disadvantage is the reliance on halogen lamps, which may need regular replacement.
Product Use in the Field
In practical applications, the YR0258 is leveraged for detailed examination of material surfaces, facilitating the identification of defects and quality assurance in manufacturing processes. Its advanced optical capabilities support high-precision inspections in research and industrial labs.
Recommendations
For optimal performance, it is recommended to regularly calibrate the YR0258 and ensure a clean operating environment. Additionally, taking advantage of optional accessories, such as auxiliary stages and various objectives, can enhance its versatility and effectiveness.
Features
- Infinite optical system for superior image quality
- Equipped with a Seidentopf trinocular head
- Contains a quintuple nosepiece and achromatic objectives
- Adjustable brightness via external Kohler illumination
- Optional accessories available for enhanced functionality
Technical Specifications
| Model | YR0258 | ||
| Optical System | Infinity Optical System | ||

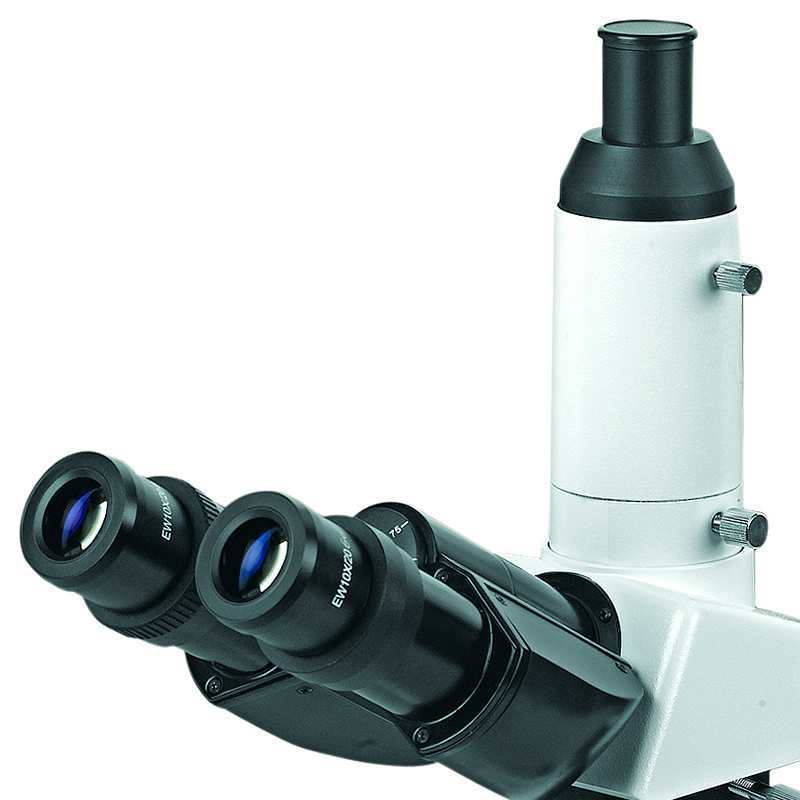

| Head | Seidentopf Trinocular Head, 30° Inclined, Interpupillary 48~75mm, Diopter Adjustable | ||
| Eyepiece | Extra Wide Field Eyepiece EW10x/20mm, High Eyepoint | ||
| Nosepiece | Quintuple Nosepiece | ||
| Objective | Infinity Plan Metallurgical Coverless Achromatic Objective | 4x/0.1/∞/-, W.D.17.3mm | |
| 10x/0.25/∞/-,W.D.10.2mm | |||
| 20x/0.4/∞/-,W.D.5.1mm | |||
| 40x/0.65/∞/-, W.D.0.52mm | |||

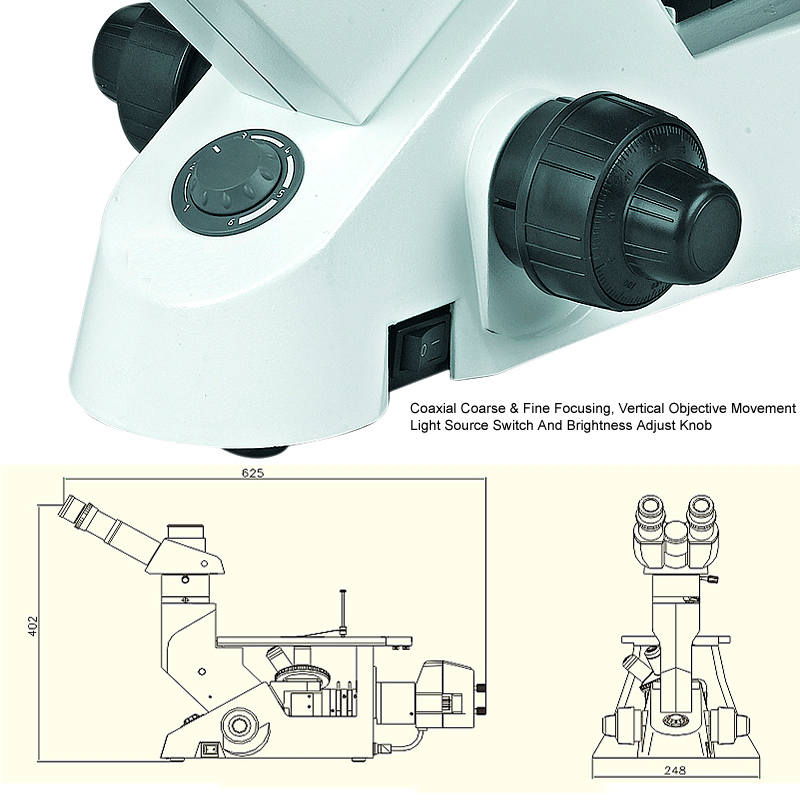

| Focusing | Coaxial Coarse & Fine Adjustment, Coarse Stroke 37.7mm Per Rotation, Fine Stroke 0.2mm Per Rotation | ||

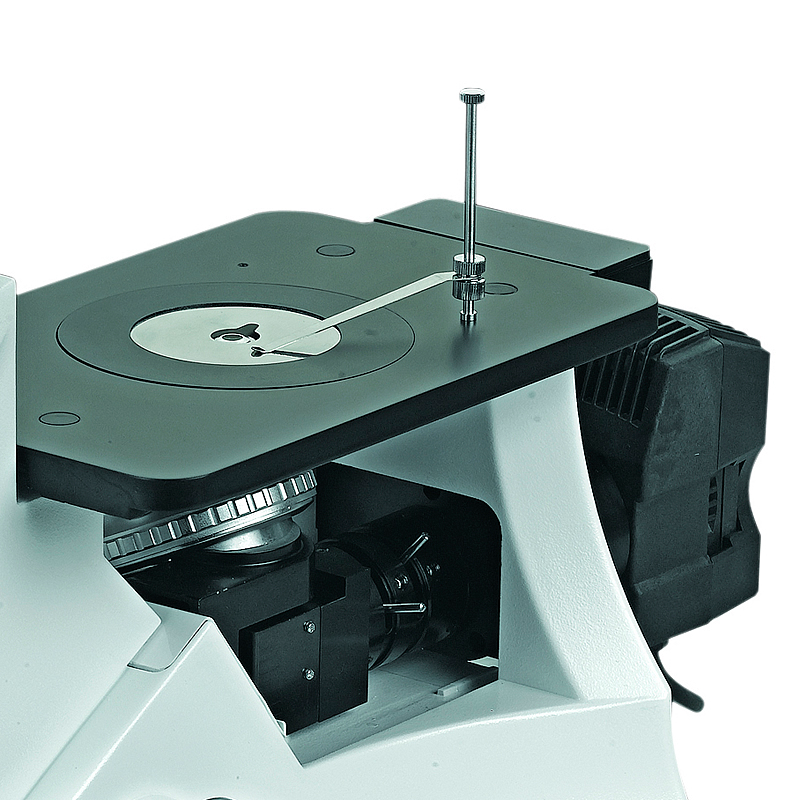

| Working Stage | Plain Stage 160*250mm With Slide Clips | ||
| Polarizing | Polarizing Attachment | ||
| Filter | Green, Blue, Yellow, Ground Glass, Dia.45mm | ||
| Illumination | External Kohler Illumination, Halogen Lamp 6V30W, Brightness Adjustable | ||
| Optional Accessories | |||
| Objective | Infinity Plan Metallurgical Coverless Achromatic Objective | 5x/0.12/∞/-, W.D.15.4mm | YR0258-op1 |
| 50x/0.75/∞/-, W.D.0.32mm | YR0258-op2 | ||
| 80x/0.9/∞/-, W.D.0.20mm | YR0258-op3 | ||
| 100x/0.9/∞/0, W.D.0.7mm | YR0258-op4 | ||
| Working Stage | Attachable Mechanical Stage, X-Y Coaxial Control, Moving Range 120*78mm | YR0258-op5 | |
| Auxiliary Stage 70*180mm | YR0258-op6 | ||
| Adapter | Photo Adapter | YR0258-op7 | |
| C-Mount 1.0x | YR0258-op8 | ||
| C-Mount 0.5x | YR0258-op9 | ||
Technical specifications
| Dimensions | L 46.8 × W 39.7 × H 66.5 cm |
|---|---|
| Weight | 15 kg |
| Manufacturer | Kalstein |
