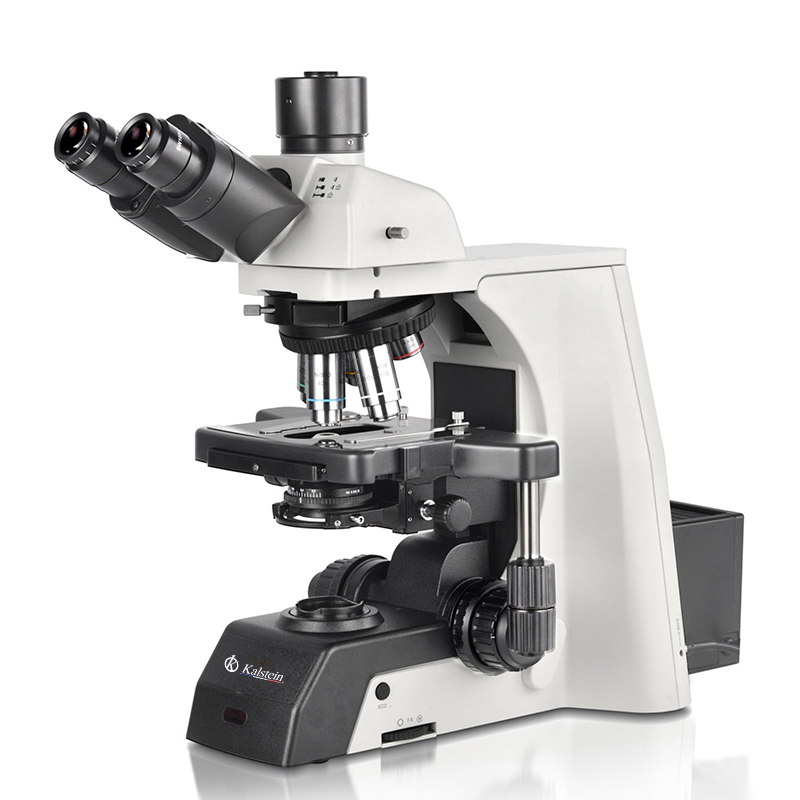

Manual Halogen Laboratory Microscope YR0266A // YR0266C
Manual Halogen Laboratory Microscope YR0266A // YR0266C — Kalstein laboratory equipment with technical specifications, advanced features, and certified professional solutions for scientific use.
The Manual Halogen Laboratory Microscope YR0266A // YR0266C is a state-of-the-art research-level instrument designed for scientific laboratories that demand precision and efficiency. This innovative microscope leverages advanced automation features including an electric platform, auto-focus, electric objective conversion, and a user-friendly touch screen controller. Enhanced with powerful imaging software, it achieves seamless integration of observation, image acquisition, and processing, all while reducing repetitive operations. The microscope's ability to restore previous settings enhances both stability and accuracy, streamlining your workflow and maximizing efficiency in any laboratory setting.
Market Price
The Manual Halogen Laboratory Microscope YR0266A // YR0266C is positioned within a competitive price range in the market. You can expect to find this advanced microscope priced anywhere from $29,500 to $30,700 depending on various factors such as the supplier and optional accessories included. Considering its comprehensive features and cutting-edge technology, this investment is an excellent choice for those seeking reliable and efficient laboratory equipment.
Frequently Asked Questions
What type of illumination does the microscope support? The microscope is available with both Halogen and LED illumination options, catering to different laboratory needs.
Can the microscope settings be saved and restored? Yes, the microscope can restore the settings from the last operation, ensuring continuity and accuracy in your observations.
Is the microscope suitable for clinical applications? Absolutely, its design and functionality are tailored for both laboratory and clinical environments, offering fast and efficient imaging.
Advantages and Disadvantages
The YR0266A // YR0266C offers numerous advantages, including high precision, automation, and user-friendly controls, which enhance productivity in laboratory settings. Additionally, the ability to use a variety of observation methods (Bright Field, Dark Field, Polarizing) makes it versatile. However, one potential disadvantage is the relatively high cost, which might not be feasible for smaller laboratories with limited budgets.
Product Use in the Field
In practical scenarios, the Manual Halogen Laboratory Microscope YR0266A // YR0266C is ideal for performing detailed analyses in research laboratories. Thanks to features like auto-focus and powerful image processing software, researchers can conduct experiments with precision and analyze results with clarity. Its design enables swift transitions between sample observations, thereby optimizing workflow efficiency and accuracy.
Recommendations
To maximize the benefits of your YR0266A // YR0266C, regularly calibrate the auto-focus system and ensure that software updates are installed for optimal performance. It’s also advisable to utilize the ECO function to save energy when the microscope is not in use. For any purchase inquiries or to get a personalized quote, consider using the Kalstein Plus platform to facilitate a smooth acquisition process.
Features
- Full Auto Motorized Research Level
- Electric Platform and Auto Focus
- Touch Screen Controller
- Powerful Imaging Software
- NIS60 Infinity Optical System
- Multiple Observation Methods
- Automatic Brightness Adjustment
- User-Friendly Interface
Technical Specifications
| Full Auto Motorized Research Level Scientific Laboratory Microscope | Accesory Number | YR0266A | YR0266B | YR0266C | |
| Optical System | NIS60 Infinity Optical System | ● | ● | ● | |
| Observation Method | Bright Field | ● | ● | ● | |
| Dark Field | ○ | ○ | ○ | ||
| Polarizing | ○ | ○ | ○ | ||
| Phase Contrast | ○ | ○ | ○ | ||
| Flourescent | ○ | ○ | ○ | ||
| DIC | ○ | ○ | ○ | ||
| Main Body | Manual Body + HalogenIllumination. | YR0266C-op1 | ● | - | - |
| Manual Body + LEDIllumination. | YR0266C-op2 | ● | - | - | |
| Semi-Auto Body + HalogenIllumination. | YR0266C-op3 | - | ● | - | |
| Auto Nosepiece + Auto Condenser + Auto Brightness Adjust | |||||
| Semi-Auto Body + LEDIllumination. | YR0266C-op4 | - | ● | - | |
| Auto Nosepiece + Auto Condenser + Auto Brightness Adjust | |||||
| Full Auto Body + LEDIllumination. | YR0266C-op5 | - | - | ● | |
| Auto Nosepiece + Auto Brightness + Auto X/Y/Z Stage+ Touch LCD Screen | |||||
| Head | Seidentopf Binocular Head, Inclined 30°, | YR0266C-op6 | ○ | ○ | ○ |
| Interpupillary Distance 47-78mm | |||||
| Seidentopf Trinocular Head, Inclined 30°, | YR0266C-op7 | ● | ○ | ● | |
| Interpupillary Distance 47-78mm, | |||||
| 3 Level Light Split Switch E100:P0/E20:P80/E0:P100 | YR0266C-op8 | ||||

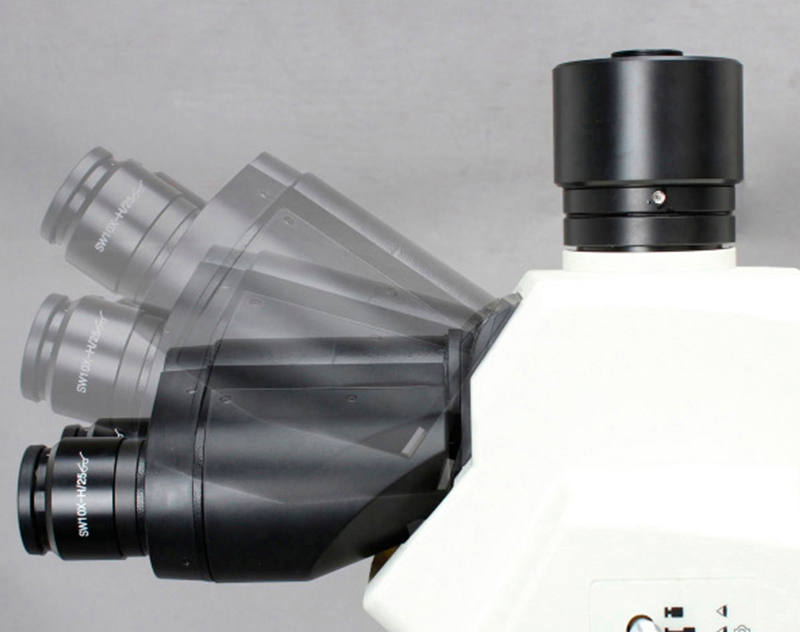

| Ergo Tilting Trinocular Head, Inclination 0°~35°, | ○ | ● | ○ | ||
| Interpupillary Distance 47-78mm, | YR0266C-op9 | ||||
| 3 Level Light Split Switch E100:P0/E20:P80/E0:P100 | |||||
| Eyepiece | SW10x/25mm, High Eyepoint, Diopter Adjustable, Dia.30mm | YR0266C-op10 | ●● | ●● | ●● |
| SW10x/22mm, High Eyepoint, Diopter Adjustable, Dia.30mm | YR0266C-op11 | ○ | ○ | ○ | |
| EW12.5x/16mm, High Eyepoint | YR0266C-op12 | ○ | ○ | ○ | |
| WF15x/16mm, High Eyepoint, Diopter Adjustable, Dia.30mm | YR0266C-op13 | ○ | ○ | ○ | |
| WF20x/12mm, High Eyepoint, Diopter Adjustable, Dia.30mm | YR0266C-op14 | ○ | ○ | ○ | |
| Nosepiece | Manual Nosepiece, Quintuple, Backward, Center Adjustable | YR0266C-op15 | ○ | ○ | ○ |
| Manual Nosepiece, Sextuple, Backward | YR0266C-op16 | ● | - | - | |
| Coded Nosepiece, Sextuple, Backward, For Auto Brightness Adjust | YR0266C-op17 | ○ | - | - | |

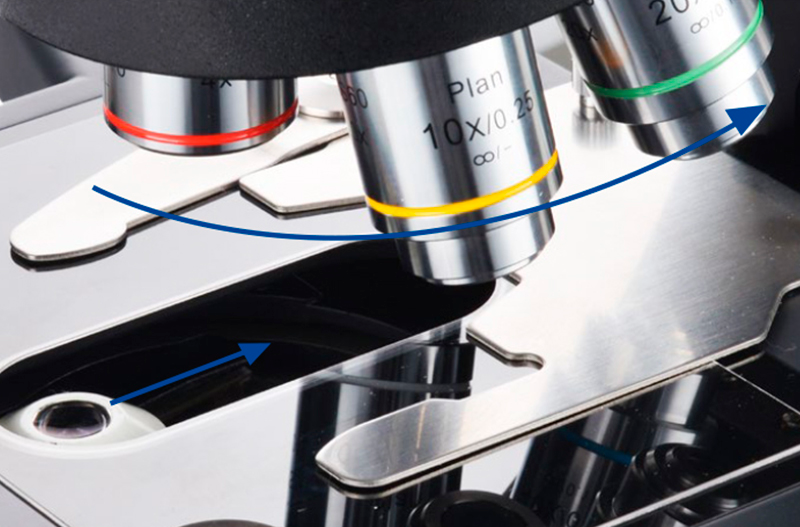

| Auto Coded Nosepiece, Sextuple, Backward, | YR0266C-op18 | ○ | ● | ● | |
| Motorized Switch Objectives, Controled By: | |||||

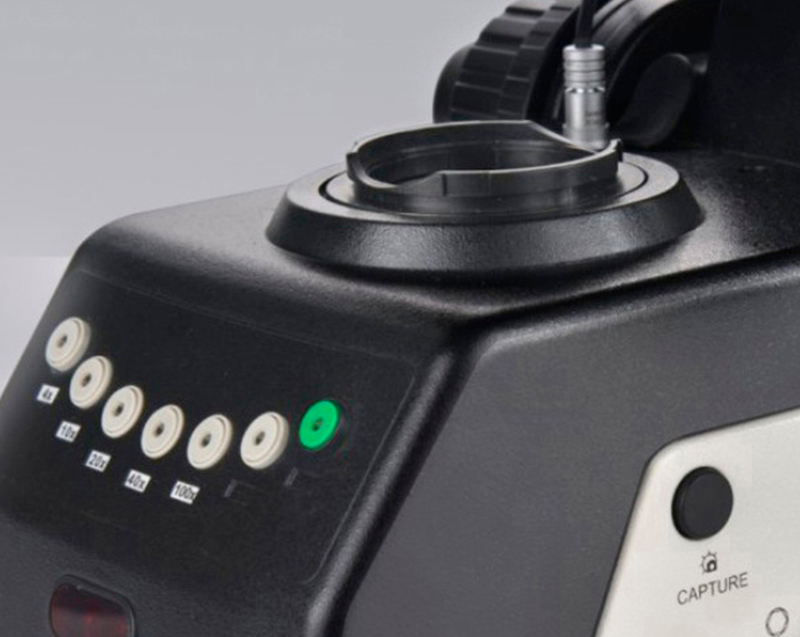

| 1. Shortcut Button On Right Side Of Base, Can Switch 2 Preseted Objectives Quickly | |||||
| 2. Remote Control Pad In Front Of Base, Press Each Button To Switch Objectives And Adjust The Light Intensity Automatically. 2 Buttons Can Be Self-Defined For Most Commonly Used Objecives, Press Green Button Can Swap Between Them | |||||
| With Slot For Polarizing Compensator Slider Or DIC Slider | ● | ● | ● | ||
| Protect Cover For Nosepiece Holes | YR0266C-op19 | ● | ● | ● | |

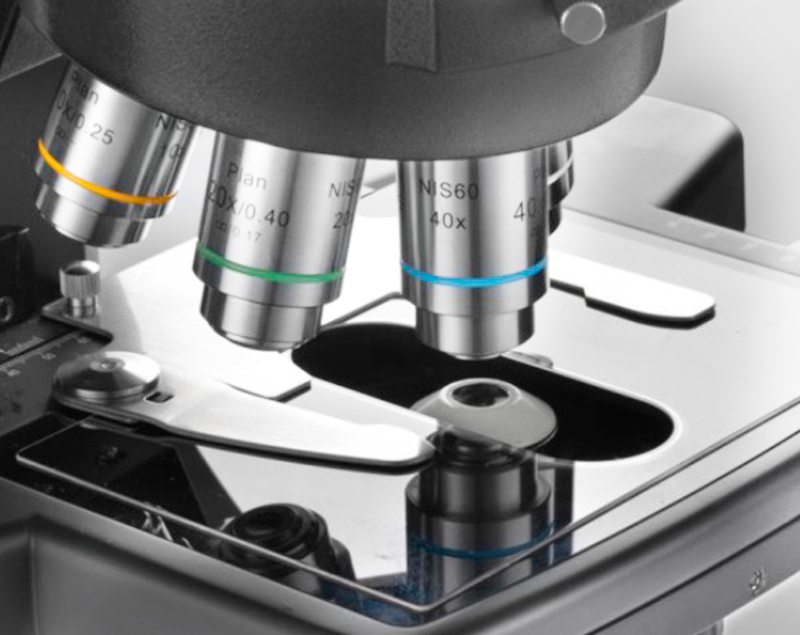

| NIS60 | 2x/0.06, W.D.7.5mm, Cover Glass 0.17mm | YR0266C-op20 | ○ | ○ | ○ |
| N-PLN | 4x/0.10, W.D.30mm, Cover Glass 0.17mm | YR0266C-op21 | ● | ● | ● |
| Infinity Plan Objective | 10x/0.25, W.D.10.2mm, Cover Glass 0.17mm | YR0266C-op22 | ● | ● | ● |
| 20x/0.40, W.D.12mm, Cover Glass 0.17mm | YR0266C-op23 | ● | ● | ● | |
| 40x/0.65, W.D.0.7mm, Cover Glass 0.17mm | YR0266C-op24 | ● | ● | ● | |
| 50x/0.95(Oil, W.D.0.19mm, Cover Glass 0.17mm | YR0266C-op25 | ○ | ○ | ○ | |
| 60x/0.8, W.D.0.3mm, Cover Glass 0.17mm | YR0266C-op26 | ○ | ○ | ○ | |
| 100x/1.25(Oil), W.D.0.2mm, Cover Glass 0.17mm | YR0266C-op27 | ● | ● | ● | |
| NIS60APO Infinity Plan | 20x/0.75, W.D.1.1mm, Cover Glass 0.17mm | YR0266C-op28 | ○ | ○ | ○ |
| 100x/1.45(Oil), W.D.0.13mm, Cover Glass 0.17mm | YR0266C-op29 | ○ | ○ | ○ | |
| Working Stage | Double Layer Mechnical Stage Full Size 302x152mm, Stage Table Size 190x152mm, Moving Range 78x32mm, Double Slide Holder, With Gorilla Glass Insert, LeftHandle | YR0266C-op30 | ○ | - | ○ |
| Double Layer Mechnical Stage Full Size 302x152mm, Stage Table Size 190x152mm, Moving Range 78x32mm, Double Slide Holder, With Gorilla Glass Insert, RightHandle | YR0266C-op31 | ● | - | ○ | |
| Double Layer Mechnical Stage Full Size 302x152mm, Stage Table Size 190x152mm, Moving Range 78x32mm, Double Slide Holder, With Sapphire Glass Insert,LeftHandle | YR0266C-op32 | - | ○ | ○ | |
| Double Layer Mechnical Stage Full Size 302x152mm, Stage Table Size 190x152mm, Moving Range 78x32mm, Double Slide Holder, With Sapphire Glass Insert,RightHandle | YR0266C-op33 | - | ● | ○ | |
| Low Position Control Knob, Height Adjustable Up/Down 18mm, Convex Point Guide Mechanism For Easily Put Slide By One Hand, With Tension Adjustable Ring, With Safety Stop Screw | - | ● | ● | - | |
| Full-Auto X/Y/Z Motorized Control Working Stage, Including Control Joy Stick, | YR0266C-op34 | ○ | ○ | ● | |
| --Travel Range X:125mm, Y:75mmm, | |||||
| --Minimum Step 0.1um | |||||
| --Re-Position Accurate +/-1.5um | |||||
| --Max Speed 25mm/s | |||||
| --Size: 275x239x44.5mm | |||||
| --Soft Stop, Mechanical Stop, Opto-Electro Switch Stop | |||||
| --Z Axis Re-Position Accurate: Average +/-1.5um, Near Focus +/-0.1um | |||||
| --Z Axis Max Speed 10r/s | |||||
| --3D Control Stick, 4 Speeds | |||||
| --Connection By USB2.0 & RS232 | |||||
| --Communication Speed 9600 bits | |||||
| Z Axis Upgrade With Optical Grating Ruler | YR0266C-op35 | ○ | ○ | ○ | |
| Condenser | Swing-Out Condenser NA0.9/0.25 | YR0266C-op36 | ● | - | - |
| AutoSwing-Out Condenser NA0.9/0.25 | YR0266C-op37 | ● | - | ||

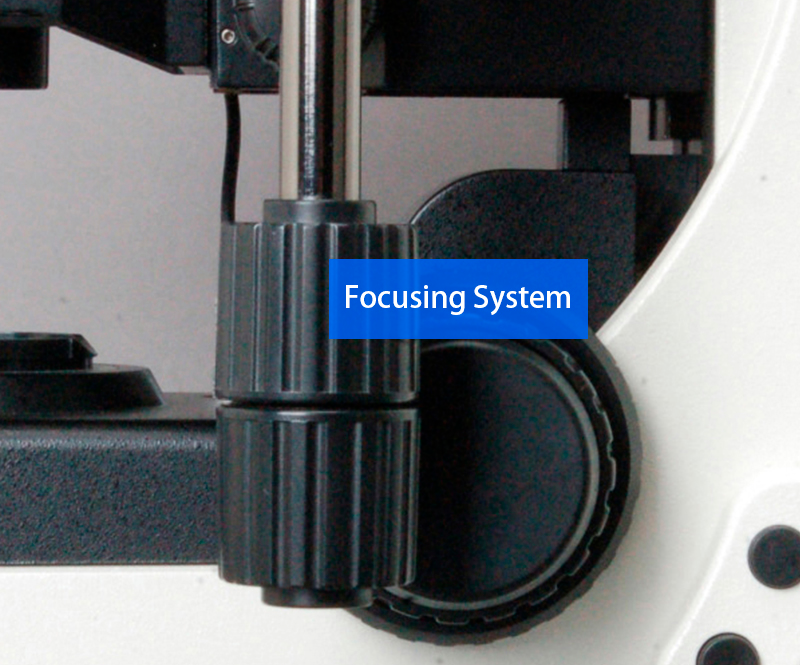

| Focusing | Coaxial Coarse & Fine Focusing, Fine Division 0.001mm, Focusing Range 35mm, Coarse Stroke 37.7mm, Fine Stroke 0.1mm, Can Exchange Hand Wheel Between Left/Righ | - | ● | ● | ● |
| Light Source | Transmit Kohler Illumination, Brightness Adjustable, | YR0266C-op38 | ● | ● | |
| 12V100W Halogen, External Lamp House | |||||
| TransmitKohler Illumination, Brightness Adjustable, | YR0266C-op39 | ● | |||
| 3W S-LED, Built-in Main Body | |||||
| ECO Function Support Auto Power Off After 30 Mins From Operator Leave To Save Energy | YR0266C-op40 | ● | ● | ● | |
| AutoBrightness Adjust, Brightness For Each Objective Can Be Memorized And Restored When Objective Is Selected | YR0266C-op41 | ○ | ● | ● | |
| (To Upgrade A12.1091 to Auto Brightness Adjust, Must Upgrade Its Nosepiece To A54.1091-6C Coded Nosepiece At Same Time) | |||||
| Filter For Transmit Light | Filter Holder On Base, Can Hold 3 Filters | YR0266C-op42 | ● | ● | ● |
| Filter LBD | YR0266C-op43 | ● | ● | ● | |
| Filter Green | YR0266C-op44 | ● | ● | ● | |
| Filter Yellow | YR0266C-op45 | ● | ● | ● | |
| Filter ND6 | YR0266C-op46 | ● | ● | ● | |
| Filter ND25 | YR0266C-op47 | ● | ● | ● | |
| Adapter | Eyepiece Adapter Dia.23.2mm | YR0266C-op48 | ○ | ○ | ○ |
| C-Mount 1.0x | YR0266C-op49 | ○ | ○ | ○ | |
| C-Mount 0.5x | YR0266C-op50 | ○ | ○ | ○ | |
| Software | NOMIS Basic Image Processiing Software | YR0266C-op51 | ○ | ○ | ○ |
| Dark Field | Dark Field Condenser, N.A. 0.7~0.9, Dry | YR0266C-op52 | ○ | ○ | ○ |
| Dark Field Condenser, N.A. 1.25~1.36, Immersion | YR0266C-op53 | ○ | ○ | ○ | |
| Dark Field Objective, Infinity Plan 100X, | YR0266C-op54 | ○ | ○ | ○ | |
| For Immersion Dark Field Observation | |||||
| Dark Field Objective, Infinity Plan 100X, With Iris Diaphragm, | YR0266C-op55 | ○ | ○ | ○ | |
| For Immersion Dark Field Observation | |||||
| Polarizing | Polarizer For Transmit Light Source, Swing-Out, On Collector | YR0266C-op56 | ○ | ○ | ○ |
| Analyzer For Transmit Light, Slide With Quartz Wedge Compensator | YR0266C-op57 | ○ | ○ | ○ | |
| 1Professional Polarizing Microscope | YR0266C-op58 | ○ | ○ | ||
| Phase Contrast | Turret Phase Contrast Condenser, Center Adjustable | YR0266C-op59 | ○ | ○ | ○ |
| Centering Telescope 10x | YR0266C-op60 | ○ | ○ | ○ | |
| Infinity Plan Phase Contrast Objective N-PLN PH 10x/0.25 | YR0266C-op61 | ○ | ○ | ○ | |
| Infinity Plan Phase Contrast Objective N-PLN PH 20x/0.40 | YR0266C-op62 | ○ | ○ | ○ | |
| Infinity Plan Phase Contrast Objective N-PLN PH 40x/0.65 | YR0266C-op63 | ○ | ○ | ○ | |
| Infinity Plan Phase Contrast Objective N-PLN PH 100x/1.25(Oil) | YR0266C-op64 | ○ | ○ | ○ | |
| DIC | Polarizer For Transmit Light Source | YR0266C-op65 | ○ | ○ | ○ |
| Turret DIC Condenser | YR0266C-op66 | ○ | ○ | ○ | |
| DIC Slide 10x, Used With Semi-APO Fluorescent Objective | YR0266C-op67 | ○ | ○ | ○ | |
| DIC Slide 20x/40x, Used With Semi-APO Fluorescent Objective | YR0266C-op68 | ○ | ○ | ○ | |
| DIC Slide 100x, Used With Semi-APO Fluorescent Objective | YR0266C-op69 | ○ | ○ | ○ | |
| DIC Slide With Analyzer 10x-20x | YR0266C-op70 | ○ | ○ | ○ | |
| DIC Slide With Analyzer 40x-100x | YR0266C-op71 | ○ | ○ | ○ | |
| NIS60 N-PLFN | 4x/0.13, W.D.16.5, Cover Glass 0.17mm | YR0266C-op72 | ○ | ○ | ○ |
| Semi-APO | 10x/0.3, W.D.8.1, Cover Glass 0.17mm | YR0266C-op73 | ○ | ○ | ○ |
| Fluorescent | 20x/0.5, W.D.2.1, Cover Glass 0.17mm | YR0266C-op74 | ○ | ○ | ○ |
| Objective | 40x/0.75, W.D.0.7, Cover Glass 0.17mm | YR0266C-op75 | ○ | ○ | ○ |
| For DIC | 100x/1.3, W.D.0.15, Cover Glass 0.17mm, Oil | YR0266C-op76 | ○ | ○ | ○ |
| Fluorescent | Fluorescent Microscope | YR0266C-op77 | - | ○ | ○ |
| Other Accessories | Working Stage Holder Bracket | YR0266C-op78 | ● | ● | ● |
| Adapter To Adjust Eye Position | YR0266C-op79 | ○ | ○ | ○ | |

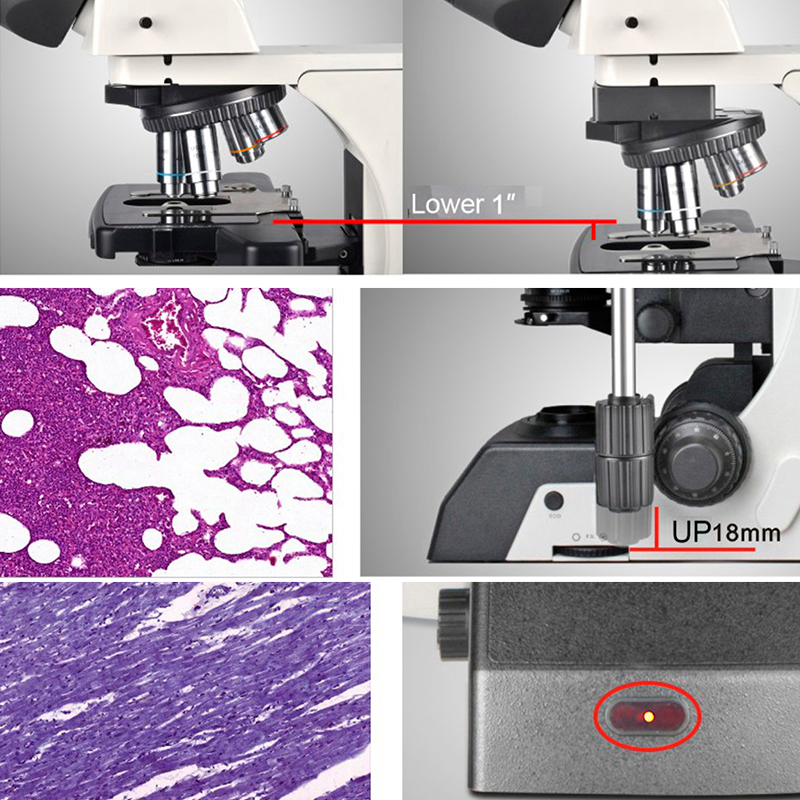

| Adapter To Lower The Stage Position 1" | YR0266C-op80 | ○ | ○ | ○ | |
| Immersion Oil | YR0266C-op81 | ● | ● | ● | |
| Allen Wrench | YR0266C-op82 | ● | ● | ● | |
| Power Cord | YR0266C-op83 | ● | ● | ● | |
| Short Eye Cover, For Eyepiece | YR0266C-op84 | ○ | ○ | ○ | |
| Long Eye Cover, For Eyepiece | YR0266C-op85 | ○ | ○ | ○ | |
| Eyepiece Micrometer, Cross | YR0266C-op86 | ○ | ○ | ○ | |
| Adapter Ring To Install Eyepiece Micrometer | YR0266C-op87 | ○ | ○ | ○ | |
| USB Cable | YR0266C-op88 | ○ | ○ | ○ | |
| Note:"●"In Table Is Standard Outfits,"○"Is Optional Accessories"-"Is Unavailable | |||||
Technical specifications
| Dimensions | L 79 × W 58 × H 52 cm |
|---|---|
| Manufacturer | Kalstein |
