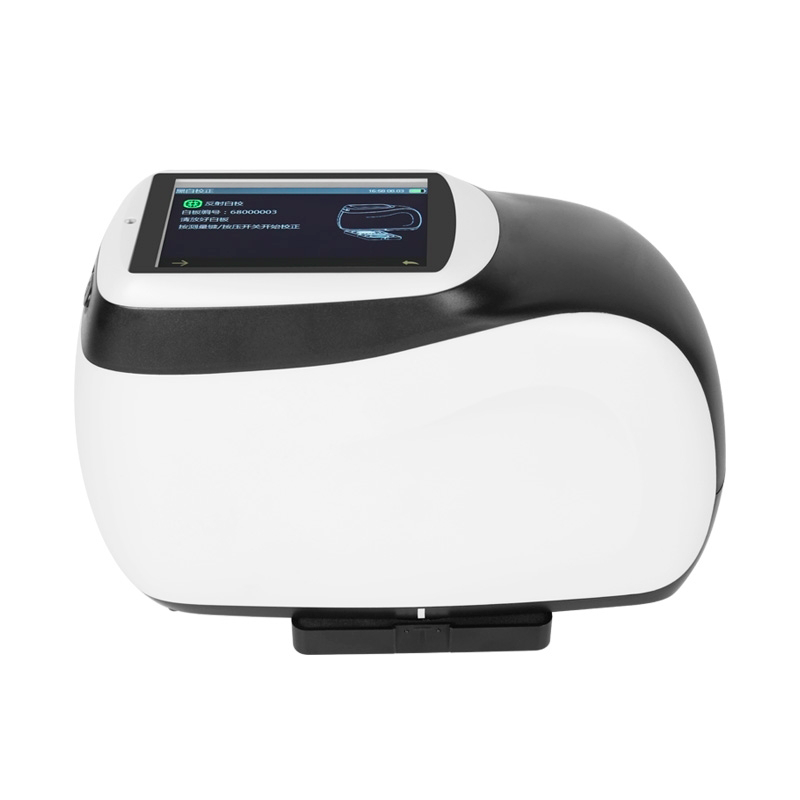

Multi-Angle Spectrophotometer with 3 Angles YR05488 // YR05489

ManufacturerKalstein

Description

The Multi-Angle Spectrophotometer with 3 Angles YR05488 // YR05489 is an advanced instrument designed by Kalstein, perfect for measuring color variations in products with special finishes like metallic and pearlescent coatings. Highly suited for industries such as automotive, cosmetics, and plastics, this device excels in multi-angle measurements at 25°, 45°, and 110°, ensuring precision. It integrates a dual-array 256 CMOS sensor and a full-spectrum LED light source with blue enhancement, delivering consistent accuracy even on curved surfaces. Its user-friendly 3.5-inch touchscreen and concave grating technology enhance analysis and display results, adhering to international standards like ASTM, ISO, and DIN.

Market Price

When considering an investment in color measurement solutions, the Multi-Angle Spectrophotometer offers a competitive market price ranging approximately from $6000 to $9940 USD, depending on the chosen configurations and optional accessories. As a strategic investment, this spectrophotometer enhances accuracy in color control across industrial processes. Businesses can readily obtain a customized or automatically generated quote via the Kalstein Plus platform, facilitating a swift and trustworthy purchasing experience.

Frequently Asked Questions

  • What industries can benefit from the YR05488 // YR05489?
    This spectrophotometer is perfect for industries dealing with metallic, pearlescent, or special finish products, notably the automotive, cosmetics, and plastics sectors.
  • Is PC integration offered?
    Yes, it supports color management software for PC, allowing thorough analysis and comprehensive color data management.
  • What is the storage potential?
    It boasts the ability to store up to 1,000 standards and 4,000 samples, maintaining detailed, organized records.

Advantages and Disadvantages

The main advantage of the YR05488 // YR05489 is its high precision, achieving a standard deviation of ΔE*ab 0.04, and its ability to measure chromatic variations from multiple angles. USB and Bluetooth 5.0 connectivity ensure rapid data transfer. However, its specialization in complex finishes could be a limitation if general color analysis is needed.

Field Applications

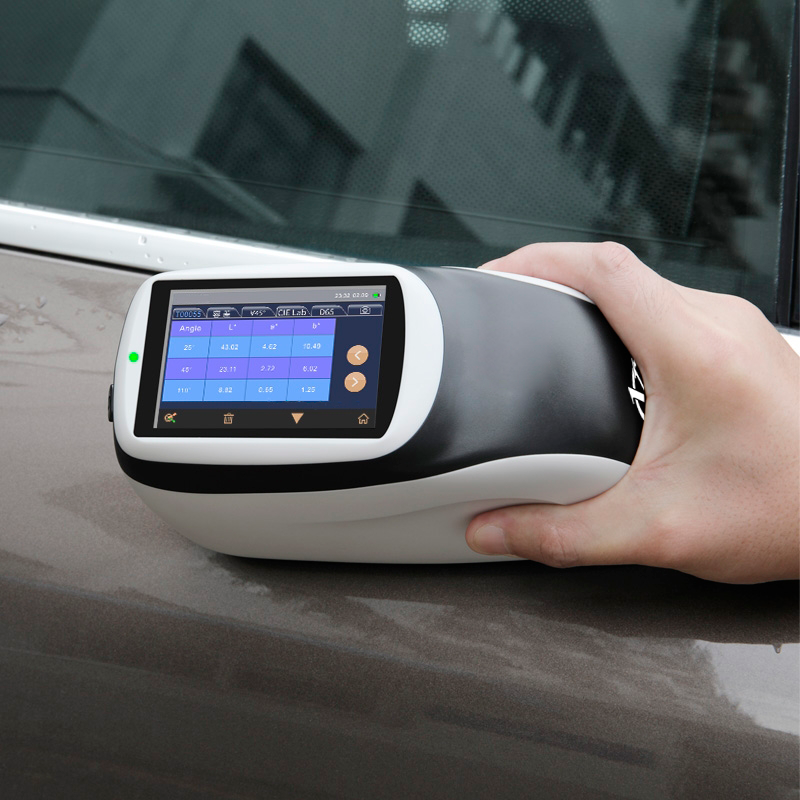

This spectrophotometer is essential for rigorous color quality control in industries such as automotive, cosmetics, and plastics, where precise visual finishes are crucial. With its multi-angle capability and camera preview, it allows accurate positioning and measurement, improving efficiency in labs and production lines. Its ergonomic design and intuitive touchscreen make it highly suitable for industrial environments.

Recommendations

For optimal operation, routine calibrations are recommended, and it’s best to maintain the equipment in a clean, dust-free setting. With a lithium-ion battery providing up to 6,000 measurements over 8 hours, regular charging is wise. For tailored quotes or automatic generation, visit Kalstein Plus and discover how the Multi-Angle Spectrophotometer YR05488 // YR05489 can elevate color control in your industry, boosting precision and consistency in production processes.

Technical Specifications

Model YR05488 YR05489
Measurement Geometry 3 measurement angles (3 illumination sources, 1 receiver) 5 measurement angles (5 illumination sources, 1 receiver)
Measure Angle 45° Receiver: 45° Receiver:
45as25°, 45as45°, 45as110°
Conform to the standards: ASTM D 2244, E 308, E 1164, E 2194, E2539, DIN 5033, 5036, 6174, 6175-1, 6175-2; ISO 7724, 11664-4 SAE J 1545 Conform to the standards: ASTM D 2244, E 308, E 1164, E 2194, E2539, DIN 5033, 5036, 6174, 6175-1, 6175-2; ISO 7724, 11664-4 SAE J 1545
Application Provide accurate and consistent color measurement for metallic, pearlescent, and other complex special effect color products Provide accurate and consistent color measurement for metallic, pearlescent and other complex special effect color products
Light Source Full spectrum LED light source with blue enhancement Full spectrum LED light source with blue enhancement
Lamp Life 5 years, 3 million times measurements 5 years, 3 million times measurements
Spectrophotometric Mode Concave Grating Concave Grating
Sensor 256 Image Element Double Array CMOS Image Sensor 256 Image Element Double Array CMOS Image Sensor
Wavelength Range 400nm-700nm 400nm-700nm
Wavelength Interval 10nm 10nm
Measurement Range 0~600% 0~600%
Semiband Width 10nm 10nm
Measuring Aperture Φ12mm Φ12mm
Color Space CIE LAB, XYZ, Yxy, LCh, βxy, DIN Lab99 CIE LAB, XYZ, Yxy, LCh, βxy, DIN Lab99
Color Difference Formula ΔE*ab, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00, DINΔE99, ΔE DIN6175 ΔE*ab, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00, DINΔE99, ΔE DIN6175
Other Colorimetric Index Flop Index Flop Index
Observer Angle 2°/10° 2°/10°
Illuminant D65, A, C, D50, D55, D75, F1, F2(CWF), F3, F4, F5, F6, F7(DLF), F8, F9, F10(TPL5), F11(TL84), F12(TL83/U30) D65, A, C, D50, D55, D75, F1, F2(CWF), F3, F4, F5, F6, F7(DLF), F8, F9, F10(TPL5), F11(TL84), F12(TL83/U30)
Display Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset
Measuring Time Approx. 1 second for one angle Approx. 1 second for one angle
Approx. 3 seconds for all angles Approx. 5 seconds for all angles
Repeatability Spectral reflectance: Standard deviation within 0.08% Spectral reflectance: Standard deviation within 0.08%
Chromaticity value: ΔE*ab 0.04 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration) Chromaticity value: ΔE*ab 0.03 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Reproducibility ΔE*<0.10, avg on the gray tile of BCRA tile set ΔE*<0.10, avg on the gray tile of BCRA tile set
ΔE*<0.25, avg on the color BCRA tile set ΔE*<0.25, avg on the color BCRA tile set
Inter-instrument Error 0.2ΔE*00(avg on reference Series II BCRA tile set) 0.2ΔE*00(avg on reference Series II BCRA tile set)
Effect Parameters / /
Effect Measurement / /
Effect Repeatability / /
Effect Reproducibility / /
Trigger mode Pressure sensing trigger, button trigger, software trigger Pressure sensing trigger, button trigger, software trigger
Measuring Mode Single measurement, average measurement (1-99), continuous measurement (1-99) Single measurement, average measurement (1-99), continuous measurement (1-99)
Locating Mode Color camera preview Color camera preview
Dimension L*W*H=195X83X128mm L*W*H=195X83X128mm
Weight About 1Kg About 1Kg
Power lithium-ion battery, 3.7V, 3200mAh, Continuous test 6000 times within 8 hours of full charge lithium-ion battery, 3.7V, 3200mAh, Continuous test 6000 times within 8 hours of full charge
Display 3.5-inch TFT color LCD, Capacitive Touch Screen 3.5-inch TFT color LCD, Capacitive Touch Screen
Interface USB USB, Bluetooth 5.0
Data Storage 1000 pcs Standards, 4000 pcs Samples 1000 pcs Standards, 4000 pcs Samples
Language Simplified Chinese, Traditional Chinese, English Simplified Chinese, Traditional Chinese, English
Operating Environment 10℃ to 50℃, humidity does not exceed 85%, no condensation 10℃ to 50℃, humidity does not exceed 85%, no condensation
Storage Environment -20℃ to 50℃, humidity does not exceed 85%, no condensation -20℃ to 50℃, humidity does not exceed 85%, no condensation
Calibration Built-in white board parameters, external white board, black light trap Built-in white board parameters, external white board, black light trap
Calibration Interval 4 hours, 8 hours, 24 hours, Startup calibration 4 hours, 8 hours, 24 hours, Startup calibration

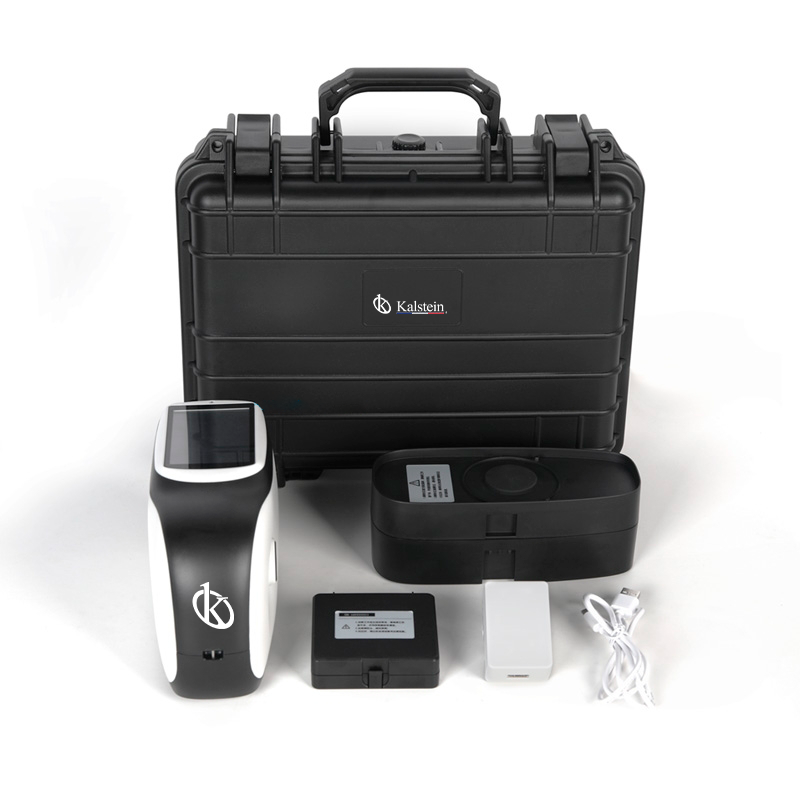

Standard accessories Power Adapter, USB Cable, User Guide, PC Software (download from the official website), Calibration Board, black light trap, Protective cap, wristband Power Adapter, USB Cable, User Guide, PC Software (download from the official website), Calibration Board, black light trap, Protective cap, wristband
Optional Accessory Micro-printer Micro-printer
Notes Technical parameters are for reference only, subject to actual sales products. Technical parameters are for reference only, subject to actual sales products.

Additional information

Weight 3 kg
Dimensions 34 × 13 × 29 cm
Model

YR05488, YR05489
