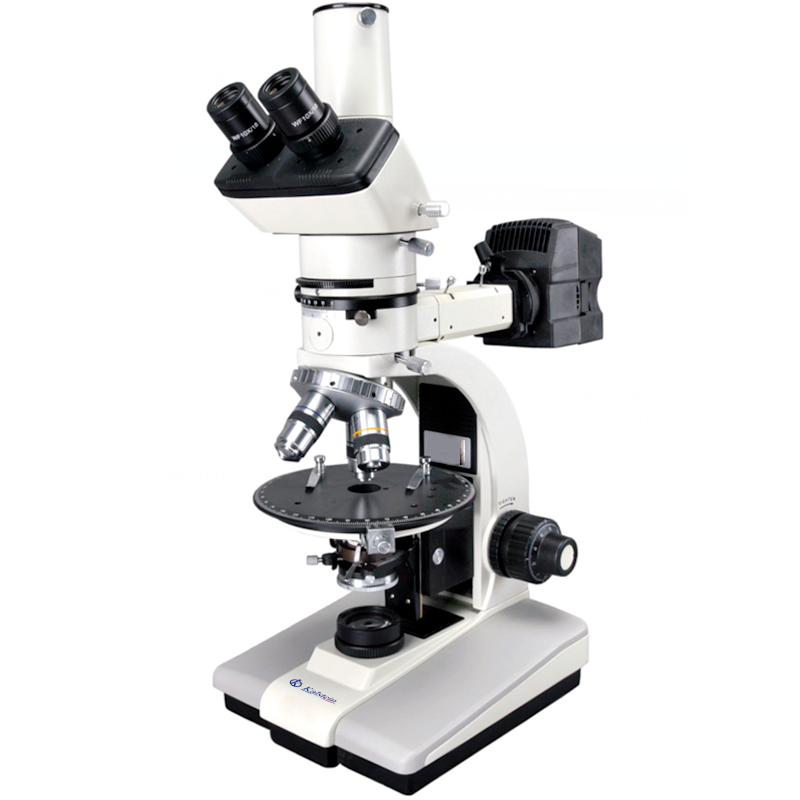

Polarizing Microscope YR0264 - YR0265
Polarizing Microscope YR0264 - YR0265 — Kalstein laboratory equipment with technical specifications, advanced features, and certified professional solutions for scientific use.
The Polarizing Microscope YR0264 - YR0265 is an essential tool for professionals in fields such as crystallography, geology, analytical chemistry, medicine, and biology. This microscope is designed for both educational purposes and high-precision inspections, featuring capabilities like single polarization, orthogonal polarization, and conoscopic observation. Built with robust specifications, it supports comprehensive analysis in various scientific disciplines.
Market Price
The market price for the Polarizing Microscope generally ranges between USD 3,500 and USD 4,300. This range ensures that the product is accessible for institutions and professionals looking for quality optical instruments at competitive prices.
Frequently Asked Questions
1. What are the main applications of this polarizing microscope?
This microscope is widely used in disciplines such as crystallography, geology, and medicine, thanks to its advanced polarization capabilities.
2. Does it come with a warranty?
Yes, the Polarizing Microscope YR0264 - YR0265 includes a standard manufacturer's warranty covering parts and labor for a specified period.
3. How does this model compare to others in its range?
It stands out due to its versatility in inspection techniques and its precision-based components, making it optimal for detailed research tasks.
Advantages and Disadvantages
The primary advantages of the Polarizing Microscope include its advanced polarization techniques, precise optical components, and robust build quality designed for scientific use. One potential drawback could be its premium price range, which might not be suitable for all budgets. However, its longevity and performance often justify the investment in the long term.
Product Use in the Field
In practical scenarios, the Polarizing Microscope is instrumental in identifying mineral properties, conducting detailed crystalline structure examinations, and performing reliable asbestos analysis. Its adaptability makes it a valuable asset in both field studies and laboratory settings, providing clarity and precision that are crucial for accurate analysis.
Recommendations
To maximize the lifespan and maintain the precision of the Polarizing Microscope, regular cleaning of optical components and periodic calibration are recommended. It’s also beneficial to follow manufacturer guidelines on storage and use to ensure optimal performance.
Features
- Sliding binocular and trinocular viewing heads with 45° inclination for comfortable observation.
- Wide field eyepieces WF10×/18 with crosshair and graticule options.
- Strain-free achromatic objectives catering to diverse magnification needs.
- Coaxial coarse and fine adjustments with a focusing range of 28mm.
- Fully rotatable analyzer and polarizer for dynamic observation capabilities.
- Adjustable illumination using halogen lamps for consistent brightness control.
Technical Specifications
| Model | YR0264 | YR0265 | |
| Head | Sliding Brinocular Viewing Head, Inclined at 45° | ● | - |
| Sliding Trinocular Viewing Head, Inclined at 45° | - | ● | |
| Eyepiece | Eyepiece WF10×/18 with scale of cross hair | ● | ● |
| Eyepiece WF10×/18 with graticule | ● | ● | |
| WF10x/18 | ● | ● | |
| Objective | Strain Free Achomatic Objective 4x,10x,25x,40x, 63x | ● | ● |
| Strain Free Plan Achomatic Objective 25x,40x, 63x | ● | ● | |
| Nosepiece | Backward quadruple nosepiece, Center adjustable | ● | ● |
| Focusing | Coaxial coarse & fine adjustment, Range 28mm,Fine division 0.002mm | ● | ● |
| Stage | Revolving Round Stage Diameter Φ160mm, Graduated in 1° Increments, Minimum resolution 6’ when using vernier scale | ● | ● |
| Mechanical stage, Moving rang 30X40mm | ● | ● | |
| Condenser | NA1.25 Abbe condenser with iris diaphragm & filter | ● | ● |
| Analyzer | Rotatable analyzer with gradation 0°-90° | ● | ● |
| Polarizer | 360° Rotatable | ● | ● |
| Bertrand Lens | Bertrand Lens,sliding in/out of optical path | ● | ● |
| Optical Compensator | λ Slip（First class red）, 1/ 4λ Slip, Quartz wedge | ● | ● |
| Illumination | 12V/20W Halogen lamp, Brightness adjustable（Transmitted illumination） | ● | ● |
| 12V/50W Halogen lamp, Brightness adjustable（Reflected illumination） | ● | ● | |
| Micrometer | ● | ● | |
Technical specifications
| Dimensions | L 39 × W 28 × H 64 cm |
|---|---|
| Weight | 15 kg |
| Manufacturer | Kalstein |
Available models
Video Polarizing Microscope YR0264 - YR0265
Frequently asked questions
How to know the prices of Polarizing Microscope YR0264 - YR0265?
To know the price of Polarizing Microscope YR0264 - YR0265, please send us an email with your request through the contact form AQUI.
What are the delivery times for Polarizing Microscope YR0264 - YR0265?
Delivery time depends on stock availability and freight type (air or sea). In stock: air 15-30 days, sea 45-60 days. Out of stock: air 30-60 days, sea 60-90 days.
How to make a purchase of Polarizing Microscope YR0264 - YR0265?
You can buy by email ([email protected]), phone (+33 (0) 1 70 39 26 50) or through the official Kalstein website in your country.
How does the warranty work for Polarizing Microscope YR0264 - YR0265?
All Kalstein equipment comes with a 1-year warranty against manufacturing defects. The warranty does not cover damage from improper installation or misuse. See our «terms and conditions» AQUI.
Can I request a quote online for Polarizing Microscope YR0264 - YR0265?
Yes, you can request a quote for the Kalstein equipment you are interested in directly from our official website. Click AQUI.
