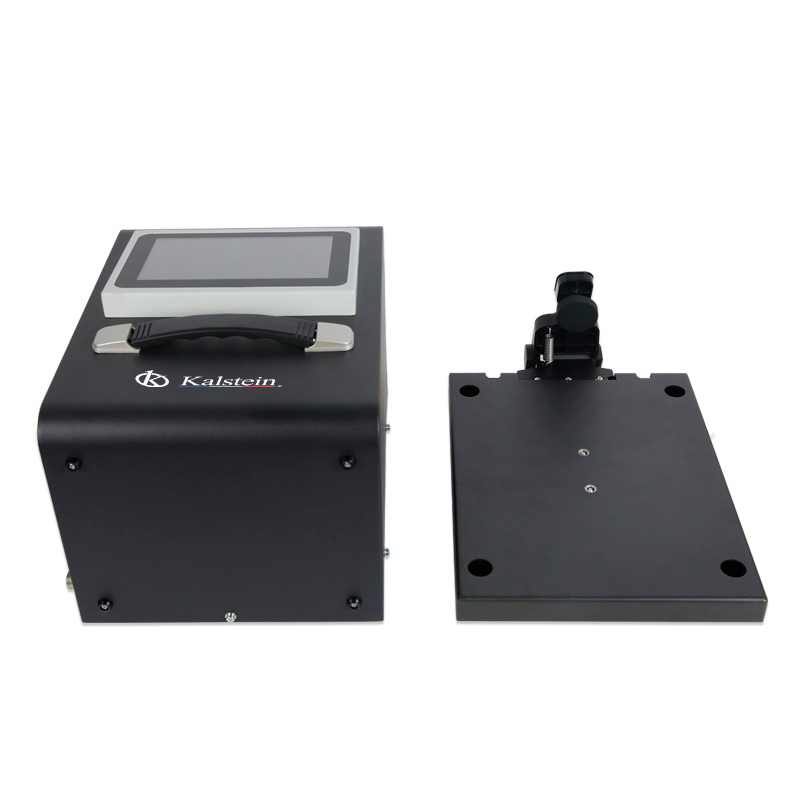

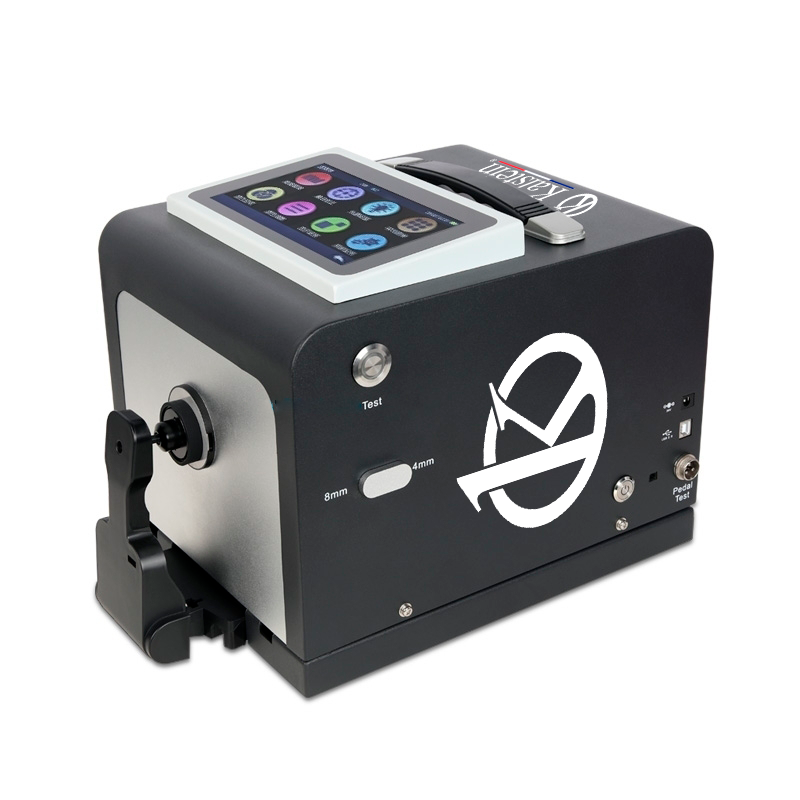

Portable Desktop spectrophotometer YR05487

ManufacturerKalstein

Description

The Portable Desktop Spectrophotometer YR05487 is a cutting-edge device designed for precise color measurement across various industries, including textiles, ceramics, plastics, and electronics. This high-tech spectrophotometer from Kalstein integrates advanced features such as dual-array silicon photodiode sensors and a specialized imported whiteboard, providing exceptional accuracy with repeatability within ΔEab 0.02 and internal error control up to ΔEab 0.15. With customizable apertures of Φ4 mm and Φ8 mm, it caters to large and fluorescent samples, allowing precise analysis in both horizontal and vertical orientations. Its integrated positioning camera and a user-friendly 7-inch touchscreen facilitate the visual management of the measurement area, enhancing both efficiency and precision in every reading.

Market Price

The YR05487 is valued in the market in a competitive price range of approximately $7,500 to $8,000 USD, depending on the configuration and additional accessories like an optional micro printer or rotating stand. Investing in this device is strategic for companies looking to refine their color control processes with precision. For a personalized quote, you can easily generate an estimate through the Kalstein Plus platform, ensuring a seamless and reliable purchase experience.

Frequently Asked Questions

  • What industries benefit most from using the YR05487?
    This device is particularly beneficial for sectors requiring precise color measurement, including textiles, ceramics, and plastics.
  • Does the YR05487 support PC connectivity?
    Yes, it comes with color management software compatible with PCs, aiding in detailed analysis and comprehensive color data management.
  • What storage capacity does the device offer?
    The YR05487 can store up to 1,000 standards and 20,000 samples, ideal for maintaining an organized and detailed record.

Advantages and Disadvantages

The YR05487 boasts significant advantages such as high precision and a versatile design suitable for measuring large and fluorescent samples. Its USB connectivity and Bluetooth 5.0 compatibility ensure quick and secure data transfer. However, it may have limitations for use in compact workspaces or tasks not requiring such high precision, given its focus on laboratory applications.

Field Applications

This spectrophotometer is effectively employed in quality control laboratories where precise color analysis is essential. Its ergonomic design and ability to operate in various orientations make the YR05487 highly adaptable to different working conditions. Additionally, its SCI/SCE function enables fast and detailed measurement in approximately 3.2 seconds, ensuring consistent results and enhancing efficiency at each stage of the production process.

Recommendations

To ensure optimal performance of the YR05487, regular calibrations are recommended. The device should be maintained in a clean, dust-free environment. Its full-spectrum LED light source and ultraviolet light ensure precise measurements even under special conditions. Request a personalized quote or quickly generate an estimate on Kalstein Plus to discover how the Portable Desktop Spectrophotometer YR05487 can enhance color control in your industry, improving precision at each production stage and ensuring the visual quality of your products.

Features

  • Dual-array silicon photodiode sensors
  • Customizable apertures: Φ4 mm and Φ8 mm
  • Integrated positioning camera with a 7-inch touchscreen
  • USB and Bluetooth 5.0 compatibility
  • Capability to store up to 20,000 samples

Technical Specifications

Model YR05487
Optical Geometry D/8(diffused illumination, 8-degree viewing angle)
SCI (specular component included)/SCE (specular component excluded) ;  Include UV / excluded UV light source
Comply to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
Characteristic Customized aperture,good for horizontal or vertical measurement, wider adaptability;
Suitable for precise color measurement and quality control in textile and garment printing and dyeing, plastic electronics, ceramics and other industries;
Integrating Sphere Size Φ40mm
Light Source Combined full spectrum LED light source
Spectrophotometric Mode Flat Grating
Sensors Silicon photodiode array (double row 40 groups)
Wavelength Range 400~700nm
Wavelength Interval 10nm
Semiband Width 10nm
Measured Reflectance Range 0~200%
Measuring Aperture Customized single aperture:MAV:Φ8mm/Φ10mm;SAV:Φ4mm/Φ5mm
Specular Component SCI/SCE
Color Space CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,βxy,Munsell(C/2)
Color Difference Formula ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),

ΔE*cmc(1:1),ΔE*00

Other Colorimetric Index WI(ASTM E313,CIE/ISO,AATCC,Hunter),
YI(ASTM D1925,ASTM 313),
Staining Fastness, Color Fastness, Color Strength, Opacity
8° Glossiness,555 tone classification
Observer Angle 2°/10°
Illuminant D65,A,C,D50,F2(CWF),F7(DLF),

F10(TPL5),F11(TL84),F12(TL83/U30)

Displayed Data Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset
Measuring Time About 1.5s (Measure SCI & SCE about 3.2s)
Repeatability Chromaticity value: MAV/SCI, within ΔE*ab 0.025 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument Error MAV/SCI, Within ΔE*ab 0.2

(Average for 12 BCRA Series II color tiles)

Measurement Mode Single Measurement, Average Measurement(2-99times)
Locating Method Camera Locating
Dimension L*W*H=370X240X260mm
Weight About 7.8kg
Battery AC 24V, 3A Power adapter power supply
Illuminant Life Span 5 years, more than 3 million times measurements
Display 7-inch TFT color LCD, Capacitive Touch Screen
Data Port USB, trigger switch interface
Data Storage Standard 1000 Pcs, Sample 20000 Pcs
Language Simplified Chinese, English, Traditional Chinese
Operating Environment 0~40℃, 0~85%RH (no condensing), Altitude < 2000m
Storage Environment  -20~50℃, 0~85%RH (no condensing)
Standard Accessory Power Adapter, USB Cable, User Guide, PC Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Aperture (Optional Aperture)

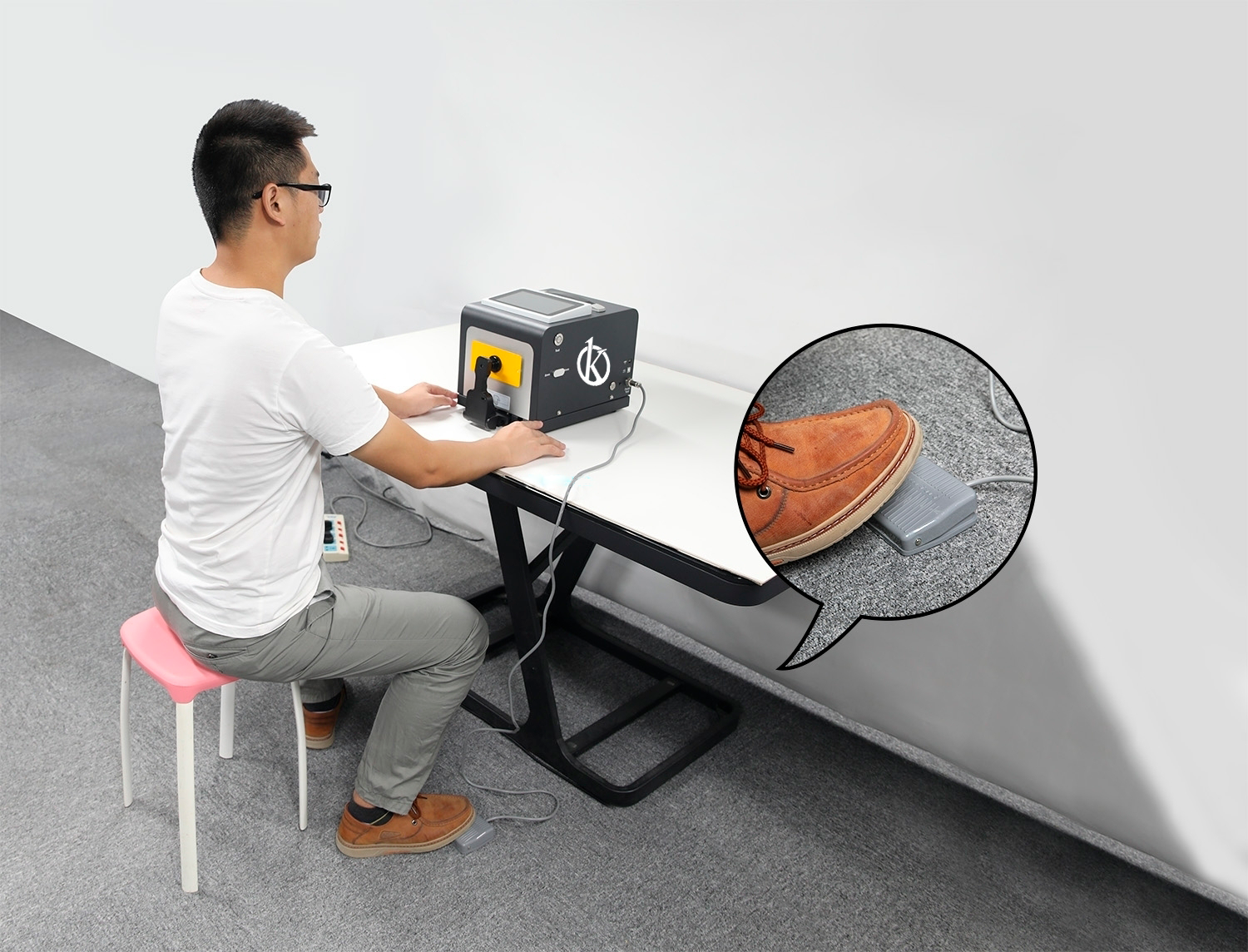

Optional Accessory Micro Printer, Foot Switch, Rotating Bracket
Notes Technical parameters are only for reference, subject to the actual sale of the product

Additional information

Weight 12 kg
Dimensions 45 × 32 × 35 cm
