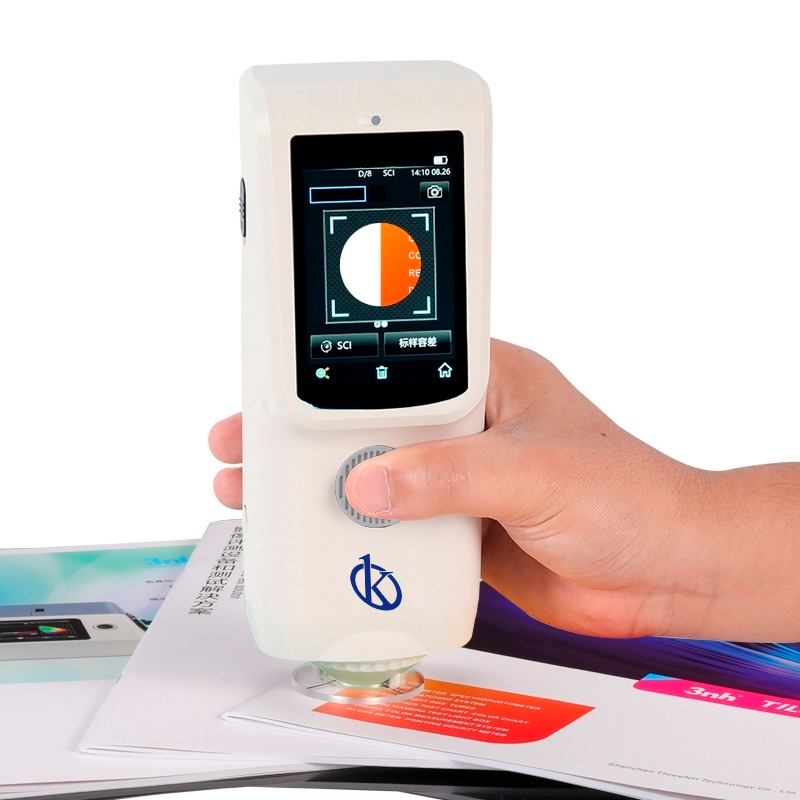

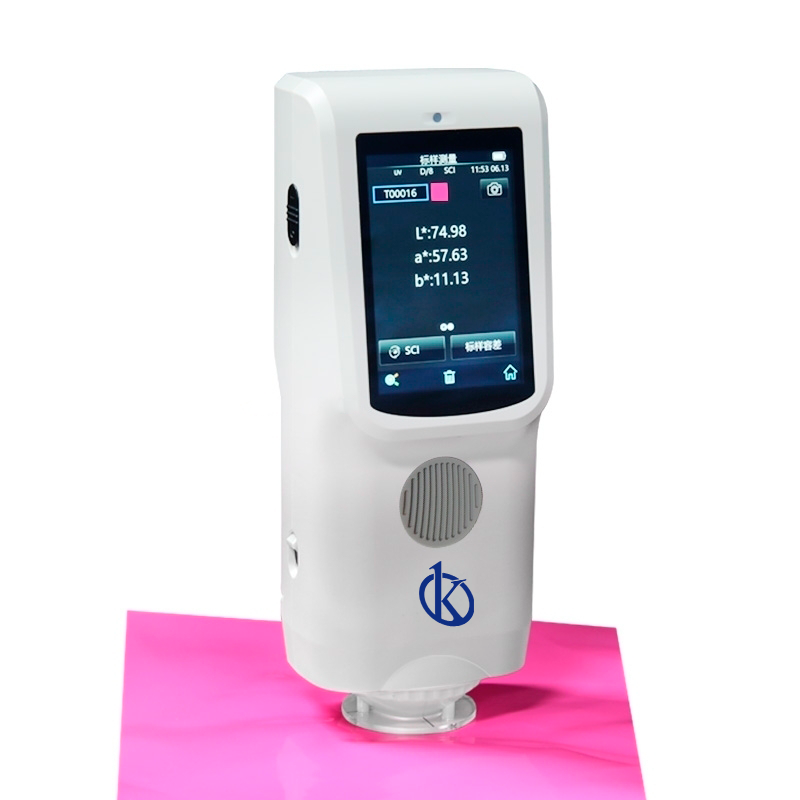

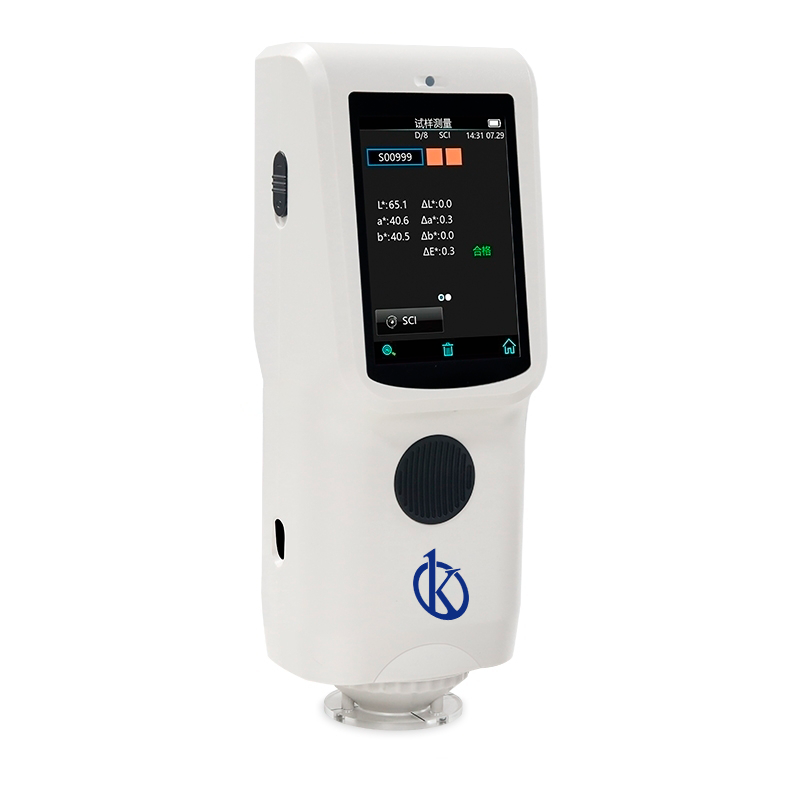

Spectrocolorimeter YR05516 – YR05517

ManufacturerKalstein

Description

The Spectrocolorimeter YR05516 – YR05517 from Kalstein represents the pinnacle of technological advancement in color difference measurement. Known for its portability and precision, this sophisticated device utilizes a dual-row 24 silicon photodiode array sensor, ensuring high-level accuracy in colorimetric values and consistent performance standards. Whether you’re working in ceramics, plastics, textiles, or electronics, this spectrocolorimeter is designed to meet rigorous industry demands with its vast measurement capacity and reliable operation.

Market Price

The Spectrocolorimeter YR05516 – YR05517 is competitively priced in the market, with similar high-precision instruments ranging from approximately $3600 to $4400 USD. This investment in quality and accuracy is ideal for businesses focused on maintaining stringent color standards for their products.

Frequently Asked Questions

Q: What industries is the Spectrocolorimeter suitable for?

A: This device is perfect for use in plastics, electronics, paint, textile printing and dyeing, ceramics, and other industries requiring precise color measurement.

Q: Does it require connection to a computer?

A: No, the Spectrocolorimeter can function and display results independently without the need for external software or computer connection.

Advantages and Disadvantages

Advantages:

  • High precision with ΔE*ab repeatability of 0.1 within seconds.
  • Long-lasting LED light source life exceeding 3 million measurements.
  • Portable design that operates autonomously.
  • Robust storage capacity for over 10,000 sample readings.

Disadvantages:

  • Initial investment may be high for businesses with limited budgets.
  • Requires periodic calibration to maintain optimal accuracy.

Field Use

The Spectrocolorimeter YR05516 – YR05517 is designed for ease of use in various field scenarios, from quality control in a textile factory to assessing paint color consistency in automotive manufacturing. Its portable nature allows technicians to swiftly move between jobs and make immediate, reliable color assessments without downtime or additional equipment.

Recommendations

For optimal performance, it is recommended to regularly calibrate the Spectrocolorimeter using the provided white and black calibration plates. Also, ensure your batteries are adequately charged to prevent downtime during critical measurements. Consider using protective covers provided to keep the device safe from dust and damage when not in use.

Features

  • Φ 8 mm diameter measurement, 10° angle accommodates most industry needs.
  • Full-spectrum LED light source and capacitive touch screen for top-tier functionality.
  • Measurement quickness and volume storage make it an ideal solution for high-throughput environments.

Technical Specifications

Model YR05516 YR05517
Optical Geometry D/8 (diffused illumination, 8-degree viewing angle) D/8 (diffused illumination, 8-degree viewing angle)
SCI/SCE Mode SCI/SCE Mode
Comply to CIE No.15,GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7 Comply to CIE No.15,GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7
Characteristic double apertures, more adaptability; Used for accurate color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries single apertures, more adaptability; Used for accurate color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries
Integrating Sphere Size Φ40mm Φ40mm
Light Source Combined full spectrum LED light source, UV light source Combined full spectrum LED light source, UV light source
Spectrophotometric Mode Flat Grating Flat Grating
Senso Silicon photodiode array (double row 32 groups) Silicon photodiode array (double row 32 groups)
Wavelength Range 400~700nm 400~700nm
Wavelength Interval 10nm 10nm
Semiband Width 10nm 10nm
Measured Reflectance Range L:0~120; reflectivity:0~200% L:0~120; reflectivity:0~200%
Measuring Aperture Dual Apertures:MAV:Φ8mm/Φ10mm;SAV:Φ4mm/Φ5mm Single Apertures:Φ8mm/Φ10mm
Specular Component SCI/SCE SCI/SCE
Color Space CIE LAB, XYZ, Yxy, LCh, CIE LUV, s-RGB, βxy, DIN Lab9, DIN CIE LAB, XYZ, Yxy, LCh, s-RGB, βxy, Munsell(C/2)
Lab99 Munsell(C/2)
Color Difference Formula ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00, DINΔE99 ΔE*ab, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00, DINΔE99
Other Colorimetric Index WI(ASTM E313, CIE/ISO, AATCC, Hunter), YI(ASTM D1925, ASTM 313), Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity, Color Card Search WI(ASTM E313, CIE/ISO, AATCC, Hunter), YI(ASTM D1925, ASTM 313), Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity,Color Card Search
Observer Angle 2°/10° 2°/10°
Illuminant D65, A, C, D50, D55, D75, F1, F2(CWF), F3, F4, F5, F6, F7(DLF), F8, F9, F10(TPL5), F11(TL84), F12(TL83/U30) D65, A, C, D50, F2(CWF), F7(DLF), F10, (TPL5), F11(TL84), F12(TL83/U30)
Displayed Data Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset
Displayed Accuracy 0.01 0.01
Measuring Time About 1.5s (Measure SCI & SCE about 3.2s) About 1.5s (Measure SCI & SCE about 3.2s)
Repeatability Chromaticity value: MAV/SCI, within ΔE*ab 0.05 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration) Chromaticity value: MAV/SCI, within ΔE*ab 0.06 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument Error MAV/SCI, Within ΔE*ab 0.3 (Average for 12 BCRA Series II color tiles) MAV/SCI, Within ΔE*ab 0.3 (Average for 12 BCRA Series II color tiles)
Measurement Mode Single Measurement, Average Measurement(2-99times) Single Measurement, Average Measurement(2-99times)
Locating Method Camera Locating, stabilizer cross position Camera Locating, stabilizer cross position
Dimension L*W*H=81X71X214mm L*W*H=81X71X214mm
Weight About 460g About 460g
Battery Li-ion battery, 6000 measurements within 8 hours Li-ion battery, 6000 measurements within 8 hours
Illuminant Life Span 5 years, more than 3 million times measurements 5 years, more than 3 million times measurements
Display 3.5-inch TFT color LCD, Capacitive Touch Screen 3.5-inch TFT color LCD, Capacitive Touch Screen
Data Port USB, Bluetooth 5.0 USB
Data Storage Standard 1000 Pcs, Sample 30000 Pcs (One data is able to include SCI/SCE) Standard 1000 Pcs, Sample 20000 Pcs (One data is able to include SCI/SCE)
Language Simplified Chinese, English, Traditional Chinese Simplified Chinese, English, Traditional Chinese
Operating Environment 0~40℃, 0~85%RH (no condensing), Altitude < 2000m 0~40℃, 0~85%RH (no condensing), Altitude < 2000m
Storage Environment -20~50℃, 0~85%RH (no condensing) -20~50℃, 0~85%RH (no condensing)

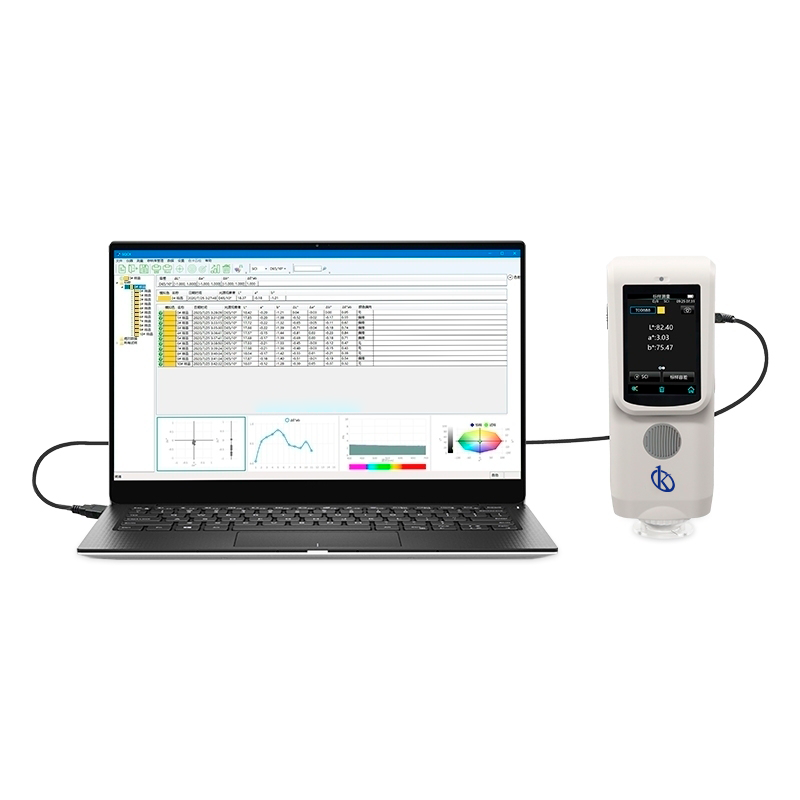

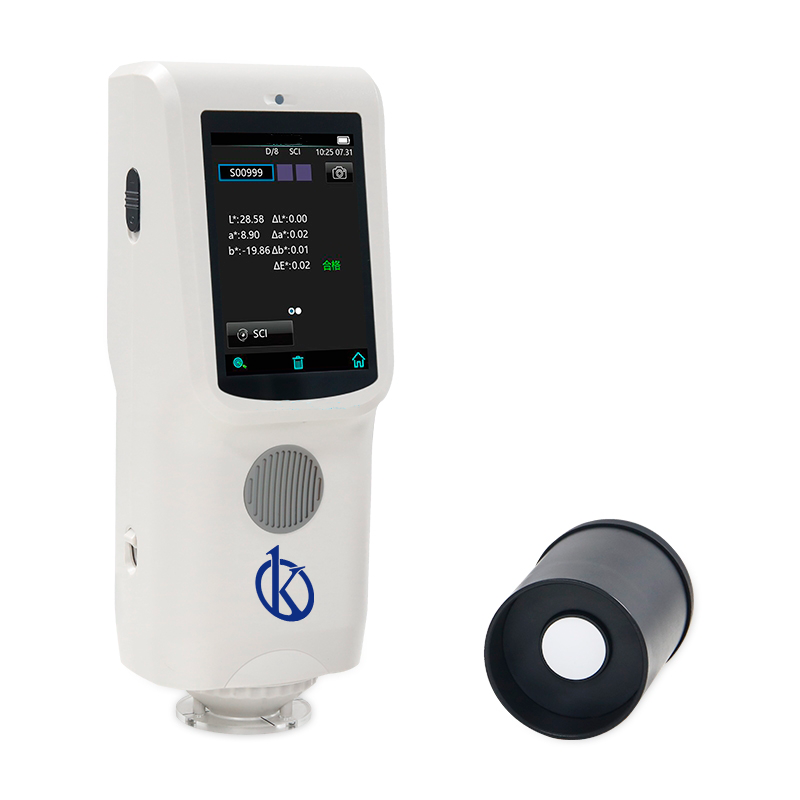

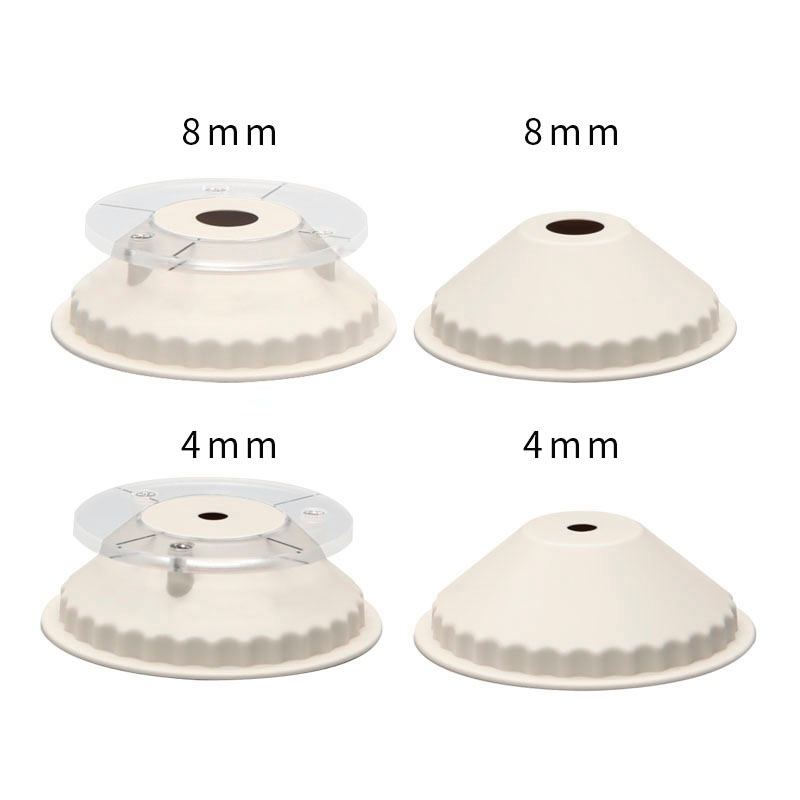

Standard Accessory Power Adapter, USB Cable, User Guide, SQCX Software (Download from office website), White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture, 8mm tip aperture, 4mm flat aperture, 4mm tip aperture Power Adapter, USB Cable, User Guide, SQCX Software (Download from office website), White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture, 8mm tip aperture
Optional Accessory USB Micro Printer, Powder Test Box, Bluetooth Micro Printer USB Micro Printer, Powder Test Box
Notes Technical parameters are only for reference, subject to the actual sale of the product Technical parameters are only for reference, subject to the actual sale of the product

Additional information

Weight 2 kg
Dimensions 38 × 13 × 31 cm
Model

YR05516, YR05517
